Meec Tools 015255 600 W Hydrophone Pump

SAFETY INSTRUCTIONS

• Familiarise yourself with the controls on the product and how to use them. Read all the instructions and safety instructions before use. Failure to follow all the instructions and safety instructions can lead to the risk of electric shock, serious personal injury, and/or material damage.
• Contact the retailer or qualified personnel if you have any problems or questions.
• Store these instructions so that they are readily available for everyone who uses the product. These instructions should be enclosed with the product if it is sold or passed on.
• Qualified personnel must carry out repairs. Imperfect repairs can result in a risk of electric shock, serious personal injury, and/or material damage.
• Do not pull the power cord to pull out the plug.
• Do not allow the power cord to hang over the edge of a table or worktop, or to come in contact with hot surfaces. Avoid kinking or bending the power cord.
• Do not use the product to transport corrosive, flammable, or explosive substances such as petrol or other petroleum products, nitrogenous liquids, grease, oil, salt water, or waste water from toilets, or liquid that has a higher viscosity than water.
• The temperature of the pumped liquid must not exceed 35°C.
• Keep this product out of the reach of children.
• Do not use the product if there are any persons in the water.
• Make sure the product does not suck up aquatic animals, such as fish.
• Pay attention to the risk of contaminating the liquid as a result of leaking lubricant.
• Protect electrical connections from moisture.
• Do not expose the product to temperatures below 0°C. Make sure that the product is not run without liquid.

Description

Energy-saving fully automatic hydrophore pump that, with its 600 W, delivers an impressive flow of 3100 l/h and is perfect for a fully automatic water supply or circulation under constant pressure. Complete with a manometer. Max water temperature 35°C.

PUMPABLE LIQUIDS

• Processed water
• Well water
• Water from a spring
• Rainwater
• Pool water (on the assumption that additives are correctly dosed)

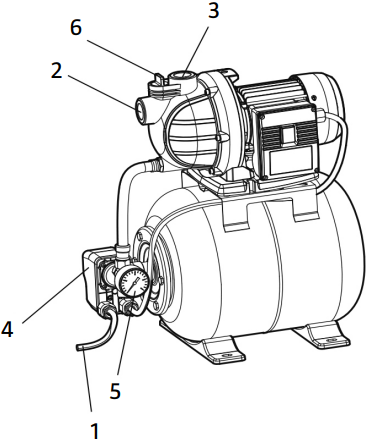

Parts

1. Power cord and plug
2. Water inlet
3. Water outlet
4. Mechanical pressure switch
5. Pressure gauge
6. Cap over refill opening

Before Use

1. Check that the mains voltage corresponds to the rated voltage on the type plate.
2. Remove the product from the packaging and place it on a level, stable surface. Fix in place with screws (sold separately) if necessary.
3. Connect the suction hose to the water inlet and the outlet hose to the water outlet.
4. Open the refill opening cap and fill with water until it runs over. Replace the cover.

5. Plug in the plug and start the pump.
6. Switch off the product and pull out the plug after use. Drain the water from the product by opening the drain on the pump. The water in the tank can also be drained, as shown in the figure.

Technical Data

• Rated voltage 230 V ~ 50 Hz
• Nominal input power 600 W
• Pump pressure 2.6 bar
• Tank volume 19 L
• Flow 51.6 l/min
• Lifting height max 35 m
• Suction height max 8 m
• Water temperature max 35°C
• Ambient temperature max 40°C
• Safety class I
• Protection rating IPX4
• Cord length 1 m
• Inlet connection 1″(R25)
• Outlet connection 1″ (R25)
• Size L44 x W27 x H48 cm
• Weight 10.6 Kg
• LpA¹ 60.8 dB(A), K=2.8 dB
• LwA² 73.7 dB(A), K= 2.8 dB
• LwA³ 77 dB(A)

Maintainance

REPAIRS

Any repairs and replacement of spare parts should be carried out by an authorised service centre; otherwise, there is a risk of personal injury and/or material damage. Switch off the product and pull out the plug before working on it.

Troubleshooting

Problem

• The product runs, but delivers no water.
• The product does not work, or suddenly stops when running
• The motor starts again immediately after switching off.
• The transported amount of water is too little.
• Vibrating noise when water is taken out.

Cause

• Air in the pump. Air does not come out on the outlet side.
• Power supply disconnected. The overheating protection trips and switches off the product.
• The pressure in the system drops quickly. Air pressure is too low in the storage tank.
• The non-return valve does not close properly. The diaphragm in the pressure tank is damaged.
• The inlet filter is dirty, or the non-return valve does not close properly.
• The transported amount of water depends on the total lifting height and the arrangement of the lines.
• The pre-filter is dirty. The diaphragm in the pressure tank vibrates.

Action

• See section on preparations. Open the tap on the outlet side. Check fuses and connections.
• Pull out the plug, allow the product to cool, and clear the intake system. Prevent dry running.
• Check all the connections and seals, and check the Meec Tools 015255 600 W Hydrophone Pump water outlet. Even a very minor leakage has an adverse effect.
• Adjust the air pressure in the storage tank to 2.0 bar.
• Check the non-return valve on the suction side.
• Replace the diaphragm. Clean the inlet filter or non-return valve.
• Do not exceed the maximum permitted lifting height as per the section on technical data.
• Use lines with another diameter and/ or length. Remove the filter and clean under running water.
• Noise can be reduced by reducing the air pressure in the storage tank.

Limited Warranty

Normal Wear: Many power tools need periodic parts replacement and service to achieve the best performance. This warranty does not cover repair when normal use has exhausted the life of a part, including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover.

Customer Support

• Website: https://www.jula.se/varumarken/meec-tools/
• Tel: +39-0645652462

FAQs

What is the Meec Tools 015255 Hydrophone Pump used for?

This pump is made to supply water to small-scale water distribution activities, irrigation systems, and home systems from wells, tanks, or reservoirs.

How powerful is the pump?

It has a 600 W motor that offers steady pressure and dependable suction for regular household water pumping requirements.

What type of water can it handle?

The pump is designed for water that is either clean or somewhat dirty and devoid of big particles. It works best with naturally clean or filtered water sources.

Does it come with an integrated pressure switch?

Hydrophone-style pumps typically include a pressure tank or pressure switch system. Depending on the kit version, your model may come with built-in pressure control. Always check your product packaging or manual for specifics.

What is the maximum suction depth?

The majority of 600 W home jet/hydro pumps are capable of drawing water from intermediate depths. For precise figures, consult your handbook; for pumps in this class, the usual suction depth is between 7 and 9 meters.

Is it suitable for continuous operation?

It is designed for intermittent household use. While durable, it should not run dry or operate for long periods without breaks to avoid overheating.

Does the pump need priming?

Indeed. It needs to be primed with water both before the first use and each time the system is emptied, just like the majority of surface-mounted hydro pumps.

Can it be used outdoors?

Yes, however in order to shield the motor and electrical components from moisture and rain, it should be positioned in a dry, protected, and well-ventilated area.
