Orbegozo FO 1700 2700 3500 Gas Cooker

Safety Instructions

1. This appliance must be installed according to current regulations.
2. Please read the instructions before installing and using this appliance.
3. Only use outdoors.
4.  Do not move the appliance when in use.
5. Close the gas supply to the bottle after use.
6. Any modification of the appliance may be dangerous.
7. This appliance must be kept away from flammable materials.

All the actions indicated in this manual must be carried out by qualified persons and by applicable regulations. This appliance can work with liquid gas with no need for regulations.

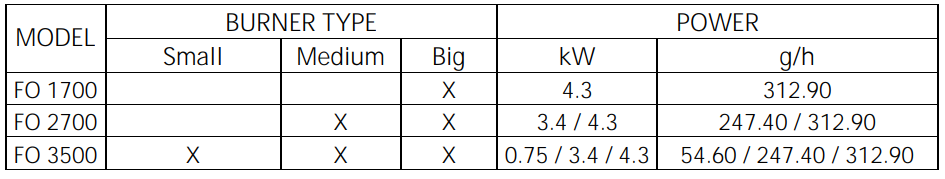

Nominal Consumption

Bottle capacity cannot exceed 10 kg. The rating plate with the characteristics found in the rear of the unit

Installing

Before installing, make sure that the gas type and pressure and the appliance specifications are compatible. The appliance specifications must Orbegozo Gas Cooker be written on the label (or the data plate). The support must resist a temperature of at least 80 degrees Celsius.

Connecting the Gas

This appliance has a label, located on the back of the gas cooker, indicating the gas pressure. Before turning on the appliance, check that it is compatible Orbegozo Gas Cooker with the type of gas and pressure available. To work, the stove must have:

• 1 bottle of gas, only bottled by Official Dealers, by the gas indicated on the data plate.
• 1 pressure regulator approved and indicated on the data plate.
• 1 flexible tube approved for gas, with a maximum length of 1.5 m.
• 2 screw clamps for the flexible tube

1. Turn off the burner
2. Close the appliance gas supply (bottle tap)
3. Contact your gas supplier or specialised personnel.
4. The support cannot be made of flammable materials and must resist a temperature of at least 90ºC.
5. Please read the instructions before installing and using this appliance.
6. Only use outdoors.
7. Do not move the appliance when in use.
8. Close the gas supply to the bottle after use.
9. Any modification of the appliance may be dangerous.
10. This appliance must be kept away from flammable materials.
11. The bottle capacity can be no more than 10 kg. The data plate is on the back of the appliance.

Features

1.  Automatic electronic ignition.
2. The gas is ignited by a spark from a special piezo-electric element.
3. No batteries or matches are needed.
4.  The attractive top plate is made of stainless steel.
5.  High thermal heat and efficient burners
6.  Large trivets. You can accommodate a large pot and a frying pan all at the same time.
7.  Detachable burner cap for convenient cleaning and maintenance.
8.  FO 1700: 1 big burner; FO 2700: 2 burners, big and medium; FO 350: 3 burners, big, medium, and small.

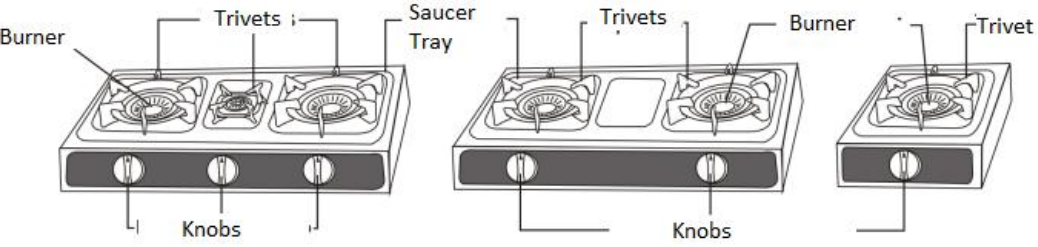

Prepation

1. When unpacked, make sure that all of the parts of the gas stove are included.
2. Match your gas cylinder and gas regulator.
3. Place your gas cooker on a level and firm location.
4. Install burners in their place; each burner fits into the hollow of its size.
5. Place the saucer trays in their place, fixing them to their proper size.
6. Place the trivets on top of the saucer trays.

How to Use

To ignite the burners:

1. You can find each knob in front of each burner.
2. Open the main gas valve of the gas cylinder.
3. Gently push the gas control knob in and turn it to the left until you hear the ignition click.
4. This way, the burner will be on. Repeat this procedure if ignition fails the first time.
5. Initial ignition will simultaneously light the inner small burner and outer big burner.
6. To use the inner small burner only, turn the knob to the MIN position.
7. Adjust the flame to suit cooking by turning the knob between the “ON” and “OFF” positions.

Use

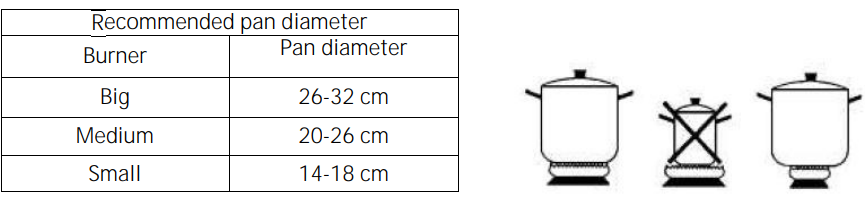

The most appropriate cooking point must be used according to the diameter of the pan. The flame must not
exceed the diameter of the pan. Whenever possible, cover the pan with a lid to save energy

Regulating the Flame

The flame can be regulated. The knob has the following symbols:

Turning the Burners Off

When you have finished cooking, turn the knob rightwards to the “OFF” position and turn off the bottle gas
supply.

Maintainance & Cleaning

To ensure the proper functioning of your appliance, it must be cleaned regularly and with care, as indicated
below:

• Enamel or painted parts: wash with soap and water, rinse, and dry with a soft cloth.
• Chrome-plated parts: Wash with Orbegozo Gas Cooker soap and water, rinse and dry. If necessary, use appropriate liquid detergents, but never abrasive ones.
• Burner: Wash with soap and water and dry. After cleaning, make sure that all the flame-spreader holes are clean and unblocked.
• Clean all accessible burner parts after every use.
• Never leave any residue on the surface.
•  In the event of any technical problem, please contact the installer or a specialised technician.

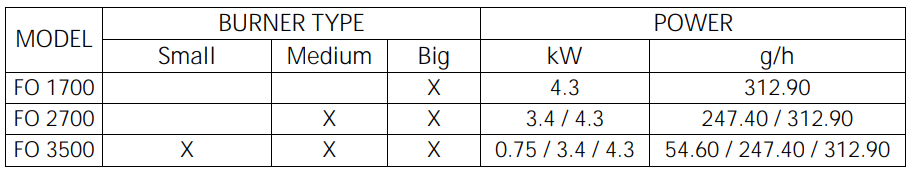

Technical Data

1. Category I3+
2. Type of gas G30/G31
3. Regulator. Supply pressure 28-30/37 mbar. This utensil is class 1: free-standing cooking appliance.

Disposal

• The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
• Old appliances must be collected separately to optimise the recovery and recycling of the materials.
  They contain and reduce the impact on human health and the environment.

Declaration of Conformity

• This device complies with Orbegozo Electric Grill the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMDirective 2014/30/EU.

Guarantee

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

Customer Service

• Website: https://orbegozo.com/
• Visit: https://orbegozo.com/contacto/.
• Ph: 965072847

FAQs

Q: What types of Orbegozo gas cookers are covered?

The FO 1700, FO 2700, and FO 3500 models are freestanding gas cookers with oven and hob burners intended for domestic use.

Q: What fuel do these cookers use?

To determine the correct gas type, always read the appliance’s label.

Q: Can I use the oven and hob at the same time?

Indeed. Because temperature distribution can vary, adjust cooking periods and keep a constant eye on the food.

Q: What warranty comes with these gas cookers?

There is a two-year manufacturer’s guarantee on the Orbegozo FO 1700, 2700, and 3500 that covers material or workmanship flaws. To preserve your warranty, keep your receipt.

Q: Can I use the oven for slow cooking?

Indeed, preheat the oven to low and keep an eye on your dish. Some models require manual temperature control since they lack a specific slow-cook feature.

Q: Can I use the cooker outdoors?

No, these models are only meant to be used indoors. Because of weather exposure and inadequate ventilation, using an outside device can be risky.
