Orbegozo BC 3660 Electric Barbecue Instructions Guide

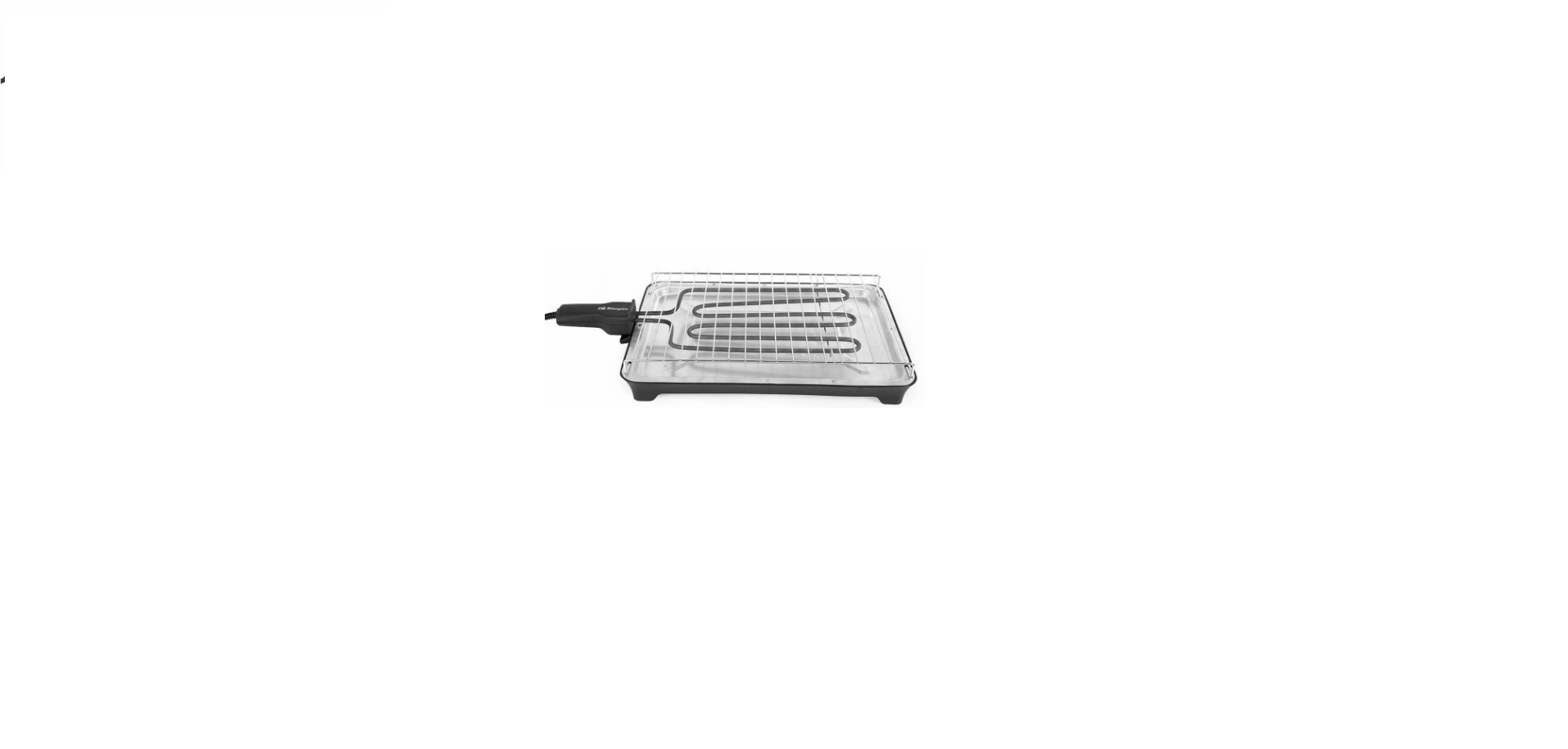

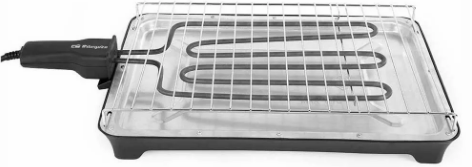

Orbegozo BC 3660 Electric Barbecue

Safety Instructions

1. Children must never play with the appliance.
2. Cleaning and user maintenance must never be carried out by children without supervision.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
5. If the supply cord is damaged, it must be repaired by the Authorised Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.

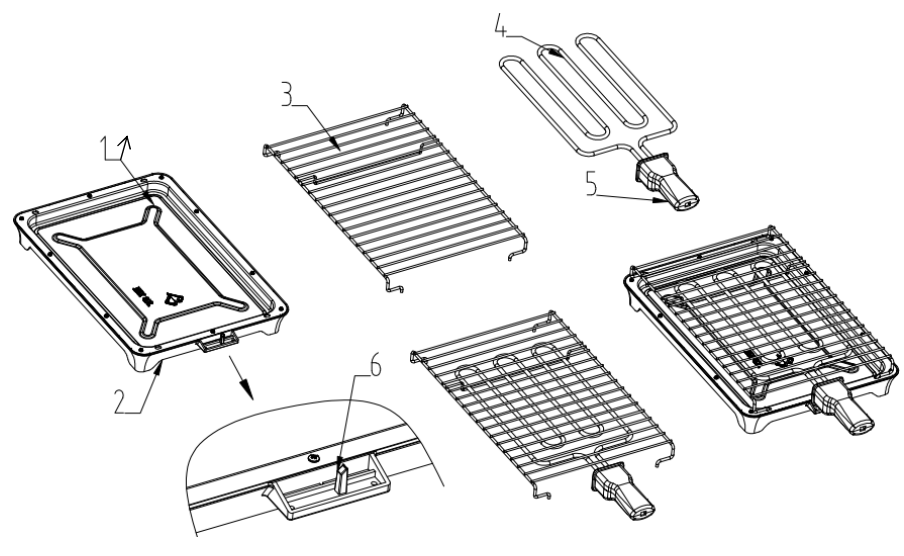

Description

1. Oil drip pan
2. Plastic frame
3. Grill
4. Heater
5. Handles
6. Top button

Before First Use

• Remove any packaging materials from the appliance.
• Clean the grill rack and its accessories.
• The barbecue assembly:
• Use two screws to join the grill body and the control seat.
• Place the heating element with the grill rack into the grill pan.
• Insert the control box into the grill pan. Guarantee the Orbegozo Electric Barbecue plastic pole of the grill pan insert the hole under the control box, and assemble correctly.
• Place the grill on the table.
• Let the grill heat up for a moment without any food on the rack.
• This will reduce the smell when first switching on a new grill.

Grill

• Fix the heating element; then ensure that the grill rack is placed correctly on the element.
• Insert the plug into the mains supply socket.
• Then you place the foodstuffs on the grill rack.
• When grilling is finished, disconnect the grill from the main supply socket.

Cleaning & Care

• In addition to this, you must observe the safety information.
• Allow the unit to cool down completely and then pull out the power plug before cleaning the unit.
• To take the heating element out.
• The control unit must never be dipped in any fluid. For cleaning the outside, use a lightly damp cloth.
• You can clean the grill stack, wind protection, grill grating, and the collecting tray with hot water.
• Let the unit dry completely before connecting it to the mains again.
• Do not use sharp or abrasive cleaning materials.

Specifications

• Model BC 3660
• Voltage 230 V ~ 50 Hz
• Power 2000W

Disposal

• The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
• Old appliances must be collected separately to optimise the recovery and recycling of the materials.
  They contain and reduce the impact on human health and the environment.

Declaration of Conformity

• This device complies with Orbegozo Electric Grill the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMDirective 2014/30/EU.

Guarantee

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Check the legal conditions on our website.

Customer Service

• Website: https://orbegozo.com/
• Visit: https://orbegozo.com/contacto/.
• Ph: 965072847
