Palmer Naab 2-Kanal Media DI-Box
Introduction
The wupper Line Isolation Box is equipped with 6.3 mm jack sockets on the input and output sides, which can be operated both balanced and unbalanced. There is galvanic isolation between input and output by means of a high-quality transformer, and hum loops are reliably eliminated. The Line Isolation Box is perfect for balancing audio signals, and audio signals can also be transmitted over long cable runs without hum.
Safety Instructions
- Please read these instructions carefully.
- Keep all information and instructions in a safe place.
- Follow the instructions.
- Use the device in the prescribed manner only.
- Do not open the device and do not perform any modifications.
Packaging
- Packaging can be fed into the reusable material cycle using the usual disposal methods.
- Please separate the packaging in accordance with disposal laws and recycling regulations in your country
Device
- This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version.
- WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste.
- The old device must be disposed of via an approved disposal company or a municipal disposal facility.
- Please observe the applicable regulations in your country!
- Observe all disposal laws applicable in your country.
- As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.
Batteries
- Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
- Observe all disposal laws applicable in your country.
- As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.
- Devices with batteries that cannot be removed by the user must be taken to a collection point for electrical appliances.
The product is not suitable for
- Persons (including children) with limited physical, sensory, or mental abilities or a lack of experience and knowledge.
- Children (children must be instructed not to play with the device)

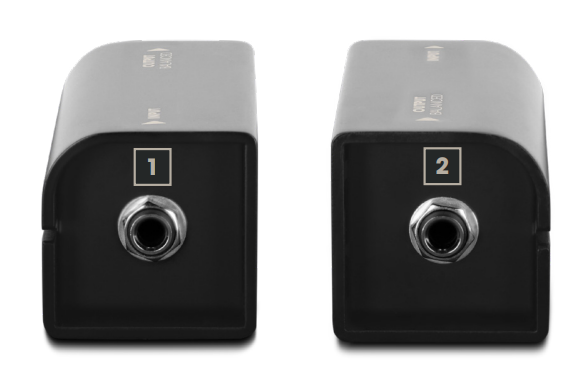

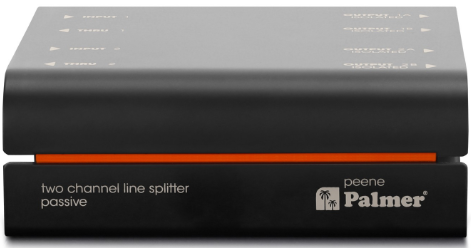

Connections
- INPUT
Line input with 6a.3 mm jack socket suitable for both unbalanced and balanced cabling. Use a shielded audio cable to connect, for example, a keyboard to the Line Isolation Box. - OUTPUT
Line output with a 6.3 mm jack socket suitable for both unbalanced and balanced cabling. Use a shielded audio cable to connect the Line Isolation Box to an input of a mixer or audio interface.

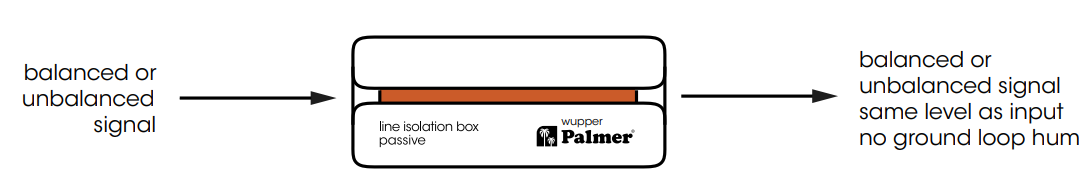

Wiring Example
Technical Data
| Product number | PWUPPER |
| Product type | Line Isolator |
| No. of channels | 1 |
| Type | passive |
| Transformer isolated | yes |
| No. of inputs | 1 |
| Input type | symmetrical/asymmetrical |
| Input connections | 6.3 mm jack |
| No. of outputs | 1 |
| Output type | symmetrical/asymmetrical |
| Output connections | 6.3 mm jack |
| Ground/lift switch | no |
| Housing | Aluminium continuous casting |
| Dimensions (H/W/D) | 110 x 50 x 50 mm |
| Weight | 0.3 kg |
| Ambient temperature for operation | -20°C…70°C |
| Relative air humidity | <80%, non-condensing |
| Included accessories AUDIO | Rubber feet, inscription label |
| Max. Input level (< 1% THD, 20 Hz) | +10 dBu |
| Max. Input level (< 1% THD, 1 kHz) | +32 dBu |
| Frequency response (±2dB, relative 1kHz) | 20 Hz – 20 kHz |
| Input impedance (1 kHz) | 17 kΩ |
| Output impedance (1 kHz) | 500 Ω |
| THD (30 Hz, +4 dBu, unity, unweighted) | < 0.09 % |
| THD (1 kHz, +4 dBu, unity, unweighted) | < 0.002 % |
| IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu) | < 0.002 % |
| Transformer ratio | 1:1 |
Manufacturer’s Declarations
Herstellergarantie und Haftungsbeschränkung Manufacturer’s warranty & limitation of liability Adam Hall GmbH Adam-Hall-Str. 1 61627 Neu-Anspach, Germany.
CE Conformity
Adam Hall GmbH hereby confirms that this product, Palmer Pan16 19“ DI-bo,x meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU), EMC Directive (2014/30/E/U), RoHS (2011/65/EU), RED (2014/53/EU)
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
UKCA- Conformity
Hereby, Adam Hall Ltd. declares that Palmer Naab 2-Kanal Media DI-Box this product, Palmer Pan16 19“ DI-bo,x meets the following guidelines (where applicable): Electrical Equipment (Safety) Regulations 2016, Electromagnetic Compatibility Regulations 2016 (SI 2016/1091). The Restriction of the Use of Certain Palmer Pan16 19“ DI-box Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/),32,) Radio Equipment Regulations 2017 (SI 2016/2015), Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK
Customer Support
- Email: Info@adamhall.com
- Website: www.adamhall.com/compliance
- Ph: +49 (0)6081 / 9419-0
FAQs
Q: What is the Palmer NAAB 2-Channel Media DI-Box?
Designed to connect consumer or professional audio sources (such as laptops, media players, or mixers) to balanced microphone inputs on stage, in studios, or during presentations, the Palmer NAAB is a professional 2-channel passive media DI (Direct Injection) box.
Q: What is the main purpose of a DI box?
When transmitting audio over lengthy cable runs, a DI box reduces noise and interference by converting unbalanced, high-impedance signals into balanced, low-impedance signals.
Q: Does the NAAB require power or batteries?
No. Since the NAAB is a passive DI box, it doesn’t need batteries or other power to function.
Q: Can I use both RCA and mini-jack inputs at the same time?
No, to prevent signal conflicts, only use one form of input at a time. Every input is connected to the same channel in parallel.
Q: What is the attenuation (pad) switch used for?
When connecting high-output devices like mixers or DJ players, the pad switch prevents distortion by lowering the input level by -15 dB or -30 dB.
Q: Can I connect the NAAB directly to a mixer or PA system?
Indeed. Directly connect the NAAB’s XLR outputs to balanced microphone inputs on an audio interface or mixing console.
Q: Can I use the NAAB with a mono source?
Indeed. Just attach the mono source to either the left or right input channel. You are not required to use the other channel.
