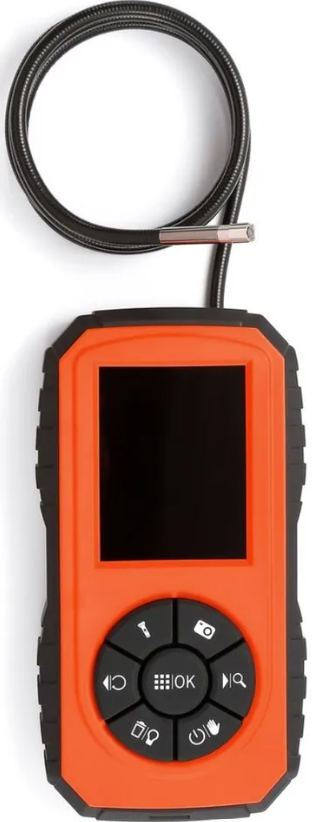

PROTECH QC8716 Video Inspection Camera
Safety Instructions
Before using the PROTECH QC8716 Video Inspection Camera, please carefully read all safety instructions.
- Prevent object and liquid entry. Never spill liquid of any kind on the video display unit.
- Liquid increases the risk of electrical shock and damage to the product.
- The unit is not shock-resistant.
- Do not immerse the video handle in water.
- Avoid moisture, and store the product in a dry place.
- Such measures reduce the risk of electric shock and damage to the device.
- Do not use the camera if condensation forms inside the lens. Let the water evaporate before use.
- Do not use the unit to inspect environments known or suspected to contain exposed electrical wiring.
- Do not use the unit in the presence of flammable or explosive gases.
- The unit is designed for industrial inspections. Never use it to perform medical inspections.
- Turn off the system if it is not in use.
- Remove the batteries when cleaning the unit.
- When batteries are flat, replace all FOUR (4) batteries in this unit with new ones.
- Use only the size and type of battery specified (AA).
- Be sure to install the battery with the correct polarity as indicated in the battery compartment.
- Properly dispose of batteries. Exposure to high temperatures can cause batteries to explode.
- Some countries have regulations concerning battery disposal. Please follow all applicable regulations.
Features
The PROTECH QC8716 Video Inspection Camera comes packed with advanced features designed for convenient and precise inspections:
- 1M IP67 waterproof snake camera probe is coiled inside the case for storage
- 3-inch, high contrast colour LCD
- 5. 5MM 720P HD ultra-small camera lens with flexible snake tube
- 6 light-adjustable LEDs mounted on the lens
- 7 navigation buttons for functional partition
- Photo and video recording function (with optional Micro SD card installed)
- Supports up to a 32GB Micro SD card (Micro SD card not included)
- Flashlight is standalone and could be used as a flashlight or a camera auxiliary light
- Powered by four “AA” batteries (not included)
- Rugged frame, compact structure, reasonable layout, make it small, portable, and convenient to use
Overview

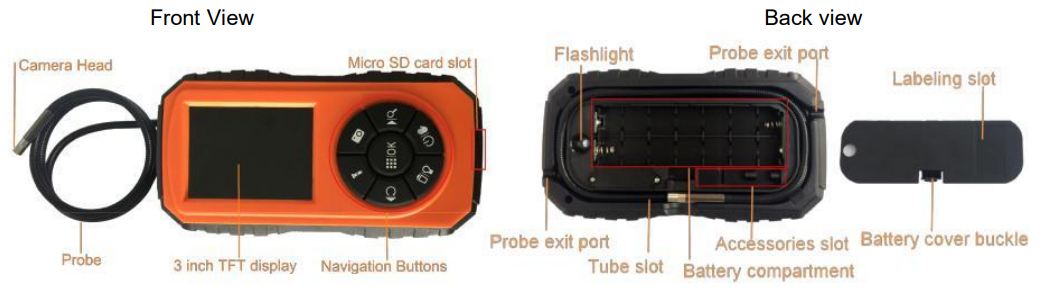

Parts
| 1 | Camera Head | 7 | Probe Exit Ports |
| 2 | Probe | 8 | Flashlight |
| 3 | 3-inch TFT Display | 9 | Battery Compartment |
| 4 | Navigation Buttons | 10 | Accessories Slot |
| 5 | Micro SD Card Slot | 11 | Battery Cover Buckle |
| 6 | Tube Slot | 12 | Labelling Slot |
Navigation Buttons
| 1 | Power / Suspend Image | |
| 2 | Take Photo / Video / Change Mode | |
| 3 | Enter the menu / ok button. | |
| 4 | Delete / Adjust LED Brightness | |
| 5 | Up / Zoom | |
| 6 | Down / Flip Image | |
| 7 | Flashlight On / Off | |

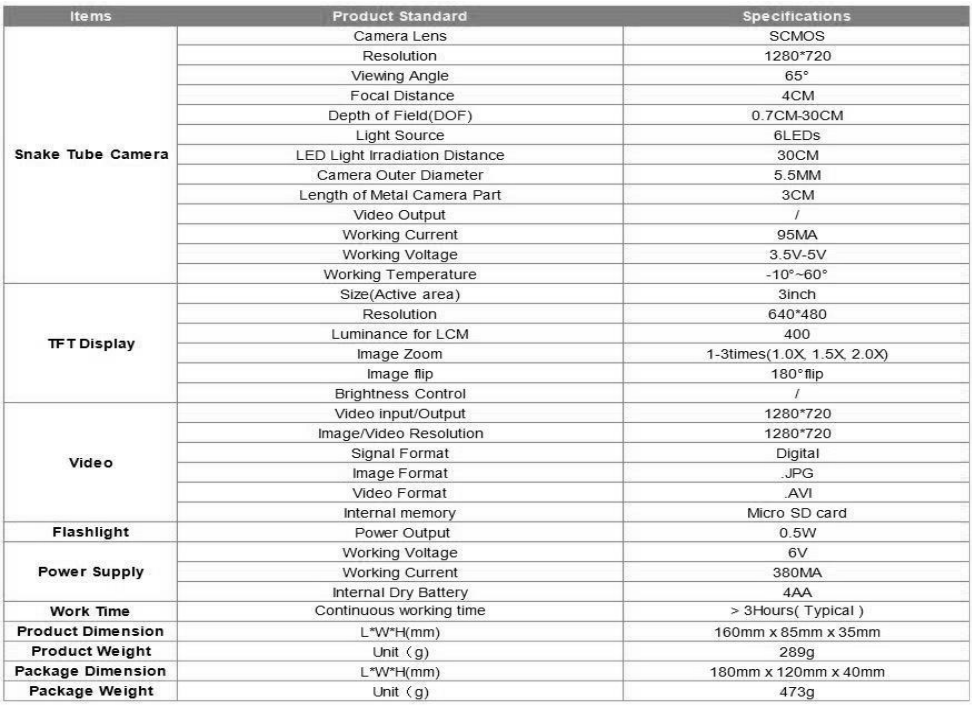

Specification

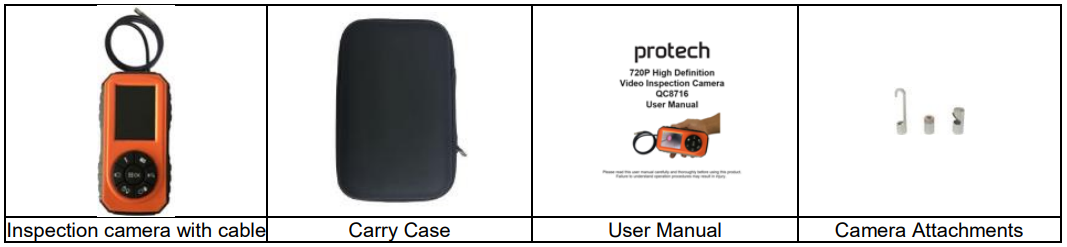

Packing List
Basic Operation
INSTALLING BATTERIES
The battery compartment is accessible from the back of the unit. Press the battery cover buckle, remove the cover, and set it aside. Load four “AA” batteries into the compartment according to the polarity markings. Replace the battery compartment cover and secure it.
PREPARE THE PROBE

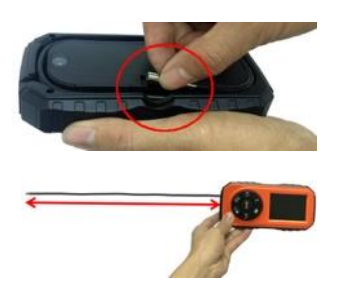

To take out the probe, turn the unit over so its back faces you and use your thumb and index finger at the positions marked. Please note: the probe is tightly wrapped within a twisting channel that makes four full turns around the inside of the tube slot. For detailed instructions on the PROTECH QC1902 CRO Probe Cable, The probe can be uncoiled to six working lengths through two probe exit ports. Unwrapping only one full turn will make the probe 27.4cm long (counting from the tube exit port to the camera head); Unwrapping two turns will make the probe 62cm long. Finally, unwrapping three turns will make the probe 95.6cm long. Each length incurs a trade-off of probe reach versus probe rigidity.
PACKING UP THE PROBE
To re-coil the probe, it’s important to note that when re-coiling the probe from either its short or long extended length, you must wrap it very tightly within the channel. If the camera head is not back to the original position as you finish wrapping the probe, you will not be able to squeeze the camera head into place. If this occurs, we recommend you begin re-winding the cable.
PROBE TIP ACCESSORIES

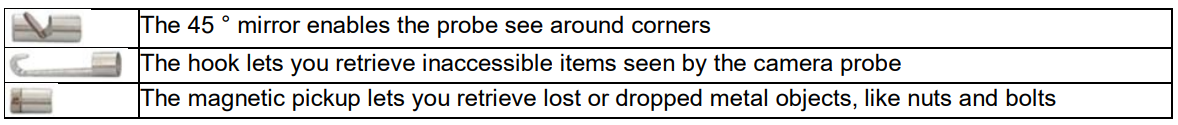

The system comes with three accessories that screw onto the end of the camera head. Take off the protection ring before using the tip accessories. Each accessory has a specific purpose:
Operation Instructions
QUICK START PROCEDURE
- Press and hold the button for at least 2 seconds to power on the unit and illuminate the LCD.
- Avoid bending the delicate probe excessively, as this will damage the cable.
- Press the button to take a picture. Press and hold the button to enter recording mode.
- Once in recording mode, short-press the button to begin recording and press again to stop recording.
- To re-enter picture mode from recording mode, press and hold the button.
- Press the button to freeze the image. Press the button again to release the picture.
- Press the button to increase/decrease the brightness of the camera’s LEDs.
- Press the button to delete the picture/video.
- Press the button to flip the picture/video (rotate it 180°).
- Press the button again to undo the inversion.
- Press the button to scroll down when using the menu.
- Press the button to scroll up when using the menu.
- Press the button to zoom the picture/video frame.
- The first press of the button will zoom out the frame to 50%, corresponding to a zoom level of 1.0X.
- “1.0X” will appear in light at the top right of the screen.
- Push the button several times to zoom in closer at a level of 1.5X and 2.0X.
- The next push of the button reverts to normal size (1.0 X).
- Press the button to turn on / off the flashlight.
- To power off the device, press and hold the button for at least 3 seconds.
- A full battery icon will appear on screen when the total battery charge is full.
- To replace the batteries, follow the procedure as directed in this guide.

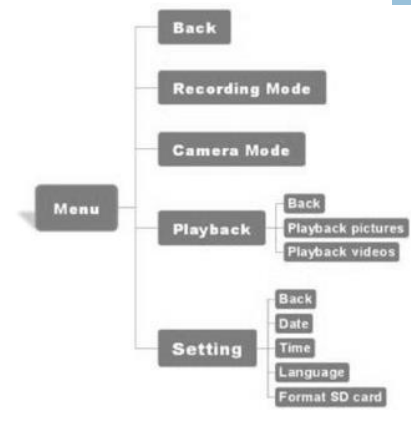

Menu Interference
- Recording Videos: In real-time recording mode, press the button to begin recording, and the icon on the screen. Press again to stop recording.
- Taking Photos: In real-time camera mode, press the button to take a photo, the icon on the screen will flicker once to indicate successfully take the photo and saved.
- In recording mode, if no SD card is installed, an error will appear.
- The video will be automatically saved as an individual file approximately every 4 minutes.
- When the SD card memory is full, the device will stop recording.
- You will either need to clear the memory on the inserted card or insert a new card.
- Playback Videos/Pictures: Press the or button to select your desired video/picture and stop to pause.
- Delete Videos/Pictures: Press the or to select your desired video/picture, then press the button to either delete the selected item or all items. Alternatively, you may press the cancel button to exit.
- Date/Time Setting: In the setting mode, press or button to select Date/Time, and press the button to begin setting. Press the or button to increase or decrease in numbers, and press the button to confirm.
- Language Setting: In the Language setting mode, press the button to switch the language, and the quit button to select the language. Pressing the button will switch to the next language. Supported languages: English.
- Format SD card: In the setting mode, press the button to select Yes or No to continue the action
Maintainance
Do not insert or bend the probe by force, as over-bending any section of the probe to a radius of less than
40mm will permanently damage the delicate internal cables. Do not force a Micro SD card either into or out of the Micro SD card slot in the device.
Performing either of these actions will damage the slot and the Micro SD card. To protect the device and the Micro SD card, please power off the device before inserting or removing the Micro SD card.
Troubleshooting
| Problem Possible Causes Likely Solutions | ||
| The system can not be started.
| 1. The batteries have not been installed. 2. The batteries are not installed correctly. 3. The batteries have run out of power.
| 1. Make sure the batteries are installed before starting the system. 2. Make sure the batteries are installed correctly as instructed. 3. Make sure the batteries are new or with enough power.
|
| The imagee is too dark or light | 1.LEDs on the camera need adjustment. 2. The flashlight affects. | 1. Adjust the brightness of LEDs according to the inspection environment. 2. Turn on/off the flashlight and the auxiliary lights if necessary. |
| The camera LED does not light and no image | 1. The camera runs out of power. 2. The connection problem between the main body and the camera probe. 3. The camera is damaged. | 1. Change the new batteries. 2. Reconnect connections between the main body and the camera probe. 3. Separate the camera probe from the main body, and replace a new one. |
| The micro SD card can not be read | 1. SD card problem. 2. System breakdown. | 1. Make sure the Micro SD card is fine and not more than 32 GB. 2. Restart the system. |
| The video image is not so smooth | 1. The transmission speed of the The micro SD card is less than 6MB/sec. | 1. Use the Micro SD card with transmission speed 6MB/sec or above. |
| The video is not recorded | 1. Power off when recording. 2. The Micro SD card is full. | 1. Finish the video recording before the battery runs low. |
| Follow all safety precautions whenever diagnosing or servicing the tool. | ||
Customer Support
- Email: support@whynter.com
- Website: WWW.WHYNTER.COM
- Tel: 800-443-6153
Product contents and specifications may change without notice. Copyright © 2024
