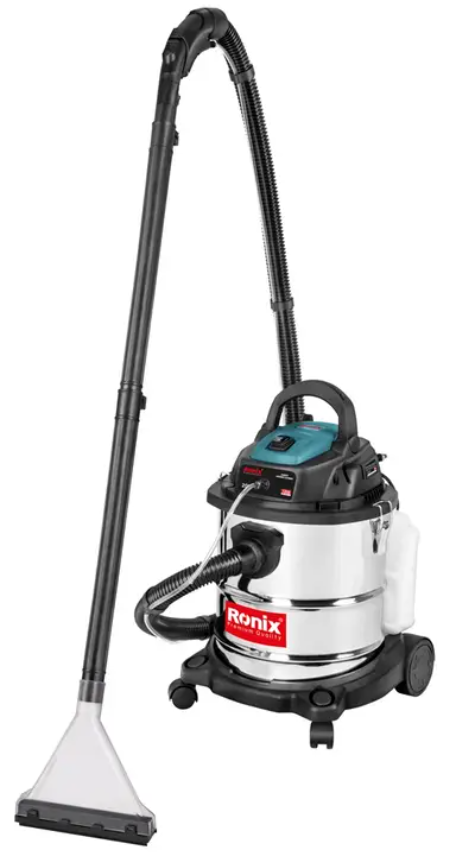

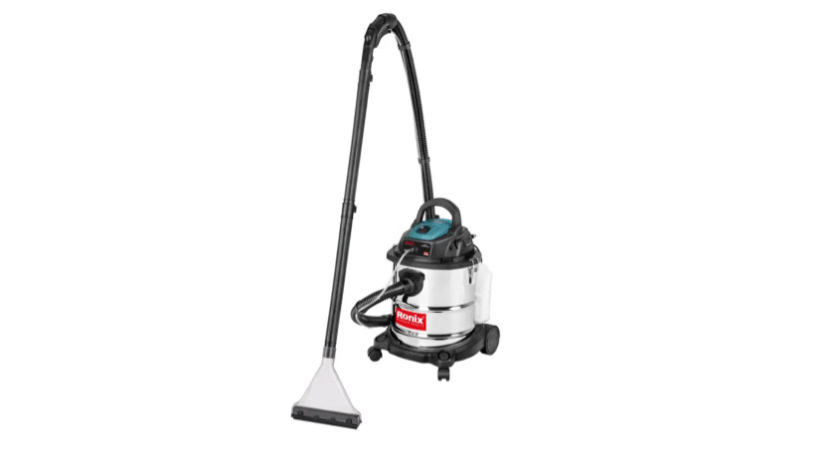

Ronix 1250 Carpet Vacuum Cleaner
Safety Instructions
Before operating this appliance, please ensure that you read & understand all the instructions that apply to it, as failure to comply with these instructions may result in personal injury to other persons, and also increase the risk of fire or electrical shock. Please ensure that any replacement parts or accessories used with this appliance are correctly and/or securely fitted before use.
- Check before the operation that the local power supply is the same as the specification on the rating label.
- Do not use the machine in a combustible or explosive place, in case the motor spark causes fire.
- Do not jam the air inlet mouth, in case the temperature rises and damages the motor.

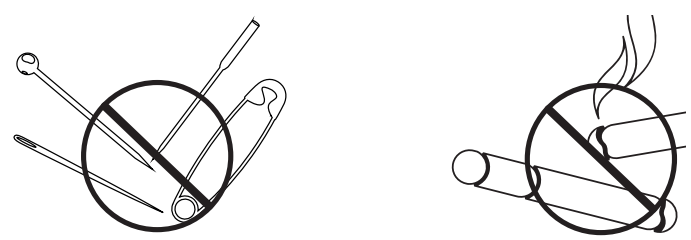

- Do not collect combustible and explosive objects such as glowing cigarettes, gasoline, etc.

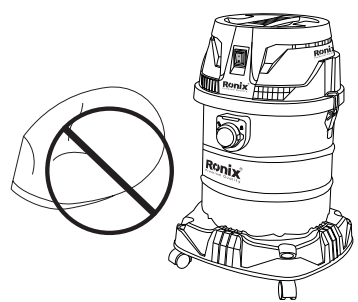

- Do not collect sharp objects. Do not collect objects that can easily attach to the filter, such as calcareous powder, gesso, and graphite powder.
- Because those will block the ventilation and damage the motor.
- Turn off the machine and remove the plug each time after using or when being repaired.

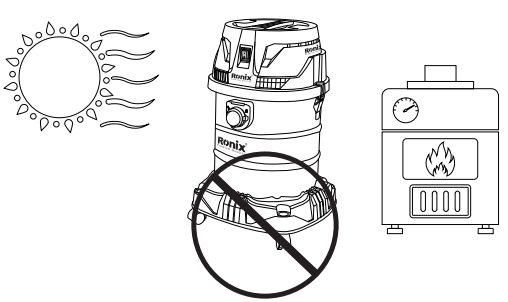

- Keep the machine away from strong sunlight and high-temperature places in case the plastic is distorted.
- Do not wrestle, trample, or haul the hose in case of making it is damaged.
- The power cord must be replaced by the Ronix service center.

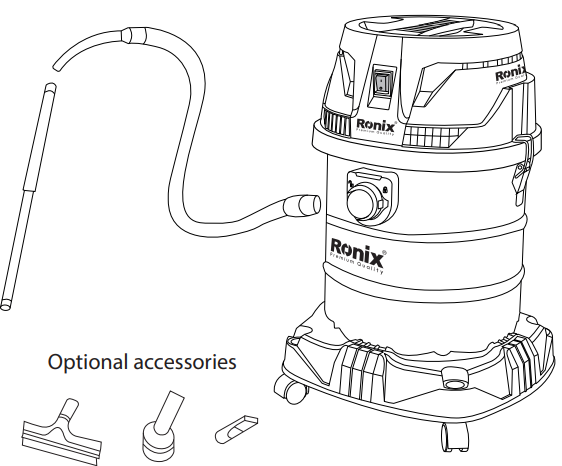

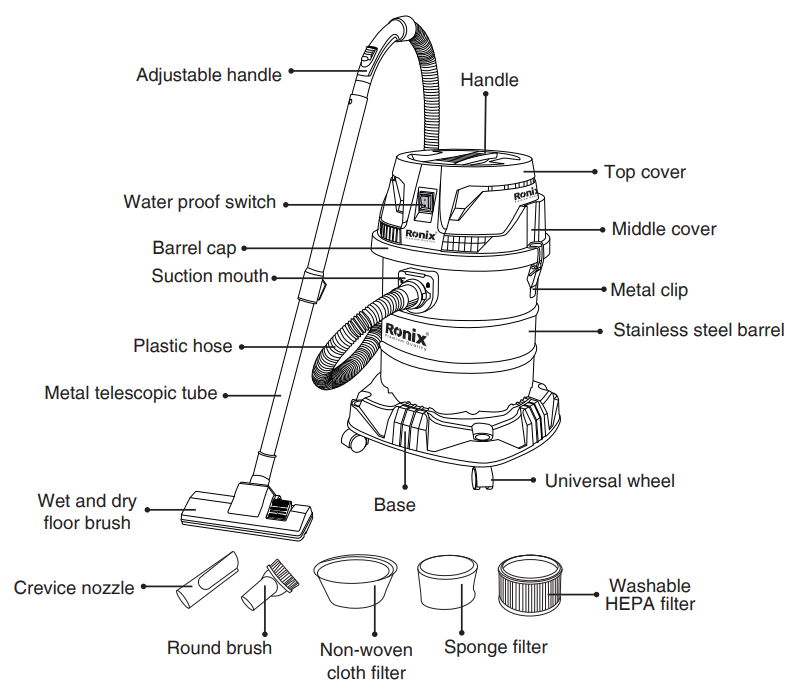

Part List
Product Characteristics
- Vacuum cleaner for wet and dry. For industrial or heavy-duty cleaning, you can also refer to the Ronix 1231 Industrial Vacuum Cleaner manual to compare specifications and usage options.
- Jacks on the base, easy for depositing accessories
- The blowing function satisfies different requirements
Usage

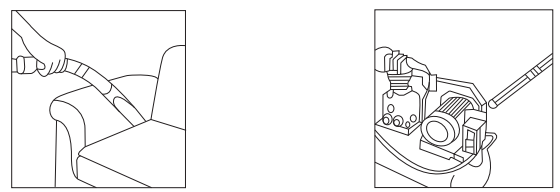

- Bristle for bookshelves, windows, and bibulous brush for floor and carpet, tables, etc.
- Crevice nozzle for crevice, corner, etc. Blowing mouth for blowing the dust away in the crevice of the machine
Operation
- Insert the plug into the supply socket.
- Press the switch button, and the machine begins to work.

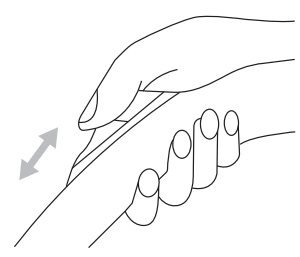

- You can adjust the airflow by pushing the sliding block up and down.
- «I» stands for turn on
- «o» stands for turn off
Connection

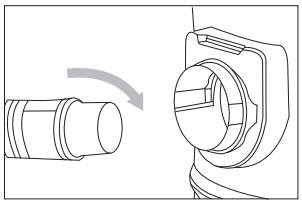

- Insert the hose connector into the air inlet mouth, as shown in the picture, and pull shown in the picture to make sure the connector is tightly fastened.

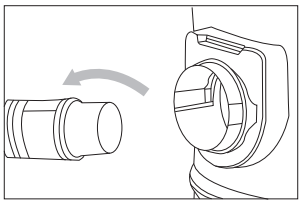

- Press the connector button as shown in the picture, and pull the connector out when you want to pull the hose connector from the machine.
Accessories
- Plastic hose with adjustable handle,
- Metal telescopic tube,
- Wet & Dry Floor Brush,
- Crevice Nozzle,
- Round Brush,
- Non-woven cloth filter,
- Sponge filter,
- Washable HEPA filter
Maintainance
Cleaning Barrel
After working or when the barrel is full of dust, which causes the suction to decrease considerably, you should cut off the electricity and clean the dust away from the barrel.
- Unfasten the locking knob, lift the top cover.
- Take off the filter bag, clean the dust away in the dust barrel.
- Install the filter bag back and place the top cover.
Cleaning Filter
The filter bag should be washed with clean and warm water when it is covered with dust. If necessary, you can use Litmus less scour to wash.

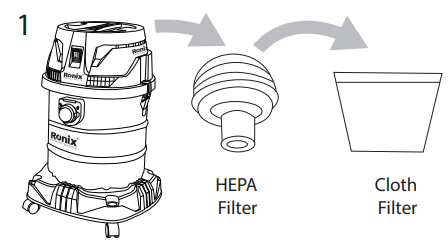

- Take off the filters
- Wash
- Dry

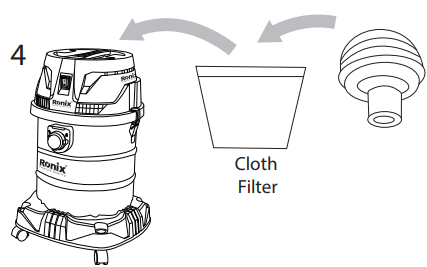

- Assemble filters
TECHNICAL SPECIFICATIONS
- Model: 1231
- Power: 1400W
- Voltage: 220-240V
- Frequency: 50-60Hz
- Dust Capacity: 30L
- Vacuum Pressure: >20KPA
- Airflow Rate: 1.9m³/min
Environmental Instructions
- Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
- If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
- Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
- These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
- Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
- Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.
Customer Support
- Address: Lyoner Str. 36 60528 Frankfurt am Main
- Tel:+49 69 310 900 66
- Website: www.ronixtools.com
FAQs
Q: How do I assemble the Ronix 1250 vacuum cleaner?
Securely fasten the handle to the main body, attach the preferred cleaning nozzle, and connect the extension tube if necessary. Before turning on the hoover, make sure every connection snaps into place.
Q: How do I empty the dust container?
Unplug and turn off the Hoover. Empty the contents into a garbage can after removing the dust container and opening the top. If necessary, rinse the container with water, but before reattaching, make sure it is totally dry.
Q: How often should I clean or replace the filter?
After a few uses, clean the filter for best results. Before being used again, washable filters should be thoroughly dried and rinsed with water. Replace worn-out or non-washable filters in accordance with the manufacturer’s guidelines.
Q: What types of surfaces can the Ronix 1250 clean?
This hoover is made for hard floors, carpets, and rugs. For optimal results, choose between soft and hard surfaces with the adjustable nozzle or brush attachment.
Q: Why is suction power reduced?
Verify that the filters are clean and that the dust container is not full. Check for obstructions in the hose and nozzle. The motor or internal parts might require maintenance if the issue continues.
Q: Can I use this vacuum cleaner on wet spills?
No, the Ronix 1250 is exclusively intended for dry vacuuming. It can harm the motor and void the warranty if used on liquids.
Q: How do I store the vacuum cleaner?
To avoid damage, store the attachments in a dry location, keep the vacuum upright, and neatly wrap the power cord around the cord hooks. Do not store in regions that are dusty or moist.
