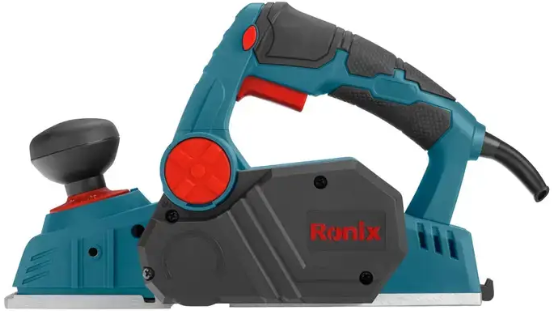

Ronix 9224 82mm Electric Power Planer
Safety Instruction
When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:
- DON’T FORCE TOOL. It will do the job better and safer at the rate for which it was intended.
- USE SAFETY GLASSES. Also, use a face or dust mask if the cutting operation is dusty.
- DON’T ABUSE THE CORD. Never carry a tool by the cord or yank it to disconnect from the receptacle. Keep cord from heat, oil, and sharp edges.
- SECURE WORK. Use clamps or a vise to hold the work.
- It’s safer than using your hand, and it frees both hands to operate the tool.
- DON’T OVERREACH. Keep proper footing and balance at all times.
- MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance.
- Follow instructions for lubricating and changing accessories.
- Inspect tool cords periodically and if damaged, have them repaired by an authorized service facility.
- Inspect extension cords periodically and replace them if damaged.
- Keep handles dry, clean, and free from oil and grease.
- Have defective switches replaced by an authorized service center.
- Don’t use the tool if the switch does not turn it on and off.
- GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces.
- For example, pipes, radiators, ranges, refrigerator enclosures.
- REPLACEMENT PARTS. When servicing, use only identical replacement parts.

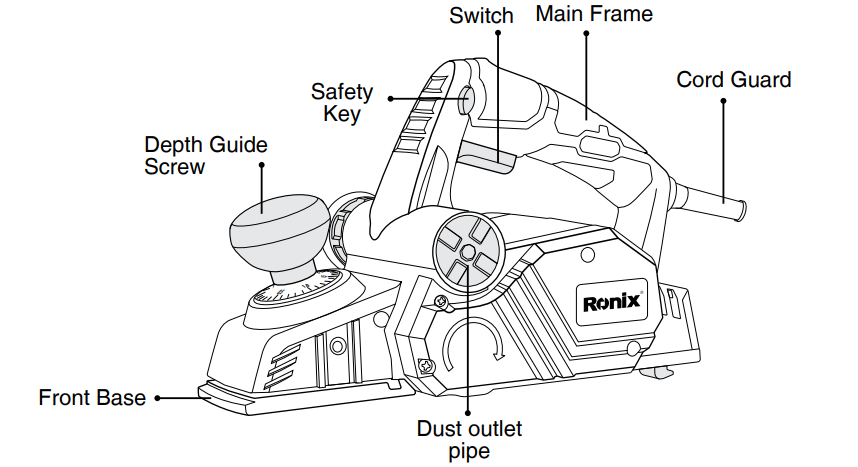

Part List
Operation

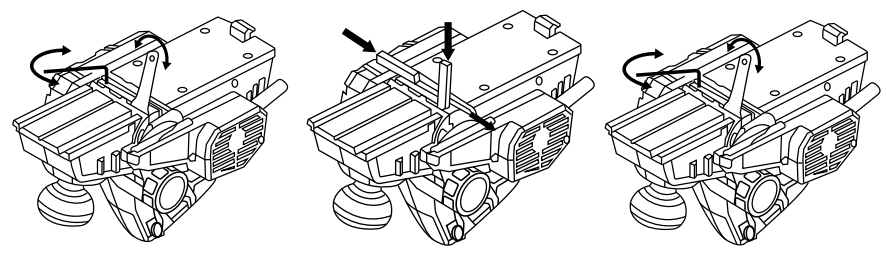

To install the blades, first clean out all chips or foreign matter adhering to the drum or blades. Use blades of the same dimensions and weight, or drum oscillation/vibration will result, causing poor planning action and, eventually, tool breakdown.
Then replace the new blades inside the holder base. In this step, adjust the depth of the blades by opening and closing the nut screws (using an Allen wrench). Finally, by tightening 3 screws on the drum, the blade replacement operation is completed.

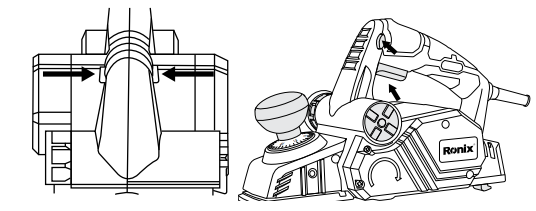

SWITCH ACTION First, press the safety lock button, then the device will be turned on by pressing the on / off switch.
Before plugging in the tool, always check to see that the trigger switch actuates properly and returns to the “OFF” position when released.

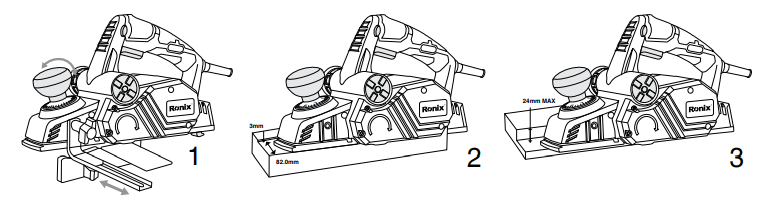

Adjust the desired grate depth with the depth adjustment screw on the front of the machine. Then place the movable insole on the workpiece.e

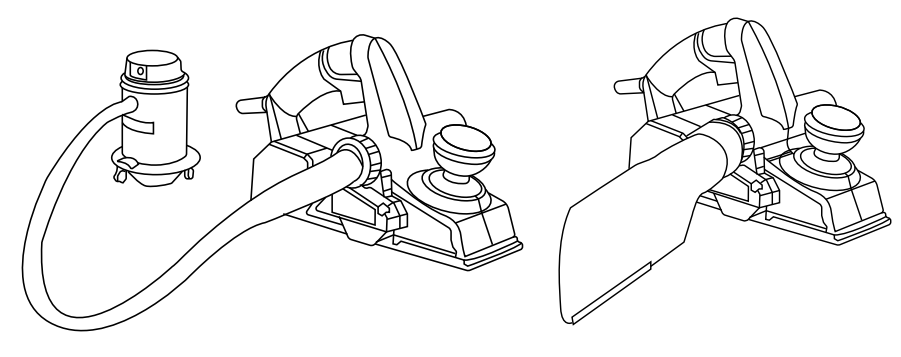

Dust Bag
Prevent the spread of wood chips to the workplace by installing a dust bag or connecting a vacuum cleaner pipe to the machine.
MAINTENANCE
Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. Adjust the desired grate depth with the depth adjustment screw on the front of the machine. Then place the movable insole on the workpiece. Always ensure tools are properly maintained and used with compatible accessories. For guidance on similar Ronix power tools, see the Ronix 3250 180mm 2200 W Angle Grinder manual.
Specifications
- Model 9224
- Power 900W
- Frequency 50-60Hz
- No-load Speed 14000RPM
- planing width 82mm
- Max planing depth 3mm
- Max rabeting depth 24mm
- Weight 3.2Kg
- Accessories
- Parallel Guide set: 1set
- Depth guide: 1pc
- Spanner: 1pc
- Hex wrench: 1pc
- Dust bag: 1pc
- Buffly bolt: 2pcs
- Flat washer: 2pcs
- Carbon Brush: 1set
Environmental Instructions
- Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
- If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
- Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
- These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
- Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
- Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.
Customer Support
- Address: Lyoner Str. 36 60528 Frankfurt am Main
- Tel:+49 69 310 900 66
- Website: www.ronixtools.com
FAQs
Q: What is the main purpose of the Ronix 9224 Electric Power Planer?
The Ronix 9224 is made for accurate edge chamfering, fitting joints, and wood surface levelling. It is perfect for common woodworking tasks that call for precise, smooth finishes, such as furniture manufacturing and carpentry.
Q: What is the cutting width and depth capacity of this planer?
This device has an adjustable cutting depth of up to 3 mm each pass and a planing width of 82 mm. To get the desired material removal, simply turn the front knob to change the depth.
Q: What is the motor power of the Ronix 9224?
With its 1050W high-efficiency motor, the planer offers exceptional performance for demanding and ongoing woodworking jobs.
Q: Can I use the Ronix 9224 on materials other than wood?
This planer is made especially for wood and wood-based products, such as chipboard, MDF, and plywood. It can harm the engine and blades if it is used on stone, plastic, or metal.
Q: How do I adjust the planing depth?
To increase depth, turn the front adjustment knob clockwise; to decrease depth, turn it anticlockwise. For accurate cuts, the knob’s scale aids in determining the correct depth (in millimetres).
Q: Can I connect a dust bag or vacuum system to this planer?
Yes. The Ronix 9224 features a dual dust extraction port compatible with most vacuum hoses and dust bags. This helps maintain a cleaner workspace and improves visibility while planning.
Q: What is the maximum no-load speed of the motor?
With a no-load speed of up to 16,000 RPM, the Ronix 9224 guarantees a smooth finish and effective material removal.
Q: Can I use this planer for chamfering edges?
Yes, precise edge chamfering is made possible by the front base plate’s V-groove. Choose the groove size that corresponds to the edge profile you want.
