Sonos SKU OUTDRWW1 Outdoor Speakers Instruction Manual

Sonos SKU OUTDRWW1 Outdoor Speakers

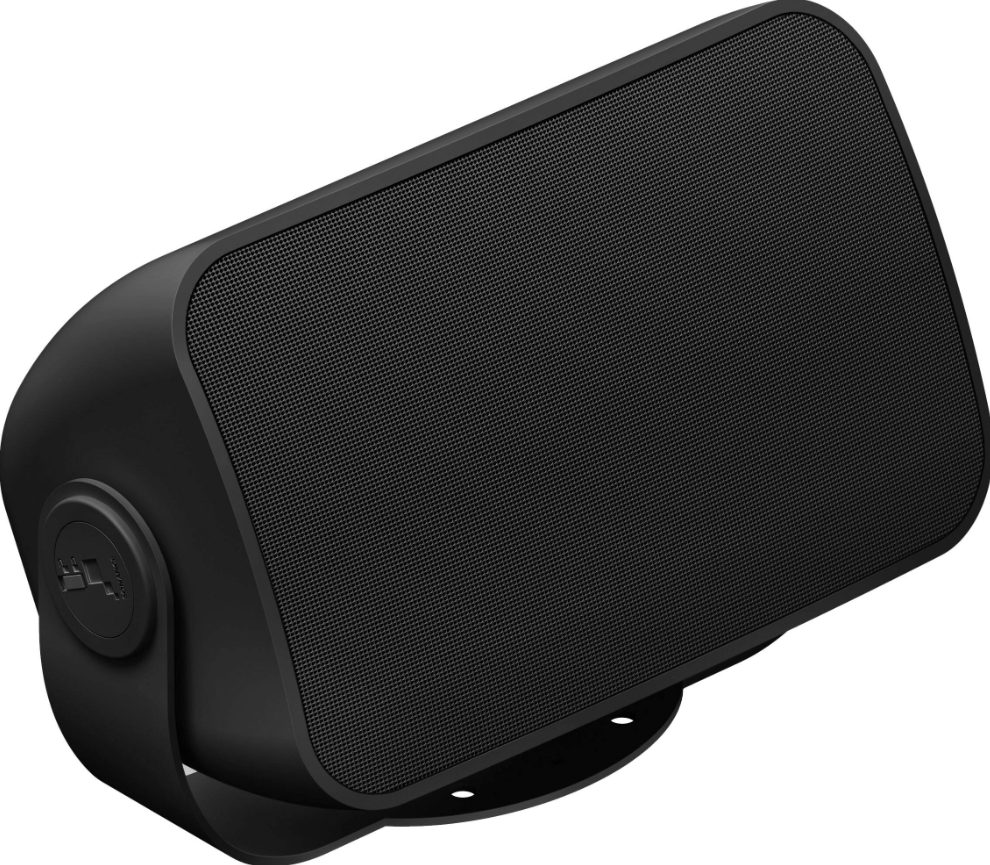

Product Overview

Sonos Architectural speakers make it easy to bring premium sound to virtually any space. Designed and tuned in collaboration with Sonance, these speakers offer natural, room-filling sound with discreet installation.

• Maximise your system’s potential by powering these speakers with Sonos Amp.
• Our WiFi-enabled amplifier provides unique benefits like optimised tunings and overdrive protection, tailoring the speaker’s sound to the unique acoustics of your space.
• A single Amp can efficiently and effectively power up to three pairs of Sonos passive speakers.
• When paired with Amp, Sonos Architectural speakers combine the aesthetics of installed solutions with superior fidelity and convenient wireless control.
• Sonos surface mount speakers are perfect both indoors and outside. Engineered for humidity, water, salt spray, heat, UV rays, and freezing temperatures, they’ll give years of use, whatever the weather.
• Whether in a single room or an entire household, count on Sonos Architectural speakers to deliver a seamless audio experience that redefines the possibilities of home entertainment.

Outdoor Key Features

• Indoor or outdoor use
• High-power and wide frequency response
• Custom DSP and limiter with Sonos Amp
• Simple to install and connect
• Available in black or white
• Sealed enclosure and weatherproof to IP66

If you are looking for alternative multipurpose outdoor speakers, you can also check the Bose Forum FC108 Multipurpose Loud Speaker user manual for detailed specifications and installation guidance.

Accessories

Architect and Engineer Specifications

• The loudspeaker shall be of surface mount design with accompanying bracket, consisting of a 6.5 in / 165 mm low frequency, polypropylene cone driver with rubber surround and a 1 in / 25 mm polyurethane dome high frequency driver that is Ferrofluid-cooled with an acoustic back chamber.
• The loudspeaker shall be capable of meeting the following performance criteria: The measured midband sensitivity shall be 85 dB SPL (at 2.83 V, 1 m).
• The rated maximum SPL shall be 103 dB SPL (at 1m); The frequency range with Sonos DSP shall be 48 Hz-20 kHz. The frequency range without Sonos DSP shall be 73 Hz-20 kHz (±3 dB rated sensitivity, in half-space);
• The nominal coverage angle shall be 80° horizontal x 90° vertical.
• The loudspeaker shall have an overload protection circuit to protect the network and transducers. Nominal impedance shall be 8 ohms.
• Terminal connections shall be made with gold-plated spring-loaded binding posts. The grilles shall be paintable and magnetic steel.
• The overall product dimensions with bracket shall be 12.93 in x 7.51 in x 7.86 in / 308.36 mm x 190.8 mm x 199.64 mm.
• The cutout dimensions shall be 6.93 in x 10.75 in / 176 mm x 273 mm, and the grille dimensions shall be 7.85 in x 11.74 in / 199.5 mm x 298.3 mm.
• The loudspeaker shall be weather resistant to IP66 and Mil Spec 810 for humidity, salt spray, temperature and UV. With an operating temperature of -13° F to 149° F /-25° C to 65° C.
• The loudspeaker shall weigh 8.82 lb / 4 kg. When connected to a power amplifier, the user must have the ability to enable Optimise Sonos Speakers.
• The loudspeaker shall be the Sonos Outdoor Speaker.

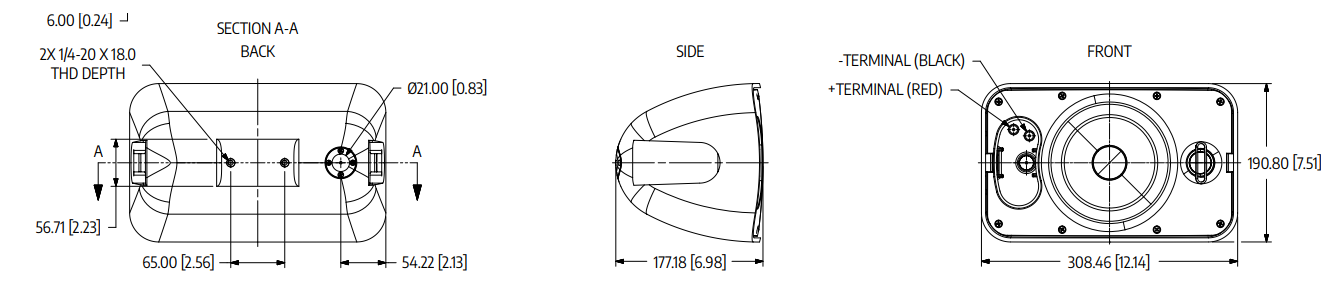

Without Bracket & Front Covers

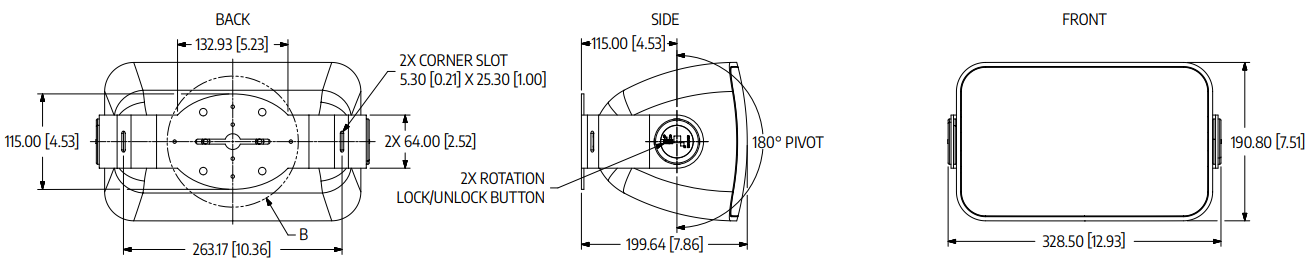

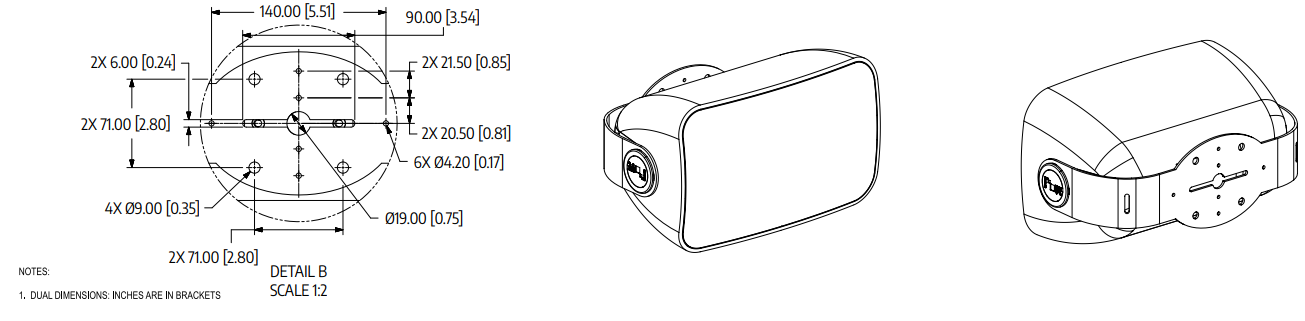

With Bracket & Front Covers

Specifications

• SKU OUTDRWW1 and OUTDRWW1BLK
• Low Frequency Driver 6.5 in / 165 mm polypropylene cone, rubber surround, 1.27 in / 32 mm diameter
• voice coil
• High Frequency Driver 1 in / 25 mm polyurethane dome, Ferrofluid-cooled, acoustic back chamber
• Frequency Range (No DSP)
• 1 73 Hz-20 kHz ±3 dB
• 55 Hz-20 kHz -10 dB
• Frequency Range (With DSP)
• 1 48 Hz-20 kHz ±3 dB
• 34 Hz-20 kHz -10 dB
• Nominal Impedance 8Ω
• Power Handling (Program) 130 Watts maximum
• Power Handling (Continuous)2 60 Watts maximum
• Sensitivity (2.83 V/1 m)3 85 dB SPL
• Rated Maximum SPL4 103 dB @ 1 meter
• Nominal Coverage Angle5 80° horizontal x 90° vertical
• Directivity Q6 6.5
• Directivity Index 6 7.9 dB
• Connector Type: Gold-plated spring terminals
• Operating Temperature -13° F to 149° F / -25° C to 65° C
• Humidity Range 40-95% RH
• Protection Rating IP66 and Mil Spec 810 for humidity, salt spray, temperature, and  UV
• Safety and Compliance RoHS, WEEE, CE, Prop65
• Product Dimensions without Bracket (W x H x D) 12.14 x 7.51 x 6.98 in / 308.46 x 190.8 x 177.18 mm
• Product Dimensions with Bracket (W x H x D) 12.93 x 7.51 x 7.86 in / 328.5 x 190.8 x 199.64 mm
• Net Weight (Each) 8.82 lb / 4 kg
• Shipping Weight (Pair) 23.8 lb / 10.8 kg
• Included Accessories Speaker grilles (pair), FastMount brackets (pair), wiring terminal covers (pair)
