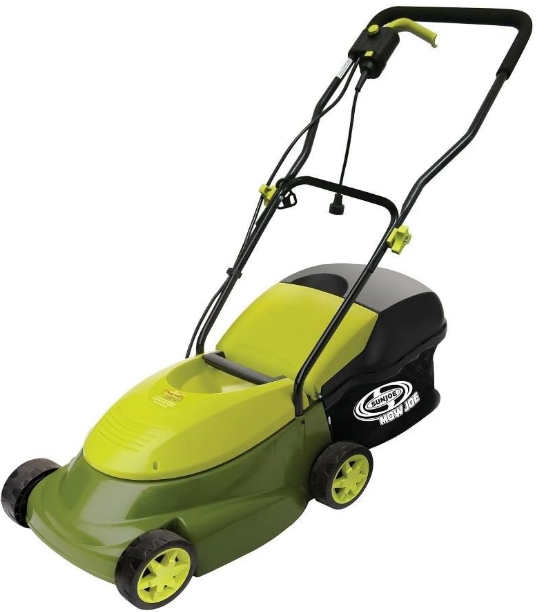

Sunjoe MJ401E-PRO 13 AMP Electric Lawn Mower

Safety Instructions

FOR DOUBLE-INSULATED LAWN MOWERS

1. Replacement parts
   When servicing this unit, use only identical replacement parts. Replace or repair damaged cords immediately.
2. Polarized plug
   Polarized appliance connections reduce the risk of electric shock. This mower has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. There is only one way the mower’s plug will fit into a polarized extension cord. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. There is only one way the plug will fit into a polarized wall outlet. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.

• Hot surfaces (i.e. ,the motor) may ignite flammable or combustible items and cause a fire or explosion, which can result in serious bodily injury. Keep the mower a safe distance away from flammable or combustible items until surfaces that are hot have completely cooled. Do not store the mower near flammable or combustible items.
• A damaged blade or worn blade nut may break off the mower assembly and cause serious injury. Replace the damaged blade or blade nut before using the mower.

FOR ALL LAWN MOWERS

1. Avoid dangerous conditions – Do not use the mower in the rain or when the grass is ddamp
2. Keep children, bystanders, and pets away – Always keep children and spectators a safe distance away from the mower during operation and as the machine cools.
3. Dress properly – Always wear personal safety gear (i.e., glasses, rubber gloves, protective footwear, and dust masks) and proper clothing when using the mower. Loose clothing, long hair, or jewelry may get caught in the moving parts.
4. Use the right appliance – Do not use the lawn mower for any applications other than those for which it was intended.
5. Do not force the lawn mower – It will perform better with less likelihood of personal or mechanical injury if it is used at the rate for which it was designed.
6. Do not overreach – Keep proper footing and balance at all times.
7. Stay alert – Always be alert and watch what you are doing. Use common sense. Do not operate the lawnmower when you are tired or under the influence of alcohol or drugs.
8. Disconnect the lawn mower – Disconnect the lawn mower from the power supply when it is not in use, before servicing, when changing accessories, and when performing any other maintenance task.
9. Store an idle lawn mower indoors – When not in use, the lawn mower should be stored indoors in a dry, locked place out of the reach of children.
10. Maintain the lawn mower with care – Keep cutting edges sharp and clean for bthe est and safest performance. Inspect the lawn mower cord periodically and if damage is found, have it repaired by an authorized service facility. Extension cords should also be inspected periodically and immediately replaced if damaged. Keep handles dry, clean, and free from oil and grease.

Electrical Safety

1. . Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the lawn mower. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
2. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW, SOW, STW, STOW, SJTW, or SJTOW. Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating.
3. To reduce the risk of electric shock, this appliance has a polarized plug (i.e.,o ne blade is wider than the other). Use this appliance only with a polarized, UL-listed (CSA certified in Canada) extension cord recommended for outdoor use. The appliance plug will fit into a polarized extension cord only one way. If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle, or extension cord plug in any way.
4. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.
   • Table 1. Method of Securing Ean xtension Cord
5. Do not abuse the cord. Never pull the lawn mower by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

General Operation

• Read, understand, and follow all instructions on the machine and in the manual(s) before starting.
• Do not put hands or feet near or under the machine. Always stay clear of the discharge opening.
• Keep guards in place andin properr working order.
• Only responsible adults who are familiar with the instructions should be allowed to operate this machine.
• Clear the mowing area of foreign objects such as rocks, wire, toys, and other miscellaneous articles, which could be picked up and thrown by the blade. Stay behind the handle when the engine (motor) is running.
• Make sure that the mowing area is clear of bystanders before starting the machine. Stop the machine if anyone enters the area.
• Do not operate the machine while barefoot or while wearing sandals. Always wear substantial footwear.
• Always look down and behind before and while moving backward with the mower.
• Never direct discharged material toward anyone. Avoid discharging material against a wall or other obstruction.
• Never leave a running machine unattended.
• Stop the engine (motor) and wait until the blade comes to a complete stop before cleaning the machine, removing the grass bag, changing accessories, or unclogging the discharge guard.
• Operate the machine only in daylight or in good artificial light.
• Do not operate the machine when you are tired or under the influence of alcohol or drugs.
• Never operate the mower in wet grass. Always be sure of your footing; walk, never run, with the mower.
• If the machine should start to vibrate abnormally, stop the engine (motor) and immediately check the machine to ascertain the cause. Vibration is generally a signal of trouble.
• Keep blades sharp.
• Keep hands and feet away from the cutting area.
• Always wear eye protection when operating the machine.
• Objects struck by the lawn mower blade can cause severe injuries. The mowing area should always be carefully examined and cleared of all objects pbeforemowing.
• If the lawn mower strikes a foreign object, follow these steps:
  • Stop the lawn mower by releasing the ON/OFF switch lever.
  • Unplug the power cord.
  • Inspect for damage.
  • Repair any damage before restarting and operating the lawnmower.

Slope Operation

Slopes are major factors related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never mow slopes following an up-and-down traverse. Exercise extreme caution when changing direction on a slope.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. These may cause an unexpected slip or fall.
• Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.
• Do not mow near drop-offs, ditches, or embankments. You could lose your footing or balance.

Service

• Keep all nuts and bolts tight.
• Never tamper with safety devices. Regularly check to ensure these devices are in place and in proper working order.
• Keep the mower free from grass, leaves, or other debris buildup.
• Never make any adjustments or repairs with the engine (motor) running. Always unplug electric mowers before adjusting, cleaning, or repairing.
• Check the grass bag components and the discharge guard frequently and replacethem  with the manufacturer’s recommended parts when necessary.
• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Maintain or replace safety and instruction labels, as necessary.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Know Your Electric Lawn Mower

Read the owner’s manual and safety instructions carefully before operating the mower. Compare the illustration below to the mower to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

1. ON/OFF switch lever
2. Safety lock button
3. Overload circuit reset button
4. Extension cord restraint hook
5. Cable clip (2)
6. Top cover
7. Upper handle
8. Appliance cord
9. Upper handle knob and bolt (2)
10. Lower handle
11. Ejector flap
12. Grass bag
13. Mower deck
14. Wheel (4)
15. Side-discharge chute

Technical Data

• Rated Voltage: 120V ~ 60 Hz
• Motor: 13A
• No Load Speed  3500 rpm
• Rotor: 14 in. (35.6 cm) steel blade
• Cutting Width: 14 in. (35.6 cm)
• Cutting Height: 1.18 in. to 2.52 in. (30 mm to 64 mm)
• Grass Bag Capacity  10.6 gal (40 l)
• Wheel Size: 5.5 in. (14 cm)
• Net Weight: 30 lbs (13.6 kg)

Unpacking

Carton Contents

• Electric lawn mower
• Grass bag
• Grass bag support rod
• Side-discharge chute
• Upper handle
• Upper handle knob and bolt assembly (2)
• Lower handle
• Lower handle screws (2)
• Extension cord restraint hook
• Cable clip (2)
• Spanner
• Manual and registration card

1. Carefully remove the lawn mower and check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe® + Sun Joe® customer service department at 1-866-SNOWJOE (1-866-766-9563).
   NOTE
   Do not discard the shipping carton and packaging material until you are ready to use your new electric lawn mower. The packaging is made of recyclable materials. Properly dispose of these materials ibylocal regulations. The equipment and packaging material are not toys. Do not let children play with plastic bags,f forsmall parts. These items can be swallowed and pose a suffocation risk!

Handle Assembly

1. Fit the lower handle into the two holes in the machine body and fasten the handle on both sides with the screws provided (Fig. 1).
2. Slide the extension cord restraint hook onto the upper handle (Fig. 2).
3. Join the upper handle to the lower handle using the knob, plastic washer, and bolt provided (Fig. 3). Repeat on the moppopposite sideass Bag Assembly + Fitting

1. Fit the support rod into the holes in the plastic cover. The bend of the support rod should face the rear of the machine (Fig. 4).
2. Place the protective plastic straps (attached to the grass bag) onto the support rod (Fig. 5).
3. Raise the spring-loaded ejector flap. Position the grass bag over the coupling hooks to the mower body (Fig. 6).
4. Release the ejector flap to secure the grass bag in position (Fig. 7).

Side-discharge Chute Assembly + Fitting

The side-discharge chute sweeps grass clippings swiftly from the cutting chamber, enabling you to cut taller grass without clogging the mower deck.

1. Raise the spring-loaded ejector flap. Fasten the side discharge chute to the mower body by sliding the chute tabs onto the coupling hooks found under the ejector flap. Check to make sure the chute is securely fastened (Fig. 8).
2. . Lower the ejector flap and rest it on top of the chute (Fig. 9).

Operation

This lawn mower is intended for private residential use to cut grass in small lawns and gardens. This lawn mower is not intended to cut grass in public parks, playing fields, farms, or forests. Do not use this lawn mower for any application other than that for which it is intended.

Adjusting the Cutting Height

Follow these instructions to adjust the cutting height of thelawnmowerr. Before making these adjustments, disconnect the power supply to the mower and wait until the rotating blade has come to a complete standstill. Wearing gloves is recommended due to the proximity tthe blade

ALWAYS FOLLOW ALL SAFETY PRECAUTIONS AND RECOMMENDATIONS LISTED PREVIOUSLY IN THIS MANUAL.

1. . Power off and unplug the lawn mower.
2. Remove and empty the grass bag.
3. Place the lawn mower on its side.
4. The rod axles can be placed into 3 different cutting heights: low (will cut grass the shortest), medium, and high (Fig. 10).

Position Height Adjustment:

1. Low: 1.18 in. (30 mm)
2. Medium: 1.93 in. (49 mm)
3. High: 2.52 in. (64 mm)

The cutting height tolerance is +/- 0.2 in. (5 mm).

• Move all four wheels to the desired cutting height by pulling back on the rod axle and setting it to the correct position. Make sure all four wheels are at the same cutting height position.  Set the mower to the highest cutting height when mowing on uneven ground or in tall weeds.
• Place the lawn mower back onto its wheels and reattach the grass bag.
• Reconnect the power supply to the mower and resume normal use.

Power Connection

Do not switch on the mower until it has been completely assembled. Before switching on the unit, always check the appliance cord and the extension cord for signs of damage. Use only intact cords.

Damaged cords pose a severe risk of injury. Replace damaged cords immediately

1. Place the unit on a level lawn surface.
2. Form a loop with the end of the extension cord and push the loop through the hole in the extension cord restraint hook. Slide the loop onto the retaining clip to secure the extension cord (Fig. 11).
3. Plug the extension cord into the appliance cord, then connect the extension cord to the mains voltage. Do not plug the extension cord into the outlet until it has been secured with the extension cord restraint hook and connected to the mower’s appliance cord. Only use a UL-rated extension cord for outdoor, all-weather use. Do not use an extension cord over 100 ft (30 m). See Extension Cord Chart on page 2.
4. Place the bulk of the extension cord on the lawn closest to the starting point.

Starting + Stopping

Before switching on the mower, make sure that it is not in contact with any foreign objects. Keep your hands and feet a safe distance away from the rotating mower blade and the ejector opening. Failure to comply with these warnings can result in severe personal injury.
IMPORTANT: Do not start the mower in tall grass.

1. Before starting the electric lawn mower, hold the handle assembly with both hands and tilt the handle downwards to slightly raise the front of the mower. This will reduce the risk of lawn damage during start-up (Fig. 12).
2. To start the electric lawn mower, press and hold the safety lock button, then pull the ON/OFF switch lever toward you (Fig. 13).
3. Once the machine powers on, release the safety lock button and let the motor get up to speed, gently lowering the mower down into the cutting position and start mowing (Fig. 14).
4. To stop the mower, release the ON/OFF switch lever.

Mowing Tips

If you strike a foreign object, immediately stop the motor and disconnect the power cord. Thoroughly inspect the mower for any damage. Repair the damage before resuming operation.

1. The directional method of operation is recommended to obtain the maximum cutting performance and to reduce the risk of the electrical extension cord entering the cutting path.
2. Follow these instructions to mow the cutting area:
   • Proceed to cut as shown in Fig. 15, working from position 1 towards position 2.
   • At position 2, turn right and proceed to position 3.
   • Continue to the end of the cutting area, turn left, and proceed to position 4.
   • Proceed as shown in Fig. 15, always working away from the electric extension cord.
3. Be sure to check the blade periodically for signs of wear and sharpen it at least once per year, as described in the maintenance section.

NOTE
A sharp blade will greatly enhance the performance of the mower, especially when cutting tall blades of grass.

Overload Protection

The motor is equipped with a thermal switch that cuts out when the motor is overloaded and switches on again automatically after a short cool-down period. The mower blade will continue to rotate for a brief period after the unit has been switched off. Do not tilt or carry the unit while the motor is still running, and do not touch the blade while it is still rotating. Failure to comply could result in severe personal injury.

Maintenance

General

• Always keep the mower clean and free of grass, dirt, or other debris.
• Keep the handles dry, clean, and free of oil and grease.
• After each cutting session, remove accumulated grass clippings and debris using either a dry cloth or a handbrush. You may also clean the equipment with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents, as they may damage the equipment’s plastic components. Make sure that no water penetrates the equipment’s interior, as intake of water can destroy the switch/plug mechanism and the electric motor.
• Do not clean the lawn mower with running water, particularly with high-pressure water.
• Check all nuts, bolts, and screws for proper tightness before each use.
• Frequently inspect the grass bag assembly for signs of wear and replace immediately with a genuine Snow Joe® + Sun Joe® part if damage is found.
• Replace excessively worn or damaged parts immediately.
• To maximize your mower’s longevity, all screwed parts, including the wheels and axles, should be cleaned and lubricated. There are no parts inside the equipment that require additional maintenance or lubrication.

Blade Maintenance

The mower blade is sharp and can cause severe personal injury if handled incorrectly. Wrap the blade or wear protective gloves, and use extra caution when handling. The steel blade is designed to provide a fine cut in long or tough grass. Deterioration in the quality of the cut indicates blade wear or damage. Follow these steps to determine if the blade needs to be resharpened or replaced:

1. . Disconnect the electrical supply to the mower
2. Turn the mower on its side to expose the underside of the blade housing.
3. Check the blade
   • If the blade is blunt or has minor wear, then resharpen. Please call Snow Joe® + Sun Joe® customer service for assistance at 1-866-SNOWJOE (1-866-766-9563).
   • If the blade shows signs of major wear or damage (i.e., gouged, bent), then replace it. Please call Snow Joe® + Sun Joe® customer service for assistance at 1-866-SNOWJOE (1-866-766-9563).

An excessively vibrating mower indicates that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced. Please follow the proper maintenance procedures for blade care or call the Snow Joe® + Sun Joe® customer service center for assistance at 1-866-SNOWJOE (1-866-766-9563).

Blade Replacement

Only use original replacement parts specified for this mower. You can purchase a replacement blade (Model MJ401E-11) and other genuine replacement parts by ordering online at snowjoe.com or, to order by phone, contact Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563). The use of parts that do not meet the original equipment specifications may lead to improper performance of the lawn mower, may compromise operator safety, and will void the manufacturer’s warranty.

1. Disconnect the electrical supply to the mower.
2. Turn the mower on its side to expose the underside of the blade housing.
3. Wear heavy-duty gloves, or use a cloth to grip the blade.
4. Using the spanner provided, remove the bolt and the washer securing the blade by turning the bolt counterclockwise, then carefully remove the blade (Fig. 16).
5. Fit the new blade, the washer, and the bolt back on following the same steps in reverse order (Fig. 17).

Storage

Follow the steps below to prepare the lawn mower for storage:

1. Disconnect the power supply to the mower.
2. Clean the mower with a damp cloth or a hand brush.
3. Inspect the mower carefully for worn, loose, or damaged parts. Check connections and screws and tighten if necessary. Pay special attention to the mower blade and replace/sharpen it if it shows signs of wear. Refer to the Maintenance and Care section.
4. Store the mower indoors in a dry, clean, and cool area out of the reach of children. Do not store the unit next to corrosive materials, such as fertilizer and rock salt.
5. Wipe the extension cord to remove any foreign substances, such as oil or stains. Replace the extension cord immediately if it is cut or damaged in any way.
6. Wind the cord in a series of equal loops to prevent it from tangling.
7. Do not cover the lawnmower with a solid plastic sheet. Plastic coverings trap moisture around the mower, which can damage the unit.
8. The handle on your lawnmower can be folded for compact storage. Start by loosening the handle knobs on each side of the upper handle and folding down the upper handle (Fig. 18).

Service & Support

If your Sun Joe® MJ401E-PRO electric lawn mower requires service or maintenance, please

• Call: 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model & Serial Numbers

• When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal affixed to the housing or handle of your mower. Copy these numbers into the space provided below.

Troubleshooting

• Motor does not run
  • Unplug the unit from the power source and check that the blade is able to rotate freely. If the mower was previously in use, let the motor cool down because the electrical brake could still be engaged.
  • Check mains, extension cord, and circuit-breaker (fuse)
  • Clean discharge channel/housing
  • Start the mower on short grass or in a previously mowed area and tilt back
  • Correct the cutting height
• Motor power drops
  • Check that you are using a suitable extension cord of proper gauge and length (see Extension Cord Chart pg. 2)
  • The power source (e.g., generator) has too lowa  a voltage
  • Air vents are blocked
• Motor performance drops
  • Correct the cutting height
  • Clean discharge channel/housing
  • Replace or resharpen mowing blade (contact an authorized Snow Joe® + Sun Joe® service center)
• Grass catcher not filling sufficiently
  • Correct the cutting height
  • Allow the lawn to dry
  • Clean the grille on the grass collection bag
  • Clean the discharge channel/housing

Only a company specialist may be able to correct faults that cannot be rectified with the aid of this table. Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Accessories

ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use
replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

Accessories are subject to change without any obligation on the part of Snow Joe® + Sun Joe® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

OUR WARRANTY

Snow Joe warrants new, genuine, powered, and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that? This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains, and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
