Whirlpool W11562466C Automatic Front Load Washer User Manual

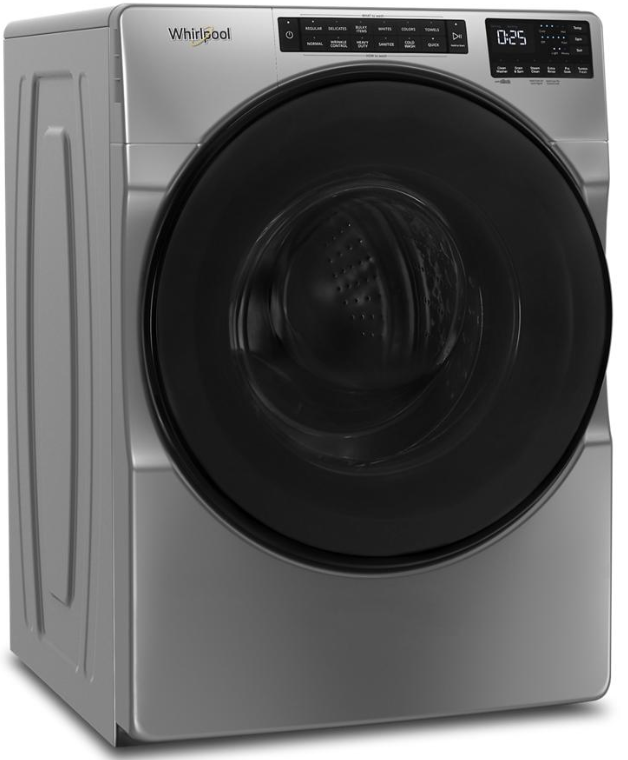

Whirlpool W11562466C Automatic Front Load Washer

Safety Instructions

• Do not wash articles that have previously been cleaned, washed, soaked, or moistened with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as these release vapors that could ignite or cause an explosion.
• Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the water to be used for washing
• These substances release vapors that could ignite or cause an explosion.
• Under certain conditions, hydrogen gas may be generated in a hot water system that has not been used for two weeks or more.
• If hot water has not been used during this period, before using the washing machine, open all hot water faucets and let the water run for several minutes.
• This will release any hydrogen gas that may have accumulated in the system.
• Due to the flammability of hydrogen, do not smoke or use an open flame during this time.
• Do not allow children to play on or inside the washing machine.
• Children must be carefully supervised whenever the washing machine is in use near them.

Technical Specifications

Accessories

Accessories designed for your appliance

Customize your new washer and dryer with the following genuine Whirlpool accessories. For more information on options and ordering, call 01 (81) 8329-2100 or visit us at: www.whirlpool.com.mx/servicio.

15″ Pedestal

Color-matched pedestals raise the washer and dryer to a more comfortable working height. The large drawer provides convenient storage.

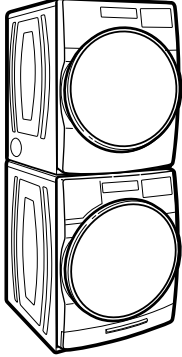

Stack Kit

If space is at a premium, the stack kit allows the dryer to be installed on top of the washer.

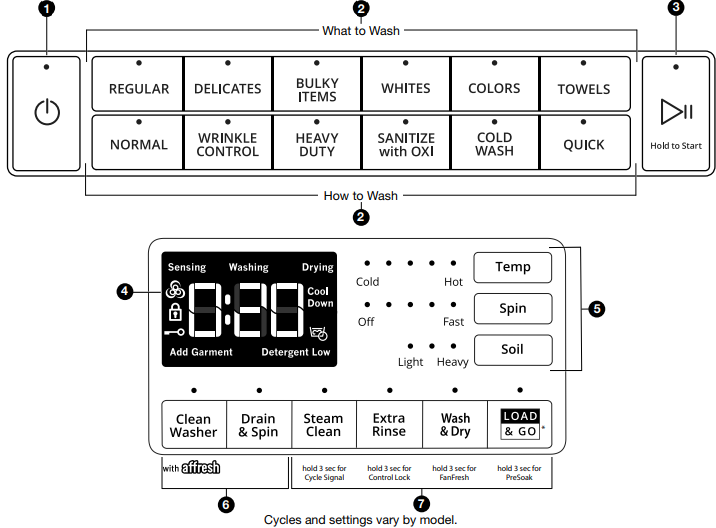

Control Panel & Features

• Not all features and cycles are on all models.
• If your model has a touch interface, the control panel features a sensitive surface that responds to a light touch of your finger.
• To ensure your selections are registered, touch the control panel with your fingertip, not your fingernail.
• When selecting a setting or option, simply touch its name.
• If your model has physical buttons, make sure to press the button firmly.
• At cycle completion, your setting and option choices will be remembered for the next cycle.
• However, if power to the washer is lost, the settings and options will go back to the factory defaults.

Power

• Select to turn the washer on and off. Select to stop/cancel a cycle at any time.

How To Use

First, determine what items are in the load that you are trying to wash. Use that to guide your “What to Wash” selection. Then determine how you want the washer to wash them and make the appropriate “How to Wash” selection. See “Cycle Guide” for cycle details.

If you do not make a “How to Wash” selection, the washer automatically select the recommended or last-used “How to Wash” cycle. START/PAUSE Touch and hold for 3 seconds until the light above START/ PAUSE comes on to start a cycle, or touch once while a cycle is in process to pause it.

Display

The Cycle Status Display shows the progress of a cycle. At each stage of the process, you may notice sounds or pauses that are different from traditional washers.

Estimated Time Remaining

The Estimated Time Remaining shows the time required for the cycle to complete. Factors such as load size, modifiers, options selected, and water pressure may affect the time shown in the display. Tightly packed loads, unbalanced loads, or excessive suds may cause the washer to lengthen the cycle time as well.

Sensing

When START/PAUSE is touched, the washer will chime, indicating it is starting. The drum will make a partial turn. The door will click when it locks. Once the door has locked, the washer will begin spinning to sense the load size. This sensing process will continue throughout the cycle.

After the load size is sensed, the estimated time based on the load size will be displayed, and water will be added. You may hear water flowing through the dispenser, adding detergent to the load. The actual cycle time may be lengthened; however, the display will continue to show the estimated time.

Washing

• During the wash cycle, this will display to let you know the cycle is in progress.

Drying (on some models)

• During a drying cycle, this will display to let you know the drying cycle is in progress.

Cool Down (on some models)

• At the end of a drying cycle, your load will go through a cool-down period.

PreSoak

• This symbol will be displayed to let you know a presoak is in progress.

Detergent Low

• When the detergent in the bulk dispenser is running low, the display will show the detergent level (Low).

Add Garment

• When “Add Garment” is displayed, you may pause the washer, open the door, and add items. Touch and hold START/PAUSE to start the washer again.

Door Locked

• The Door Locked symbol will display to indicate that the door is locked and cannot be opened without first pausing or canceling the cycle.

Control Lock

• When the Controll Lock symbol is displayed, the buttons are disabled. Touch and hold EXTRA RINSE for 3 seconds to enable the buttons.

Fan Fresh

• This symbol will be displayed when the FanFresh option is activated. The fan will turn on and the load will tumble periodically for up to 12 hours.

End

• Once the cycle is complete, “End” will display. Remove the load promptly for best results.

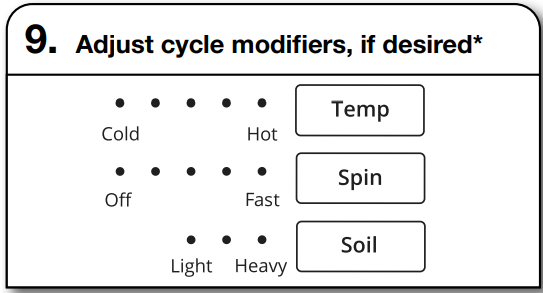

Cycle Modifiers

When you select a cycle, its default settings will light up. Touch to adjust cycle modifiers on the washer before touching START/PAUSE. Additional wash modifiers or options selected after touching START/PAUSE may not activate. Once a wash setting is selected, it is saved for the cycle selected. To return to factory default cycle settings, unpluthe g the washer for 30 seconds; then plug it back in. See “Cycle Guide” for default cycle settings.

Temp

The recommended wash temperature is preset for each cycle. Some preset temperatures can be changed. You may select a different wash temperature based on the level of soil and type of fabric being washed. For best results, use the warmest wash water safe for your fabric, following the garment label instructions. All wash temperatures feature a cold rinse.

Spin

The recommended spin speed is preset for each cycle. Some preset speeds can be changed.

• Faster spin speeds mean shorter dry times, but may increase wrinkling in your load.
• Slower spin speeds reduce wrinkling, but will leave your load more damp.

Soil

The recommended soil level is preset for each cycle. Some preset soil levels can be changed. For heavily soiled and sturdy fabrics, select the Heavy Soil Level setting. For lightly soiled and delicate fabrics, select the Light Soil Level setting. Lower soil level settings will help reduce tangling and wrinkling.

Utility Cycles

Clean Washer

Use this every 30 washes to keep the inside of your washer fresh and clean. This cycle uses a higher water level. Use with affresh® Washer Cleaner tablets or liquid chlorine bleach to thoroughly clean the inside of your washer. When using this cycle, the drum should be empty. This cycle should not be interrupted. See the “Washer Care” section.

Drain & Spin

This cycle removes excess water from the load or special-care items washed by hand. Use this cycle after a power failure. For some fabrics, you may choose to set a slower spin speed. On some models: Touch and hold DRAIN & SPIN for 3 seconds to set a Dry Only cycle.

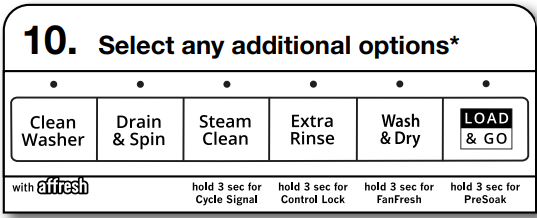

Cycle Option

You may add or remove options for each cycle. Not all options can be used with all cycles, and some are preset to work with certain cycles. Options vary by model.

Steam Clean

The Steam Clean option adds additional soak and wash time to many cycles to help remove tough stains, as well as a steam boost for added cleaning power. An integrated heater helps to maintain optimal wash temperatures. See “Cycle Guide” for cycles that allow the Steam Clean option. You can also touch and hold STEAM CLEAN for 3 seconds to turn cycle signals on or off.

Extra Rinse

Activate this option to add an extra rinse to most cycles. You can also touch and hold EXTRA RINSE for 3 seconds to disable/enable the Control Lock.

Wash & Dry

Touch to add a drying cycle to your load after the wash cycle has finished. The Wash & Dry option is designed to wash and dry small loads overnight. Cycle time will vary based on load composition. For optimal dry performance and cycle time, load the drum no more than one-quarter full. The cycle will automatically terminate after a maximum of 12 hours of cycle time.

You can also touch and hold WASH & DRY for 3 seconds to activate/deactivate the FanFresh option. Use the FanFresh option if you will be unable to remove the load promptly. The washer will automatically activate the fan after the cycle ends and tumble the load periodically for up to 12 hours.

Load & Go

• Touch to select this option if you want to automatically add HE detergent to the wash load at the proper time.

PreSoak (on some models)

• Touch to add a presoak time of your choice to a wash cycle.

TumbleFresh™

• Touch to activate/deactivate the TumbleFresh™ option. Use the TumbleFresh™ option if you will be unable to remove the load promptly. The washer will automatically tumble the load periodically for up to 12 hours after the cycle ends.

Dispensers

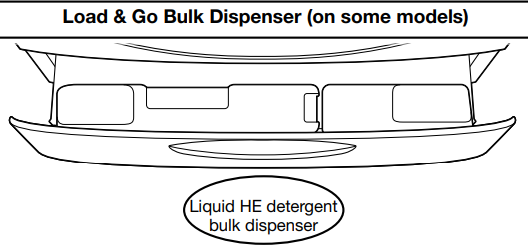

Load & Go Bulk Dispenser

The Load & Go bulk dispenser gives you the convenience of not having to add the HE detergent to the wash load every time. It also determines the best amount of detergent and the best time to add it to the load. See the “Using the Dispensers” section for information on using the dispenser drawer

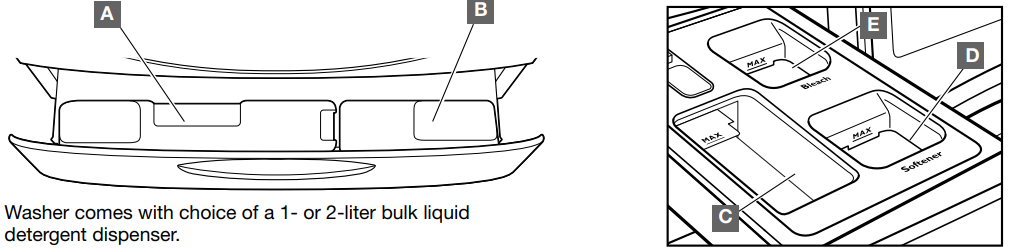

Single Load Dispenser Drawer

The single load dispenser drawer gives you the convenience of adding HE detergent, liquid chlorine bleach, and liquid fabric softener to the wash load at the proper time. See the “Using the Dispensers” section for information on using the dispenser drawer.

• 2-Liter Bulk Liquid High Efficiency (HE) detergent dispenser. This bulk dispenser holds up to 67.6 oz (2 L) of liquid HE detergent.
• 1-Liter Bulk Liquid High Efficiency (HE) detergent dispenser.. This bulk dispenser holds up to 33.8 oz (1 L) of liquid HE detergent. Each dispenser holds enough detergent for many loads of laundry. Each adds the appropriate quantity of HE detergent to the wash load at the proper time. See the “Using the Dispensers” section for information on using the dispenser.
• High Efficiency (HE) detergent compartment. This compartment holds liquid or powdered HE detergent for your main wash cycle, and automatically dispenses detergent in the cycle.
• Liquid fabric softener compartment. This compartment holds liquid fabric softener. It automatically dispenses liquid fabric softener at the optimum time in the cycle.
• Liquid chlorine bleach compartment.. This compartment automatically dilutes and dispenses liquid chlorine bleach at the optimum time during the first rinse after the wash cycle. It cannot dilute powdered bleach.

Cycle Guide

You can use this washer to wash only or to wash and dry. This washer has a unique user interface to help you select the best cycle for your load. The “What to Wash” and “How to Wash” layout guides you to the optimal cycle in two easy steps: First, determine what items are in the load that you are trying to wash.

Use that to guide your “What to Wash” selection. Then, determine how you want the washer to wash them and select the appropriate “How to Wash” selection. Selecting “What to Wash” will automatically select a default “How to Wash selection, so selecting a “How to Wash” is optional. See the chart below for more details.

Right Detergents

Use only high-efficiency detergents. The package will be marked “HE” or “High Efficiency.” Low-water washing creates excessive sudsing with a non-HE detergent. Using non-HE detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component malfunction and, over time, buildup of mold or mildew. HE detergents should be low-sudsing and quick-dispersing to produce the right amount of suds for the best performance.

They should hold soil in suspension so it is not redeposited onto clean clothes. Not all detergents labeled as High Efficiency are identical in formulation and their ability to reduce suds. For example, natural, organic, or homemade HE detergents may generate a high level of suds. If you use one of these and see a “SUD” error code appear in the display, consider using a different HE detergent. Always follow the detergent manufacturer’s instructions to determine the amount of detergent to use.

About Detergent Concentration

Today’s liquid HE detergents are concentrated. Most brands of concentrated HE detergent will show the level of concentration on the bottle.

However, if the detergent bottle does not give the concentration, it can be easily calculated. Just divide the package size in fluid ounces by the number of loads. Then refer to the chart below to find the concentration.

Using the Dispensers

1. For automatic dispensing, open the bulk dispenser drawer using the handle at the base of the washer.
2. For a single load, open the single load dispenser drawer at the top left corner of the washer and disable the Load & Go option.
3. Add laundry products as described below.
4. Slowly close the dispenser drawer. Make sure it is completely closed.
5. A small amount of water may remain in the single-load dispenser from the previous wash cycle. This is normal.
6. See “About Detergent Concentration” for information on detergent concentration.
7. On some models: When the detergent in the bulk dispenser is running low, the display will show the detergent level (Low).

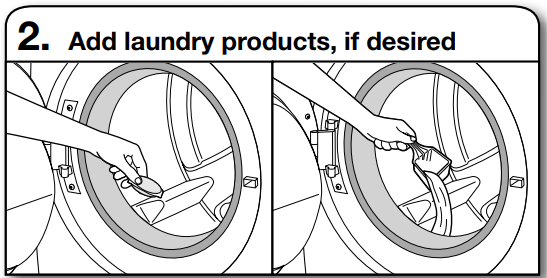

8. Add single-dose and Oxi-type boosters to the drum before loading items. See the “Using Your Washer” section.

Adding HE Detergent to the Dispenser

Load & Go bulk dispenser (on some models)

Use only High Efficiency (HE) liquid detergents. The bulk dispensers will hold about 67.6 oz (2 L) or 33.8 oz (1 L) of liquid HE detergent, depending on the dispenser, or enough for many loads of laundry.

To Fill Bulk Dispensers

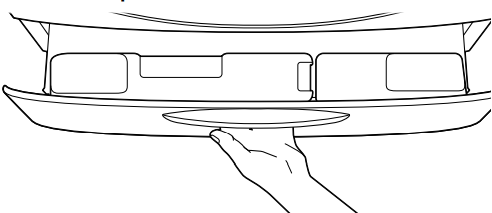

Open the dispenser drawer by pulling on the handle at the base of the washer. Locate the Load & Go bulk dispenser. Gently pull up on the tab located on the bulk dispenser lid to lift the fill door.

Fill to the “MAX” line (see illustrations at right) with HE liquid detergent. Close fi ll door. It will click into place. Make sure the concentration is correct (see the “Choosing the Right Detergent” section.

The dispensers should be rinsed out when changing detergents or when the washer will not be used for extended periods. For instructions on cleaning the dispenser cartridge, see the “Washer Care” section.

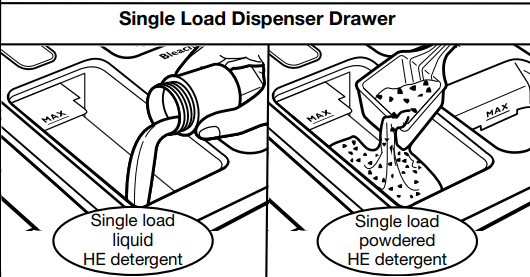

Adding Detergent for a Single Load

Pour a measured amount of HE detergent into the detergent compartment. For powdered detergent, lift the selector to the high position. For liquid detergent, push down the selector to the low position. Do not overfill; adding too much detergent may cause detergent to be dispensed into the washer too early.

• Powdered detergent: Lift the selector to the high position. Add directly to the compartment.
• Liquid detergent: Push down the selector to the low position. Add directly to the compartment.

Using Your Washer

First wash cycle without laundry

Choose the Regular (what to wash) and Quick (how to wash) cycle and run it without clothes. Use only HE detergent. This initial cycle serves to ensure the interior is clean. Sort items by recommended cycle, water temperature, and colorfastness. Separate heavily soiled items from lightly soiled.

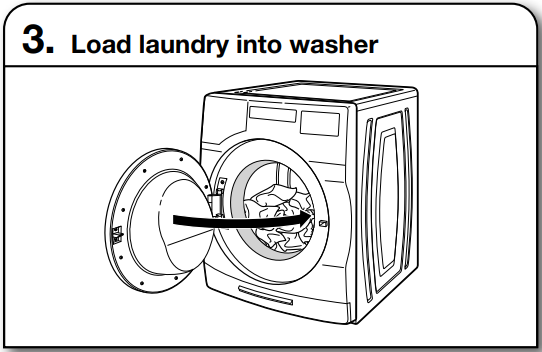

• Push the load fully into the washer.
• Mix large and small items and avoid washing single items. Load evenly.
• Wash small items in mesh garment bags. For multiple items, use more than one bag and fill bags equally.

If the bulk dispenser already contains enough detergent to wash your load, simply choose the Load & Go option as described in Step 10. If you need to add detergent to the bulk dispenser.

Single Load

Add a measured amount of detergent directly into the detergent compartment.

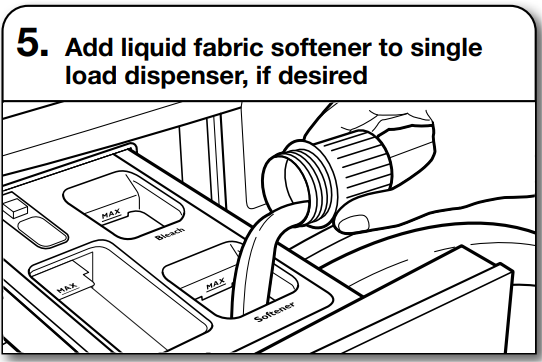

• Do not spill or drip any fabric softener onto the clothes.
• Do not use liquid fabric softener dispenser balls in this washer.
• Do not use fabric softener sheets, as they can stain the load.

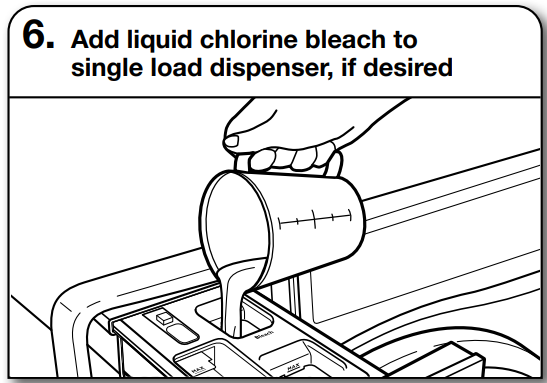

• Always measure liquid chlorine bleach. Use a measuring cup with a pour spout; do not guess.
• On some models: Do not add liquid chlorine bleach to the bulk dispenser.
• Slowly close dispenser drawers. Make sure the drawers are closed completely.

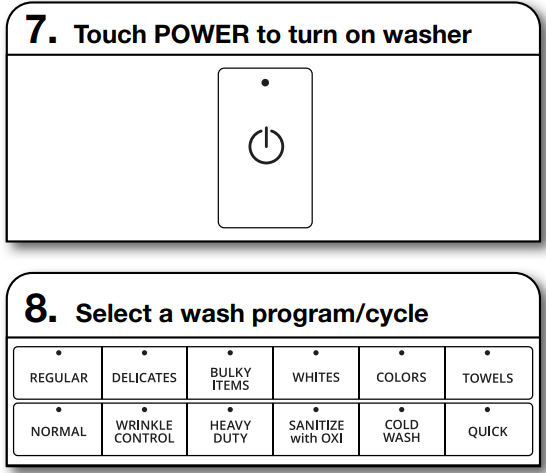

First, choose what you want to wash by touching a selection in the top row. Next, choose how you want to wash your load by touching a selection in the bottom row to choose the best cycle combination for your load.

The LED indicator lights will show the default settings for the selected cycle. To adjust a setting, touch its name – Temp, Spin, or Soil. Adjusting settings may change the Estimated Time Remaining. Tightly packing the load, unbalanced loads, or excessive suds may also cause the washer to increase the cycle time.

To add an option to the cycle, touch its name – Steam Clean, Extra Rinse, or Wash & Dry. If you wish to use the bulk dispenser (on some models), select Load & Go. For other options, touch and hold the buttons indicated for 3 seconds. To remove an option from the selected cycle, touch that button again.

Additional Options

Unlocking the door to add garments: If you need to open the door to add one or two missed garments, you may do so while the “Add Garment” light is lit. The time allowed to add a garment will vary based on cycle selection and load size.

Adding items after “Add Garment” light is off: Cancel current cycle. Water will drain and you will need to reselect cycle and restart. For best wash performance and optimal energy savings, add garments only when the “Add Garment” light is on.

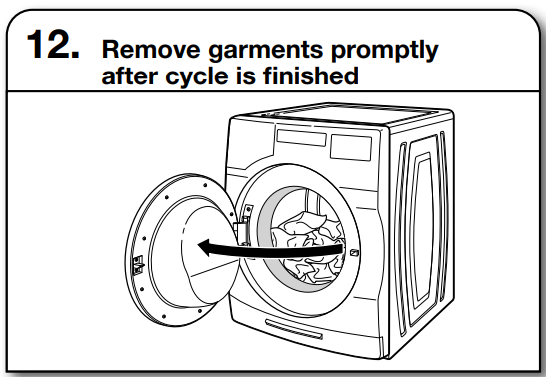

Promptly remove garments after cycle has completed to avoid odor and rusting of metal objects on garments. When unloading garments, pull back the door seal and check for small items between the tub and the washer drum. If you will be unable to remove the load promptly, use the FanFresh option if it is available on your model.

• To cancel the FanFresh option, touch POWER or START/ PAUSE.
• This washer has a tight seal to avoid water leaks.
• To avoid odors, leave the door open to allow the washer to dry between uses.

Maintainance

Replace inlet hoses after five years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses: Mark the date of replacement on the label with a permanent marker. Check that the old washers are not stuck on the washer inlet valves. Use new washers in the new inlet hoses to ensure a proper seal.

Cleaning & Care

Recommendations to Help Keep Your Washer Clean and Performing at Its Best

1. Always use High Efficiency (HE) detergents and follow the HE detergent manufacturer’s instructions regarding the amount of HE detergent to use.
2. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which, in turn, may result in undesirable odor.
3. Use warm or hot water washes sometimes (not exclusively cold water washes) because they do a better job of controlling the rate at which soils and detergent accumulate.
4. Always leave the washer door slightly ajar between uses to help dry out the washer and avoid the buildup of odor-causing residue.
5. Periodically clean residue from all interior surfaces of the window. For better care, wipe the entire inside of the door with a damp cloth.

Cleaning Your Front Loading Washer

Read these instructions completely before beginning the routine cleaning processes recommended below. This washer maintenance procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer.

Cleaning the Door Seal

1. Open the washer door and remove any clothing or items from the washer.
2. Inspect the gray-colored seal between the door opening and the drum for stained areas, soil buildup, or lint. Pull back the seal to inspect all areas under the seal and to check for foreign objects or lint.
3. If stained areas, soil buildup, or lint are found, wipe down these areas of the seal using either of the following two procedures:

Affresh® Machine Cleaning Wipes Procedure

• When the cycle is complete, gently pull back the rubber door seal and clean the entire surface with the textured side of an affresh® Machine Cleaning Wipe.

Dilute Liquid Chlorine Bleach Procedure

• Mix a dilute bleach solution, using 3/4 cup (177 mL) of liquid chlorine bleach and 1 gallon (3.8 L) of warm tap water. Wipe the seal area with the dilute solution, using a damp cloth. Let stand 5 minutes. Wipe down area thoroughly with a dry cloth and let washer interior air dry with door open.

Cleaning the Inside of the Washer

This washer has a special cycle that uses higher water volumes in combination with affresh® Washer Cleaner or regular liquid chlorine bleach to thoroughly clean the inside of the washer. Steam washer models also utilize steam to enhance cleaning in this special cycle.

Begin Procedure

Cycle Procedure

• • Open the washer door and remove any clothing or items.
  • Use an affresh® Machine Cleaning Wipe or a soft, damp cloth or sponge to clean the inside door window.
  • Add an affresh® Washer Cleaner tablet to the washer drum.
  • Do not add the affresh® Washer Cleaner tablet to the dispenser drawer.
  • Do not add any detergent or other chemical to the washer when following this procedure.
  • Close the washer door.
  • Select the Clean Washer with affresh® cycle.
  • On some models: Select the FanFresh option to help dry the washer interior after the cycle is complete.

Chlorine Bleach Procedure

• • Open the washer door and remove any clothing or items.
  • Open the single load dispenser drawer and add regular liquid chlorine bleach to the “MAX” line in both the bleach compartment and the fabric softener compartment. Either traditional or HE chlorine bleach can be used.
  • Close the washer door and the dispenser drawer.
  • Do not add any detergent or other chemicals to the washer when following this procedure.
  • Select the Clean Washer with affresh® cycle.
  • On some models: Select the FanFresh option to help dry the washer interior after the cycle is complete.
  • Touch and hold START/PAUSE to begin the cycle. The Clean Washer with affresh® cycle operation is described below.

Cycle Operation

1. 1. The Clean Washer with affresh® cycle will determine whether clothing or other items are in the washer.
   2. If no items are detected in the washer, it will proceed with the cycle.
      • If any items are detected in the washer, “rL” (remove load) will be displayed. The door will unlock. Open the washer and remove any garments from the washer drum.
      • Touch POWER to clear the “rL” code.
      • Touch and hold START/PAUSE to restart the cycle

Steam Models only

1. During the first 20 minutes of the cycle, it will activate Whirlpool W11562466C Automatic Front Load Washer the steamer, but the drum will not spin or fill with water. You may see condensation on the door window during this initial phase.
2. If you are using an affresh® Washer Cleaner tablet, it will not dissolve completely during the steam phase. This is normal. After the cycle is complete, leave the door open slightly to allow for better ventilation and drying of the washer interior.

Cleaning the Dispensers

After using the Clean Washer with affresh® cycle, you may find some residue buildup in the washer’s dispensers. To remove residue from the single load dispenser, remove the drawer and wipe the surfaces with an affresh® Machine Cleaning Wipe or a damp cloth and towel Whirlpool W11562466C Automatic Front Load Washer dry either before or after you run the Clean Washer with affresh® cycle. Use an all-purpose surface cleaner, if needed.

On some models: To remove residue from the Load & Whirlpool W11562466C Automatic Front Load Washer Go bulk dispenser, lift the handle on the dispenser housing and pull to remove it from the washer cabinet; then rinse the dispenser thoroughly with running water. Wipe the outside dispenser surface with an affresh® Machine Cleaning Wipe or a damp cloth, and towel dry. Use an all-purpose surface cleaner, if needed. Replace the dispenser in the washer cabinet and make sure that it is correctly seated.

Cleaning the Outside of the Washer

Use an affresh® Machine Cleaning Wipe or a soft, damp cloth or sponge to wipe up any spills. Occasionally, wipe the outside of your washer to help keep it looking new. Use an affresh® Machine Cleaning Wipe or mild soap and water.

Removing

Single Load Dispenser Drawer

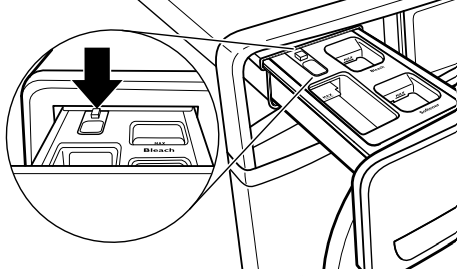

Removing the Dispenser To remove:

1. Pull the dispenser drawer out until it stops.
2. Press down on the release tab and pull straight Whirlpool W11562466C Automatic Front Load Washer out to remove the dispenser.
3. Lift off the cover panel by pulling straight up.

To replace

1. Position cover panel back onto posts on dispenser. Apply Whirlpool W11562466C Automatic Front Load Washer slight pressure on cover panel to seat it.
2. Align edges of dispenser with guides in washer; then slide dispenser back into slot.

Cleaning Loads

It is recommended that you rinse out the Load & Go containers when refilling, when changing detergent types or concentrations, or when the washer will Whirlpool W11562466C Automatic Front Load Washer not be used for an extended period.

1. Pull the dispenser drawer out until it stops.
2. Lift out the Load & Go containers.
3. Lift the fill lid and flush the interior thoroughly with warm water.
4. Allow to air dry.

Non-Use and Vacation Care

Operate your washer only when you are home. If Whirlpool W11562466C Automatic Front Load Washer moving or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.
2. Turn off water supply to washer to avoid fl ooding due to water pressure surges.
3. Clean the dispensers. See “Cleaning the Dispensers.”

Storage Care

To winterize the washer

1. Shut off both water faucets; then disconnect and drain water inlet hoses.
2. Put 1 qt (1 L) of R.V.-type antifreeze in washer drum and run washer on Normal cycle for about 2 minutes to mix antifreeze and remaining Whirlpool W11562466C Automatic Front Load Washer water.
3. Unplug washer or disconnect power.

Transporting

1. Shut off both water faucets. Disconnect and drain water inlet hoses.
2. Disconnect drain hose from drain system and from back of washer.
3. Unplug power cord.
4. Place inlet hoses and drain hose inside washer drum.
5. Bundle power cord with a rubber band or cable Whirlpool W11562466C Automatic Front Load Washer tie to keep it from hanging to the ground.

Reinstalling/using Washer Again

To reinstall washer after non-use, vacation, winter storage, or moving:

1. Refer to Installation Instructions to locate, level, and connect the washer.
2. Before using again, run washer through the following
   recommended procedure:

To use washer again

1. Flush water pipes and hoses. Reconnect Whirlpool W11562466C Automatic Front Load Washer water inlet hoses. Turn on both water faucets.
2. Plug in washer or reconnect power.
3. Run washer through Heavy Duty cycle to clean washer and remove antifreeze, if used. Use only HE detergent. Use half the manufacturer’s recommended amount for a medium-size load.

Troubleshooting

Error Codes

Customer Service

• Website: https://www.whirlpool.com/
• Ph: 1-800-253-1301

FAQs

Where can I find the serial and model number on my Whirlpool W11562466C washer?

The washer’s rear panel or a label within the door frame will have the model and serial number. Before checking, make sure the washer is off.

What does the “Clean Washer” cycle do, and how often should I run it?

The “Clean Washer” cycle cleans the drum of accumulation and residue that causes odour. Whirlpool suggests using liquid chlorine bleach or an affresh® Washer Cleaner pill to run this cycle once a month.

Can I wash waterproof or bulky items in this washer?

Yes, however for large or waterproof things like blankets, rain gear, or comforters, use the Bulky things/Sheets cycle. Always divide the pieces evenly and avoid overloading the drum.

What should I do if I see “Sud” or “F0E2” on the display?

This indicates that there were too many suds found by the washer. Don’t use too much HE detergent; only use it. To get rid of extra suds, run a cycle of rinse and spin.

How do I enable or disable the Control Lock (Child Lock)?

Press and hold the Control Lock button for three seconds until a chime sounds, or use a combination like “Options + Hold” depending on your model, to activate or deactivate Control Lock.

Can I pause a cycle once it starts?

Indeed. To halt the cycle, use the Start/Pause button. Hold off on opening the door until it unlocks. Quickly add or remove items, then click Start again to continue.
