Whirlpool W11753244B Washing Machine
Operation

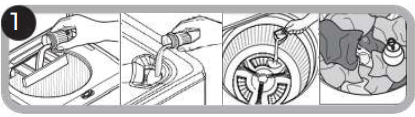

For models without drawer dispensers: Add HE detergent into the basket. Add bleach (if desired) to the labeled dispenser. Add Laundry Products (if desired) into the agitator dispenser. On Non-agitator models, Whirlpool suggests using the Downy Ball® dispenser.
For models with drawer dispensers: Add HE detergent and Laundry Products (if desired) into their respective chambers in the drawer. Add bleach (if desired) to the labeled dispenser. Sort & Load Laundry, then close the lid.

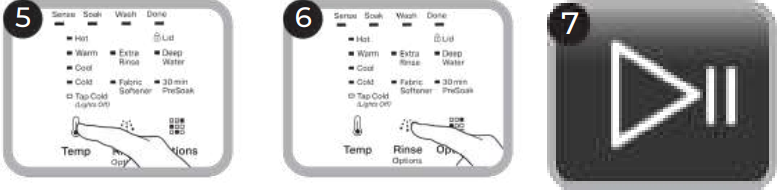

- Press Power to Turn On the Washer.
- Select the Desired Cycle for your Load.
- Adjust Cycle Setting, if desired.
- Adjust Additional Options, if desired.
- Press and Hold Start/Pause to Begin Cycle.

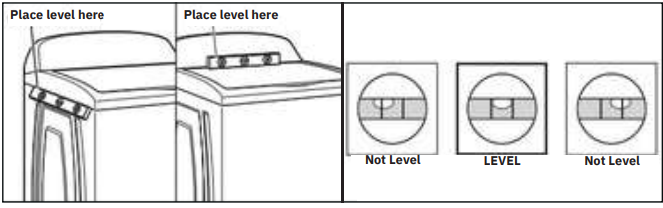

Leveling of the Machine

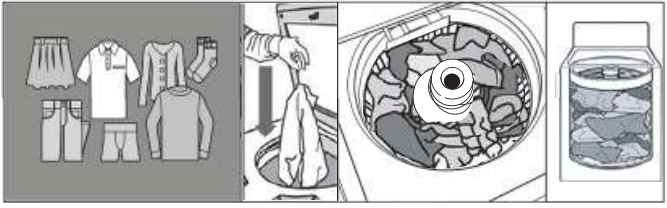

HowtoLoad
Normal cycle with Warm water is recommended for cottons, linens, and mixed garment loads. Reference the Cycle Guide available online for recommended cycles for different clothing layers. For best performance, load items by dropping them in loose heaps evenly around the basket wall. Do not lay items lengthwise.
Customer Service
- Website: https://www.whirlpool.com/
- Ph: 1-800-253-1301
FAQs
What type of washing machine is the Whirlpool W11753244B?
The W11753244B is a top-loading, fully automatic washing machine with several wash programs and easy-to-use controls that is made for effective washing.
Can I install the washing machine myself?
Yes, if you follow the manual’s detailed instructions, you may perform a basic installation. To guarantee correct connection to water inlets, drainage, and power, Whirlpool advises professional installation.
What electrical requirements does this washer have?
A 230V AC, 50Hz grounded power source is needed. Steer clear of non-grounded outlets and extension cords.
How do I level the washing machine properly?
To make sure the unit is stable, adjust the levelling feet at the base. For optimal accuracy and to prevent vibration during spin cycles, use a spirit level.
Can I use liquid detergent in this machine?
Yes, both liquid and powder detergents can be used in the detergent drawer. Depending on your load, use the proper compartment and dosage.
Does the machine require a constant water supply?
It is necessary to have a consistent tap water connection. You don’t have to manually turn the tap on or off every time since the inlet valve regulates water flow automatically.
What is the ideal water pressure for operation?
The ideal water pressure range for the washing machine is 0.03 MPa to 0.8 MPa. The effectiveness of washing may be impacted by low or irregular pressure.
Can I pause the wash cycle to add clothes?
Indeed. To stop the cycle, press the Pause button. Then, safely open the lid, put on the clothing, and start the cycle again.
