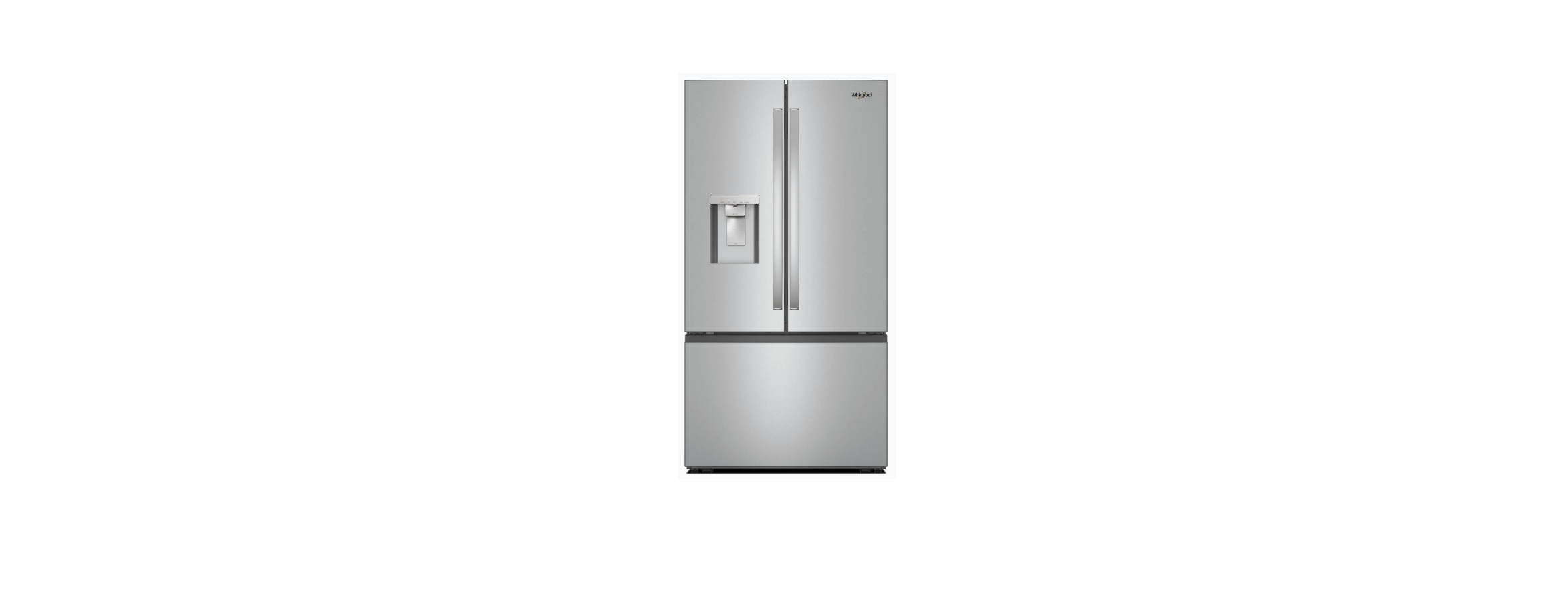

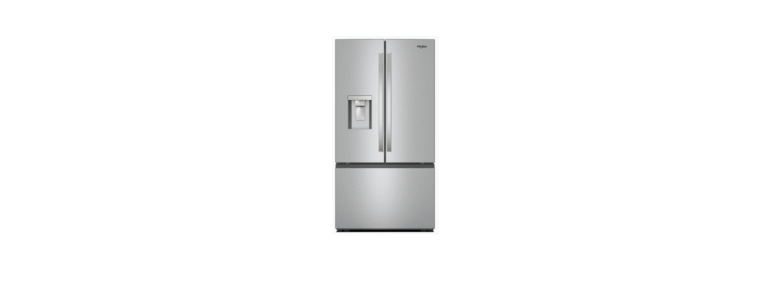

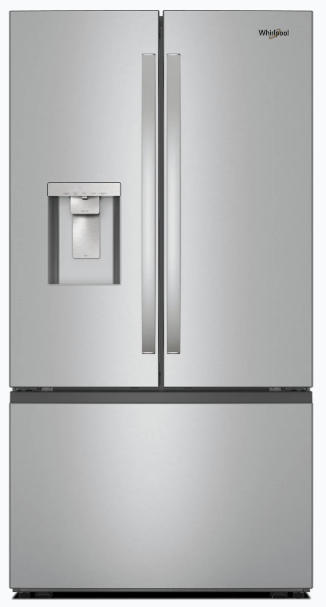

WHIRLPOOL WRFC5036R French Door Refrigerator

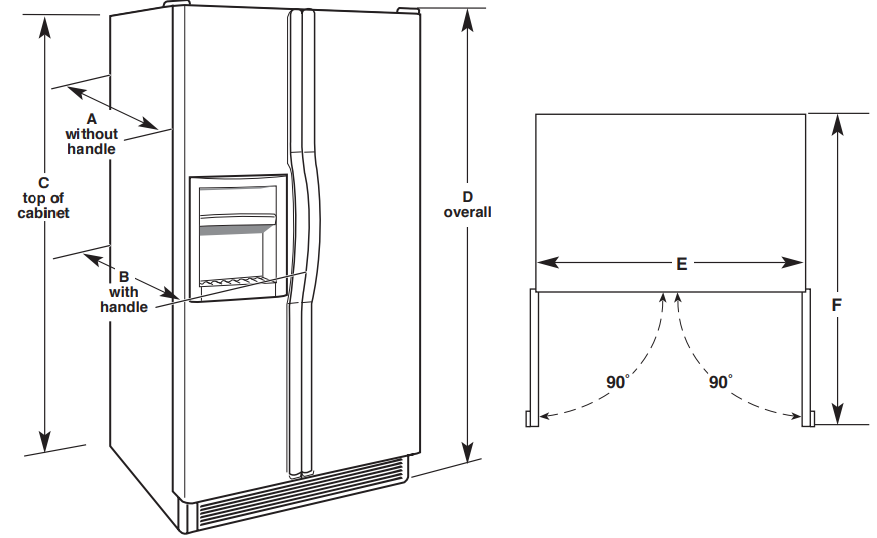

PRODUCT DIMENSIONS
| Model Number | WRSC5536R*, WRSC6536R* |
| Model Size | 20.85 cu ft (589.8 L) |
| Depth – Without Handles “A” | 271/2” (69.8 cm) |
| Depth – With Handles “B” | 291/4” (74.3 cm) |
| Height – Top of Cabinet “C” | 687/8” (174.9 cm) |
| Height – Overall “D” | 69″ (175.3 cm) |
| Width – Cabinet “E” | 36″ (91.4 cm) |
| Depth – Doors Open 90° “F” | 457/8” (116.4 cm) |
| Handle and door style will vary with model. Dimensions “C” and “D” included rollers extended 3/4″ (1.9 cm). | |
ELECTRICAL REQUIREMENTS
Recommended Grounding Method
A 115 V, 60 Hz AC only, 15 A or 20 A fused, grounded WHIRLPOOL WRFC5036R French Door Refrigerator electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
Water Pressure
A cold water supply with water pressure between 30 psi and 120 psi (207 kPa and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
If the water pressure to the reverse osmosis system is less than 40 psi to 60 psi (276 kPa to 414 kPa):
- Replace the filter if necessary.
- Allow the storage tank on the reverse osmosis system to refill after heavy usage.
- If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See “Water Filtration System.”
LOCATION REQUIREMENTS
- Observe all governing codes and ordinances.
- Comply with installation specifications and dimensions.
- Remove any moldings or decorative panels from kitchen cabinets that would not allow access to the refrigerator for service.
- Contact a qualified electrical installer.
Customer Service
- Website: https://www.whirlpool.com/
- Ph: 1-800-253-1301
FAQs
What type of refrigerator is the Whirlpool WRFC5036R?
French door, bottom-freezer refrigerator WRFC5036R with factory-installed ice maker, humidity-controlled crispers, customisable storage, and high-efficiency cooling.
What is the total storage capacity of this model?
The fresh food and freezer sections of this refrigerator have a combined capacity of 25.2 cubic feet, making it perfect for medium-sized to large homes.
What finishes are available for this model?
Fingerprint-resistant stainless steel is the most common finish, while some versions are also available in black stainless steel or white ice.
Is the deli drawer temperature adjustable?
No, because of its placement, the full-width deli drawer remains somewhat colder even if it shares the same temperature as the rest of the refrigerator.
How do I change the temperature settings?
To change the refrigerator’s temperature, use the electronic control panel located inside. After every change, give the temperature a full day to settle.
