ZEBRONICS ZEB-17TI Tire Inflator Instructions Manual

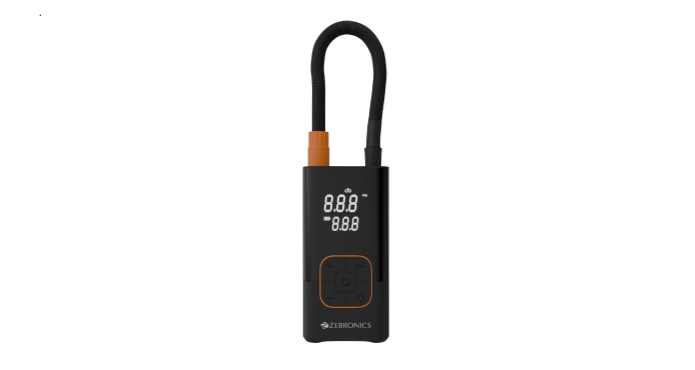

ZEBRONICS ZEB-17TI Tire Inflator

Features

• Cord-Free Functionality
• Powerful Motor
• Multiple Nozzles
• Type-C Charging
• 4 Preset Pressure Modes Flashlight with SOS Mode
• Power Bank Function
• Individual Set Pressure and Current Pressure Indicator

Specifications

• Motor Input Voltage: DC 7.4V
• Motor RPM: 18500 RPM
• No of Preset Pressure Modes: Bike/ Car/ Bicycle/Sports ball
• No of Pressure Measurement Units: Psi/ KPa/ Bar/ kg/cmA2
• Charging Time: 3-4 Hours
• Charging Cable Length: 0.3 Mtr
• Product dimension6.6 x 5.0 x 13.4 cm(W x D x H)
• Net Weight: 0.42 kg
• Country of origin: PRC

Package Contents

• Air inflator 1 U
• Air Hose 1 U
• Air Pump Nozzle attachments: 1 Set
• Charging Cable 1 U
• QR Code Guide 1 U

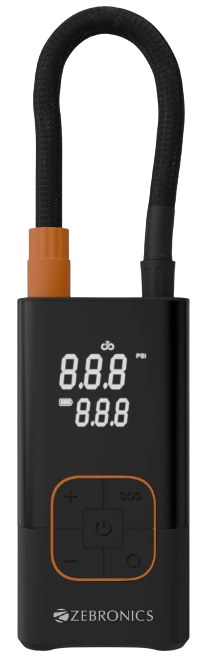

Description

1. Air hose
2. Digital display
3. Operation buttons
4. USB Output
5. Type-C input
6. Air hose storage port
7. LED light
8. Air hose port

Tire Inflator Instructions

1. Prepare the Tire Inflator

   • Charge of the Inflator: Before starting, make sure the tire inflator is fully charged or charged or has sufficient charge for the usage.

2. Attach the Inflation Hose

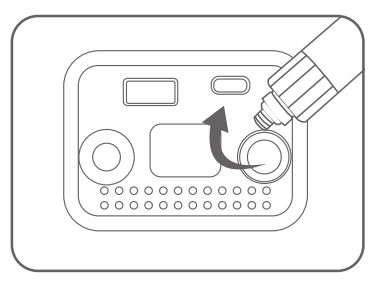

   • Hose Connection
     The air hose provided with the tire inflator has a male screw mount at one end and a female screw nozzle at the other end. Connect the Air hose (Male screw) to the tire inflator by screwing the air hose.

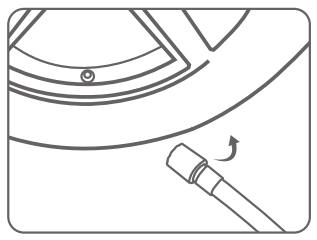

   • Connect the Hose to the Tire Valve
     Now, screw the female ZEBRONICS ZEB-17TI Tire Inflator screw nozzle to the tire by placing the tire nozzle and ensuring there are no air leaks.
3. Set the Desired Pressure
   • Turn on the Tire Inflator
     Press the Power Button to power on the tire inflator.
   • Select Preset Mode:
     Single-press the Mode selection button to choose the suitable preset mode

Power bank Mode

1. Locate the Use Output Port
   On your tire inflator, the USB Output Port is located at the bottom side of the unit.

2. Connect Your Device
   Use the appropriate USB cable for your device (such as Lightning for Apple devices or micro-USB/USB-C for Android devices). Plug the USB end of the cable into the USB Output Port on the tire inflator and the other end into your device.

3. Device Charging
   Your device should begin charging right away.


Charging Instructions

• Please connect the type-C connector of the accessory charging cable to the tire inflator and the USB end of the charging cable to the DC SV adapter.

Flash Light / SOS Mode

1. To power the flashlight, first turn on the Tire inflator, and single-press the SOS Button on the tire inflator. The light will turn on, providing illumination for your work area.
2. On the next single short press, the Slow Blinker function – RED LED Light Blinking will function.
3. On the third single short press, the Fast Blinker function – RED LED Light Fast Blinking will function.
4. To turn off the flashlight, press the SOS Button again.

Storing the Tire Inflator After Usage

• Store the Hose Properly: Coil the inflation hose neatly to avoid tangling or damaging the hose. Ensure that there are no sharp bends.
• Store in a Cool, Dry Place: Store the tire inflator in a dry, cool location. Avoid leaving it in extreme temperatures (like inside a car on hot days).
• Charge the inflator: If you used the battery-powered mode, recharge the unit after use to ensure it’s ready for the next time.

Customer Support

• Website: www.zebronics.com
• Tel: 044 40000004

FAQs

Q: What is the ZEB-17TI tire inflator used for?

Ans: Designed to inflate tires on vehicles, bikes, scooters, and bicycles, the ZEB-17TI is a portable electric air compressor. Using the appropriate nozzles, it may also be used to inflate balls, inflatable toys, and other accessories.

Q: What power source does it use?

Ans: The inflator runs on DC 12V, which is normally supplied by a 12V accessory outlet or the cigarette lighter plug on an automobile.

Q: What is the maximum pressure it can deliver?

Ans: According to the label on your model, the ZEB-17TI can normally inflate up to 100–120 PSI. The majority of automobile tires, however, need between 30 and 35 PSI, which this equipment can readily handle.

Q: Is the inflator automatic or manual?

Ans: When the predetermined pressure is reached, it has an automated shut-off feature. The control buttons and digital display allow you to adjust the PSI to your preferred level.

Q: Is the inflator noisy during operation?

Ans: It makes some noise when operating, just like the majority of small air compressors. To keep noise levels under control, the ZEB-17TI is built with a noise-reducing casing.

Q: How long does it take to inflate a standard car tire?

Ans: Depending on tire size, inflating a flat car tire (from 0 to 30 PSI) takes approximately 3 to 5 minutes on average.
