Aiper Scuba X1 Pro Max In-Ground Pool Cleaner User Guide

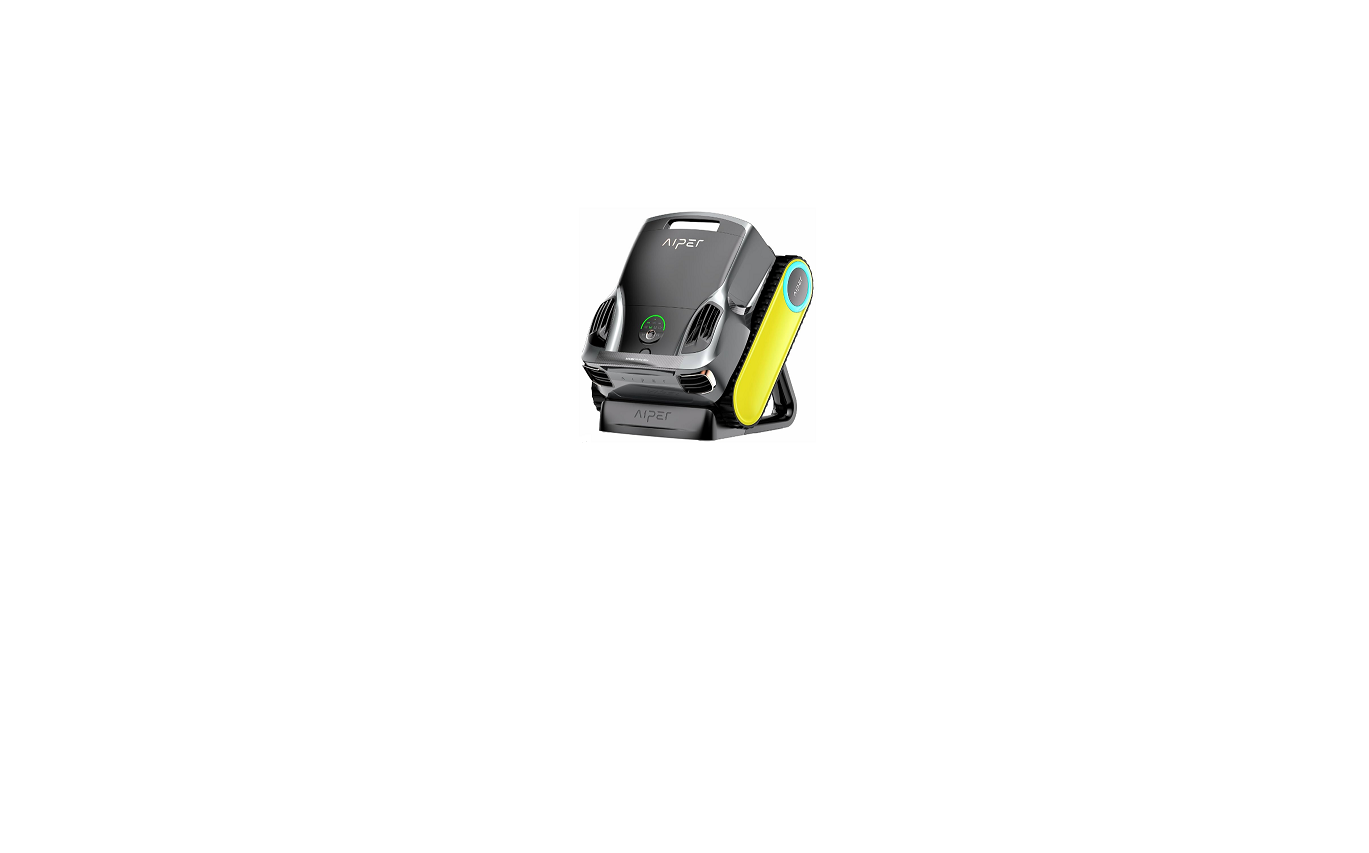

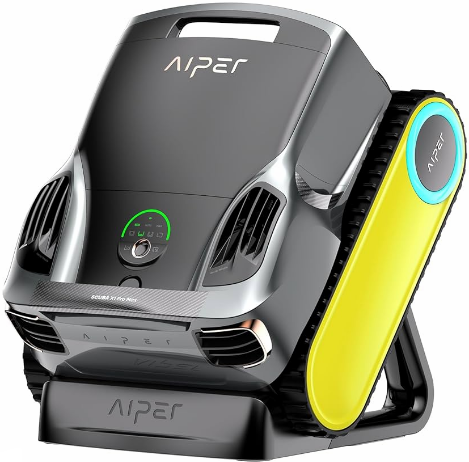

Aiper Scuba X1 Pro Max In-Ground Pool Cleaner

Safety Instructions

Please read this manual carefully and follow all warnings and instructions when using your Aiper Cordless Robotic Pool Cleaner (hereinafter referred to as the device). Failure to comply may result in electric shock, fire, or serious injury. Aiper is not liable for any losses or injuries caused by improper use of this device. For your safety and the optimal performance of this device, please read and follow these instructions:

1. Read and follow all the instructions.
2. Ensure that children do not attempt to touch the device while it is operating.
3. Do not allow children to ride the device under any circumstances.
4. Do not operate the device with people or animals in the pool.
5. While operational, do not place your hands into any part of the device, as this may result in injury.
6. Do not run your device out of water, er as it may lead to overheating.
7. This device can only be used with C1264C6 model lithium battery packs.
8. This device contains batteries that are non-replaceable.
9. When the battery is at the end of its life, the device shall be properly disposed of.
10. Liquid ejected from a damaged battery may cause skin irritation or burns.
11. Do not use a battery pack or device that is damaged or modified.
12. Do not expose a battery pack or device to fire or excessive temperature.
13. Exposure to fire or temperature above 265°F (130°C) may cause an explosion.
14. Only certified professionals should disassemble the sealed drive kit of your device.
15. Your device should only be serviced by a qualified technician using original replacement parts.
16. Watch your steps and maintain balance when working near the poolside.
17. Ensure the device is turned off while not in use or while performing maintenance.
18. When not in use, store the device indoors, in a cool, well-ventilated area.

Product Components

• Robotic Pool Cleaner *1
• Charging Dock *1
• User Manual *1
• Charger *1
• Hook *1

Component Overview

1. Top Shell
2. Wi-Fi Indicator
3. Power Button
4. Handle
5. Roller Brush
6. Filter Box
7. LED Status Indicator
8. OmniSense™ Sensor
9. Caterpillar Tread

How to Use Your Aiper Scuba X1 Pro

Operating Conditions

Please ensure the device is only used within the specified pool environments. Damage resulting from use outside these conditions will not be covered under warranty.

• Water Temperature 50-104°F (10-40°C)
• pH Value 7.0-7.8
• Chlorine Maximum 4 ppm
• NaCl Maximum 5000 ppm

Downloading AppDownload the Aiper App to unlock more features for your device. You can download and install the Aiper App by scanning the QR code below or by searching for Aiper in your App Store.

Network Setup

When first powering on the device, it will enter Network Setup Mode. If this process is interrupted, press for 5 seconds to re-enter Network Setup Mode.

Once in Network Setup Mode, please select either Bluetooth Setup or QR Code Setup.

• Bluetooth Setup: Enable Bluetooth on your phone and grant access to the Aiper App. In the App, tap the [+] symbol in the top right corner, then select Add via Bluetooth.
• The App will detect nearby Bluetooth devices. Select your network, enter the Wi-Fi password, and tap Next to finish network setup.
• QR Code Setup: Open the App and tap the [+] in the top right corner, then select Add via QR Code. Scan the QR Code located on your Aiper device.
• When the device is recognised, follow the App’s instructions to connect to the device’s Wi-Fi. Once connected, return to the App and follow the prompts to complete the network setup.
• Wi–Fi Network Requirements: Use a 2.4GHz or 2.4/5GHz mixed network.

Charging

Please fully charge the device before using it to clean the pool. Do not charge the device in direct sunlight. It’s advised that a minimum distance of 11.5 ft (3.5m) separates your pool and charging location. For the best results, your charging location should have Wi-Fi coverage, as this will expedite OTA updates.

Charging Options

• Charging Dock
• Charging Port

Charging Dock

Install the Charging Dock: Insert the support leg into the charging panel. Then, attach the front cover.

Before charging, ensure that both the charging dock and the device are dry. Do not place a wet device on the dock for charging. Use a tissue or dry cloth to thoroughly dry the metal contacts on the bottom of the device for the best charging quality.

Connect the charger’s cable to the charging port on the dock, and plug the adapter into any available outlet. Place the dry device onto the charging dock. The LED status indicator on the device will pulse while charging and turn solid green when fully charged.

Charging Port

1. Before charging, remove the charging port cover and ensure the charging port is dry. If there’s any water or dampness in the port, wipe it dry with a clean cloth before charging your device.
2. Connect the charger to the device’s charging port, then plug the charger into any available outlet. The LED status indicator will pulse while charging and turn solid green when fully charged.

Button Descriptions

Combination Button Functions

• Network Setup Mode: Press and hold the buttons and simultaneously for 5 seconds to enter network setup mode. The device will stay in network setup mode for 300 seconds, so be sure to complete the setup quickly.
• Factory Reset: Press and hold the buttons and simultaneously for 5 seconds to reset the device to factory settings. This will erase all user settings, cleaning data, and personalised settings.

Aside from the above cleaning modes, if all the LED mode indicators are constantly lit, it indicates that the device is performing a custom task.

Cleaning Modes

Cleaning Intensity

Choosing Filter

Two filters of different thicknesses are provided: a replaceable MicroMesh™ ultra-fine filter and a filter box. The replaceable MicroMesh™ ultra-fine filter can trap particles as small as 3-10μm, such as silt and some algae. When visible debris is minimal (e.g., stones, leaves, sand, debris, hair) and the water appears cloudy or contains some algae, it is recommended to use both the filter box and the replaceable MicroMesh™ ultra-fine filter. If there is a significant amount of visible debris, it Aiper Scuba X1 Pro Max In-Ground Pool Cleaner is recommended to use only the filter box and not use the replaceable MicroMesh™ ultra-fine filter.

Cleaning Process

Press and hold the Button for 2 seconds to turn on/o the device. Press the button briefly to cycle through and choose one of the four cleaning modes: Smart Mode, Floor Mode, Wall Mode, and Waterline MOnceece you have selected the desired cleaning mode, immediately place the device in the pool. After being submerged for a short period, the device will initiate the selected mode’s cleaning task.

After the mapping is done, the device will automatically recognise the pool’s shape and initiate the -shaped cleaning route when cleaning the pool floor. Once cleaning is finished, the device will return to the missed areas.

• The details of each cleaning mode are described below
• Smart Mode: The device will clean the pool floor and pool walls sequentially. While cleaning the walls, it will also clean the waterline at the same time.
• Floor Mode: The device will clean the pool floor Aiper Scuba X1 Pro Max In-Ground Pool Cleaner utilising a -shaped route, without climbing or cleaning pool walls.
• Wall Mode: The device will clean the pool walls utilising a Y-shaped route and clean
  the waterline at the same time. It will not clean the pool floor in this mode.
• Waterline Mode: The device will move the Aiper Scuba X1 Pro Max In-Ground Pool Cleaner horizontally and clean along the pool waterline. When running into corners or obstacles along the pool walls, it will descend from the waterline, switch walls, or bypass obstacles, and resume cleaning.

Thank You for Choosing Aiper

You’ve now joined millions who have already trusted Aiper to care for their pools and are enjoying the convenience of a pristinely clean pool. This user manual will help you maintain your device and ensure it performs at its maximum efficiency for years to come. Please take a moment to read through it. If you have any questions, please visit our website and contact our customer service team for assistance or more information.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

However, there is no guarantee that interference will not occur in a particular installation. Suppose this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off. In that case, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement

1. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
2. This device should be installed and operated with a minimum distance of 20cm between the radiator & your body.

IC Statements

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-001 (B)/NMB-001(B)

Radiation Exposure Statement

1. This device complies with IC radiation exposure limits set forth for an uncontrolled environment.
2. This device should be installed and operated with a minimum distance of 20cm between the radiator & your body.

Customer Service

• Importer: Aiper Intelligent, LLC.
• Address: 8735 Dunwoody Place, STE 6, Atlanta, Georgia 30350, USA.
• US Toll–Free: +18668500666
• AU Toll–Free: +611800497023
• Website: www.aiper.com
• Email: service@aiper.com
