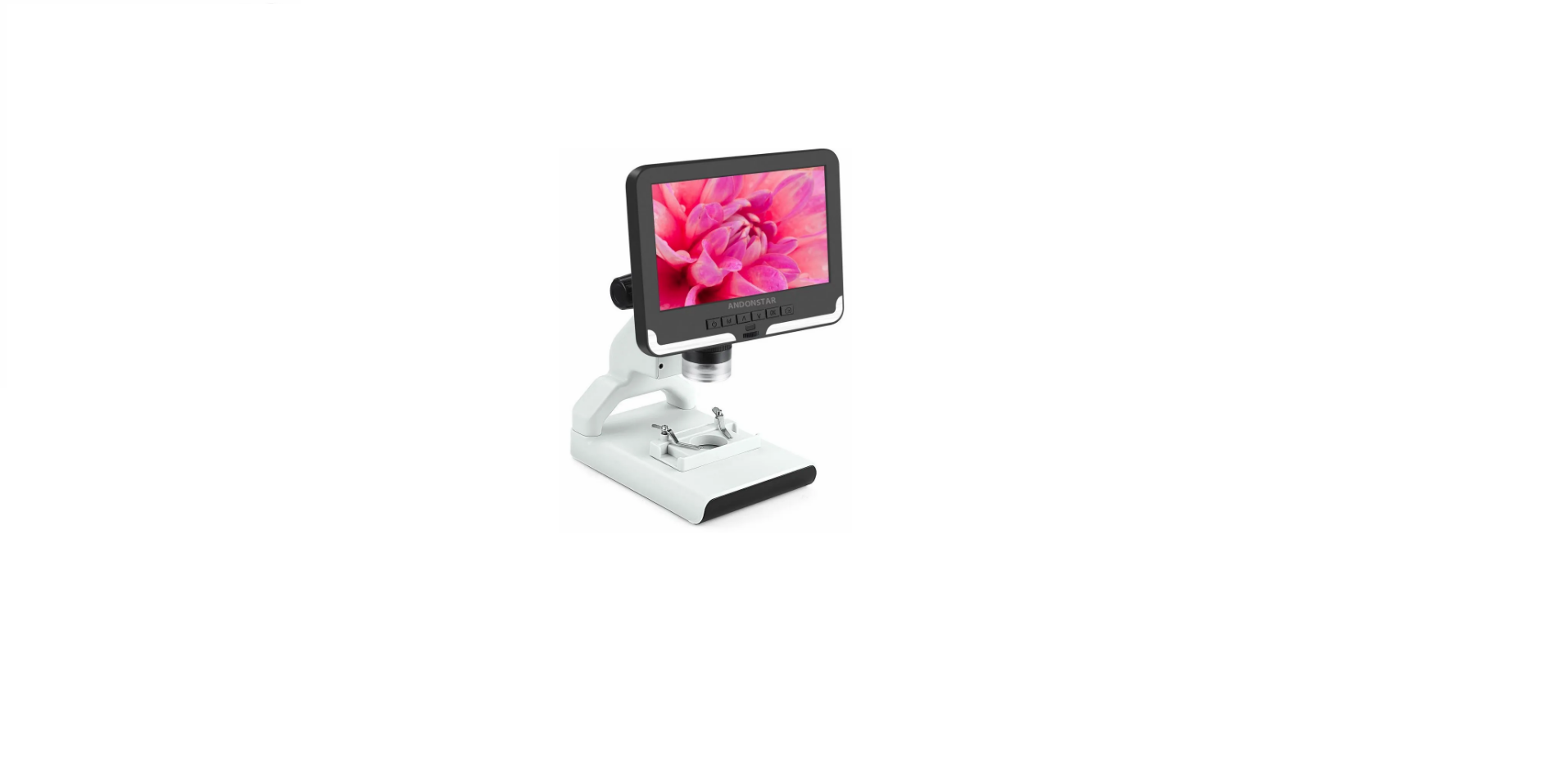

Andonstar AD108 Digital Microscope
Safety Instructions
- The microscope is not intended for medical use. The assembly includes small parts, particularly the thumbscrews used to hold the main device in place. Do NOT allow unsupervised access by infants or toddlers.
- The microscope is not intended for field use. It is not waterproof, and should not be exposed to extreme temperatures.
- When the microscope is working, please do not direct the LED light to human eyes to avoid injury.
- When the microscope is working for a long time or is powered on, the left side of the screen and the position of the main board will be slightly warm, which is a normal phenomenon; please don’t worry.
- The display on the device is fragile. Please use it with care. Do not drop, press hard, or touch the display with sharp objects. The display is not waterproof; please clean it with a dry and soft material.
Basic Parameters
- Image sensor 2Mega Pixels HD Sensor
- Video output FHD1920X1080 30FPS; 1080P 1440X1080 30FPS 720P 1280X720 30FPS,
- Video format AVI
- Magnification Ratio Up to 200 times
- Photo resolution MAX 12M (12M 4032*3024)
- Photo format JPG
- Focus distance 1.5CM-5CM
- Frame Rate Max 30f/s
- Storage Micro-SD card, up to 64 GB
- PC support No
- Power source Input: 5V 1A; Output: 100V-240V; DC
- Stand size 18*12*11.5CM
- Screen size 5 inch; LCD
- Screen resolution 854*480
- Package Included Microscope×1 Plastic stand×1 IR remote×1 User manual ×1 Power cable×1 Movable block ×1
- Packing data 1.1KG/26*22*17CM

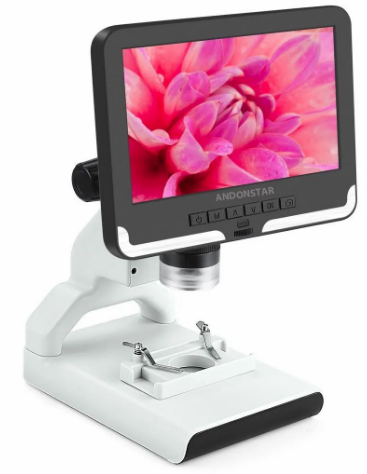

Overview
Remote Control
Quick Start
Note: The mode cannot be switched during recording!
- Record videos
After powering on, it will automatically enter the video standby mode, short-press” ”
To start recording video, the upper right corner will display the recording duration.
Press this key again to stop recording. - Take pictures
Press the “M” key to switch to the picture mode, and press ” ” to take a photo. - Playback Short-press the “M” key twice to switch to playback mode, and you can preview pictures/videos. Press the up/down key to switch files, and press the “OK” key to play the video.
- Light brightness adjustment
In video standby/picture mode, press and hold the “OK” button to switch the brightness of the light. (low light, medium light, strong light, off, cycle in turn) - Lens switching
(The lens cannot be switched during recording!) In the video/picture mode, long-press” ” to switch the lens, the upper middle display “M” is the microscope lens, and the display “F” is the telescope lens. Microscopic function: aim the right lens at the observation object, adjust the object distance, and manually adjust the light and focus tube to obtain the desired image.- Turn the right focusing tube clockwise (downward) to enlarge the magnification, and counterclockwise (upward) to reduce the magnification； Telescope function: aim the left lens at the observation object in the distance, and adjust the focusing tube to obtain the desired image.
- Turn the left focusing tube counterclockwise (downward) to enlarge the magnification, and clockwise (upward) to reduce the magnification.
- Setting
- In the video standby mode, long-press the “M” key to enter the video menu settings and system settings.
- In the picture mode, long-press the “M” key to enter the picture menu settings and system settings.
- In the playback mode, long-press the “M” key to enter the playback menu settings and system settings.
Connect to the computer (3 modes)
Connect the microscope to the computer, and three options will appear on the microscope screen: Mass storage, PC Camera, and Video mode.
- PC camera: real-time operation and observation of I’m, ages and recording of video/pictures can berealisedd on the computer side. Windows 10 systems can use the camera that comes with the system to view images.
- Video mode: power supply mode.
Software Installation
Software download link: https://bit.ly/3hxOdaL Operating system required for installation: Windows XP, Windows 7, Windows 8, Windows 10 After the download is successful, open the compressed file you downloaded, install it, and run it.
- For Mac OS, please download the software WebCam Monitor required from the above link, and read the user guide in the file for details.
- Make sure that your computer’s USB port provides enough and stable power. Some laptops may not work normally due to an unstable power supply.Please try to replace the computer.
Operating Steps
In this mode, the resolution is 720P.
- Turn on the microscope, switch to the desired lens, and adjust the brightness.
- Connect the microscope to the computer, and select “PC Camera”.
- Start the “Amcap” software.
- Choose the microscope device ” USB camera” in ” Devices” .
Capture picture
- Initial setting: Options→Preview√, Capture→Still→Enable√,
- Select the image storage path: Capture→Still→Folder
- 3). Take a picture: Capture→Still→Snap (or directly press “Enter” on the keyboard)
Record video
- Select the video storage path: File→Set Capture File→ Target Folder
- Recording: Capture→start capture→OK→capture→stop capture.
Warranty
Customer Service
- Ph: +86-0755-23227345.
- E-mail: sales@andonstar.com.
FAQs
Q: What is the Andonstar AD108 Digital Microscope used for?
A digital microscope for biological observation, educational projects, hobbyist uses, and electronics examination is the Andonstar AD108. On a computer or external display, it enables you to see, take, and save high-resolution pictures of tiny objects.
Q: How does the AD108 work?
The microscope has an integrated LED illumination system and a high-resolution camera with movable magnification. Real-time observation and recording are made possible by the transmission of images via HDMI to a suitable display or USB to a computer.
Q: What magnification levels are available?
The variable magnification offered by the AD108 typically ranges from 10x to 200x, contingent upon lens modifications and the distance to the target. Digital zoom and manual focus enable close examination of minute details.
Q: Can I adjust magnification digitally?
Indeed. Digital zoom is made possible by the software, which enhances optical magnification for in-depth examination.
Q: Does the microscope require batteries?
No. Depending on the model, it can be powered by an external adapter or USB. To prevent damage, always use the power supply that is provided.
Q: Is it suitable for soldering or electronics repair?
Indeed. The AD108’s magnification and real-time display make it a great tool for PCB examination, soldering, and handling small electrical components.
Q: Can I observe moving objects?
Yes, although rapid motion may cause the image sharpness to deteriorate. To increase visibility, change the program and lighting settings.
