Andonstar AD122 Multifunctional Digital Microscope Instructions

Andonstar AD122 Multifunctional Digital Microscope

Safety Instructions

1. The microscope is not intended for medical use. The assembly includes small parts, particularly the thumbscrews used to hold the main device in place. Do NOT allow unsupervised access by infants or toddlers.
2. The microscope is not intended for field use. It is not waterproof, and should not be exposed to extreme temperatures.
3. When the microscope is working, please do not direct the LED light to human eyes to avoid injury.
4. When the microscope is working for a long time or is powered on, the left side of the screen and the position of the main board will be slightly warm, which is a normal phenomenon; please don’t worry.
5. The display on the device is fragile. Please use it with care. Do not drop, press hard, or touch the display with sharp objects. The display is not waterproof; please clean it with a dry and soft material.

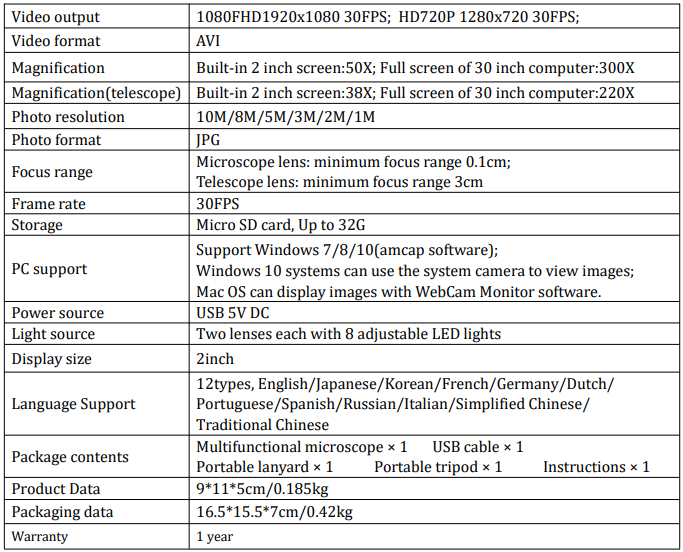

Basic Parameters

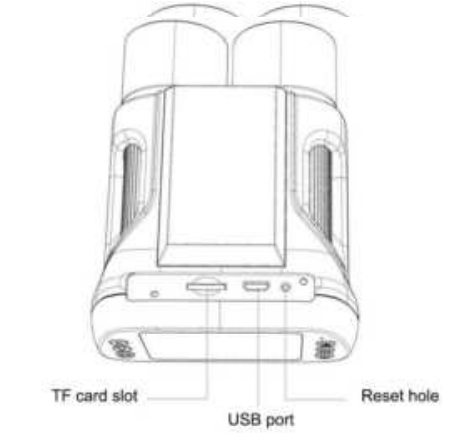

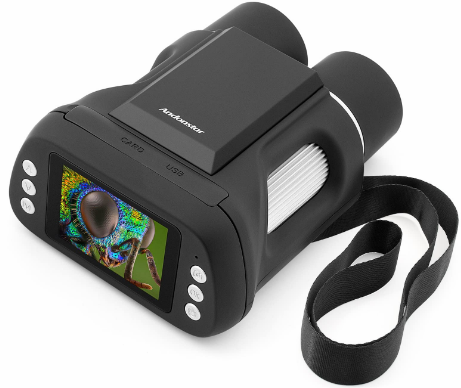

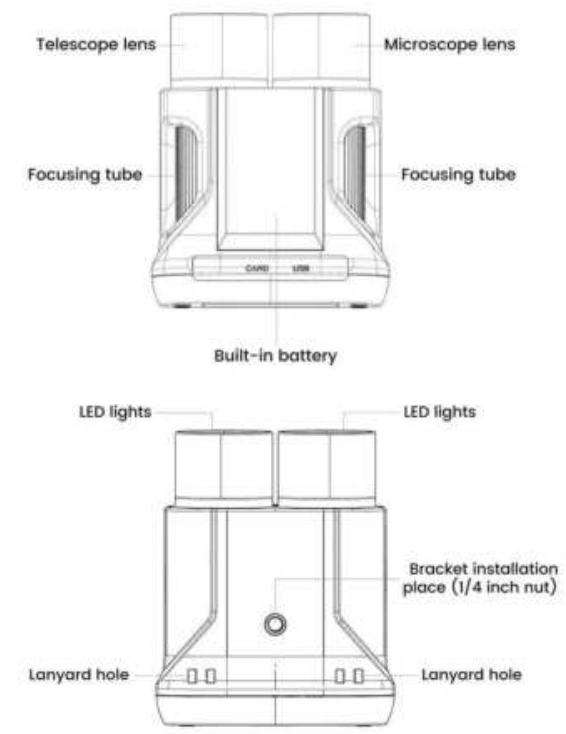

Product Introduction Picture

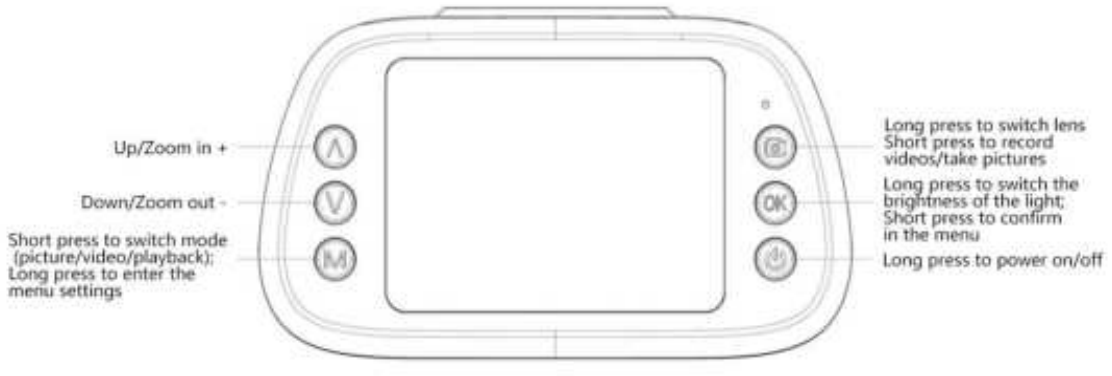

Button Instruction

Quick Start

Note: The mode cannot be switched during recording!

1. Record videos
   After powering on, it will automatically enter the video standby mode, short-press” ”
   To start recording video, the upper right corner will display the recording duration.
   Press this key again to stop recording.
2. Take pictures
   Press the “M” key to switch to the picture mode, and press ” ” to take a photo.
3. Playback Short-press the “M” key twice to switch to playback mode, and you can preview pictures/videos. Press the up/down key to switch files, and press the “OK” key to play the video.
4. Light brightness adjustment
   In video standby/picture mode, press and hold the “OK” button to switch the brightness of the light. (low light, medium light, strong light, off, cycle in turn)
5. Lens switching
   (The lens cannot be switched during recording!) In the video/picture mode, long-press” ” to switch the lens, the upper middle display “M” is the microscope lens, and the display “F” is the telescope lens. Microscopic function: aim the right lens at the observation object, adjust the object distance, and manually adjust the light and focus tube to obtain the desired image.
   • Turn the right focusing tube clockwise (downward) to enlarge the magnification, and counterclockwise (upward) to reduce the magnification； Telescope function: aim the left lens at the observation object in the distance, and adjust the focusing tube to obtain the desired image.
   • Turn the left focusing tube counterclockwise (downward) to enlarge the magnification, and clockwise (upward) to reduce the magnification.
6. Setting
   1. In the video standby mode, long-press the “M” key to enter the video menu settings and system settings.
   2. In the picture mode, long-press the “M” key to enter the picture menu settings and system settings.
   3. In the playback mode, long-press the “M” key to enter the playback menu settings and system settings.

Connect to the computer (3 modes)

Connect the microscope to the computer, and three options will appear on the microscope screen: Mass storage, PC Camera, and Video mode.

1. PC camera: real-time operation and observation of I’m, ages and recording of video/pictures can berealisedd on the computer side. Windows 10 systems can use the camera that comes with the system to view images.
2. Video mode: power supply mode.

Software Installation

Software download link: https://bit.ly/3hxOdaL Operating system required for installation: Windows XP, Windows 7, Windows 8, Windows 10 After the download is successful, open the compressed file you downloaded, install it, and run it.

• For Mac OS, please download the software WebCam Monitor required from the above link, and read the user guide in the file for details.
• Make sure that your computer’s USB port provides enough and stable power. Some laptops may not work normally due to an unstable power supply.Please try to replace the computer.

Operating Steps

In this mode, the resolution is 720P.

1. Turn on the microscope, switch to the desired lens, and adjust the brightness.
2. Connect the microscope to the computer, and select “PC Camera”.
3. Start the “Amcap” software.
4. Choose the microscope device ” USB camera” in ” Devices” .

Capture picture

1. Initial setting: Options→Preview√, Capture→Still→Enable√,
2. Select the image storage path: Capture→Still→Folder
3. 3). Take a picture: Capture→Still→Snap (or directly press “Enter” on the keyboard)

Record video

1. Select the video storage path: File→Set Capture File→ Target Folder
2. Recording: Capture→start capture→OK→capture→stop capture.

Warranty

Customer Service

•  Ph: +86-0755-23227345.
• E-mail: sales@andonstar.com.

FAQs

Q: What is the Andonstar AD122 Digital Microscope used for?

For in-depth examination of tiny objects, circuits, or biological samples, it offers high-resolution imaging.

Q: How does the digital microscope work?

A high-resolution camera, movable magnification lenses, and integrated LED lighting are all used in the microscope.

Q: What magnification levels does the AD122 support?

Magnification with the AD122 usually ranges from 10x to 220x, depending on the lens settings and the distance to the target.

Q: Can I adjust the magnification digitally?

Yes, in addition to the manual optical zoom, the software supports digital zoom.

Q: Can the microscope be used for soldering or electronics repair?

Indeed! The AD122 is perfect for soldering, PCB repair, and electronics examination. You can precisely operate on delicate components thanks to the live display and adjustable magnification.
