Arlo FLW2001-100NAS Wired Floodlight Camera User Guide

Arlo FLW2001-100NAS Wired Floodlight Camera

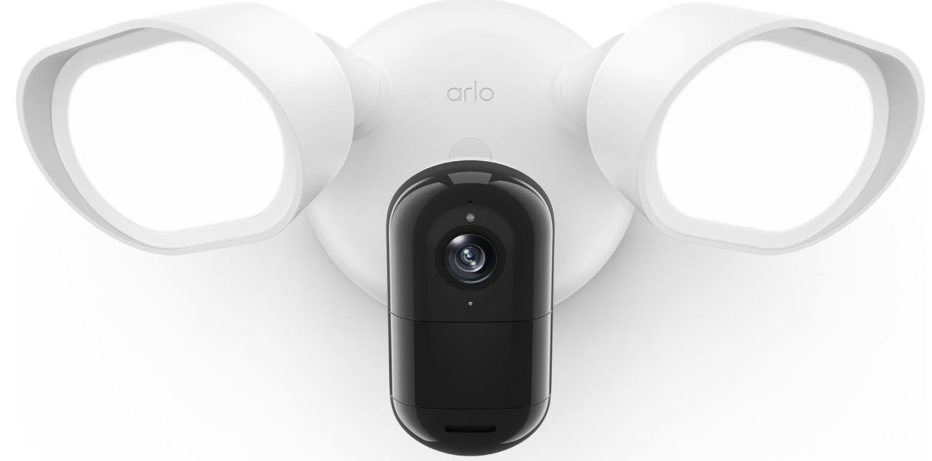

Description

What’s in the Box

1. Wired Floodlight Camera
2. Bracket Screws (Bag A1)
3. Bracket Screws (Bag A2)
4. Bracket Screws (Bag A3)
5. Ground Screw (Bag B)
6. 2x Wiring Caps (Bag C)
7. 1x Camera Mounting Screw (Bag D)
8. 1x Camera Mounting Screw Cap (Bag E)
9. S Hook
10. Mounting Bracket

• Before starting wiring, turn off the power at the breaker to prevent fire and injury.
• Failure to turn off your power might result in serious injury.
• Connect the Wired Floodlight Camera only to a voltage between 100 VAC-240 VAC, 50-60 Hz.
• Install on a 4” round UL-listed weatherproof electrical junction box.
• Hire a licensed electrician if you are inexperienced with electrical wiring

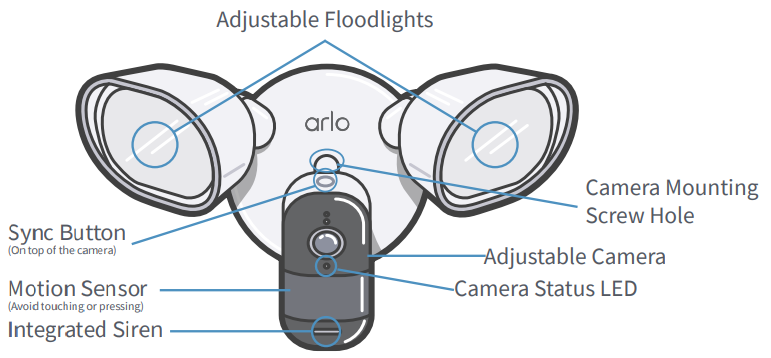

Overview

Mounting Options

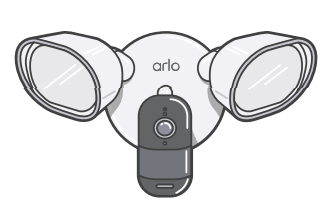

1. Wall Mount
2. Ceiling Mount

Installation steps

Prepare for Installation

1. Before starting, turn off the power to the junction box at the breaker. Failure to do so may result in serious injury.
2. Check that the power is off with the light switch. Remove the existing fixture and mounting hardware.

Install Mounting Bracket

• Position included Mounting Bracket on the junction box with the word FRONT facing towards you.
• Secure Mounting Bracket by aligning the screw holes to the junction box with two screws from bags A1, A2, or A3.

Use a S Hook

• Attach the S-Hook to the base of the camera to support the floodlight while you install.
• The camera and floodlights should be upside down, and the base of the floodlight should face toward the wall.
• Attach the other end of the S-Hook to the mounting bracket.
• Before starting wiring, turn off the power at the breaker to prevent fire and injury.
• Failure to turn off your power might result in serious injury.
• Connect the Wired Floodlight Camera only to a voltage between 100 VAC-240 VAC, 50-60 Hz.
• Install a 4” round UL-listed weatherproof electrical junction box.
•  Hire a licensed electrician if you are inexperienced with electrical wiring.

Connect Wires

• • Ensure wires from the junction box come out below the Mounting Bracket.
  • Twist the WHITE wire (neutral) from the camera and the WHITE wire from the junction box together clockwise using a wire nut from Bag B.
  • Twist the BLACK wire (hot) from the camera and the BLACK wire from the junction box together clockwise using a wire nut from Bag B.
  • Partially insert the short screw from Bag B4 into the hole marked GND.
  • Hook the GREEN (ground) wire around the screw and tighten the screw to clamp down the wire.

Complete Assemble

• • Tuck wires into the junction box and remove the S Hook.
  • Rotate the floodlight so the lights and wires are at the top, and align the floodlight Mounting
  • Screw Hole with the center hole of the Mounting Bracket.
  • Secure the floodlight to the Mounting Bracket by inserting and tightening the Mounting Screw from Bag C.
  • Place the Rubber Cap from Bag D over the Mounting Screw to protect the screw from rusting.

Power and Onboard Floodlight

• • Turn the power back on at the breaker.
  • You’ll know your floodlight is receiving power when the LED is solid blue.
  • Open the Arlo Secure App, tap Devices and then [+], select Lights, then Wired Floodlight Camera, and follow the on-screen instructions to complete setup.

Federal Communications Commission (FCC) Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

As defined in section 2.909 of the FCC rules, the responsible party is Arlo Technologies, Inc., 2200 Faraday Ave., Suite 150, Carlsbad, CA 92008.

FCC Warning: Any changes or modifications not expressly approved by the party responsible for
Compliance could void the user’s authority to operate this equipment.

For products with Wi-Fi or Cellular modules

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

Innovation, Science and Economic Development Canada (ISED) Compliance Statement

This Class B digital apparatus complies with Canada ICES-003, CAN ICES-003(B) / NMB-003(B). This device contains licence-exempt transmitter(s)/receiver(s) that comply with ISED Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference.

This device must accept any interference, including interference that may cause undesired
operation of the device. Under ISED Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by ISED Canada.

Let’s Get Started

1. Before you begin, please watch this video to familiarize yourself with the installation process. Scan
   QR code with the camera to begin.
2. Download the Arlo Secure App and create an account or log in to your existing account. Or go to arlo.com/app/secure/
3. In the app, tap Devices and then [+], select Light, then Wired Floodlight Camera, and follow the prompts or this guide.
4. Grab a Phillips Screwdriver and a ladder.

Need help?

We are here for you.

• Quick answers
• How-to videos
• Troubleshooting tips
• Additional support resources

Customer Support

• Tel:1-408-907-8000
• Website: www.arlo.com/support
• Address: Arlo Technologies Intl. Ltd Ground Floor, Building 3 University Technology Centre Curraheen Road, Cork T12 EF21 Ireland

Arlo Technologies UK Limited 280 Bishopsgate London, EC2M 4RB Arlo Technologies, Inc. 2200 Faraday Avenue, Suite 150 Carlsbad, CA 92008 USA

FAQs

Q: What type of camera is the Arlo FLW2001-100NAS?

This type is a wired floodlight security camera that provides both indoor and outdoor security coverage by fusing motion-activated lights with HD video surveillance.

Q: What is the video resolution?

In order to recognise people, cars, or objects, the camera captures in 1080p Full HD, which produces crisp, detailed imagery.

Q: Does it support night vision?

Indeed, the FLW2001-100NAS includes built-in night vision, which enables it to record video in complete darkness or low light.

Q: How do I power the camera?

Since this camera is hardwired, it must be connected to the current electrical wiring in your house in order to receive constant power. If you are uncomfortable with electrical work, hiring a professional installer is advised.

Q: Does it have motion detection?

Yes, it has adjustable sensitivity settings and motion-detecting zones. When motion is detected on your smartphone, you can get immediate warnings.

Q: Is it weather-resistant?

Yes, the camera may be installed outdoors because it is waterproof and built to resist rain, snow, and extremely high or low temperatures.

Q: Does it record audio?

Yes, the camera contains an integrated microphone that enables both video and audio recording. The Arlo app also offers two-way audio for remote communication.

Q: Can I access the footage remotely?

Indeed, the Arlo FLW2001-100NAS connects to your Wi-Fi network so you can see recorded video or live feeds from any location using the Arlo online or mobile app.
