AUNA 10032983 Areal Bar 650 2.1 Sound System
Safety Instructions
- This will avoid damage to the product that may be caused by lightning or overvoltage.
- Overload – Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
- Foreign objects and liquid – Never push objects of any kind through openings in the device, as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
- Repairs and maintenance – Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
- Unauthorized replacement may result in fire, electric shock, or other hazards.
- Heat – Do not place the unit near heat sources such as radiators, heaters, stoves, or other products (including amplifiers).
Getting Started
Power supply
- Power supply: The product can use AC voltage 110-240V/50Hz, as stated in the operation manual or marked on the unit.
- Power cable: When pulling out the power cable, it is better to hold the plug section. Do not touch the AC power supply plug when your hands are wet, since it may cause an electric shock. Do not use AC power cables that are too thin or too long, as this may cause a fire or an electric shock.
- Insert the end of the power cable into the power outlet, then power on the system and start operations. While the unit is powered on, if the LED display lights up – – means it’sinr a standby mode, A long press of the POWER button starts normal playing/operation.
- When the product is not used for a long time, pull out the AC power supply plug from the AC power supply outlet.

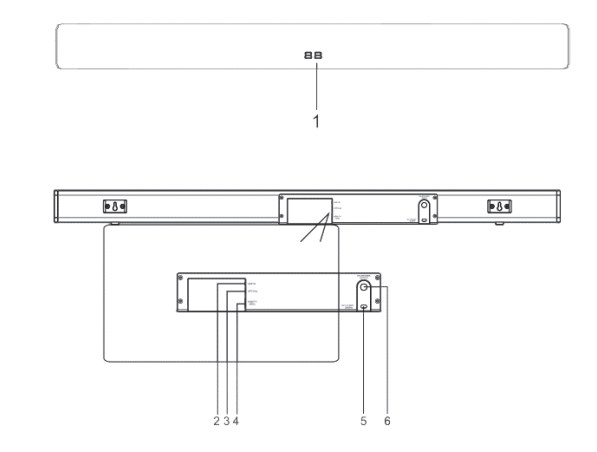

Description
- LED display.
- AUX: connect with TV, MP3/MP4 player, Mobile, PC etc. er PC Mobile etc.)
- OPTICAL: Use an Optical cable connecting to the TV or other device with an optical output port.
- HDMI(ARC): Use an HDMI cable connecting the device to the TV’s HDMI(ARC) port.
- AC power cable: Plug into an AC power outlet.
- OUTPUT: Connect with passive subwoofer.

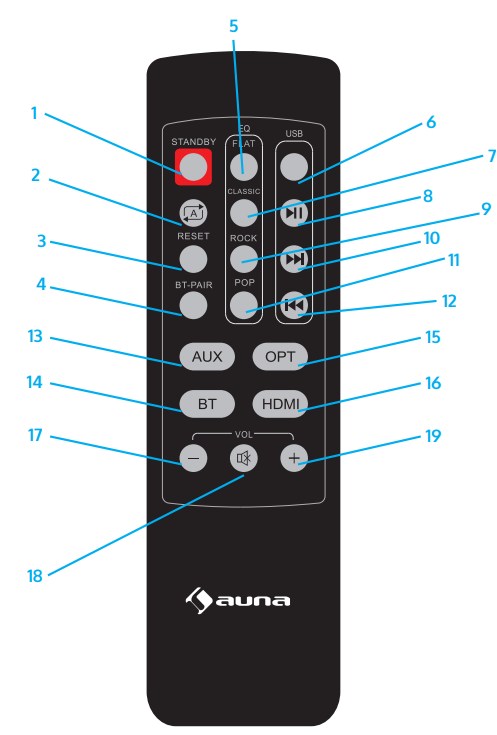

Remote Control
Function keys on the remote control
- STAND-BY: Press it for a stand-by mode, re-press it to shift to normal playing mode.:
- REPEAT: Press it to repeat the single playing file/song, and the LED display will show letters of ONE, re-press it to repeat the whole file playing, and the LED display will show letter of ALL, press again to cancel repeating.
- RESET: Press it back to the initial settings.
- BT Pair: Press it for a fast/direct BT pairing or off pairing under BT mode
- FLAT: Press it for a FLAT sound effect (EQ mode) and the LED display will show E1.
- USB: press it for a direct USB playback mode.
- CLASSIC: Press it for a classic sound effect (EQ mode), and the LED display will show E2
- Press it to play or pause playing.
- ROCK: Press it for a rock sound effect (EQ mode), and the LED display
will show E3 - Press it to play the next file/song, long-press for fast-forwarding.
- POP: Press it for a pop sound effect (EQ mode), and the LED display will show E4.
- Press it to play the previous file/song, long-press it for a fast rewind.
- AUX: Press it for a direct AUX in working mode
- BT: Press it for a direct BT working mode, and the speaker is ready for BT pairing.
- OPT: Press it for an Optical input playing mode.
- HDMI: Press it for an HDMI (ARC) input playing mode, which can play files/ songs from a TV connected.
- VOL-: Press it to weaken or decrease the sound volume.
- Mute: Press it for no sound or silent mode.
- VOL+ Press it to boost or louder the sound volume.
Operation
Before operations, please plug the main bar and its external subwoofer separately. Connect the main bar and the external subwoofer unit to deliver a rich bass beat. Simply insert the subwoofer cable into the SW output port.
BT operation
- First, plug the subwoofer cable and the main bar into the AC socket.. The LED will show–, long-press the POWER to power on the system, and the LED display will light up. Press the POWER button to select BT mode. The LED display will then flash “bt,, which means it is ready for pairing.
- Use the controls on your BT device to select “Areal Bar 650” in your BT settings. If your device requests a password, enter the default password 0 0 0 0 when successfully paired.
- Press the + or – button to increase or decrease sound volume slightly.
- A long press to the + or – button to fast increase or decrease sound volume.
- Keep pressing the POWER button to power on or power off the system.
- For more function control. Please use the attached remote control.
USB operation
- With the unit powered on, press the POWER button to select USB mode.
- Press the + or – button to increase or decrease sound volume slightly.
- A long press to the + or – button to fast increase AUNA 10032983 Areal Bar 650 2.1 Sound System or decrease sound volume.
- For more function control. Please use the attached remote control.
Optical connection
- Use the attached optical cable to connect the unit (Optical input port ) with your DVD player (Optical output port) or other device with an optical port..
- With the unit powered on, A lg-press the POWER button to select Optical mode ( the LED display will show the letter “opt”) to play files/songs from the device connected.
- Press the + or – button to increase or decrease slightly.
- A long press to the + or – button to fast increase or decrease sound volume.
- For more function control. Please use the attached remote control.
HDMI (ARC) connection
- To use the attached HDMI cable to connect the unit (HDMI (ARC) input port) with your TV (HDMI (ARC) output port).
- With the unit powered on, press the POWER button to select HDMI mode ( the LED display will show letters “Hd”)
- Set up your TV audio to support an external speaker system. Then you can play music from your TV.
- Press the + or – button to increase or decrease slightly. A long press to the + or – button to fast increase or decrease sound volume.
- For more function control. Please use the attached remote control.
AUX IN connection
- Insert one terminal of the signal input cable into the AUX port of the system and the other end into the output port of the external audio device.
- With the unit powered on, long-press the POWER button to select AUX mode ( the LED display will show letters of “AUH”) to play files/songs from the device connected.
- Press the + or – button to increase or decrease slightly.
- A long press to the + or – button to fast increase AUNA 10032983 Areal Bar 650 2.1 Sound System or decrease sound volume.
- For more function control. Please use the attached remote control.
- Long-press the INPUT button to power ON or power OFF the system.
Specifications
- Item number 10032983
- Power supply 110-240 V~ 50/60 Hz
- Drive units
- RMS power 60 W + 30 W x 2
- S/N ratio ≥ 70 dB
- Sensitivity
- Subwoofer 400 mV + 50 mV
- Main soundbar 550 mV + 50 mV
Troubleshooting
| Problem | Possible problem | Solution |
| No function light & no sound | Plug is not well-connected. | Insert the plug into the electric outlet. |
| The power button is not turned on. | Turn on the button. | |
| Function light,s on but no sound or no bass beating. | The stereo input cable is not well-connected. | Turn off the power, check the connection between the bar and the external device (TV, PC, MP3 player, etc.) |
| The main bar and subwoofer are not well-connected. | Power off the system and check the sub. Cable connection. | |
| The HDMI /Optical cable low quality or destroyed. | Change a good HDMI/
Optical cable |
|
| HDMI/Optical cable not connected properly. | Re-connect the cable and make sure a right connection. | |
| If the problem exists after checking the related procedures above. Please refer to the appointed service agent or professional technician to fix it. Do not attempt to open the covotherwiseeyou assume responsibility. | ||
Disposal
For information on AUNA 10006791 388-BT HiFi Stereo AUNA 10032983 Areal Bar 650 2.1 Sound System System about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. Find out about local regulations for disposing of batteries.
Deceleration of Confirmty
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK AUNA 10006791 388-BT HiFi Stereo System Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom
- Website: use.berlin/10034620
- Tel: (01) 320-0700
FAQs
What is the AUNA Areal Bar 650 2.1 Sound System?
A sleek soundbar and a subwoofer make up the Areal Bar 650, a 2.1-channel home entertainment system. Its dramatic bass and powerful stereo sound are intended to improve your TV, movie, music, and gaming experiences.
What does “2.1 sound system” mean?
The “.1” denotes the subwoofer, which produces low-frequency bass sounds, while the “2” stands for the soundbar’s stereo left and right channels.
Can I connect the soundbar to my TV via HDMI ARC?
No, HDMI ARC is not supported by the Areal Bar 650. Instead, use the coaxial, AUX, or optical connection.
Is Bluetooth pairing easy to set up?
Indeed! Turn on Bluetooth on your source device, use the remote or onboard controls to set the soundbar in Bluetooth mode, and then choose “Areal Bar 650” from the list of devices on your device.
What is the output power of the system?
For a deep, engrossing sound experience, the system’s full output of 120W is divided between the soundbar and the subwoofer.
Can I adjust the bass or treble?
Yes, you may use the provided remote control to change the system’s volume, treble, and bass.
Are there preset sound modes?
Indeed, it has adjustable EQ settings for music, movies, and dialogue to accommodate various kinds of audio.
Is wall mounting possible for the soundbar?
Indeed, the Areal Bar 650 may be installed on a tabletop or wall, and most packages come with wall mounting brackets.
