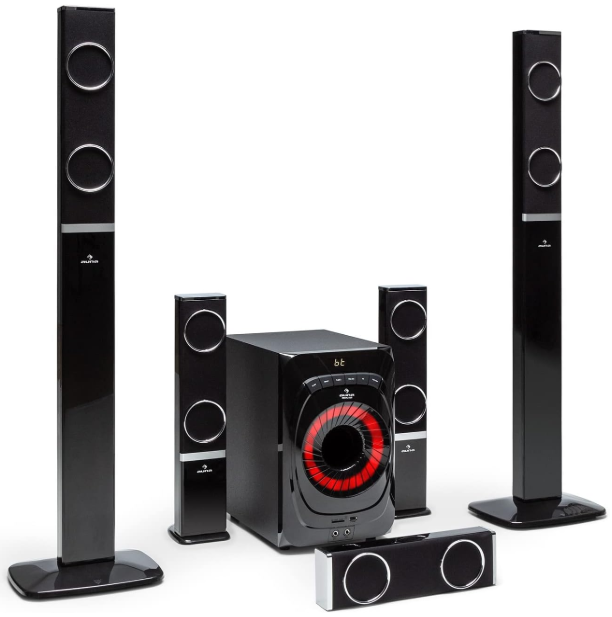

AUNA 10036134 Areal 825 5.1 Speaker
Safety Instructions
- Lightning – If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
- Overload – Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
- Foreign objects and liquid – Never push objects of any kind through openings in the device, as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
- Repairs and maintenance – Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
- Damage requiring service – Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:
- If the power cord or plug is damaged.
- If liquid has been spilled or objects have fallen onto the product.
- If the product has been exposed to rain or water.
- If the product has been dropped or damaged.
- If the product has a markedly reduced performance.
- Replacement parts – When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock, or other hazards.
- Heat – Do not place the unit near heat sources such as radiators, heaters, stoves, or other products (including amplifiers).

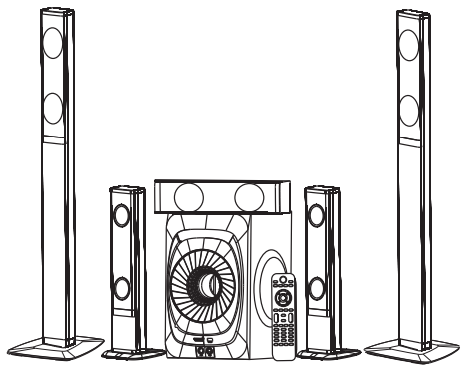

Scope of Supply
- Subwoofer speaker 1 x
- Satellite speaker 5 x
- Audio cable 4 x
- User manual 1 x
- Remote control 1 x
- Optical cable 1 x

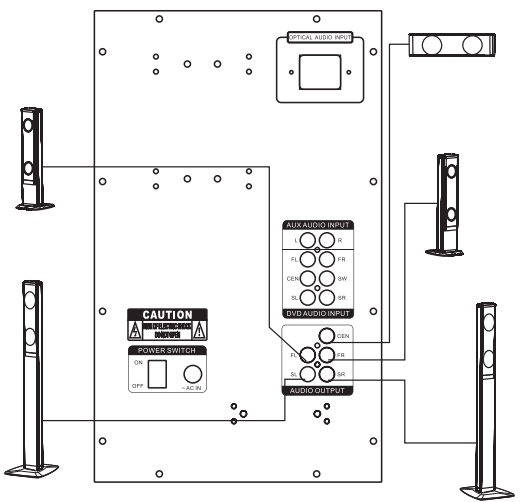

System Connection Diagram
Speaker terminals
Connect the front speakers, a center speaker, and surround speakers to the 5.1 speaker output terminals.
- The front speaker cords to the FRONT SPEAKERS terminals.
- The center speaker cords to the CENTER SPEAKERS terminals.
- The surround speaker cords to the SURROUND SPEAKERS terminals.

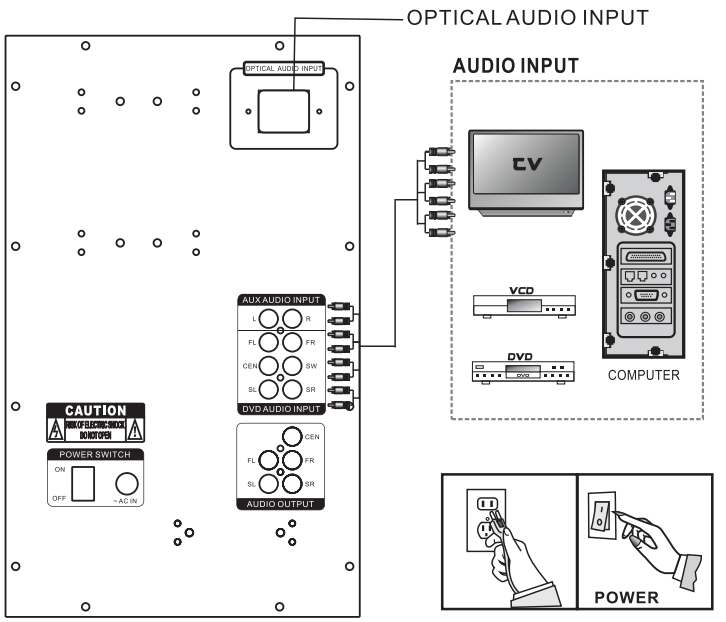

Connecting equipment
Jacks and plugs of the connecting cord are color-coded as follows: Red jacks and plugs: For the right channel of audio signals.

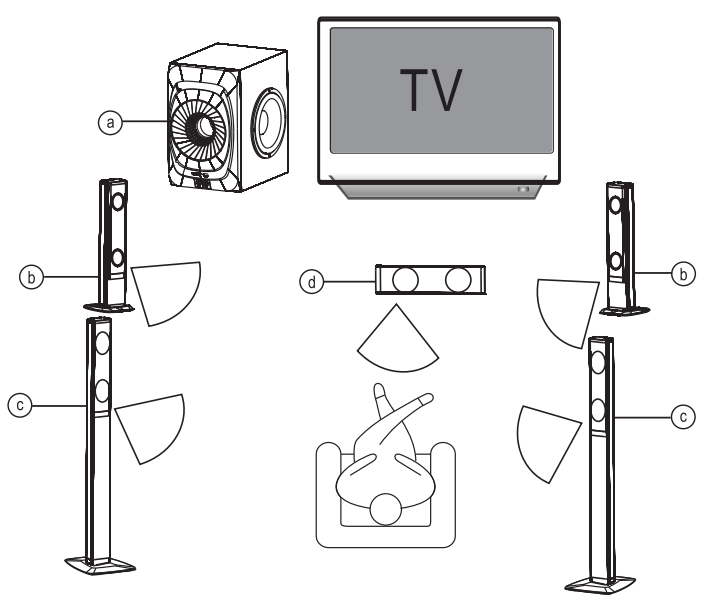

Positioning the speakers
- Subwoofer
Place the sub-woofer anywhere on the floor. (There is no directional requirement for the bass effect.) - Front speakers
- Surround Speakers
Place the surround speakers directly to the AUNA 10036134 Areal 825 5.1 Speaker side or slightly behind the listening area. Align them horizontally, about 1 meter above ear height. - Center speaker
Position in the center of the two front speakers.In addition. Position on or below the TV set, if connecting a TV set to the unit.
Unit Controls

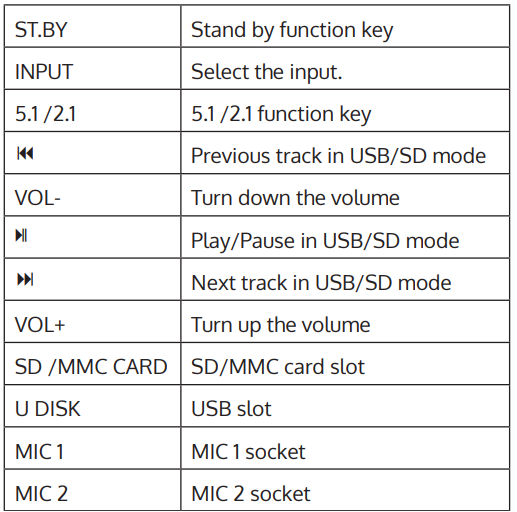

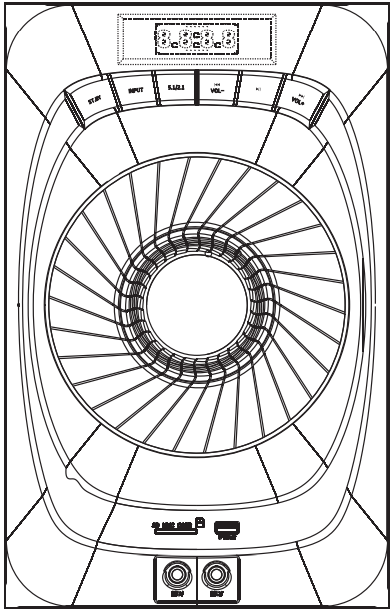

Front panel

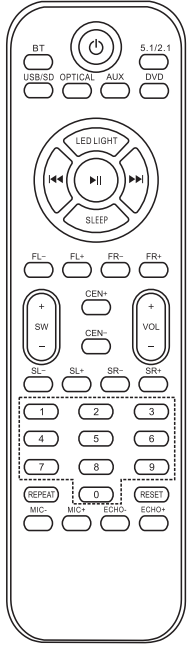

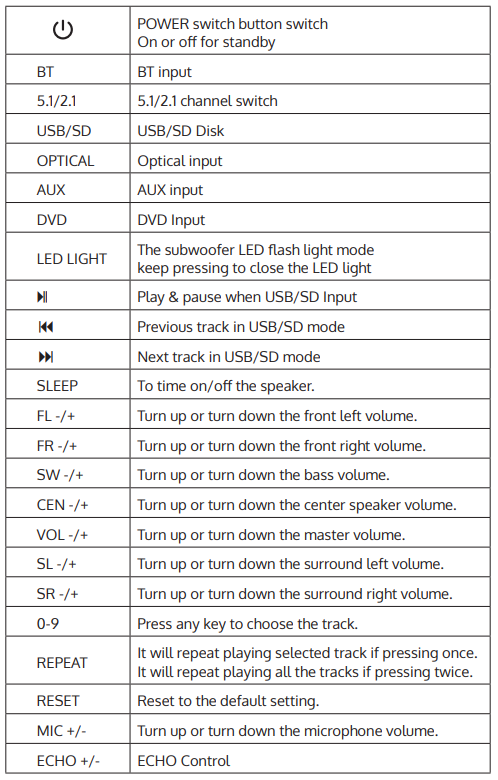

Remote Control
HOW TO USE BT
- Select the audio input to BT mode
- Search BT device with the name “Areal 825”
- Connect the BT.
- If your BT device is below version 2.0, input the password “0000” when connecting.
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information on AUNA 10006791 388-BT HiFi Stereo System about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. Find out about local regulations for disposing of batteries. By disposing of them according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
Deceleration of Confirmty
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK AUNA 10006791 388-BT HiFi Stereo System Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom
- Website: use.berlin/10034620
- Tel: (01) 320-0700
FAQs
What is the AUNA Areal 825 5.1 Speaker System designed for?
The purpose of the Areal 825 home theatre speaker system is to provide 5.1 surround sound for your gaming, music, and movies. For contemporary home entertainment systems, it provides both wired and wireless connectivity.
What does “5.1” mean in this system?
Five satellite speakers—front left, front right, centre, rear left, and rear right—as well as one active subwoofer are part of the system. True multi-directional audio is made possible by this setup, which improves depth and spatial awareness.
Is there any delay when using Bluetooth?
Although Bluetooth latency is quite low, it could be apparent when playing fast-paced games or editing videos. Make use of wired connections for audio with zero lag.
Can I use it in stereo mode?
Indeed. The system will downmix the music and usually play it through the front left, right, and subwoofer if your source only outputs stereo. The source and parameters affect surround emulation.
Does the Areal 825 come with a warranty?
Yes, depending on the area and merchant, AUNA usually offers a limited warranty of one to two years. It does not cover wear and tear or misuse, but it does cover manufacturer’s flaws.
