AUNA 10038329 AMP-4000 DAB Amplifier Instructions Manual

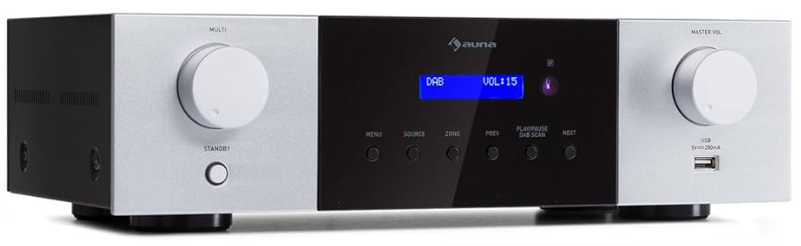

AUNA 10038329 AMP-4000 DAB Amplifier

Safety Instructions

Children over the age of 8 and persons with reduced physical, sensory, or mental capabilities, or those with a lack of experience and knowledge, may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device.

• Keep the amplifier dry. If it gets wet, wipe immediately.
• Use the amplifier only in well-ventilated installations.
• Handle the amplifier away from dust and dirt.
• Wipe occasionally with a damp cloth to keep it looking new.
• Do not use harsh chemicals, solvents, or detergents

Description

Front

1. STANDBY
2. To play fast backward or forward
3. PLAY/PAUSE: Press this key to play/pause music.
4. OPEN/CLOSE: Press this key to open or close the compartment door.
5. COMPARTMENT DOOR
6. LED DISPLAY
7. IR (Remote Sensor)
8. NEXT: Press this key to next music.
9. PREVIOUS: Press this key to the previous music.
10. PRE. VOL: To adjust the CD Player volume.
11. USB Slot
12. MASTER VOLUME

Rear

1. AC Input 230 V ~ 50 Hz
2. Power Switch
3. DAB ANTENNA
4. OPTICAL INPUT
5. COAXIAL2 INPUT
6. COAXIAL1 INPUT
7. AUX AUDIO INPUT JACK
8. LINE OUT AUDIO OUTPUT JACK
9. ZONE1: Speaker terminal (LEFT)
10. ZONE1: Speaker terminal (RIGHT)
11. ZONE2: Speaker terminal (LEFT)
12. ZONE2:Speaker terminal (RIGHT)
13. ZONE3:Speaker  terminal (LEFT)
14. ZONE3:Speaker peaker terminal (RIGHT)
15. ZONE4:Speakerterminal (LEFT)
16. ZONE4:Speaker terminal (RIGHT)

Remote Control

Amplifier

1. SOURCE
2. ZONE1/ZONE2 VOLUME +/-
3. ZONE3/ZONE4 VOLUME +/-
4. TONE(BASS/TREBLE) +/-
5. OPEN
6. PREVIOUS/CHANNEL+ PREVIOUS
7. BACKWARD
8. NEXT/CHANNEL- NEXT
9. MUTE
10. VOLUME- VOLUME
11. NUMBER BUTTONS NUMBER BUTTONS
12. VOLUME+ VOLUME+
13. REPEAT
14. PLAY/PAUSE/DAB SCAN PLAY/PAUSE
15. F.WARD
16. A-B
17. CD/USB
18. STANDBY STANDBY

Prepration

System connection

1. The speaker impedance should be correct (read,, Speaker Choice”), or this unit or speakers could be damaged.
2. Do not let the bare speaker wires touch each other or any other metal parts, as this could damage this unit or speakers.
3. Make sure the polarity of speaker wires is correct, ‘ + +’to ‘ +’, and,-‘ t,’, if these wires are incorrectly connected, the sound will be unnatural.

Connection to an amplifier

Source Equipment Connections Instructions

1. While connecting, you should switch off the power supply, and after finishing connections, switch on the unit again.
2. All plus should be inserted firmly, or noise will be heard.

Connection to speakers

Set up Your Speaker System

• A speaker system, you can have a good sound field effect, the rear speakers provide widely diffused sound, and the center speaker is used for dialogue environment.
• If using only the main speakers and rear surround speakers, four speakers can also provide a live feeling.
• By using of center speaker, dialogue and vocal sounds are precisely localized.
• If you want to flow low-frequency effects and a vibrant atmosphere, a subwoofer is essential.

Place of Speakers

The centre speaker in the central position should upper or lower the TV screen to avoid magnet influence or use magnet-proof speakers. The place of the subwoofer is not so critical because low frequency is not highly directional. Rear surround speakers, which are behind your listening position, should be nearly 2 meters above the floor.

Speaker Choice

The speaker should be powerful enough. Front speaker impedance should be 6 Ω – 16 Ω. Centre and surround speaker impedance should all be 6 Ω – 16 Ω.

Operation

1. Select audio source by pressing the SOURCE key on the front panel or on the remote control, to display BT, USB, AUX, OPTI, COAX1, COAX2, DAB.
2. Adjust the knob MASTER.VOL on the front panel or the key VOL+/- on the remote control to adjust the setting of the main volume control to your listening level.
3. Press the key ZONE on the front panel to select zone1, zone2, zone3, zone4, and adjust MULTI on the front panel to set the zone volume. Press the key Z1/Z2 on the remote to select zone 1, zone 2, and press +/- to increase or decrease volume. Press the key Z3/Z4 on the remote to select zone 1, zone 2, and press +/- to increase or decrease volume.
4. Press the key MENU on the front panel to select BASS, TREB, and adjust MULTI on the front pato setsetg the volume. Press the key TONE on the remote to select BASS, TREBLE, and press +/-to increase or decrease volume.
5. Press the MUTE key on the remote control to mute, press it again to reset.

BT Pair and Connect

1.  Turn off any Bluetooth devices previously paired (Linked) with this unit.
2. Turn on the Bluetooth features on your phone or music player.
3. Turn on and set this unit to Bluetooth mode. The flashing blue Letter BT on the LED display indicates the unit is in pairing mode.
4. Set your phone or music player to search for Bluetooth devices.
5. Select AMP-4000 DAB from the search results on your phone or music player.
6. Select OK or YES to pair this unit with your phone or music player.
7. If protected, enter 0000 for passkey. Steady blue Light indicates a successful connection.

In DAB Mode

• Press the BT/DAB button to select DAB radio mode
• Press the DAB SCAN button, “Scanning XXX%” will show on the display, and the number of DAB stations will show, and it will automatically play the first station. Tune the PREV/NEXT key to choose the next or previous station.

Technical Data

Troubleshooting

Disposal

If there is a legal regulation for the disposal AUNA 10038329 AMP-4000 DAB Amplifier of electrical and AUNA 10034620 Bluetooth HiFi Amplifier electronic devices in your country, this symbol on the product or the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment.

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them according AUNA 10038329 AMP-4000 DAB Amplifier to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

Deceleration of Confirmty

Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain: Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

• Website:  use.berlin/10034620
• Tel: (01) 320-0700

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

FAQs

Q: What is the AUNA AMP-4000 DAB Amplifier?

Ans: With compatibility for FM radio, DAB/DAB+ digital radio, and many input sources, the AUNA AMP-4000 DAB is a high-performance amplifier made to produce powerful, clear audio.

Q: What do DAB and DAB+ mean?

Ans: Compared to conventional FM radio, digital radio technologies DAB (Digital Audio Broadcasting) and DAB+ offer better reception, more station options, and higher sound quality.

Q: How do I connect the amplifier to my speakers?

Ans: To prevent audio distortion, connect your speakers to the speaker output terminals on the amplifier’s rear, making sure that the polarity is right (positive to positive, negative to negative).

Q: Can I connect my smartphone or tablet via Bluetooth?

Ans: Yes, turn on Bluetooth on your device and choose “AUNA AMP-4000” from the list of compatible devices to associate it with the amplifier.

Q: Does the amplifier support USB playback?

Ans: Yes, by placing a USB flash drive into the front panel’s USB connector, you can play audio files straight from the drive.

Q: What audio formats are supported for USB playback?

Ans: Common file types supported by the amplifier are MP3 and WMA files saved on USB drives with the FAT32 format.

Q: How do I adjust the volume and sound settings?

Ans: To change the volume, turn the knob on the front panel. The menu or remote control may offer additional equaliser or bass/treble adjustments.

Q: Is a remote control included?

Ans: Indeed, a remote control is included with the AMP-4000 for convenient operation, including input switching, volume adjustment, radio station setting, and more.
