AVANTCO 177FPC11NL Natural Gas Pasta Cooker User Manual

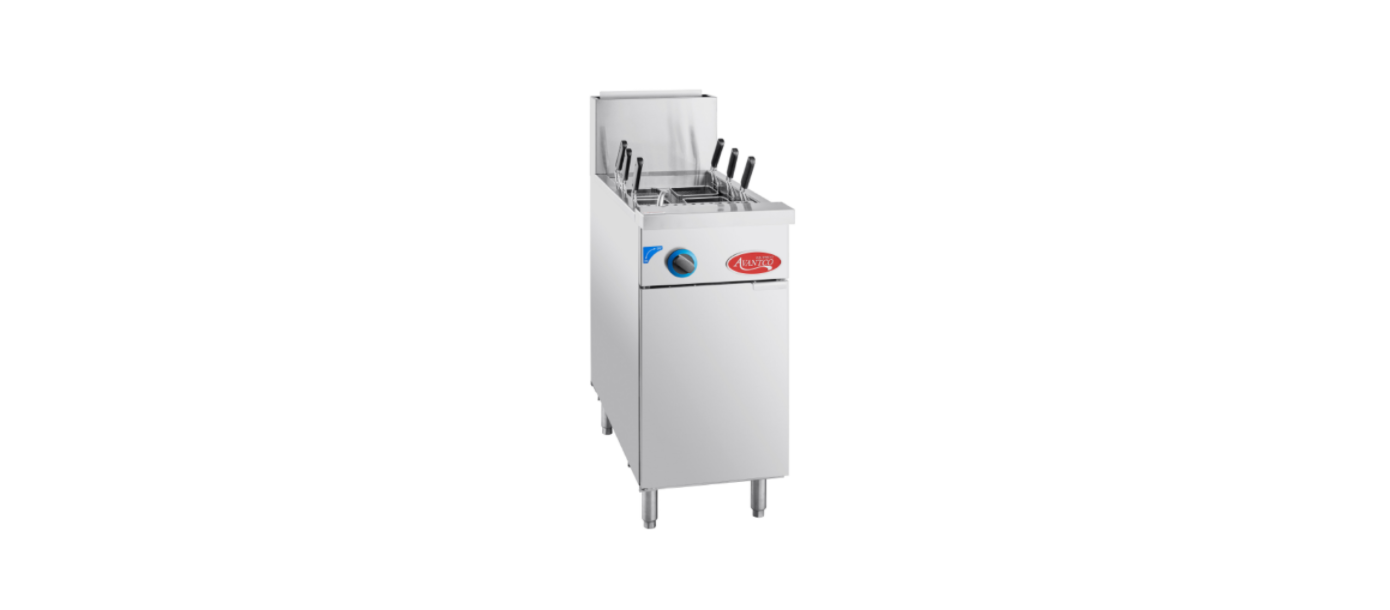

AVANTCO 177FPC11NL Natural Gas Pasta Cooker

Safety Instructions

• Water Requirement: Always ensure there is water in the pot before turning the equipment on.
  Operating the unit dry can cause damage and void the warranty.
• Professional Installation: This pasta cooker must be installed by a licensed and insured food service
  equipment technician or plumber.
• Overheating Safety: These units feature a secondary heat control to prevent water and tank
  temperatures from exceeding 260°F. If an overheating shutdown occurs, the tank must cool below
  220°F before relighting the pilot.
• Read the Manual: Thoroughly read and understand the manual before setting up, operating, or
  cleaning the pasta cooker.
• Instruction and Training: Instruct and train users in the safe and proper operation of the pasta cooker
  to prevent accidents and achieve consistent results.
• No Unauthorized Modifications: Never modify the pasta cooker’s settings, components, or features
  outside the manufacturer’s specifications. Doing so can compromise safety and void the warranty.
• Surfaces: Do not touch hot surfaces. Use handles or knobs to prevent burns.
• Child Safety: Keep children away from the pasta cooker to avoid accidents and misuse.

Electrical Safety

• Proper Installation: Gas connections must be performed by a licensed and insured food service
  technician or plumber to ensure safety and compliance with local codes.
• Dedicated Gas Line: Connect the pasta cooker to a dedicated gas line to prevent pressure drops and
  ensure consistent performance.
• Installation Safety: To reduce the risk of fire, the pasta cooker must be mounted on a noncombustible surface, with no combustible materials underneath or around the appliance. The construction should extend at least 16* beyond the equipment on all sides.

Operational Safety

• Overheat Control: Monitor the pasta cooker to prevent overheating, especially during extended use.
  This model includes an automatic shut-off feature for safety.
• Ventilation: Ensure the pasta cooker has sufficient ventilation to prevent overheating and maintain
  efficient operation.
• Emergency Procedures: Be prepared to turn off the pasta cooker quickly in case of an emergency.

Initial Setup

1. Inspect the Packaging: Check the packaging for any signs of damage that may have occurred during shipping.
2. Unboxing: Carefully open the packaging, using scissors or a box cutter, ensuring not to damage the cooker or its components.
3. Remove All Components: Remove the pasta cooker and accessories from the box.
   • Legs (4)|
   • Pasta Baskets (6)|
   • Starch Skimming Drain
   • Flue Assembly
4. Additional Accessories: Only use manufacturer-recommended accessory attachments to prevent injuries or damage.
5. Placement: Position the cooker with at least 16″ clearance on all sides and avoid placing it next to heat sources. Ensure the cooker is placed on a stable surface near an electrical outlet, with a controlled room temperature for durability. Level the cooker to ensure effective operation and place it over a floor grate to avoid water spreading when draining.

Assembly

1. Attaching Legs: a. With at least three people assisting, tilt the cooker so it rests on its back corners. While two people hold the equipment, have the third person place a block to maintain the angle, then screw in the front two legs • Next, lift the rear of the equipment so it stands on its front two legs. Place blocks under the rear of le unit and screw in the rear two legs
2. Leveling the Cooker: Use a level to ensure the cooker is flat. Adjust the legs by screwing them in or out to achieve proper balance.
3. Restraint Installation: Attach restraints according to local codes to ensure safe operation.

Installation

1. Unpacking the Flue: Unpack the flue box and flue wrap carefully.
2. Attaching the Flue Box: Slide the flue box over the flue and secure it with two self-tapping screws using an 8 5/16 socket.
3. Securing the Flue Wrap: Slide the flue wrap over the flue and secure it with four self-tapping screw, two on the back and one on each side-using a 5/16* socket.

Operation

1. Close the Drain Valve: Ensure the drain valve is fully closed.
2. Clean the Tank: Before first use, fill the tank with water and clean it thoroughly (see “Weekly Cleaning”
   on page 7) to remove protective coatings or debris.
3. Fill the Tank: Use the water knob to fill the tank up to the max water line.

Startup Procedure

1. Position Pasta Cooker Baskets: Make sure the pasta baskets are securely in place before heating
   the cooker.
2. Open the Compartment Door: Locate the gas valve behind the compartment door.
3. Set Thermostat to “OFF”: Turn the thermostat knob to align the “OFF” marking with the hole in
   the panel.
4. Set Gas Valve to “PILOT”: Turn the combination gas valve from “OFF” to “PILOT” and align the
   “PILOT” marking with the dot.
5. Ensure Pot is Filled Before Heating: Do not turn the thermostat “ON” until the pot is filled with water to
6. avoid damaging the heating elements.

High Limit Control

• If the cooker shuts down due to overheating, allow the tank to cool below 220°F before
  relighting the pilot.
• If overheating persists, contact your authorized Avantco Service Representative.
• Cook-Off Period: Before initial use, run the cooker at 212°F or higher for 30-40 minutes to remove any
  monutactunng resioues
• Temperature & Mode Settings: Set the cooker temperature according to your recipe requirements
  Filling the Basket: Place the pasta in the basket, then carefully lower the basket into the cooker.

Shutdown Procedure

1. Standby Mode: Turn the gas valve to the “PILOT” position. Only the pilot burner will remain ignited.
2. Complete Shutdown:
   • Turn the gas valve knob clockwise and press down to turn to the “OFF” position.
   • Always wear heat-resistant gloves when handling hot pasta baskets.

Long-Term Storage: After thorough cleaning, store the cooker in a dry, covered area to protect it from dust and contaminants. Charine Portee Vidya

Maintenance

1. Turn off the machine and disconnect it from the power source.
2. Remove any remaining food particles.
3. Follow the complete cleaning process as outlined in the “Cleaning” section.
4. Use a damp cloth to wipe down all exterior surfaces, including handies, sides, baskets, and the door.
5. Dry all wiped areas with a clean towel to prevent moisture buildup.

Cleaning

• Cleaning and Maintenance: Follow regular cleaning and maintenance schedules as specified in the manual to ensure safe and hygienic operation.
• Chemical Usage: If using cleaning chemicals, follow the manufacturer’s guidelines for safe handling and storage.
• Sanitization: Sanitize the interior of the pasta cooker after cleaning to prevent food contamination.
• Element Check: Regularly inspect the heating elements for proper function and any signs of damage.
• Regular Inspection: Regularly inspect the pasta cooker for signs of wear, damage, or malfunction, and
  address any issues promptly.

Daily Cleaning

1. Empty the Pasta Cooker: Ensure the cooker is empty and free from food debris and pasta baskets.
   DETOe CIeahlis
2. Wear Gloves: Use protective gloves to safeguard your hands from sharp components inside the cooker.
3. Disassemble the Cooker
   • Turn the thermostat knob to the ”FF” position.
   • Remove the pasta baskets and note their positions for reassembly.
   • Remove the inedible starch and burner grates.
4. Water Temperature:
5. Use warm water combined with a gentle dish detergent to clean removable parts
   hi the conker
6. Use a Soft Sponge: Always use a non-abrasive sponge to prevent scratching the pasta cooker’s
   surfaces.
7. Thorough Rinsing: Rinse all parts thoroughly AVANTCO 177FPC11NL Natural Gas Pasta Cooker to remove soap residue, which could affect the flavor taad
8. Brush Hard-to-Reach Areas: Use a soft-bristle brush to clean difficult areas, such as around the heating
9. Wipe Down Exterior Surfaces: Regularly clean the exterior to prevent the buildup of food particles
   and grime.
10. Safe Cleaners: Use non-abrasive, food-safe cleaning solutions if extra cleaning power is needed. Noble Chemical or similar brands are recommended.
11. Sanitization: Use a food-grade sanitizer on parts that come into contact with food.
12. Full System Sanitization: If the cooker has features like a filtration system, follow the manual to run a Sanaanو souon toug
13. Remove Sanitizer Residue: Wipe down all parts with clean water to remove any remaining sanitizer.
14. Air Dry: Allow all parts to dry completely in a well-ventilated area before reassembling

Sanitization

1. Use Food-Grade Sanitizer: After cleaning, sanitize all parts that come into contact with food.
2. Run a Sanitizing Solution (if applicable): If the pasta cooker features a filtration system, follow the
   instructions to run the sanitizing solution.
3. Rinse Thoroughly: Ensure all sanitizer residue is removed by wiping the surfaces with clean water.
4. Dry Completely: Let all parts air dry before reassembly.

Reassembly

1. Replace the starch and burner orates. These ties are securely in place.
2. Close the Drain Valve: Fill the cooker back AVANTCO 177FPC11NL Natural Gas Pasta Cooker up with water to just below the max line.
3. Reinsert the Pasta Baskets: Ensure they are positioned as originally placed.

Weekly Cleaning

1. Turn the Pasta Cooker Off: Switch the AVANTCO 177FPC11NL Natural Gas Pasta Cooker thermostat to the “OFF” position.
2. Empty and Disassemble: Remove all removable parts, including pasta baskets and grates, and clean thoroughly.
3. Deep Clean the Tank: Drain any water from the tank and clean the interior using warm water and a mild detergent.
4. Check for Residue: Ensure no soap or food residue remains in the tank, as this can affect the performance.
5. Inspect the Heating Elements: Check the heating elements for any debris or residue and clean them gently.

Stainless Steel

1. Daily Cleaning: Use soap and water with a sponge or cloth to clean normal dirt and grease.
   Dry thoroughly with a clean cloth. Avoid using vinegar or corrosive cleaners
2. Baked-On Grease and Food Splatter: Apply a cleanser to a damp cloth or sponge and rub along the
   polishing lines of the metal to prevent marring the surface. Never rub in a circular motion.
3. Hard-to-Remove Deposits: For tougher grime, use a stainless steel scouring pad, rubbing gently along
   the polishing lines. Never use steel wool, wire brushes, or any other steel tools, as they can rust and
   damage the finish.

Labeling & Emergency

1. Instruction Labels: Ensure that all operational and safety labels on the pasta cooker are visible and legible. Do not remove any labels.
2. Emergency Procedures: Know how to quickly turn off the pasta cooker in the event of an emergency.
3. Turn off and disconnect the machine from the power source.
4. Examine levers and other manual components to ensure smooth operation.
5. If any issues are found, consult the “Troubleshooting” section or contact a service provider for repairs or part replacement.

Monthly Inspection

• Check for Wear: Inspect all hoses and components for signs of wear or leaks.
• Examine Controls: Test levers and other manual components for ease of operation. Replace any damaged parts promptly.
• Reassemble the Cooker: After inspection/cleaning, replace the starch and burner grates, ensure the
  drain valve is closed, and refill the cooker with water. Reinsert the pasta baskets and ensure all parts
  fit correctly.
• Schedule an annual service appointment with a certified food service technician.
• The technician will conduct a comprehensive inspection, including checking all gas connections.
• Calibration tests will be performed to ensure optimal temperature control.
• Any worn or damaged parts will be replaced.
• Obtain a detailed service report for future reference and warranty claims.

Troubleshooting

Customer Service

• Website: https://www.avantcoequipment.com/
• Tel: 717-381-4844

FAQs

Q: What type of equipment is the AVANTCO 177FPC11NL?

Ans: A commercial-grade pasta cooker fuelled by natural gas, the AVANTCO 177FPC11NL is made to boil pasta, noodles, and other similar items quickly and efficiently in professional kitchen settings.

Q: What fuel type does this unit use?

Ans: Never try to convert it to liquid propane (LP) without a certified technician and an authorised conversion kit.

Q: What is the maximum cooking capacity of the unit?

Ans: Batch cooking and portion control in high-volume situations are made possible by the unit’s 11-gallon water tank and several pasta baskets.

Q: How long does it take for the water to boil?

Ans: Depending on the starting water temperature and kitchen conditions, the machine can typically heat water to a rolling boil in 15 to 25 minutes.

Q: Is it safe to leave the unit unattended while operating?

Ans: No, you should never operate the device alone. High temperatures and boiling water provide major safety hazards. When using the device, always keep an eye on it.

Q: Can I use the cooker to boil other foods like seafood or vegetables?

Ans: Yes, although though pasta is the cooker’s primary purpose, you can also use it to boil eggs, vegetables, shellfish, or dumplings. Just make sure to fully clean the tank in between uses.

Q: Does the unit require a water line connection?

Ans: No, the water is manually added, but before lighting, make sure the tank is always full of water over the minimum level. Verify your product specifications, as certain business setups might include an optional water inlet feature.

Q: Is this unit NSF and ETL certified?
Ans: Indeed, the AVANTCO 177FPC11NL is NSF listed, ETL certified for hygienic and safety compliance, and built to commercial kitchen standards.
