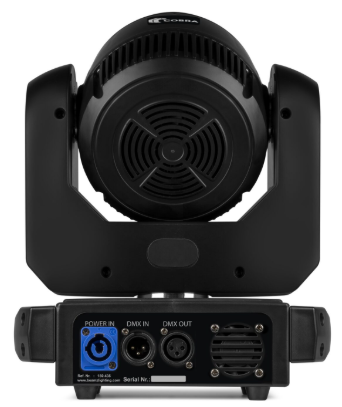

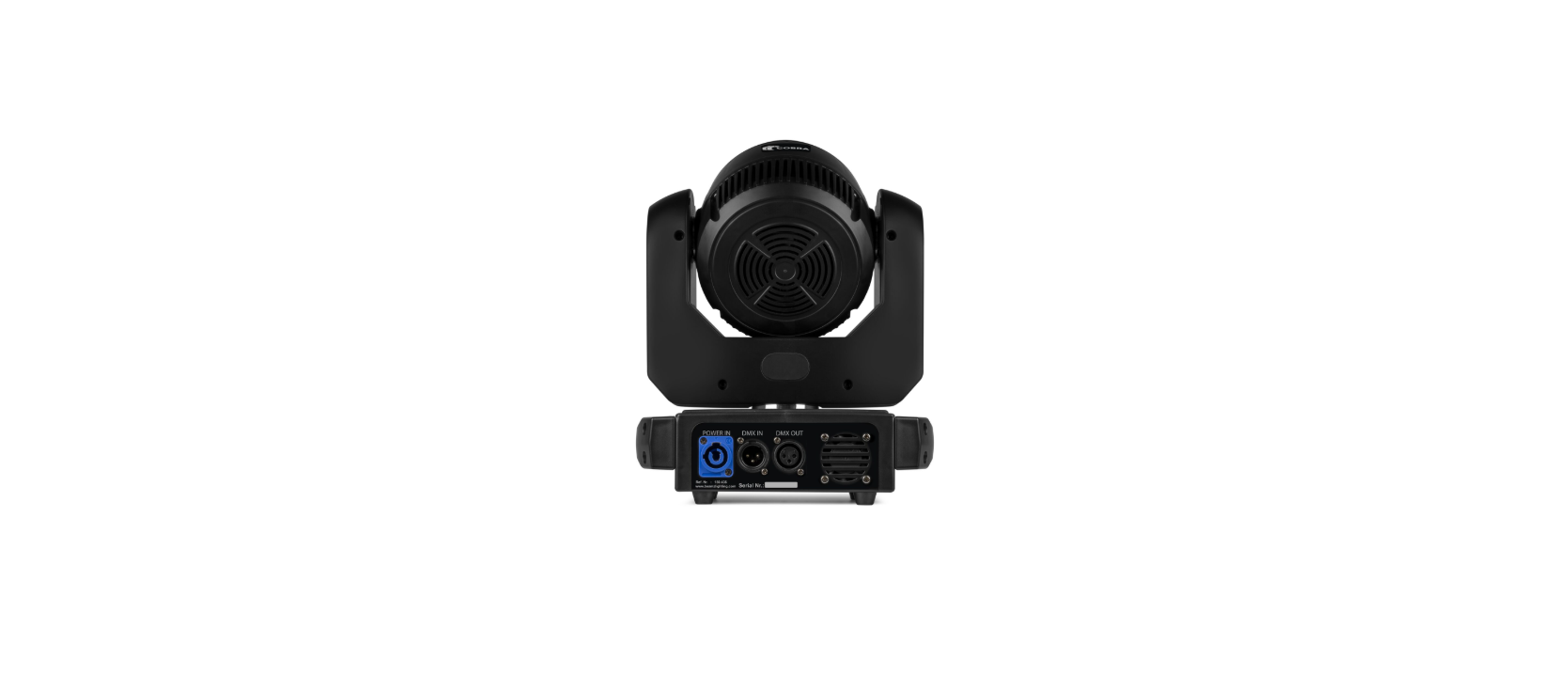

beamZ Cobra Wash100 LED Moving Head
Safety Instructions
- Unpack and check carefully that there is no transportation damage before using the unit.
- Please read these instructions carefully and follow them.
- Check the unit and the power cord from time to time.
- Do not switch the unit on and off in short intervals.
- Do not connect the unit to a dimmer pack.
- Install the unit in a well-ventilated place.
- Never place any material over the lens.
- Never let the sunlight shine directly on the front lens, even when the unit is not working.
- Always allow free air space of at least 50 cm around the unit for ventilation.
- Clean the unit using a dry cloth.
- Do not expose this unit to flammable materials, fluids, or gases.
- Never attempt to bypass the thermostatic switch or fuses.
- Do not dismantle or modify the unit.
- For replacement, use fuses/beads of the same type and rating only.
- The ambient temperature must always be between -5° C and +45° C.
- Never leave the unit running unattended.
Unpacking Instructions
If the unit has been exposed to drastic temperature fluctuation (e.g., after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
Power Supply
The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any voltage other than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage, and no dimmer or adjustable power supply may be used.
The unit has a power connector output on board. Depending on the local conditions, several units can be linked by a power connector in and out. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5 mm². The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning off the power cthepower on/off switch, or the Schuko!
Rigging
The unit may be set up on a stable and even surface. Using the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see picture below. For fixing, certified clamps with the correct safe working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of. Secure the unit with a safety cable so that it cannot fall.
When carrying out any installation, always comply with European and national guidelines concerning rigging, truss, and all other safety issues. Always let the installation be checked out by an authorised dealer!
DMX512 Control
If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.
RDM Control
- This unit can communicate using RDM (Remote Device Management) via DMX512. RDM is a bi-directional communication protocol for use in DMX512 control systems. It is the open standard for DMX512 configuration, beamZ BS384 RGBW LED Stroboscoop Comb, and status monitoring.
- The RDM protocol allows data packets to be inserted into a DMX512 line without affecting the existing non-RDM equipment. The system allows a controller or special RDM controller to send and receive commands from specific fixtures.
- The RDM function allows you, for example, to remotely set the DMX start address of your fixtures. This is especially useful when the fixture is installed in an inaccessible location. Each unit has an RDM UID (unique identification number).
Cleaning
The buildup of dust, dirt, and other airborne particles will reduce the unit’s light output. It will also prevent the unit from cooling correctly, and this will reduce the unit’s lifetime. The rate of dirt buildup willvary dependingg on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. Thee units’ cooling fans will accelerate the buildup, and smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.
To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup. Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently. The unit may attract dirt faster than you expect. Use the following guidelines:
- Disconnect the unit from power and allow it to cool completely before cleaning.
- Do not use solvents, abrasives, or any other aggressive products to clean the unit.
- Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
- Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Avoid rubbing glass surfaces.
- Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.
Replacing the Fuse
If the fuse is defective, replace it with a fuse of the same type and value. Before replacing the fuse, unplug the mains lead. Procedure:
- Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
- Step 2: Remove the old fuse from the fuse holder.
- Step 3: Install the new fuse in the fuse holder.
- Step 4: Replace the fuse holder in the housing.
Maintainance
This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects. Assess the operating beamZ BS384 RGBW LED Stroboscoop Combi environment and establish an inspection and cleaning schedule that follows the guidelines below:
- Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
- Check the housing, fixing points, and installation points; they must not show any signs of deformation, wear, or fatigue.
- Check the mechanically moving parts; these must not show any signs of wear or fatigue.
- Check the electrical power and signal cables; they must not show any damage or fatigue.
- Do not use solvents, abrasives, or other aggressive products to clean the unit.
- Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
- Dry the unit, connectors, and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.
Troubleshooting
Control Menu
DMX Channels
Technical Specifications
- Product colour Black
- Light source 4-in-1 LED
- LED colours: Red, Green, Blue, White
- LED power (single LED) 120W
- Quantity of LEDs 1
- Beam angle 24°
- Field angle 46°
- Illuminance 13.860 lx @ 1m
- Head movement: Pan 540°
- Head movement: Tilt 205°
- Aura effect ring 26x RGB SMD LEDs
- Flash rate per second 1 – 22Hz
- Modes: Automatic programs, DMX, Master/Slave
- Sound to light mode: Yes
- DMX channels 22
- DMX connection 3-pin XLR
- Display LED
- IP rating IP20
- Cooling Temperature-controlled fan
- Power plug P-Con
- Power consumption 1.759 – 0.851A
- Power supply 100-240VAC 50/60Hz
- Dimensions (L x W x H) 220 x 240 x 290mm
- Weight (kg) 3,50
- Included accessories: Mounting bracket, Power cable
Customer Service
- Website: https://www.beamzlighting.com/
- Ph: +31 (0)85 105 3155
European Union
Tronios B.V., Bedrijvenpark Twente Noord 18, 7602KR Almelo, The Netherlands
- 2014/35/EU
- 2014/30/EU
- 2011/65/EC
United Kingdom
Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom
- S.I. 2016:1101
- S.I. 2016:1101
- S.I. 2012:3032
FAQs
Q: What is the Cobra Wash100 LED Moving Head?
It is a small, high-quality LED moving head light intended for usage on stages, by DJs, or at events. It has several control modes, adjustable pan/tilt, dynamic wash effects, and RGBW colour mixing.
Q: How do I power the fixture?
Check the voltage on the label before plugging the fixture into an appropriate AC outlet.
Q: How do I set the DMX address?
Utilise the menu buttons and digital display located on the rear of the fixture. Select the desired starting channel by navigating to the DMX address option.
Q: Can I link multiple Cobra Wash100 units?
Multiple fixtures can be connected via DMX for individual control or in Master/Slave mode for synchronised shows using XLR cords.
Q: Can I control the fixture via a smartphone or tablet?
Yes, indirectly—by utilising a DMX controller that supports wireless or apps.
Q: How loud is the fixture during operation?
There is very little noise, although it is dependent on the cooling fan speed. During intense DMX programs, there may be an increase in fan noise.
Q: How do I reset the fixture to factory settings?
The reset option, which clears modified DMX addresses and restores default programs, can be chosen via the menu buttons on the display.
