BLAUPUNKT BPCA15AMP1 15 AMP Caravan Adaptor User Manual

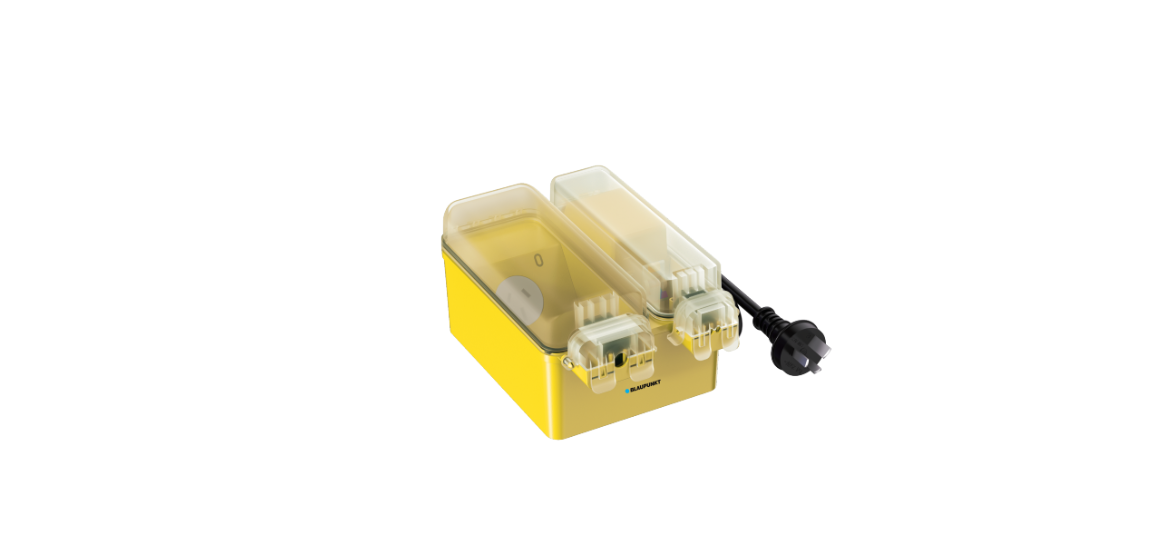

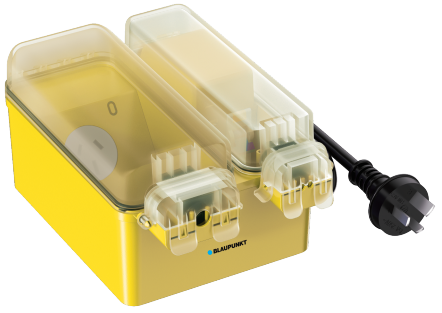

BLAUPUNKT BPCA15AMP1 15 AMP Caravan Adaptor

Safety Instructions

• No naked flame source, such as candles, should be placed on the product.
• This product has a combined Safety Switch and overload safety device that provides protection against electrocution and over-current faults.
• Electricity can be dangerous; the use of a safety switch should not be regarded as a substitute for basic electrical safety precautions.
• Intended use: suitable for use in domestic environments for connecting caravan/RV equipment and DIY tools.
• The combined Safety Switch + overload safety device protects against electrical faults to earth, but not against active to neutral faults.
• It does not protect you against an electric shock caused by contacting both active and neutral conductors of an electrical circuit.
• Use the product properly to avoid electric shock.
• Keep the product away from high temperatures, high salinity, and corrosive environments.
• Do not dispose of the product in fire.
• Do not place or store the product together with bulk metal objects.
• Do not disassemble or reassemble the product randomly.
• Do not intentionally knock, impact, pierce, or drop the product.
• Do not cover the product with towels, clothing, or other items, so as not to affect heat dissipation.
• Please scrap and recycle the product according to the regulations.
• Keep the device dry at all times and disconnect when not in use.

Positioning The Product

• Not wet and well-ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not place the Product near heat sources such as radiators, stoves, or other audiovisual equipment that produce heat.

Before first use

• Unpack the product and accessories, and ensure all parts of the product are undamaged and in good working order.
• Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.
• Unwind the power cord to its full length and inspect it for damage before each use. Do not use the product if it or its cord has been damaged or is not working properly.
• In case of damage, contact our after-sales support line for advice on examination, repair, or return of the damaged product.

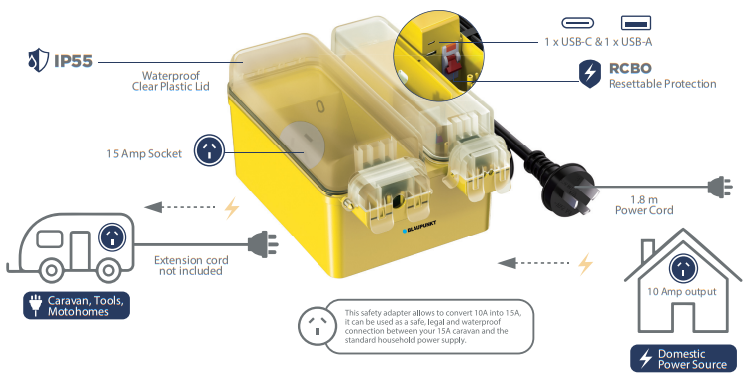

Overview

How to Open the Lid

1. Lift the latch on the lid.
2. Open up the lid.
3. To close, press the lid down until the 2 holes of the lid latch over the bottom and lock into place, then put down the latch.

Operation

1. Plug your Caravan Adaptor into a fixed 240V outlet and switch on.
2. Lift the latch on the lid.
3. Open the left side of both lids first. Then open the right side lid. (Fig.1)
4. Place the Safety Switch in the ON position by lifting the switch lever on the LHS upward so that “I” ON is visible on the base of the lever.
5. Press the “T” test button. This will immediately cause the device to trip, disconnecting the supply and moving the switch lever down to the OFF position.
6. The trip indicator turns red. This confirms that the safety switch is operational.
7. If so, reset and test again. If considered faulty, the unit should be returned to the place of purchase for replacement.
8. After tripping, reset the safety switch to the ON position by lifting the switch lever upward.
9. If power is not restored when the safety switch has been reset, check any other safety switch in the switchboard that may have also tripped and require resetting.
10. Close the two lids, ensuring the lock clicks into place.

Use

If the Safety Switch trips at any time during operation, the connected appliance should be immediately unplugged and checked by a qualified electrician.

Appliance overloading

• If this happens, the appliance cannot be connected to this device. Remember to reset the Safety Switch before connecting another appliance.
• If it trips repeatedly even though the power rating is not exceeded, the product or the connected appliance might be faulty and must be checked by a licensed electrician.

Cleaning & Maintainance

• Switch off and unplug from the power supply before doing any cleaning.
• Do not use harsh chemicals/ abrasive cleaners – these can damage the surface finish.
• Do not allow water to enter the unit.
• Wipe the surface of the unit using a soft cloth or rag.
• You may use a damp cloth if necessary, but make sure water does not enter inside.
• Dry thoroughly before turning on again.

Troubleshooting

• Rating of the Caravan Adaptor has exceeded.
• Reset the Safety Switch and try connecting another appliance. If the Safety Switch trips again, the Caravan Adaptor itself might be faulty.
• Stop using it immediately, turn off at the outlet, unplug, and have it checked by a BLAUPUNKT BPCA15AMP1 15 AMP Caravan Adaptor qualified electrician/technician.

Specifications

• INPUT: 230-240VAC 50/60Hz
• USB OUTPUT USB: A + USB C Total: 5Vdc 3.6A
• IP RATING: IP55
• RCBO: CLASS H
• Rated Residual Operating Current: 30mA
• Rated Residual Marking and Breaking Capacity: 2000A

Customer Service

• Customer Service
  • Email: info@ayonz.com
  • Call:02 8279 8606
• DISTRIBUTED BY
  • Ayonz Pty Ltd

FAQs

 Q: Is it safe to use this adaptor with high-power appliances in the caravan?

Ans: Yes, but you have to adhere to the domestic circuit restriction of 10A. You must carefully control consumption if your caravan setup includes high-draw equipment (such as microwaves and air conditioners) to prevent overloading the circuit.

Q: Does the BPCA15AMP1 include overload protection?

Ans: Indeed. The adaptor has a built-in circuit breaker that protects your house and caravan electrical systems by cutting power if the current reaches unsafe levels.

Q: Can I use the adaptor in wet or outdoor conditions?

Ans: Although not completely waterproof, the adaptor is resistant to weather.

Q: Is this adaptor legal to use in Australia and New Zealand?

Ans: Indeed. The BPCA15AMP1 is appropriate for safe and lawful use in both nations since it conforms with AS/NZS electrical safety regulations.

Q: What is the maximum load this adaptor can handle?

Ans: Never try to operate equipment that uses more than 2400 watts (10A x 240V) in total.

Q: Does the adaptor step down the voltage?

Ans: No. There is no voltage change with this adapter. It merely modifies the current limit and plug shape. It passes through the standard 230–240V mains voltage.
