Blaupunkt CT5010 Cordless Grass Trimmer

Safety Instructions

1. The appliance must only be connected to a grounded socket outlet with characteristics in accordance with the values on the rating plate.
2. Check that the total current consumption of all appliances connected to the wall socket does not exceed the maximum load of the fuse.
3. If an extension cable is used, check that the total power consumption of the equipment connected to the extension cable does not exceed the load parameters of the extension cable.
4. Arrange the extension cable in such a way as to avoid accidental pulling and tripping over it.
5. The appliance is not intended to be controlled by an external timer, separate remote control, or other equipment that can switch the appliance on automatically.
6. Always disconnect the appliance from the power supply before maintenance work.
7. When disconnecting the power cord, always pull it out of the socket by holding the plug.
8. Never pull out the power cord by pulling on the cable, as the plug or cable may be damaged, in extreme cases, even a fatal electric shock may occur.
9. Do not leave the unit switched on.
10. Do not immerse the appliance in water or any other liquid

Description

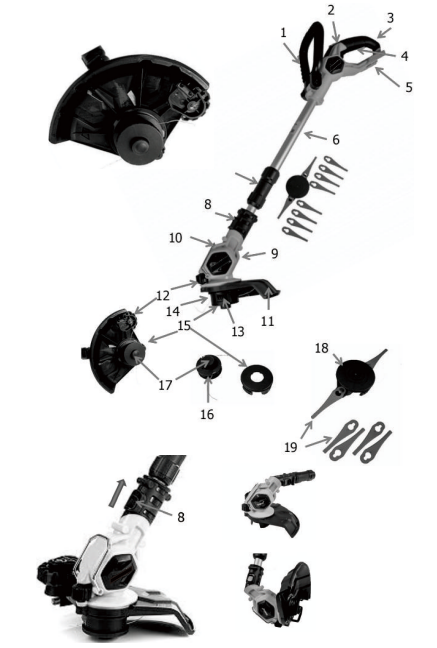

1. Top handle
2. Switch-on lock
3. Auxiliary handle
4. On/off switch
5. Battery holder

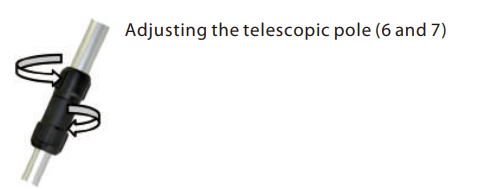

6. Telescopic pole extension
7. Length adjustment lock button
8. Angle adjustment lock button
9. Trimmer head
10. Fold-out protective handle
11. Protective cover
12. Guide wheel
13. Spring slot (not visible on photo) 14. spool holder permanently mounted
14. Permanently mounted spool holder 14.
15. Spool cover
16. Spool
17. Spool button (thread length change)
18. Head with plastic blades
19. Plastic blades

Replacing the spool

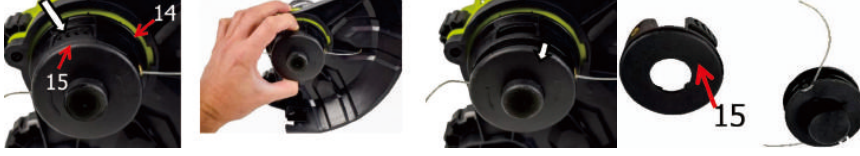

1. There are two marked points on the bobbin cover (15) which are opposite each other. Push in both points at the same time and pull the bobbin cover. (15) from the fixed bobbin holder (14) in the direction indicated by the arrow.
2. Then pull the bobbins (16) out of the bobbin cover (15).
3. If you are just replacing the bobbin (16) with a new one, make sure that you first push both ends of the thread through the metal eyelets on the bobbin cover. (15) thread through.

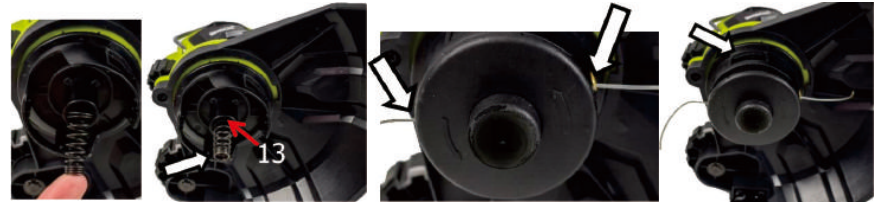

4. Before attaching the new spool(16) together with the spool cover (15) to the grass trimmer, ensure that the spring is correctly inserted into the spring slot (13). Insert the slightly wider end of the spring into the slot (13), which is located on the spring holder (14).
5. Now insert the new spool (16) together with the spool cover (15) with the “marked points” into the recesses of the spool holder (14). Once these have been fitted and the bobbin cover snapped into place, you can start working.

Manual

For your safety, remove the battery! Press the bobbin button (17) with one hand and successively pull the corresponding thread tip to the desired length. When you have finished adjusting the thread length, release the button. If the thread length is too long, the thread will be automatically shortened to the correct length by the blade at the guide wheel (12) when the trimmer is started.

Automatic

The length of the thread can be automatically increased at any time while the trimmer is running by pressing the trimmer briefly against the ground. The thread automatically unrolls from the spool via the spool button (17)

Replacing the monofilament spool with plastic blades

1. Remove the monofilament spool(16) and insert the replacement head with plastic blades(18) (remember to remove the battery):
2. Remove the spool(16) together with the spool cover(15) as described for spool replacement.
3. Then replace the plastic blade head (18) with the two plastic blades (19).
4. Check that both plastic blades (19) are well seated.
5. Make sure that the spring is correctly seated in the slot (13). If the spring is no longer inserted or has slipped out, correct it.
6. Then insert the replacement head (18).
7. Place” into the recesses of the spool holder(14).

Once these are correctly assembled and the interchangeable head is locked in place, you can start working.

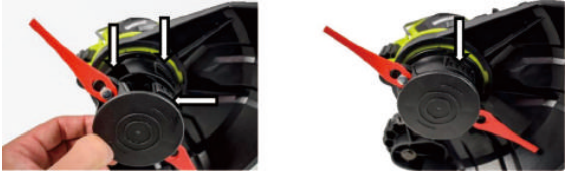

The plastic inserts (19) can be easily replaced. There is no need to remove the interchangeable head (18).

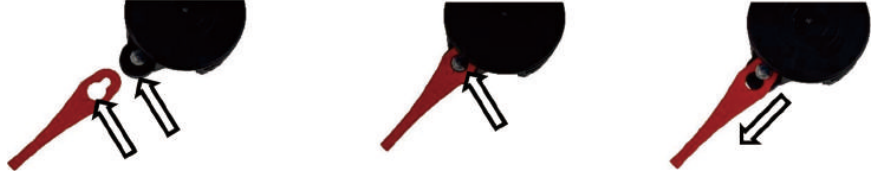

Grasp the plastic blade and push it towards the interchangeable head. Then simply pull the plastic blade(19) upwards. To attach the new plastic blades (19) to the replacement head (18), simply place them in the head catches as shown in the illustrations below and pull the plastic blades (19) towards you.

Grass mowing

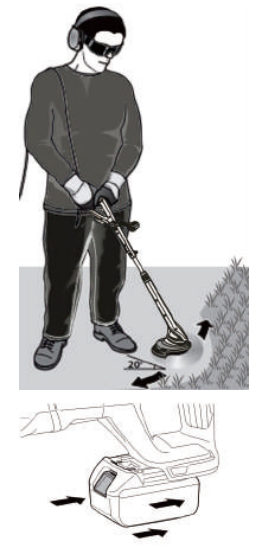

Do not mow wet grass. Best mowing results are obtained when the grass is dry. Feed the extension cable through the frame to the rear, ensuring that it is always behind the user when cutting. Hold the unit at an angle of 20 degrees to the grass to be cut, moving it in a swinging motion, left and right. Take care to hold the unit away from you – see illustration. On the outside of the cutting head (9), there is a safety lock button for adjusting the angle (8). Move it in the direction indicated by the arrow to adjust the angle of the grass cutting head (9) to the working area.

Cleaning, maintenance

1. After each use of the unit, clean the entire unit of plant debris and the bottom cover of the collected, compacted mass.
2. Keep the ventilation slots and the motor housing free of dust and dirt at all times if possible.
3. Wipe the unit with a clean cloth, brush, or blow with compressed air.
4. Cleaning is recommended immediately after each use.
5. Do not use any cleaning agents or solvents to clean the appliance; these may damage the plastic parts of the appliance. Care should be taken to ensure that water does not get inside the unit.
6. Regularly check the condition of the cutting line and also the tightness of the screws.
7. With new machines, the first check of screw tightness should be carried out after the trimmer has been in operation for about 2 hours. If necessary, retighten loose bolts.
8. Ensure that all parts of the power tool are in good condition and that the machine is not overloaded or doing work for which it was not designed.

Specifications

• Voltage: 18 V
• Cutting width: 230 mm (2 Sides)
• String diameter: 1.2 mm
• No load speed: 10.000 rpm
• Telescopic tube
• With a trimming wheel
• With the edge trimming function
• With a rotatable cutting head
• With a rotatable auxiliary handle
• With a flower-protected guard steel wire

Noise

• Typical A-weighted noise level measured by ISO/TR 11688-1:
• Sound pressure level (LpA): 76.5 dB (A)
• Measurement uncertainty (K): 3 dB (A)
• Noise level during operation may exceed: 86.6 dB (A), (K) 3 dB

Vibrations

• Total vibration value measured by EN 3774:
• Vibration emission: ah = 92 dB(A)
• Measurement uncertainty (K): Km 1.5 m/s
• Permissible Operating Time: 35 minutes of operation.

Protective Equipment

Wear safety goggles according to the standard EN 166. Use protective masks according to EN 149.

Charger and Battery

To connect the battery for charging, insert it into Blaupunkt CT5010 Cordless Grass Trimmer the charger and then connect the charger to the power source. Protect the charger from rain and moisture. Keep the charger clean. Do not use the charger on flammable objects and substrates (e.g., paper) or in environments with explosive and/or flammable atmospheres.

Unplug the charger from the wall socket when charging is complete. Do not leave it connected to a power source for longer than necessary. Store and charge the battery in a dry place and make sure no water gets into it. Keep the battery connectors clean and free from dirt. Protect the battery from shocks, moisture, and never open or mechanically damage the battery pack. To check the charge level of the battery, do the following. Press the button on the battery Blaupunkt CT5010 Cordless Grass Trimmer pack and, if necessary, charge the battery pack according to the number of LEDs and the expected operating time of the cordless tool.

Storage

Store cordless tools in a dry place out of the reach of children. For safety reasons, remove the battery pack before storing the cordless tool. Protect the Blaupunkt CT5010 Cordless Grass Trimmer battery pack and tool from frost, high temperatures, moisture, and water. Do not repair a damaged battery pack.

Only charge the battery in chargers with the parameters specified by the manufacturer. Storing or using the battery in unsuitable conditions may cause electrolyte leakage. Damaged or modified batteries may behave in an unpredictable manner, causing dangerous consequences. Keep the battery away from fire and protect it from heat. The battery may explode if exposed to fire or temperatures exceeding 130°C.

Disclaimer

• In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special, consequential damages to property or life, or whatsoever arising out of or connected with the use or misuse of our products.
• No warranty, whether expressed or implied,  is provided in the U.S. or Canada.

Recycling and Disposal

• Do not dispose of your old unit in the household trash! Use the return and collection systems available to dispose of the old device.

Customer Service

• Competence Center
  • 2N-Everpol Sp. z o.o. Ul. Puławska 403A 02-801 Warsaw, Poland
  • Call: +48 22 688 08 00
  • E-mail: info@everpol.pl
  • Visit: www.blaupunkt.com
• In case of questions or problems
  • Tel: 00 48 22 688 08 33
  • E-mail: sda@blaupunkt.pl

FAQs

Q: How long does it take to fully charge the battery?

Ans: Depending on how low the battery is, charging takes between three to five hours. A green light indicates that it is ready, while a red light indicates that it is charging.

Q: How long does the battery last during use?

Ans: Under typical circumstances, you can anticipate trimming for up to 30 to 40 minutes on a full charge. Runtime may be shortened by wet or heavier grass.

Q: Can I use the trimmer while it’s charging?

Ans: No, safety is a top priority in the design of the CT5010. Before using the tool, the charger must be completely unplugged.

Q: Is the CT5010 suitable for edging or thick brush?

Ans: The light-duty CT5010 trimmer is perfect for regular garden upkeep and cutting lawn edges. Woody plants and heavy bushes are not a good fit for it.

Q: Is there a warranty included?

Ans: Yes, a two-year limited warranty is included with the CT5010. To activate complete coverage, save your proof of purchase and, if possible, register the product online.

Q: Is the Blaupunkt CT5010 safe for first-time users?

Ans: Indeed, user safety and ease of use were key considerations in the design of the CT5010. Beginners can use it because of its lightweight design, two-hand operation, and safety switch. But before using it for the first time, carefully read the instruction manual’s safety section.

Q: Can I use the trimmer in wet conditions or after rain?

Ans: No, the CT5010 should not be used in damp conditions, rain, or wet grass. Moisture is an electrical risk and can harm the battery and motor.

Q: Can I overcharge the battery by leaving it on the charger?

Ans: Although Blaupunkt chargers usually have overcharge protection, it’s advisable to take the battery out when it’s fully charged to prolong battery life.
