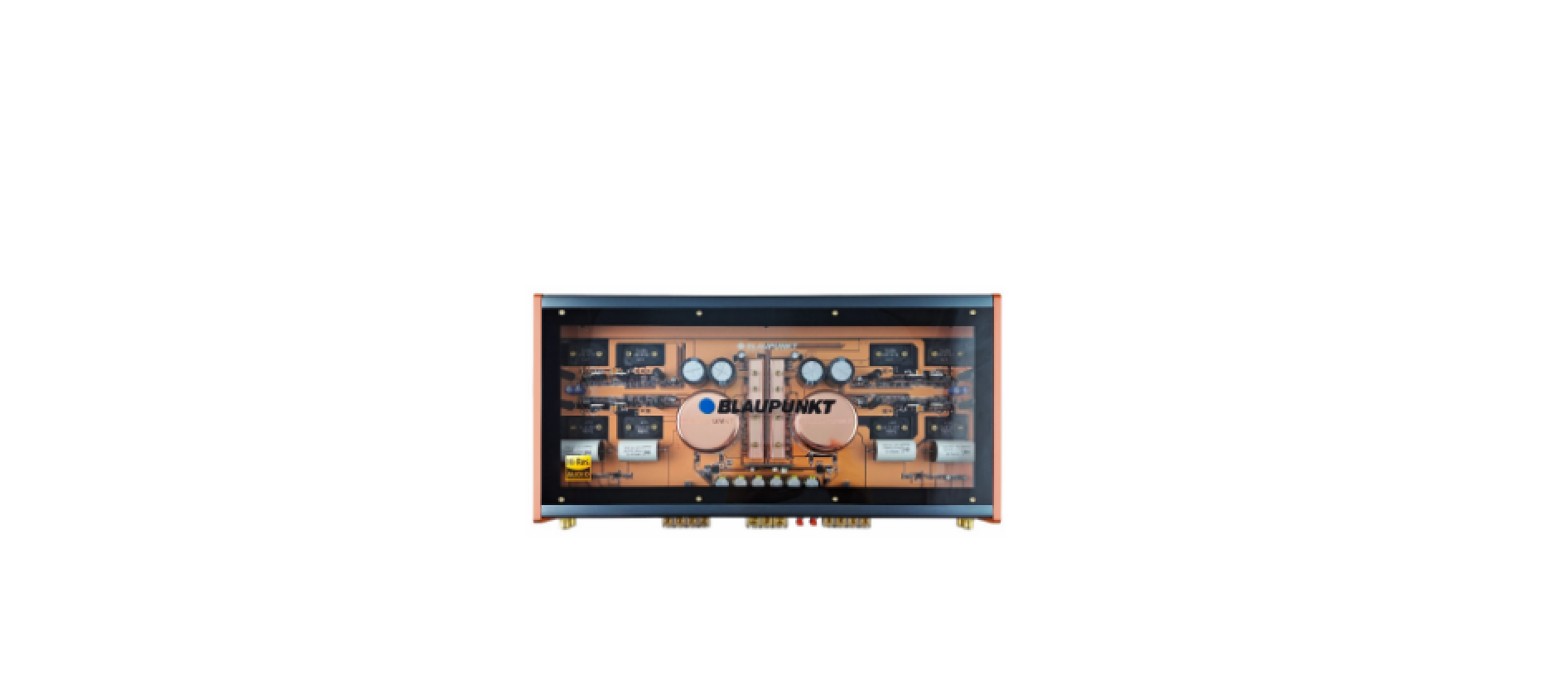

BLAUPUNKT MPA 14120 H Power Amplifier
Safety Instructions
- Disconnect the negative terminal of the battery. Refer to the safety notes of the vehicle manufacturer.
- Ensure the positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
- Ensure cross cross-section of the cable is no less than 2.5mm2 if the positive and negative cables are too long.
- Incorrect installation may result in the malfunction of the device or the car’s sound system.
- The supply voltage requirement is 12V DC with a grounded negative connection.
- Unauthorised dismantling or modification may void the warranty of the device.
- Blaupunkt is not liable for any loss or damage caused or resulting from unauthorized BLAUPUNKT MPA 14120 H Power Amplifier reparation or modification to the device.
- Refer to a Blaupunkt specialist in case of any installation or repair required.
- The device’s core components may be damaged when the car is driven on bumpy roads for a prolonged period of time or if it is used to play non-standard volume level.
- Please do not operate the car radio under BLAUPUNKT MPA 14120 H Power Amplifier in extreme temperature conditions (extremely high temperature or extremely low temperature).
- Ensure the temperature within the car ranges from -10°C to 85°C (Storage temperature: 5°C to 35°C) before connecting to the power supply.
- Solvents, cleaning and scouring agents, as well as dashboard spray and plastics care products, may contain materials that can damage the surface and screen of the device.
- Use only a dry or slightly moistened cloth to clean the device.
Features
- Class AB Amplifier
- Max. Output Power: 1,000W
- Frequency Response: 10Hz – 40kHz
- Dimension (W x H x D): 205 x 409 x 58mm
- Net Weight: 4.1kg
Power
- Voltage Supply: 10-14.4V
- Idling Current: 0.5A
- Fuse: 40A x 2

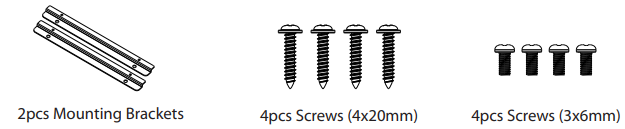

Accessories

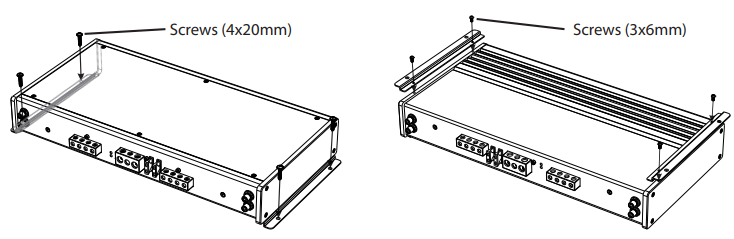

Installation

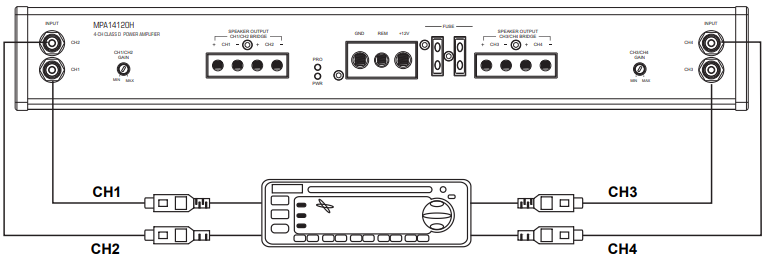

Wiring Diagram

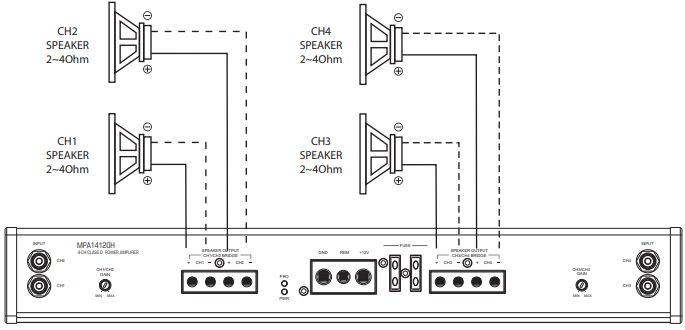

Stereo Mode
Speaker Connections

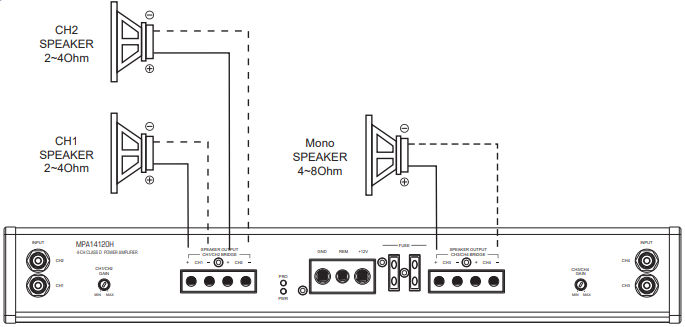

Bridged Mode

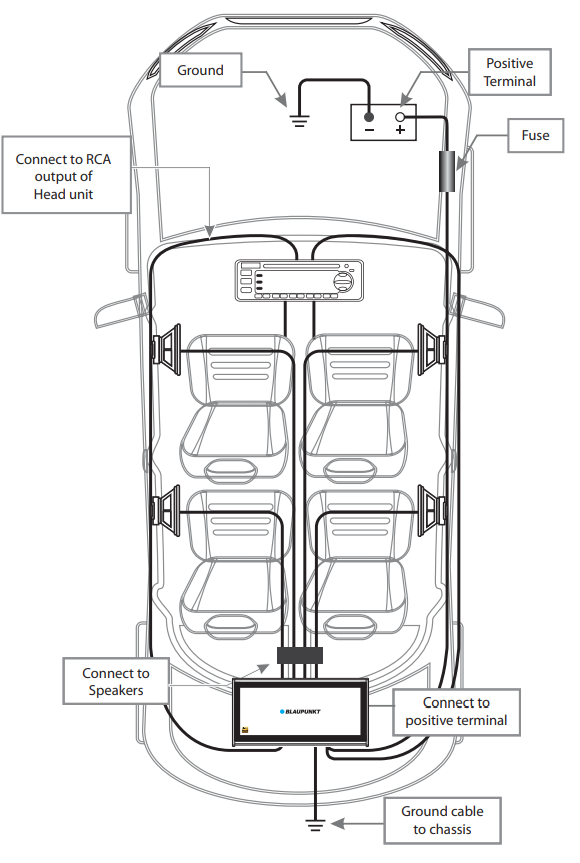

Power Connection Leads
Operating and Installation Instructions
- Proper system planning is vital in order to maximize the device’s performance and road safety. Plan your installation carefully to avoid compromising the performance and reliability of the system.
- Consult an authorized Blaupunkt dealer for installation or repair. Read the manual carefully before operating the device for the first time.
Installation and Connection
- Select a dry and well-ventilated location to install the device.
- The device must not be installed in an overly exposed location, such as the rear shelf, rear seat, etc.
- The installation location must be suitable for screw holes and have stable ground support.
Integrated Fuse
The integrated fuse in the device protects the output voltage and the entire electrical system in case of a malfunction. Do not replace a damaged fuse with a higher current.

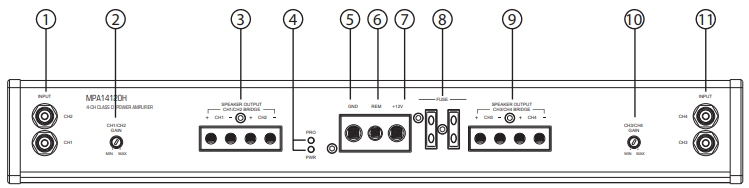

Input Function
- CH1 / CH2 RCA Input
- CH1 / CH2 Gain Control
- CH1 / CH2 Speaker Output
- Power / Protect Indicator
- GND Control
- REM Control
- +12V Control
- FUSE
- CH3 / CH4 Speaker Output
- CH3 / CH4 Gain Control
- CH3 / CH4 RCA Input
Dimensions
Specification
- Channel: 4
- PCB Layer: 2
- Max Output Power @ 4 ohms: 250W x 4
- RMS Power 4 ohms: 130W x 4
- RMS Power 2 ohms: 180W x 4
- RMS Power 4 ohms Bridge: 50W x 2
- Signal-To-Noise Ratio: >105dB
- Gain Adjust: 30mV – 8V
- Total Harmonic Distortion: 01%
- Damping Factor : >88
Troubleshooting
| Problem | Possible Causes | Solution |
| No audio output | The remote wire failed to work | Examine the voltage output/connection and repair accordingly. |
| The fuse failed to work. | Examine power integrity and reversed polarity, and repair or replace the fuse accordingly. | |
| Disconnected power wires | Examine power wire and ground connections. | |
| Replace and repair accordingly. | ||
| Missing output from the source, or the audio input is not connected | Examine input connection and signal integrity. | |
| Replace or repair accordingly. | ||
| Unstable audio cycle | Disconnected speaker wires | Examine speaker wires. |
| Replace or repair accordingly. | ||
| Broken speaker | Examine the radio system. | |
| Replace or repair accordingly. | ||
| Thermal protection will be activated when the amplifier temperature exceeds
90°C |
Improve the amplifier’s ventilation accordingly. | |
| Poor audio input | Examine the input connection. | |
| Replace or repair accordingly. | ||
| Audio distortion | High amplifier sensitivity setting, exceeding the maximum output capability of the amplifier | Refer to the manual to reset the gain setting. |
| Low impedance | Examine speaker impedance. Rewire the speaker accordingly, if below 2Ω stereo or 4Ω mono. | |
| Improper connection of the speaker and amplifier | Examine the speaker wire; replace or repair it accordingly. | |
| Broken speaker | Refer to the manual for installation instructions. | |
| Examine the radio system. | ||
| Poor bass response | The wrong speaker wire polarity connection is causing phase cancellation | Replace or repair accordingly. |
| Examine speaker polarity and repair accordingly. | ||
| Broken amplifier fuse | Overdrawn current | Examine speaker impedance. Rewire the speaker and replace the fuse accordingly, if below 2Ω stereo or 4Ω mono. |
| The fuse used is smaller than recommended. | Examine the power wire and ground connections and repair accordingly with the correct fuse. | |
Disclaimer
- In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special, consequential damages to property or life, or whatsoever arising out of or connected with the use or misuse of our products.
- This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on an as-is basis. No warranty, whether expressed or implied, is provided in the U.S. or Canada.
Recycling and Disposal
- Do not dispose of your old unit in the household trash! Use the return and collection systems available to dispose of the old device. This manual may be updated from time to time without notice.
Customer Service
- Competence Center
- 2N-Everpol Sp. z o.o. Ul. Puławska 403A 02-801 Warsaw, Poland
- Call: +48 22 688 08 00
- E-mail: info@everpol.pl
- Visit: www.blaupunkt.com
- In case of questions or problems
- Tel: 00 48 22 688 08 33
- E-mail: sda@blaupunkt.pl
