Blaupunkt VCB101 Vacuum cleaner Instruction Manual

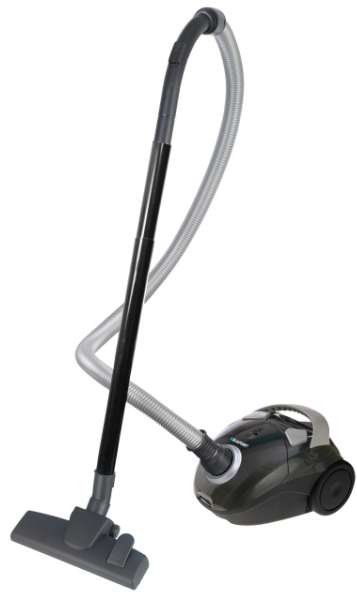

Blaupunkt VCB101 Vacuum cleaner

Safety Instructions

• Before using this device, read the instruction manual and follow the instructions inside.
• This device is for domestic use only. Do not use for any other purposes.
• It is necessary to check if the total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord’s power rating.
• Do not let the cord hang over the edge of the counter or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
•  Before maintenance work, always disconnect the unit from the power supply.
• When unplugging the power cord from the electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable, as it may cause damage to the plug or power cord.
• Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug, or the whole device into the water or any other liquids.
• Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sunlight or rain, etc Never use the product in humid conditions (like a bathroom or a camping house).
• The power cable should be periodically checked for damage.
• If the power cable is damaged, the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

Technical Data

• Power: 700W
• Power supply: 220-240V~50/60Hz
• Bags: Blaupunkt ACC042 or Swirl Y98 type

Description

1. Nozzles:
   • Multi-purpose brush nozzle
   • Crevice tool
   • Dust brush
2. Tube
3. Hose handle
   • Suction control on the hose handle
4. Hose
5. Full bag or airflow blockage indicator
6. Button:
   • cord reel
   • power switch
7. Air outlet grille
8. Hose connector
9. Bag compartment cover catch
10. Motor inlet filter
11. Removable microfibre bag, Reusable cloth bag

Prepration

Insert the hose connector into the vacuum cleaner inlet and lock it. Connect the hose handle with
The telescopic tube or nozzle. Put an appropriate nozzle on the telescopic tube. By grabbing the plug and unwinding the power cord. Pay attention to the yellow band on the cord, which signals the end of the cord. Connect the plug to a power socket. Turn on the vacuum cleaner with the switch button (6b).

Cleaning

Unplug the power cord from the wall socket. Disconnect the nozzle, tub, and hose. Be careful not to bend the hose excessively, as this may result in its deformation or damage.

Maintainance

Regularly clean the nozzle, tube, and hose of hair and other impurities. Wipe the body with a slightly damp cloth, then wipe until it is dry. If you used a disposable bag, remove and discard it. Replace the inlet air filter once per three bag replacements.

Included in the Blaupunkt ACC042 set. Failure to replace the inlet air filter can lead to a decrease in the suction power, and in extreme cases, to dust getting into the Blaupunkt VCB101 Vacuum cleaner motor and damage to the appliance. Place the dust bag on the holder following the instructions.
