CABASSE ALCYONE 2 In-Ceiling Speaker
Safety Instructions
- Instructions – Carefully read through all the safety and operating instructions before switching on any device for the first time.
- Cleaning – Always take off the power cord before cleaning the device. Do not use cleaning solvent, whether liquid or air spray. Using a soft, damp cloth is recommended.
- Accessories – To avoid incidents, only use accessories expressly recommended by Cabasse.
- Installation on a piece of furniture and stands – Do not place this device on an unsteady surface, i.e., a stand, tripod, table, shelf, etc. It may fall and cause serious injury to a nearby child or adult.
- Power cords – The power cords must be laid out in such a way that they cannot be walked on, pinched, or bent under other devices. Also, pay special attention to the matching of the plugs and the connection of the cord to the device.
- Lightning – For better protection against lightning or if the device must remain unused for long stretches of time, unplug the power cord and antenna jack. This minimizes potential damage due to lightning or line surges.
- Overloads – Avoid overloading the power plugs, extension cords, or power relays. This could result in fire or electric shocks.
- Checks – After any servicing of the device, ask the technician to perform appropriate testing to make sure that the device works safely.
- Exposure to high temperatures – The device should be kept away from heating sources, such as radiators, heaters, amplifiers, or any other similar item likely to make the operating temperature rise excessively.
- Plastic bags – Keep them away from children to prevent any risk of suffocation.
Unpacking
Open carton flaps; leave one by one all the components. If the speakers or the subwoofer appear damaged, do not use them. Repack everything in the original packing and contact your authorized Cabasse dealer immediately. We suggest that you retain the packing for future use.
Setting up

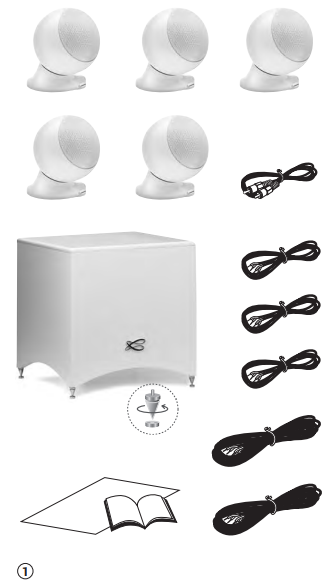

THE COMPONENTS OF YOUR SYSTEM
- 5 Alcyone 2 speakers, 5 sets for use on bookshelf, 5 wall
supports, and screws to fix the supports. - 1 Santorin 17 active subwoofer, 1 CINCH cable, 5 loudspeaker cables ( 3 x 6 m / 20 ft – 2 x 12 m / 40 ft), 4 spikes for the subwoofer.

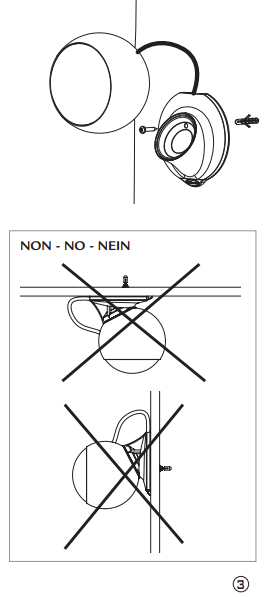

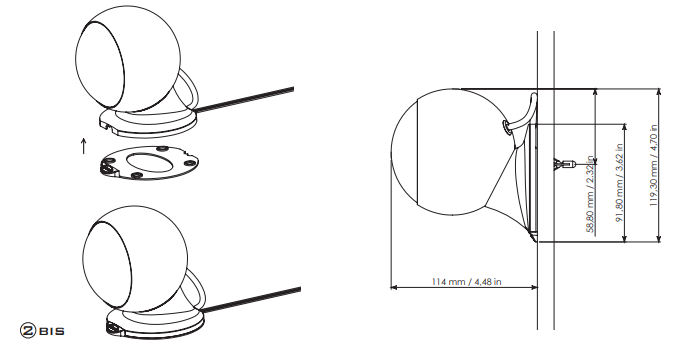

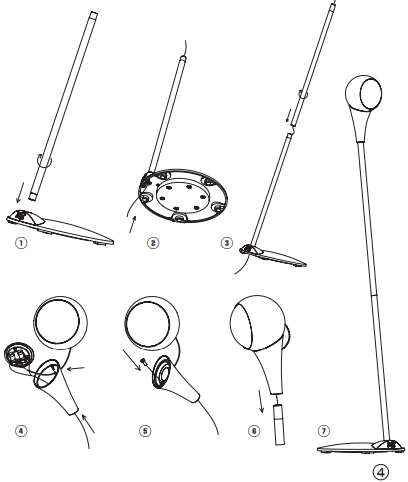

The Alcyone 2 speaker can be placed on a shelf 2, fixed on a wall 3, or fixed on the optional stand 4.

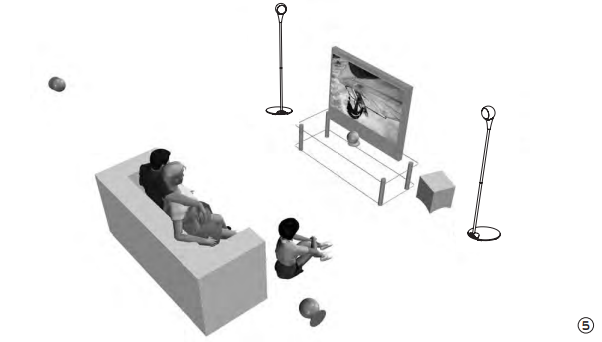

POSITIONNING
- Alcyone 2 speakers have all the same technical features; they can be used on any channel. All the speakers are magnetically shielded to prevent interference with the image of your television set; they can thus be placed near any screen.
- No solid object or piece of furniture should be placed between the speakers and the listener.
- Front left and right speakers must be directed towards the listening area and placed on either side of the screen with at least a distance of 7 ft and 16 ft (2 and 5 m) between the 2 speakers.
- The centre satellite should be placed as close as possible to the screen: on the top, below, or directly on your television set. Place the satellite at the vertical o the screen for perfect cohesion and precision between dialogues and the picture.
- Surround speakers should be placed against the side walls, at listening height or higher if possible, and slightly behind the listening area.
- The Alcyone 2 subwoofer should be placed in the front listening area, with the 4 spikes on. If the floor is fragile (wood, marble…), use the 4 cups delivered with the spikes.
To get the best result, it is always necessary to carry out tests according to the acoustics of the room. To prevent interference with the screen of your television set, place the subwoofer at least 2 ft (0.6m) from your television set.
Connections
Connect the LINE INPUT terminal of the subwoofer to the output SUBWOOFER/LFE of the AV amplifier using the CINCH cable. Check all the connections carried out on the speakers, the subwoofer, and the amplifier.
Subwoofer adjusting

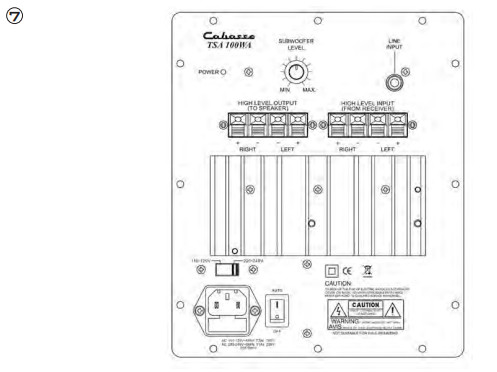

Power Management
Take care of positioning the sector switch 110V/220V in the right position according to your country. The switch ON/OFF (located on the back) of the subwoofer has 2 positions:
- AUTO: Automatic, the system is put automatically on ON
or OFF according to the presence of a signal coming from
the AV amplifier. Put the switch ON/OFF on AUTO or ON
position. - OFF
SUBWOOFER VOLUME ADJUSTMENT
The adjustment of the volume will depend upon room positioning, type of amplifiers… With Alcyone 2 SYSTEM, the average position of the LEVEL potentiometer is at a “2 o’clock” position. For an optimum adjustment of the volume, we advise you to carry out it starting from a stereo source (CD). Then use the TEST TONE of your AV amplifier to adjust the level of channel SUBWOOFER/LFE.

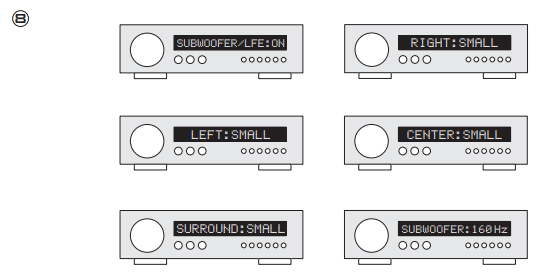

SETTING YOUR AV AMPLIFIER
The table below shows the specific adjustments to be entered
During the setup of the AV receiver :
Speakers AV amplifier adjusting
- FRONT LEFT SMALL
- FRONT RIGHT SMALL
- CENTER SMALL
- SURROUND LEFT SMALL
- SURROUND RIGHT SMALL
- SUBWOOFER/LFE ON / 160 Hz
After having selected the «ON» option for the use of the CABASSE ALCYONE 2 In-Ceiling Speaker subwoofer in the setup menu, select or enter 160 Hz as the upper crossover frequency for the subwoofer.
WEEE MARK Disposal of Wastes of Electrical & Electronic Equipment (Applicable in the European Union)
The recycling of materials will help to preserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
SANTORIN 17 POWER REQUIREMENT
- Voltage : 110-120V/220-240V~ 60/50Hz
- Power consumption: 200W
- Standby power consumption : 0.5W @ 220-240VAC — 0.5W @ 110-120VAC
- Power consumption when off : 0.02W @ 220-240VAC — 0.02W @ 110-120VAC
- Useable temperature range: +5°C to +35°C
- Storage temperature : -5°C to +40°C
- Useable humidity range: 40% to 70%
Cleaning the speakers
The cabinets of Alcyone 2 speakers may be cleaned CABASSE ALCYONE 2 In-Ceiling Speaker with a soft, damp cloth. Do not use any sprays near the system or allow liquids to spill into any openings. Also, do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
TROUBLESHOOTING
If you have a problem with your Alcyone 2 SYSTEM, turn off your sound source and try the solutions below. If you still have a problem, contact your Cabasse dealer to arrange for service.
Problems Solutions
The system does not function at all.
- Check the speaker connections.
- Turn the subwoofer on or AUTO.
- For digital sound, be sure a coaxial or optical cable connects the digital output of the DVD player with the digital input of your amplifier..
Not enough or too much bass
- Move the subwoofer closer to a wall or a corner to increase very low bass frequencies.
- Move it farther away from a wall or a corner to decrease very low bass frequencies.
- Adjust the LFE level control of your AV amplifier
No surround sound
- Check that the adjustments of your AV amplifier are correct.
Customer Support
- Website: https://www.cabasse.com/
- Ph: +6567380138
FAQs
What is the Cabasse Alcyone 2 in-ceiling speaker?
Ideal for home theatres, multi-room audio, and custom installations, the Alcyone 2 is a high-performance, coaxial in-ceiling loudspeaker that produces clear, immersive sound from a discrete ceiling installation.
What tools do I need to install Alcyone 2?
A screwdriver, a wire stripper, a plasterboard saw or hole cutter, and a drill, if required for mounting, are required.

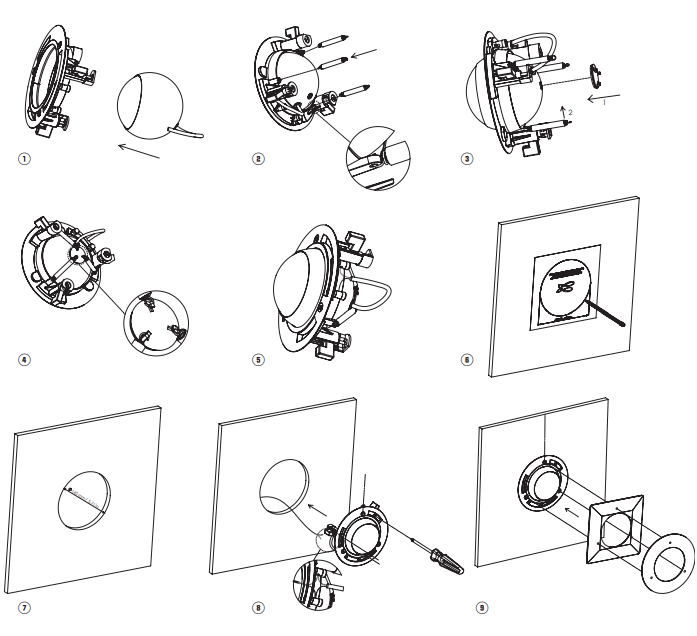

How do I determine the right ceiling cutout size?
For precise measurements, use the speaker’s template found in the instruction manual. The Alcyone 2’s cutout has a diameter of about 230 mm (9 inches).
Can the Alcyone 2 be installed in different ceiling types?
Indeed. It is compatible with suspended ceilings, plaster, and plasterboard. Be sure to adhere to the mounting guidelines that are particular to the type of ceiling you have.
How do I run speaker cables to the Alcyone 2 speakers?
For safety compliance, use speaker cables that are rated for in-wall use. Before cutting the mounting hole, run the cables through the ceiling space. Give yourself ample leeway to connect easily.
What frequency range does the Alcyone 2 cover?
It provides crisp mids, highs, and an appropriate bass response for ceiling-mounted speakers, with a frequency range of roughly 70 Hz to 20 kHz.
Is the Alcyone 2 suitable as a main speaker or a surround?
When combined with a quality subwoofer, it can be used as the main speaker in smaller spaces, although it is best suited as a surround or height speaker in home theatres or for multi-room audio.
