CABASSE EOLE 4 White Speaker System Instructions
Safety Instructions
- Instructions – Carefully read through all the safety and operating instructions before switching on any device for the first time.
- Cleaning – Always take off the power cord before cleaning the device. Do not use cleaning solvent, whether liquid or air spray. Using a soft, damp cloth is recommended.
- Accessories – To avoid incidents, only use accessories expressly recommended by Cabasse.
- Installation on a piece of furniture and stands – Do not place this device on an unsteady surface, i.e., a stand, tripod, table, shelf, etc. It may fall and cause serious injury to a nearby child or adult.
- Power cords – The power cords must be laid out in such a way that they cannot be walked on, pinched, or bent under other devices. Also, pay special attention to the matching of the plugs and the connection of the cord to the device.
- Lightning – For better protection against lightning or if the device must remain unused for long stretches of time, unplug the power cord and antenna jack. This minimizes potential damage due to lightning or line surges.
- Overloads – Avoid overloading the power plugs, extension cords, or power relays. This could result in fire or electric shocks.
- Checks – After any servicing of the device, ask the technician to perform appropriate testing to make sure that the device works safely.
- Exposure to high temperatures – The device should be kept away from heating sources, such as radiators, heaters, amplifiers, or any other similar item likely to make the operating temperature rise excessively.
- Plastic bags – Keep them away from children to prevent any risk of suffocation.
Setting

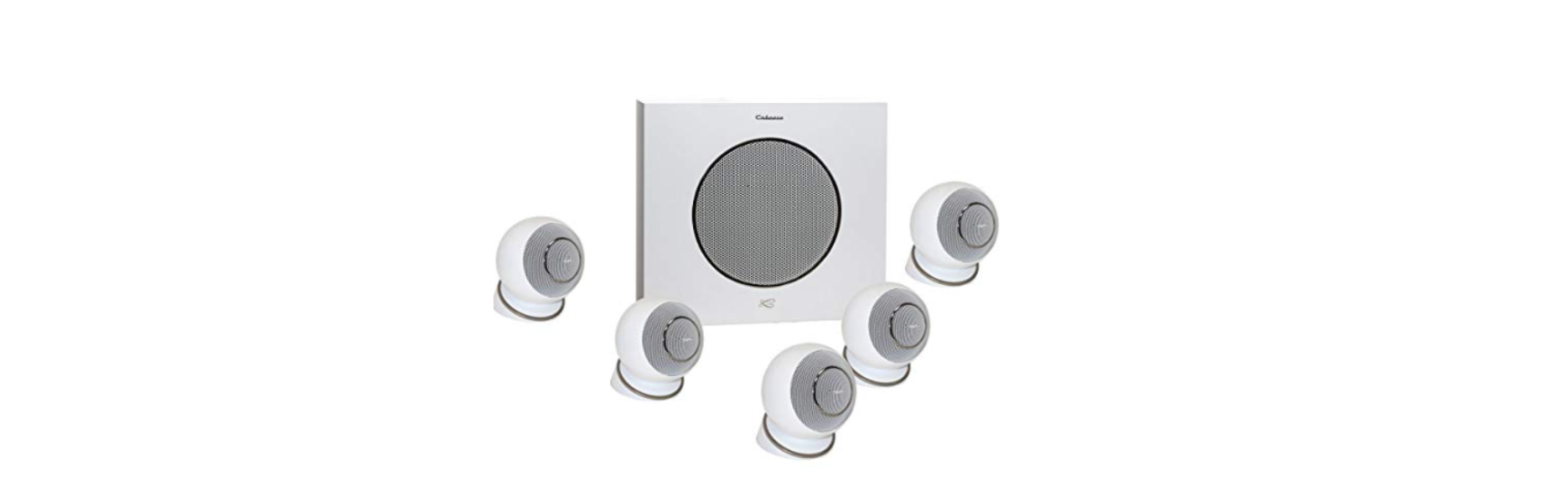

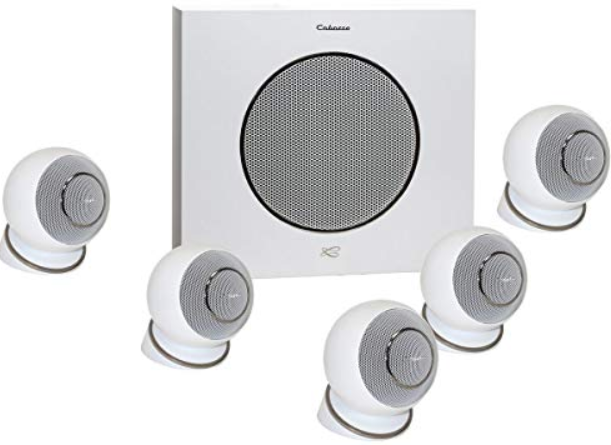

5 Eole 4 speakers with magnetic cups for use on a bookshelf or a wall. 1 active subwoofer Lipari 21, 1 CINCH cable, 5 loudspeaker cables (1 x 2 m, 2 x 3.5 m, 2 x 10 m). The Eole 4 speaker can be placed on a shelf (1a), fixed on a wall (1b), or fixed on a stand (3) available separately. An in-ceiling version is also available, as well as a kit for in-ceiling use.
Positioning
The subwoofer should be placed in the front listening area. To get the best result, it is always necessary to carry out tests according to the acoustics of the room. To prevent interference with the screen of your television set, place the subwoofer at least 2 ft (0.6m) of your television set.
Connections With Satellite
Turn the bottom plate anticlockwise to separate it from the base. The speaker wire connecting the spherical loudspeaker to its base should use the gate on the thick side of the base for use on a bookshelf (1a), the thin one when used on a wall (1b). For a bookshelf use, the loudspeaker cable between the terminals of the base and the loudspeaker outputs of
The amplifier should go out of the base from the thicker side. When the Eole 4 satellite is mounted on a wall, both options can be used. Have the speaker cable going through the mounting plate when the speaker wire is hidden in the wall (2a). Respect the setting in phase by connecting both pairs of cables to the binding post of the bottom plate.
System
Connect the LINE IN inputs of the subwoofer to the output SUBWOOFER/LFE of the AV amplifier using the CINCH cable. Check all the connections carried out on the speakers, the subwoofer, and the amplifier.
Subwoofer
Connect the subwoofer to the mains and switch the power button to «ON».
- CROSSOVER: adjust the potentiometer to 140 Hz (Eole 4 position)
- VOLUME: the adjustment of the volume will depend upon room positioning, type of amplifiers… With
- Eole 4 SYSTEM, the average position is at an “11 AM” position.
For an optimum adjustment of the volume, we advise you to carry out it starting from a stereo source (CD). Then use the TEST TONE of your AV amplifier to adjust the level of channel SUBWOOFER/LFE. PHAS: Usually, it is necessary to position the potentiometer at 0 °; however, 2 positions can be used: 0° and 180 °.
- Adjust the potentiometer to 0° when the subwoofer and CABASSE EOLE 4 White Speaker System Instructions the front speakers are positioned at the same distance from the listening area.
SETTING YOUR AV AMPLIFIER 8
The table below shows the specific adjustments to be entered during the setup of the AV receiver :
Speakers AV amplifier adjusting
FRONT LEFT FRONT RIGHT CENTER SURROUND LEFT SURROUND RIGHT SUBWOOFER/LFE SMALL SMALL SMALL SMALL SMALL SMALL ON / 140 Hz After having selected the «ON» option for the use of the subwoofer in the setup menu, select or enter 140 Hz as the upper crossover frequency for the subwoofer.
CLEANING THE SPEAKERS
Do not use any sprays near the system or allow li- liquids to spill into any openings. Also, do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
AFTER-SALE SERVICE
Cabasse retailers’ network is at your disposal to ensure the after-sales service of your material. To get the list of Cabasse retailers, contact us or consult our website www.cabasse.com.
We receive letters every day from customers expressing the ever-growing satisfaction and musical emotion they have been getting with our speakers over the years. These CABASSE EOLE 4 White Speaker System Instructions letters are our first motivation.
SUBWOOFER POWER
- Voltage : 100-240V~ 60/50Hz
- Rated power consumption: 150W
- Standby power consumption: 0.4W @ 100-240VAC
- Power consumption when off: 0W @ 100-240VAC
- Useable temperature range: +5°C to +35°C
- Storage temperature : -5°C to +40°C
- Useable humidity range: 40% to 70%
TROUBLESHOOTING
If you have a problem with your Eole 4 SYSTEM, turn off your sound source and try the solutions below. If you still have a problem, contact your Cabasse dealer to arrange for service.
Problems Solutions
- The system does not function at all
- Check the speaker connections.
- Turn the subwoofer on or AUTO.
- For digital sound, be sure a coaxial or optical cable connects the digital output of the DVD player with the digital input of your amplifier..
- Not enough or too much bass
- Move the subwoofer closer to a wall or a corner to increase the very low bass frequencies.
- Move it farther away from a wall or a corner to decrease very low bass frequencies.
- Adjust the LFE No surround sound • Check that the adjustments of your AV amplifier are correct
Customer Support
- Website: https://www.cabasse.com/
- Ph: +6567380138
FAQs
What is the Cabasse EOLE 4 system?
With five spherical satellite speakers and a robust subwoofer, the Cabasse EOLE 4 is a small 5.1-channel speaker system.
Can I wall-mount the satellite speakers?
Indeed. With the swivel ball-joint wall mounts that the Eole 4 satellites come with, you may tilt and rotate them for the best directionality.
Can the satellites be mounted on the ceiling?
Of course. They are appropriate for Dolby Atmos height channels or custom configurations because the mounting hardware that comes with the package supports both wall and ceiling installations.
Do I need an AV receiver for this system?
Indeed. Except the subwoofer, the EOLE 4 is a passive speaker system; hence, an AV receiver with speaker terminals and 5.1 surround output is required.
How do I connect the subwoofer?
An RCA subwoofer cable is used to connect the active (powered) Lipari 21 subwoofer to the LFE (subwoofer out) port on your AV receiver.
What’s the recommended speaker wire gauge?
Depending on how far your receiver is from the satellites, use speaker wire that is 16 AWG or 14 AWG.
How big of a room can the EOLE 4 system handle?
Small to medium-sized spaces (up to about 25–30 m² or 270–320 ft²) are ideal for it. Upgrade to a more potent Cabasse arrangement or add additional speakers for larger spaces.
Can I use the EOLE 4 for music listening as well?
Indeed. Because of Cabasse’s balanced coaxial driver design, the system works incredibly well with stereo music even though it is optimised for surround sound.
