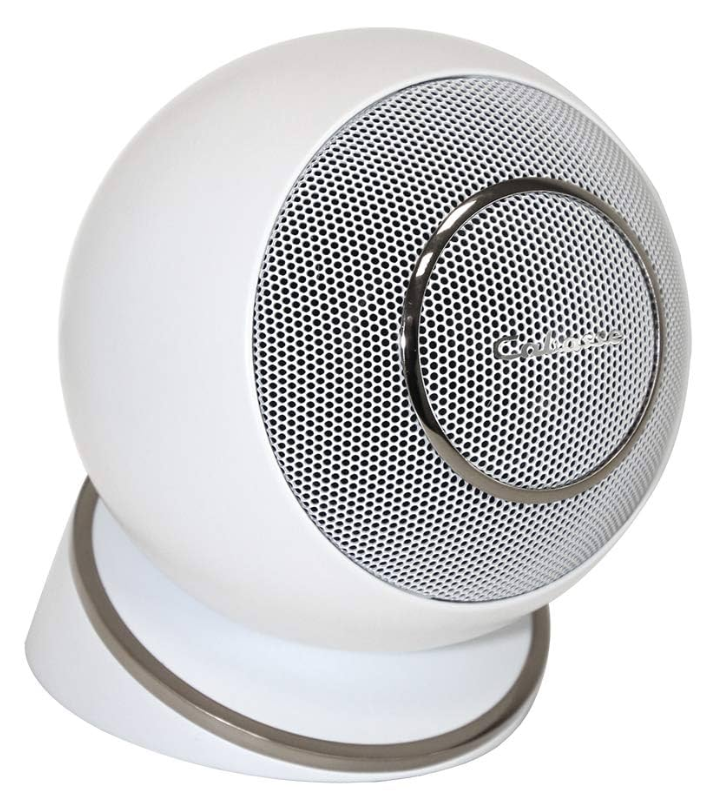

CABASSE iO3 lifestyle HiFi Loud Speaker
Safety Instructions
- Instructions – Carefully read through all the safety and operating instructions before switching on any device for the first time.
- Cleaning – Always take off the power cord before cleaning the device. Do not use cleaning solvent, whether liquid or air spray. Using a soft, damp cloth is recommended.
- Accessories – To avoid incidents, only use accessories expressly recommended by Cabasse.
- Installation on a piece of furniture and stands – Do not place this device on an unsteady surface, i.e., a stand, tripod, table, shelf, etc. It may fall and cause serious injury to a nearby child or adult.
- Power cords – The power cords must be laid out in such a way that they cannot be walked on, pinched, or bent under other devices. Also, pay special attention to the matching of the plugs and the connection of the cord to the device.
- Lightning – For better protection against lightning or if the device must remain unused for long stretches of time, unplug the power cord and antenna jack. This minimizes potential damage due to lightning or line surges.
- Overloads – Avoid overloading the power plugs, extension cords, or power relays. This could result in fire or electric shocks.
- Checks – After any servicing of the device, ask the technician to perform appropriate testing to make sure that the device works safely.
- Exposure to high temperatures – The device should be kept away from heating sources, such as radiators, heaters, amplifiers, or any other similar item likely to make the operating temperature rise excessively.
- Plastic bags – Keep them away from children to prevent any risk of suffocation.
ACTIVE SUBWOOFER SANTORIN 25
- Voltage 115 / 230 V AC-50 / 60 Hz
- Maximum power consumption 165W
- Standby power consumtion 0.49W @ 230VAC 0.5W @ 115VAC
- Power consumption when off 0.04W @ 230VAC 0.04W @ 115VAC
- Useable temperature range +5°C to +35°C
- Storage temperature –5°C to +40°C
- Useable humidity range 40% to 70%
iO3 SYSTEM positioning
Positioning of the speakers: if possible, try to match with the 3drawing, with the Santorin 25 subwoofer in the front area facing the listening spot. Its position against a wall reinforces the extremely low register and limits the reflections between 80 and 200 Hz. However, to obtain the best result, it is always necessary to carry out tests according to the acoustics of the room.
CONNECTIONS
It is imperative to respect the correct phasing when connecting: + to + (red) and – to – (black). To connect the speaker cable to the terminals of the iO3 speaker, pull out the bottom plate from the base.
Configuration 5.1
- 5 iO3 speakers + 1 Santorin 25 subwoofer 5or
- 2 main speakers + 3 iO3 speakers + 1 Santorin 25
subwoofer
Connect each speaker output of the 5.1 amplifier directly to the matching iO3 speaker (front right, front left, centre, etc.). Connect the subwoofer CINCH RCA output of the amplifier to one CINCH RCA LINE IN post of the subwoofer.
Then adjust the setup menu of your audio-video amplifier:
For 5 iO3 speakers:
- FRONT SMALL
- CENTER SMALL
- SURROUND SMALL
- SUBWOOFER STEREO YES
- SUBWOOFER / LFE YES
- SUBWOOFER FREQUENCY 125 Hz (or closest possible frequency)
For 3 iO3 speakers and 2 large bandwidth front speakers:
- FRONT LARGE
- CENTER SMALL
- SURROUND SMALL
- SUBWOOFER STEREO NO
- SUBWOOFER / LFE YES
- SUBWOOFER FREQUENCY 125 Hz (or closest possible frequency)
SANTORIN 25 SUBWOOFER ADJUSTMENTS
CROSSOVER FREQUENCY
In stereo configuration 4, position the potentiometer at 2.00 o’clock, equivalent to 125 Hz. In the 5.1 configuration, adjust the potentiometer on the 180 Hz position to avoid overlapping with the 125 Hz filter of the audio-video amplifier. b) LEVEL For both 2.1 and 5.1 configurations, adjust the LEVEL of the subwoofer with various tracks in stereo mode (CD). To adjust the level of the low-frequency effect channel, do not modify the sound level of the Santorin 25 subwoofer, but go into the setup menu of your 5.1 audio-video amplifier and adjust the SUBWOOFER/ LFE channel. c) PHASE If inverting the PHASE raises the bass level, keep this setting and adjust the LEVEL again.

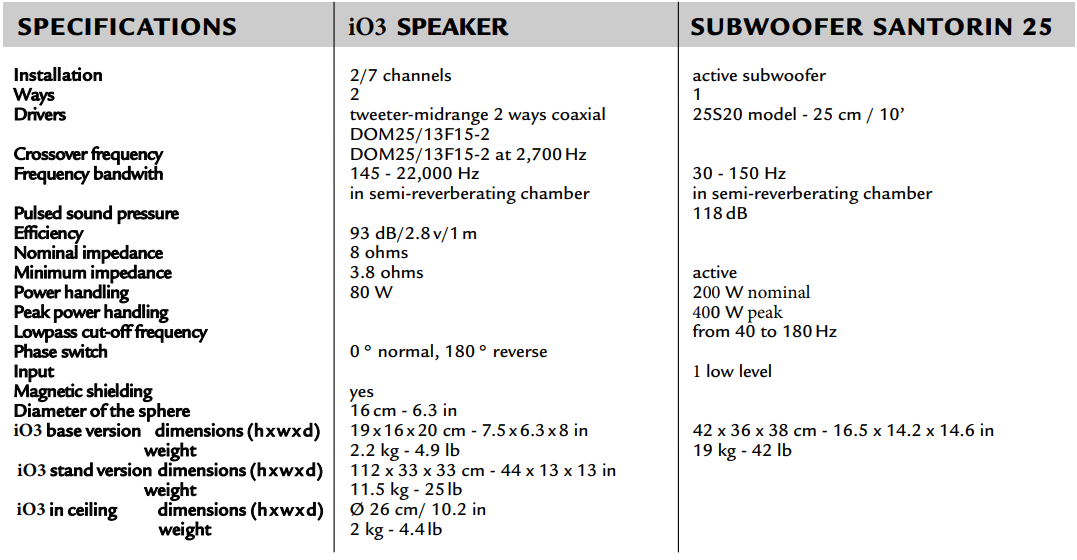

TECHNICAL DATA
Because of technical improvements already underway in our constant search for optimum quality, Cabasse reserves the right to modify all the models presented in CABASSE iO3 lifestyle HiFi Loud Speaker specification sheets, advertising materials, and manuals without prior notice. Our website www.cabasse.com will give you the specific adjustments we recommend for the use of our active subwoofers.
WEEE MARK
Disposal of Wastes of Electrical & Electronic Equipment (Applicable in the European Union)
This symbol on the product, consisting of the crossed-out wheeled bin, indicates that this product shall not be treated as household waste. Instead, it shall be handed CABASSE iO3 lifestyle HiFi Loud Speaker over to the applicable collection point for the disposal of electrical and electronic equipment at the end of life.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The recycling of materials will help to preserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Cabasse SA – 210, rue René Descartes – BP 10 – 29280 Plouzané Tel +33 (0)2 98 05 88 88 – Fax +33 (0)2 98 05 88 99  www.cabasse.com
WARRANTY
We thank you for registering the Cabasse warranty within 60 days after their date of purchase. You can either send us the enclosed warranty card fully completed or register online at  www.cabasse.com. On our website, you will also find information on the Cabasse manufacturer’s warranty.
Thanks to the above information, your system is now nicely set up, and you will enjoy your speaker system for many years. We receive letters every day from customers expressing the ever-growing satisfaction and musical emotion they have been getting with our speakers over the years. These letters are our first motivation.
