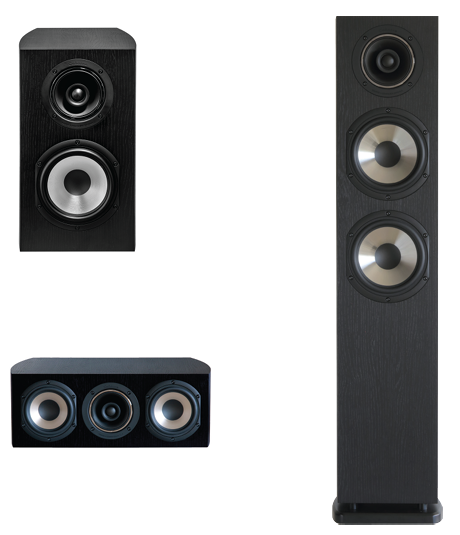

CABASSE MC 170 HiFi Bluetooth Speakers Instructions
Safety Instructions
- Installation on a piece of furniture and stands – Do not place this device on an unsteady surface, i.e., a stand, tri-pod, table, shelf, etc. It may fall and cause serious injury to a nearby child or adult.
- Plastic bags – Keep them away from children to prevent any risk of suffocation.
- Power – The device shall only be connected to a source of power compliant with the one described in this manual or on relevant printed labels on the product. If you are not sure of the type of power available, please contact your reseller or the local power company.
- Power cords – The power cords must be laid out in such a way that they cannot be walked on, pinched, or bent under other devices. Also, pay special attention to the matching of the plugs and the connection of the cord to the device.
- Lightning – For better protection against lightning or if the device must remain unused for long stretches of time, unplug the power cord and antenna jack. This minimizes potential damage due to lightning or line surges.
- Overloads – Avoid overloading the power plugs, extension cords, or power relays. This could result in fire or electric shocks.
- Foreign bodies and liquids – Avoid letting foreign materials or liquids enter the device . Never place any item containing liquid, such as a flower vase, on or near the device. They could cause fire or electric shocks. Never spill any liquid on the device. Never place any naked flame sources, such as lighted candles, on or near the device.
- Maintenance – Users must never attempt to maintain the device on their own, except for those service operations described in this manual.
- Troubleshooting – You must unplug your device from the power supply and have it checked by a qualified technician if :
- Foreign bodies or liquids penetrate the device.
- The device does not seem to work correctly under normal operating conditions. Only operate the controls described in this manual. Any other operation could damage the device and require an on-site visit from a qualified technician
CONNECTION

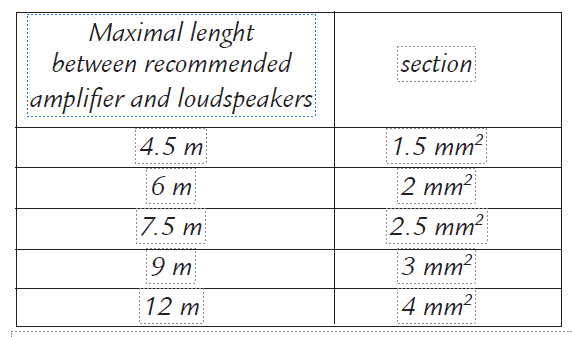

Cable section
To get the full sonic potential of Cabasse loudspeakers and avoid power losses, the cables connecting the speakers to the power amplifier must have the lowest possible resistance. To help you in choosing the minimum correct cable gauge for the low diagram.\

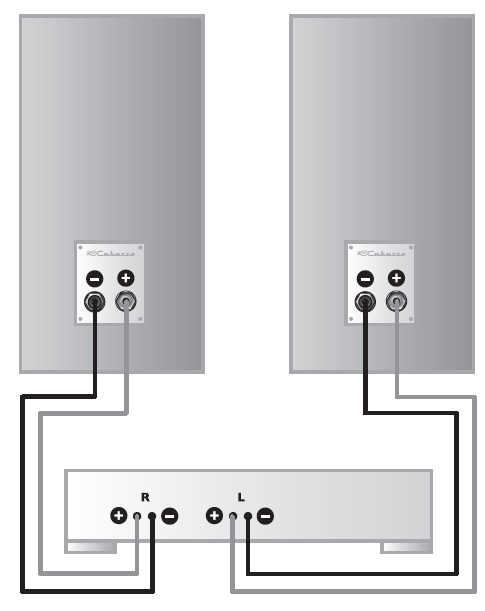

Phase
When properly connected, the cones of the drivers of both loudspeakers will move in the same direction when driven by identical speakers will move in the same signals. If the cones move in opposite directions, the resultant out-of-phase signals will create perceptible power loss, particularly in the low frequencies.
The stereophonic message will also be degraded. Amplifier and speaker manufacturers typically indicate connection polarity in one of two ways: red and black or CABASSE MC 170 HiFi Bluetooth Speakers Instructions plus and minus. In either case, always connect red or plus to red or plus and black or minus to black or minus. Connections should be identical for both channels.
MAINTENANCE
These hi-tech finishes do not require any specific care. Use a wet cotton waste for cleaning, or any cleaning device for wood or plastic.

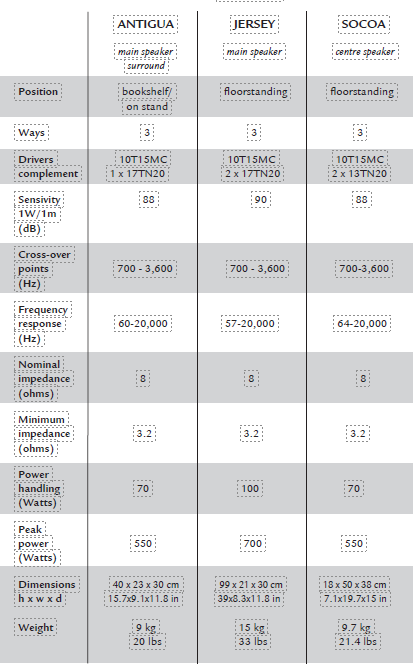

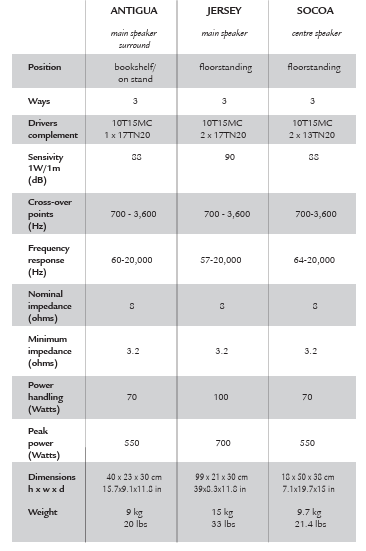

SPECIFICATIONS & TECHNICAL DATA
Customer Support
- Website: https://www.cabasse.com/
- Ph: +6567380138
FAQs
What is the Cabasse MC 170 speaker system?
Some variants can stream wirelessly thanks to Bluetooth connectivity.
Are these speakers active or passive?
>>>>>Even though the Cabasse MC 170 speakers accept Bluetooth through external modules or linked amps, they are essentially passive speakers that need an external amplifier or AV receiver to operate.
What is the recommended amplifier power for these speakers?
Depending on the model, an amplifier’s suggested output ranges from 40 to 120 watts RMS per channel. For exact specifications, always refer to the handbook for your particular model.
Do the MC 170 speakers have built-in Bluetooth?
The majority of MC 170 speakers lack Bluetooth. However, you can stream music wirelessly if you’re using an external Bluetooth receiver or a Cabasse amplifier with Bluetooth.
What type of sound can I expect from the MC 170 series?
The MC 170 series offers a natural, well-balanced sound profile with crisp mids, rich highs, and a tight bass.
Can I remove the speaker grilles?
Indeed. Because the grilles are usually detachable, the drivers can be accessed for cleaning or aesthetic reasons. To prevent harming the fabric or frame, handle them carefully.
