    Safety Instructions

    • Instructions – Carefully read through all the safety and operating instructions before switching on any device for the first time.
    • Cleaning – Always take off the power cord before cleaning the device. Do not use cleaning solvent, whether liquid or air spray. Using a soft, damp cloth is recommended.
    • Accessories – To avoid incidents, only use accessories expressly recommended by Cabasse.
    • Installation on a piece of furniture and stands – Do not place this device on an unsteady surface, i.e., a stand, tripod, table, shelf, etc. It may fall and cause serious injury to a nearby child or adult.
    • Power cords – The power cords must be laid out in such a way that they cannot be walked on, pinched, or bent under other devices. Also, pay special attention to the matching of the plugs and the connection of the cord to the device.
    • Lightning – For better protection against lightning or if the device must remain unused for long stretches of time, unplug the power cord and antenna jack. This minimizes potential damage due to lightning or line surges.
    • Overloads – Avoid overloading the power plugs, extension cords, or power relays. This could result in fire or electric shocks.
    • Checks – After any servicing of the device, ask the technician to perform appropriate testing to make sure that the device works safely.
    • Exposure to high temperatures – The device should be kept away from heating sources, such as radiators, heaters, amplifiers, or any other similar item likely to make the operating temperature rise excessively.
    • Plastic bags – Keep them away from children to prevent any risk of suffocation.

    Unpacking

    Open carton flaps; leave one by one all the components. If the speakers or the subwoofer appear damaged, do not use them. Repack everything in the original packing and contact your authorized Cabasse dealer immediately. We suggest that you retain the packing for future use.

    Installation

    The components of your system:

    •  2, 3, 5, 6, or 7 Riga 2
    •  1 Cabasse active subwoofer

    Riga 2 on the wall version

    • The wall bracket of Riga on the wall has been designed to allow a convenient positioning of the BC17 driver in many directions/- 43° in any direction, and to give the possibility to hide the speaker cable in the wall with no apparent bolts or screws 1.

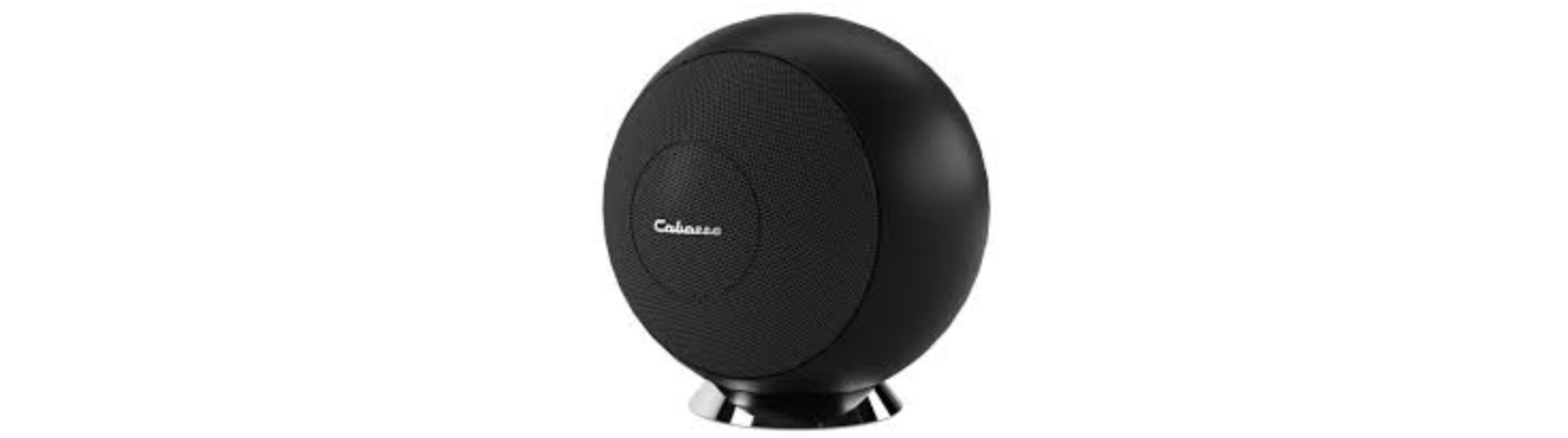

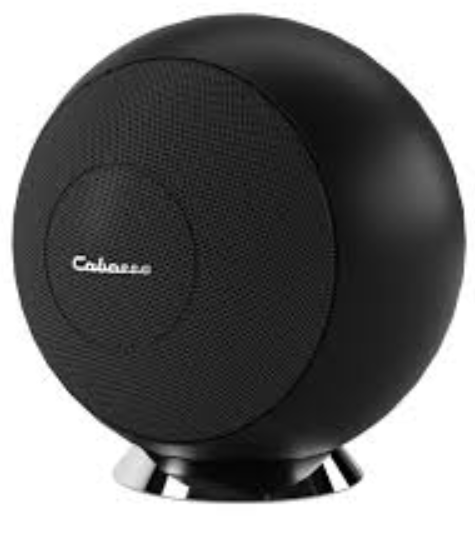

    • Please follow step by step the step-by-step instructions as shown in 2. Riga 2 on base version Riga on base is delivered with a little cradle; place the sphere Riga on this cradle. This system enables you to put Riga on a bookshelf.

    Floor-standing Riga 2

    • The stand version is supplied with adjustable spikes for perfect stability, even if the floor is not horizontal.

    Positioning of Riga 2

    • Positioning of the speakers: if possible, try to match the 3 drawings with the Cabasse subwoofer in the front area facing the listening spot. Its position against a wall reinforces the extremely low register and limits the reflections between 80 and 200 Hz. However, to obtain the best result, it is always necessary to carry out tests according to the acoustics of the room.

    CONNECTIONS

    • It is imperative to respect the correct phasing when connecting to + (red) and – to – (black).

    Configuration

    Riga 2 + 1 Cabasse subwoofer

    • Connect with speaker cables the amplifier outputs CABASSE Riga 2 Wall Satellite Speaker Instructions to the terminals HIGH LEVEL INPUT L (left) and HIGH LEVEL INPUT R (right) of the Cabasse subwoofer, and connect the outputs HIGH LEVEL OUTPUT L (left) and HIGH LEVEL OUTPUT

    R (right) of the Cabasse subwoofer to the Riga 2 inputs 5.

    5 Riga 2 + 1 Cabasse subwoofer or

    2 main speakers + 3 Riga + 1 Cabasse subwoofer

    When the processor of your audio video amplifier includes a 2.1 set-up (subwoofer for stereo reproduction), connect each speaker output of the 5.1 amplifier directly to the matching Riga (front right, front left, centre, surround…). Connect the sub-woofer CINCH RCA output of the amplifier to one of the CIN-CH RCA LINE IN terminals of the Cabasse subwoofer 7. Then adjust the setup menu of your audio-video amplifier:

    5 Riga 2 + 1 Cabasse subwooferCABASSE-Riga-2-Wall-Satellite-Speaker-Instruction-fg 1

    2 main speakers + 3 Riga 2 + 1 Cabasse subwoofer

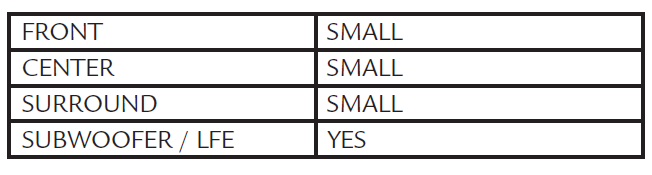

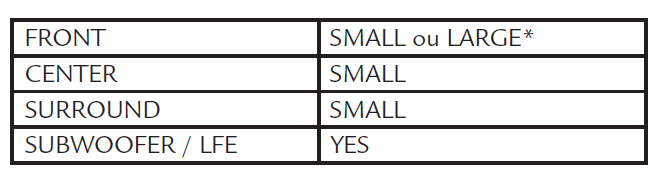

    *Adjustment in SMALL or LARGE, according to their ability to reproduce deep low frequencies.
    Some audio-video amplifiers require this information:

    If your audio-video has an adjustable crossover frequency, CABASSE Riga 2 Wall Satellite Speaker Instructions the adjustment will be 100 Hz.

    ADJUSTMENTS OF THE SANTORIN 30i AND SANTORIN 30 SUBWOOFERS

    2 different models of amplifiers fit these subwoofers. The connections are identical, but the settings are different. Please use the owner’s manual of your subwoofer for phase and delay adjustments.

    SANTORIN 30i

    The knobs of the potentiometers to be adjusted are CABASSE Riga 2 Wall Satellite Speaker Instructions placed on the amplifier plate at the back of the Santorin 30i.

    Crossover frequency

    – 2.1 configuration: 100 Hz
    – 5.1 configuration and above: turn the “cross-over frequency” knob of the subwoofer up to 200 Hz and select 100 Hz as low-pass frequency for the LFE channel in the receiver set-up menu.

    Level

    The adjustment of the LEVEL will depend upon room positioning, type of amplifier, etc. With Riga and Santorin 30i, this is the average position of The LEVEL control: THOR IILARGO. For an optimum adjustment of this level, we advise you to carry it out starting from a stereo source (CD).

    To adjust the level of the low-frequency effect channel (LFE), do not modify the sound level of the Cabasse subwoofer, but go into the setup menu of your audio-video amplifier 5.1 and adjust the SUBWOOFERLFE channel. SANTORIN 30 Use the front keyboard of the subwoofer for the setup process

    Crossover frequency

    – 2.1 configuration: select 80 Hz in the “LOWPASS FILTER” menu.
    – 5.1 configuration and above: enter 200 Hz in the “LOWPASS FILTER” menu and select 100 Hz as low-pass frequency for the LFE channel in the receiver’s set-up menu.

    Maintainance

    The Riga cabinets are covered with a natural wood veneer protected by 4 coats of varnish. This hi-tech veneer does not require specific care. Use a wet cotton waste for cleaning the veneer, the painted parts, nd the granite base.

    Specifications

    • Number of ways Driver
    • Frequency bandwidth Efficiency
    • Nominal impedance Minimum impedance Power handling Peak power handling
    • Riga 2 finish dimensions, we, ht  Riga 2 on wall finish, Riga 2 on base finish dimensions, weight

    Warranty

    We thank you for registering the Cabasse warranty within 60 days after their date of purchase. You can either send us the enclosed warranty card fully completed or register online at www.cabasse.com. On our website, you will also find information on the Cabasse manufacturer’s warranty.

    Weee Mark

    Disposal of Wastes of Electrical & Electronic Equipment (Applicable in the European Union). This symbol on the product, consisting of the crossed-out wheeled bin, indicates that this product shall not be treated as household waste. Instead,
