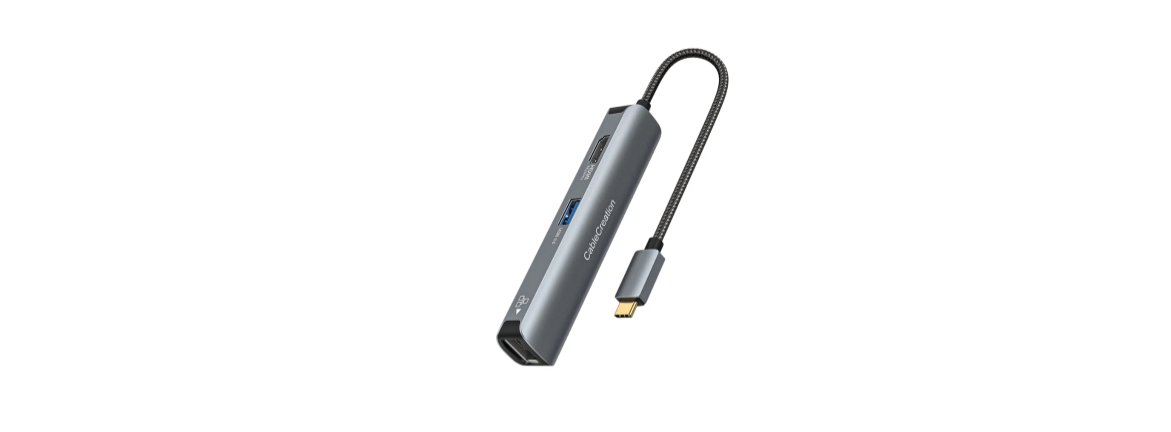

CableCreation 5-in-1 USB-C Hub Multiport Adapter
Introduction

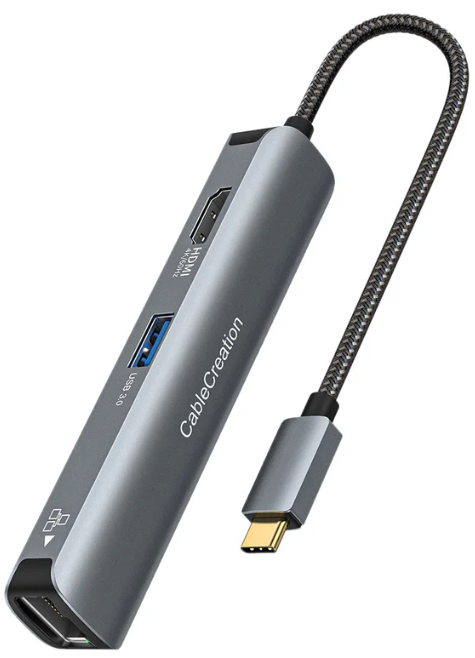

This Type-C docking offers an integrated solution for power, data, and video. It allows you to connect a Type-C host PC to VGA, HDMI, Mini DisplayPort displays for video transmission, to USB-A devices for data transmission. It also helps the host PC to get access to Ethernet through the RJ45 port. Besides, the SD/MMC and Micro SD card slot helps to read the information of the external memory in the host PC, and the USB-C female port can charge the host computer.
Features
- Support USB-C input
- Support HDMI Female, Mini DisplayPort Female, VGA Female, USB-C Female,
- USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro SD Card, USB-C interface
- Support HDMI resolution up to 4kx2k@30Hz
- Support Mini DisplayPort resolution up to 4kx2k@30Hz
- Support VGA resolution up to 1920×1200@60Hz
- The total output of the 3 USB-A is 10W(5V@2A), 1 port supports BC 1.2, with max 7.5W(5V@1.5A), the other two ports share max 5W (5V@1A)
- Support 10/100/1000Mbps bandwidth
- The stereo port supports both a microphone and a headphone
- USB-C female charging port for MacBook or Google’s new Chromebook Pixel and other USB-C supported devices.
- Multiple USB-C interfaces support plug and play, hot swap
- Support SD/SDHC/SDXC
- Support Secure Digital v3.0 UHS-I (Writing speed max 70Mbps, Reading speed max 90Mbps)
- Support the MultiMediaCard (MMC) specification
- Support Micro SD/SDHC/SDXC (up to 128 GB)
Package Content
Before attempting to use this unit, please check the CableCreation 5-in-1 USB-C Hub Multiport Adapter packaging and make sure the following items are contained in the shipping carton:
- Main unit x1
Opertaion
- Connect the USB-C male port of this product to the MacBook
- Connect the three USB 3.0 ports to three USB devices
- Connect the Mini DisplayPort port of the Docking Station to with Mini DisplayPort port with one Mini DisplayPort cable
- Connect the HDMI port to the HD display with one HDMI Cable
- Connect the VGA port to the HD display with one VGA Cable
- Connect the Gigabit Ethernet port of this product to the Ethernet Router with an Ethernet cable
- Connect the Stereo port to the earphones
- Insert Micro SD and SD/MMC cards into the card reader ports
- Connect the Type C charging port, which can charge the MacBook and support this adapter to work simultaneously
Specifications
| Input/Output Connector | |
| Input | USB-C Male x1 |
| Output | HDMI Female x1 Mini DP Female x1(CD0443,CD0444 do not have this port) VGA Female x1 USB-C Female x1 USB 3.0 Female x3 RJ45 X1 Stereo x1 SD card slot x1 Micro SD card slot x1USB-C Female x1 for charging |
| Warranty | |
| Limited Warranty | 1 Year |
| Environmental | |
| Operating Temperature | 0℃ to +45℃ |
| Operating Humidity | 10% to 90 % RH (no condensation) |
| Storage Temperature | -10℃ to +70℃ |
| Storage Humidity | 10% to 90 % RH (no condensation) |
| Power Supply | |
| USB-C PD Charging Port | 60W(20V/3A) |
| USB-A Port X3 | Total output: 10W (5V@2A)
One port supports a max of 7.5W (5V@1.5A) The other two ports share a max of 5W(5V@1A)
|
| Regulatory Approvals | |
| Certifications | FCC, CE |
| Accessory Adapter | |
| User Manual | English Version |
Troubleshooting
| Troubleshoot | Suggested Solutions |
| There is no video on the HDMI port | 1. Math table connection between your hub and your laptops.
2. Swap a quality HDMI 1.4 or 2.0 cable 3, Update BIOS and Graphics driver( Windows) 4, Update macOS to the latest version(macOS) 5, Connect the White Type-C female port, do not connect the orange Type-C port (Yoga 910) 6, Connect the hub to the Thunderbolt 3 port (You can see a Thunderbolt icon) Do not connect it to the USB 3.1 port(Lenovo Yoga 720) |
| There is no video on the VGA port | ., Unplug the HDMI port
2. Make the screws tighten 3. Choose a VGA 3+9 cable |
| VGA and HDMI do not work at the
Same time |
1. You could not connect VGA and HDMI at the same time.
2,.If you really want to use HDMI and VGA at the same time. 2.1 Choose a Mini DisplayPort to VGA adapter Cable, lower the resolution 1to 080P, 2.2 Then connect the HDMI monitor |
| HDMI and Mini DP could not show independently | 1, HDMI and Mini DP would show the same Content on macOS at 1080P. |
| 2, HDMI and Mini DP can show independently on Windows 10. | |
| Mini DP and VGA
could not show independently |
1, Mini DP and VGA would show the same Content on macOS at 1080P.
2, Mini DP and VGA can show independently on Windows 10. |
Customer Support
- Website: https://www.cablecreation.com/
-
Customers help: brandservice@cablecreation.com
FAQs
What is the CableCreation 5-in-1 USB-C Hub?
A small, plug-and-play multiport adaptor, the CableCreation 5-in-1 USB-C Hub converts a single USB-C port into several necessary connectors, making it perfect for USB-C laptops, tablets, and smartphones.
Can I use all five ports at the same time?
Yes, as long as your host device supports it, the hub can be used to use all of its ports at once, including those for data transfer and video output.
Can I use it with my smartphone or tablet?
Yes, the hub will function for video, file transmission, and accessory use if your phone or tablet has USB-C video output (such as the Samsung DeX or iPad Pro).
Can I use the hub to extend displays on macOS?
By default, macOS allows display mirroring. Unless you’re using an M1 Pro, M1 Max, M2, or later processor that supports extended displays, you might need a third-party app to extend your desktop (have distinct content on each screen).
What’s the data transfer speed of the USB-A ports?
Fast file transfers and attaching peripherals like keyboards, mice, and flash drives are made possible by the USB 3.0 (USB 3.1 Gen 1) connectors, which have a maximum speed of 5 Gbps.
Can I use SD and TF card slots at the same time?
The ability to use the SD and microSD (TF) card readers simultaneously makes this hub ideal for content creators and photographers.
Does this hub support USB-C power delivery (PD)?
PD charging is not a feature of every 5-in-1 hub. Examine your model. You can use USB-C pass-through to charge your device if PD is enabled (up to 60W or 100W, model depending).
