CableCreation CD0787 6-in-1 USB C Hub Instruction Manual

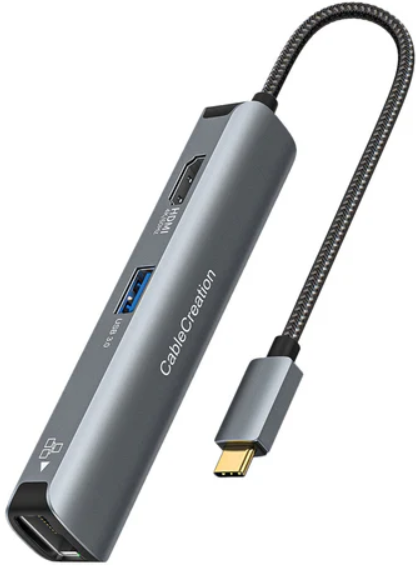

CableCreation CD0787 6-in-1 USB C Hub

Introduction

This is a Type-C 6-in-1 hub with HDMI, 2 USB-A, RJ45, Type-C data, and Type-C PD charging female ports, providing an ideal solution for extending the port of a Type-C or Thunderbolt 3 host (PC/Laptop/Mobile phone, etc), especially for those hosts with a single Type-C port. This hub adopts DP1.4 Alt mode supported IC, enabling output of HDMI video with max 4k/60Hz and meanwhile transfer USB 3.1 data with max 5Gbps. 2 USB-A and Type-C data ports allow you to connect 3USB devices simultaneously. RJ45 ports allow the host to get access to Gigabit Ethernet. Besides, the Type-C female supports PD3.0withmax 100W PD Charging. It can work on all Type-C and ThunderboltTM3 hosts that support DP Alt mode(including DP1.2 and DP1.4 Alt mode).

Features

• Support DP1.4 Alt mode
• Support HDMI max 4k/60Hz
• Support High Dynamic Range(HDR)
• Support HDCP2.3, HDCP2.2 and HDCP1.4
• Max 5Gbps data transmission
• Max 1.5A downstream charging
• Support Gigabit Ethernet,10M/100M/1000M
• RJ45 supports working with Nintendo Switch
• Support max 100W PD charging, max 85W PD charging for PC

Package Content

Before attempting to use this unit, please check the package and make sure the following items are contained.

• Main unit x1
• User Manual x1

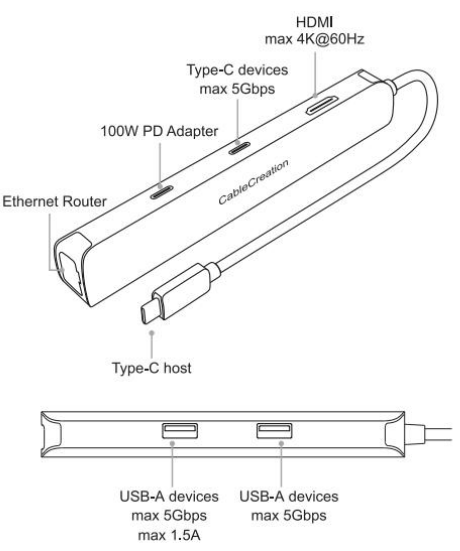

Connection Diagram

1. Two USB-C ports, one is for charging only, and the other is for data only(closest to the HDMI port).USB-C data ports do not support media display or charging.
2. 4K@60Hz is only available for laptops with DisplayPort 1.4 and 8K enabled. For 4K@60Hz resolution, please make sure your device supports DP 1.4Alt Mode. To do this, please consult your device’s user manual, contact the seller, or check the manufacturer’s website.
3. We recommend using a 100W PD (Power Delivery) charger: 85W for charging the connected laptop and 15W for powering the hub. (Tips: The USB-C PD port, without data function)
4. The hub may become hot while working. This is normal for products of this kind. In the condition that the ambient temperature is 77°F, as long as the temperature of the hub does not exceed 140°F when fully loaded, it is safe and please rest assured to use.
5. You could charge an iPhone through the USB 3.0 interface, but please note that the USB ports are mainly for data transfer and do not support high-performance phone charging.
6. To achieve the full 1 Gbit / s via the network connection, please use an Ethernet cable according to the CAT5E standard or higher.
7. If you want the hub to work with the iPad Pro, you need to update to the latest version of the iPad operating system.
8. To ensure a stable connection, avoid connecting devices that exceed a total of 900mA.
9. Due to the performance limitations of some laptops, it is recommended that you only connect one HDD / SSD at a time.
10. USB 3.0 interferes with WiFi and other wireless devices due to the similar frequencies of 2.4 GHz. According to Microsoft, the problem mainly occurs for the2.4GHz wireless band, but not for 5 GHz. Please set your router to 5 GHz to avoid the problem.

SPECIFICATIONS

BRAND GUARANTEE

• CableCreation focuses on the Ideal Design of all of Our Quality Cables.
• CableCreation is a Creative Team with its Own Factory, manufacturing, using innovative design and high-quality materials.
• CableCreation is Confident to Offer All Buyers items with 24 24-month warranty, lifetime technical support, and friendly customer service. If you have any problems with our product or service, kindly contact us at any time.

Customer Support

• Website: https://www.cablecreation.com/
• Customers help: brandservice@cablecreation.com

FAQs

What is the CableCreation CD0787 6-in-1 USB C Hub?
This adaptable multiport hub allows your laptop or tablet to connect to numerous devices at once by extending a single USB-C port into six necessary ports, such as HDMI, USB-A, SD card reader, and more.

Is this hub compatible with all USB-C devices?
The hub works with the majority of USB-C devices, including MacBooks, Windows laptops, tablets, and some smartphones, that support USB 3.0 or higher and DisplayPort Alt Mode. To ensure compatibility, always review the specifications of your device.

Can I use the hub to charge my laptop while using other ports?
Indeed! With the USB-C PD charging port, you can power your laptop and attach other peripherals at the same time because passthrough charging up to 100W is possible.

Does the hub work with my iPad Pro or Chromebook?
Yes, it is compatible with the majority of Windows laptops with USB-C connections that allow for data and video transfer, as well as iPad Pro (USB-C variants), Chromebooks, and MacBooks.

Can I connect multiple external displays using this hub?
No. Only one HDMI port can be used to output video from this hub. A specialised docking station is advised for multi-monitor setups.

What data transfer speeds can I expect from the USB-A ports?
The USB 3.0 ports are perfect for external drives, flash drives, keyboards, and mice because they can support rates of up to 5Gbps.

Are the SD and Micro SD card readers compatible with all card types?
For speedy photo and file transfers, they support SD, SDHC, SDXC, Micro SD, and Micro SDHC cards.

Can the hub charge devices other than my laptop?
When plugged into a power source, the USB-C PD port can indeed charge compatible phones, tablets, and accessories.
