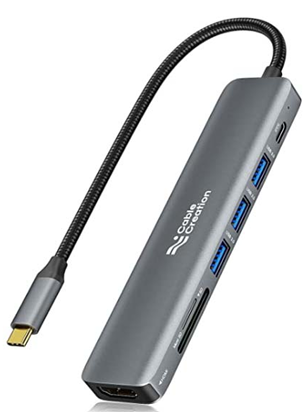

CableCreation CD0818 USB C HUB Multiport Adaptor
Introduction
Additionally, the 3 USB-A ports enable the connection of up to three USB-A devices simultaneously, and the SD and TF card slots facilitate data transmission from these types of cards. Moreover, the Type‐C female port supports PD 3.0 with a maximum of 100W PD charging (10W dedicated to this product’s functionality, with the remaining power up to a maximum of 90W), and it can work with all DP Alt mode supported Type‐C host devices.
- Type‐C Male x1(connect to Type‐C host PC)
- USB‐A Female x3
- HDMI Female x1
- Type‐C Female x 1(PD charging up to 100W)
- SD/TF Card slot x1
- Support SD 3.0 UHS‐I up to 104MBps data rate, allowing card slots to work simultaneously
- Support max 100W PD charging, max 90W PD charging for PC
- Support HDMI resolution up to 4K@30Hz
Package Content
Before attempting to use this unit, please check the packaging and make sure that the following items are contained in the shipping carton:
- Main unit x1
- User Manual x1
- Travel Pouch x1

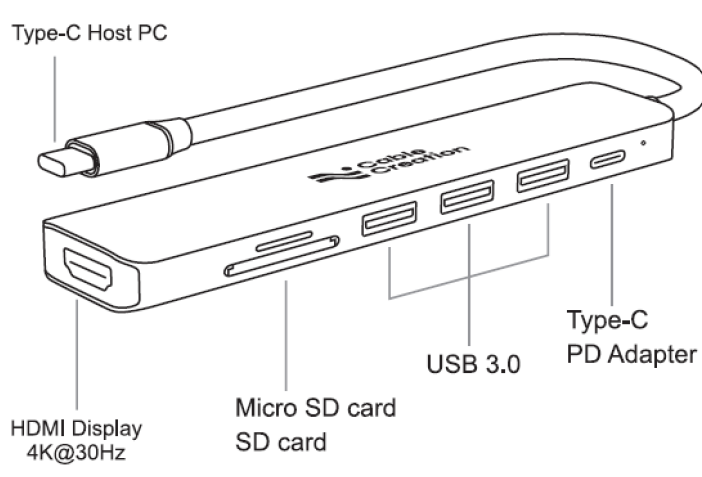

Connection Diagram
Charging Issues
While it is possible to charge an iPhone or Android phone using the USB 3.0 interface, please note that the USB ports are primarily intended for data transmission and may not support charging high‐power phones.
We highly recommend using a 100W PD (Power Delivery) charger to ensure optimal performance of the hub, with 90W being used to charge the connected laptop and 10W to power the hub. If you plan to use the charging function for other devices such as iPads or Samsung cell phones, we suggest using a PD charger with a power output of more than 30W for best results.
USB‐A issues
Portable drive
Please note that due to power output limitations of certain laptops, we advise that you connect only one hard drive or SSD at a time to ensure optimal performance
Wireless mouse, keyboard, wifi issues
Please be aware that the use of USB 3.0 devices may cause interference with 2.4GHz WiFi and other wireless devices due to similar frequencies. Intel has stated that this issue only affects the 2.4GHz wireless band and ot the 5GHz band. To avoid this problem, we recommend setting your router to use the 5GHz band, or just feel free to use a wired mouse and keyboard.
SD/micro SD card file format issues.
To use the hub with an iPad Pro, it is necessary u ate to use he CableCreation CD0818 USB C HUB Multiport Adaptor latest version of iPadOS. To change the format of the storage device, you can use either a Mac or a PC.
SD/TF issues
When using an SD/TF card with the hub, please take care to ensure that the card is inserted at the correct angle and direction to avoid damaging the card.
Type C female issues
It’s important to note that you cannot connect a USB‐C to HDMI adapter to the Type‐C female port on this product to connect an additional external display. The Type‐C female port is designed for charging your Type-C device (laptop, like Samsung smartphones, iPad Air, iPad Pro). It does not support data transfer or video output.
If you encounter issues or difficulties with ur product, please do not hesitate to contact us. We will do our best to resolve any issues as quickly as possible and provide you with the necessary support. We appreciate your business nd look forward to serving you again in the future.

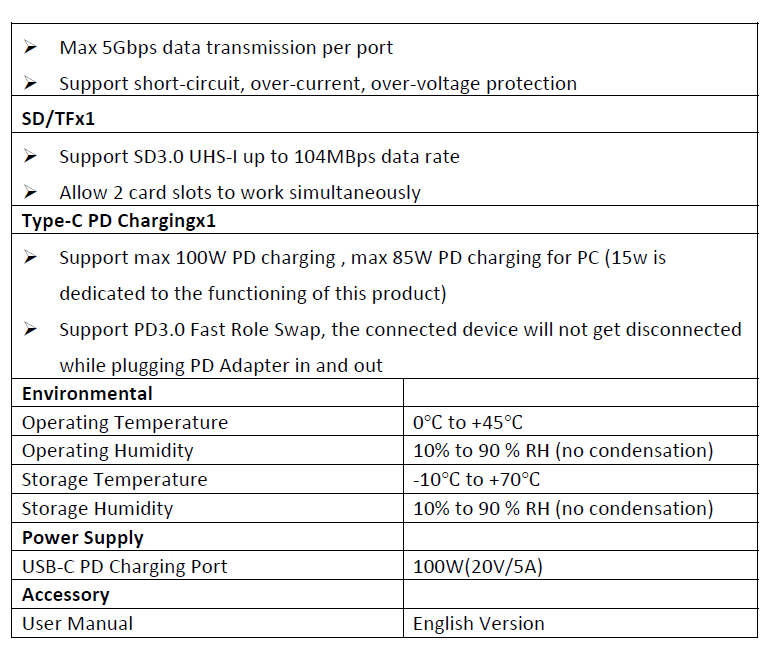

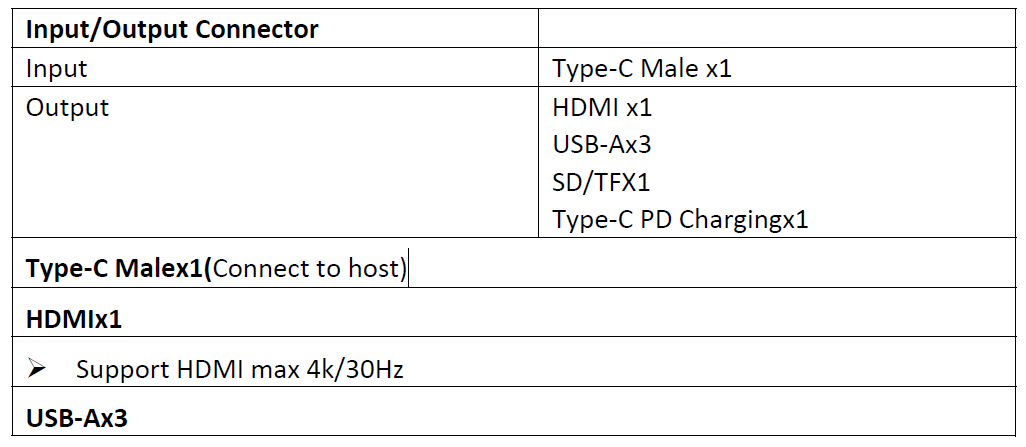

Specifications
Customer Support
- Website: https://www.cablecreation.com/
-
Customers help: brandservice@cablecreation.com
FAQs
What is the CableCreation CD0818 USB-C Hub?
>>>>>>>Designed to expand a single USB-C port into numerous functional connections, such as HDMI, USB-A, SD/TF card readers, and USB-C PD (Power Delivery), the CD0818 is a multiport USB-C adapter.
Can I use all ports simultaneously?
>>>>>>>Yes, the hub can support multiple ports at once; however, performance may vary depending on the power and data capacity of your device.
Can I charge my laptop through the USB-C PD port?
Verify that the USB-C charger and cable you’re using support PD.
Will the hub function without external power?
>>>>>>>Yes, but without a PD charger connected, high-power equipment (such as external hard drives or HDMI monitors) might not function at their best.
Can it charge phones or tablets via the USB-A ports?
>>>>>>>Although the USB-A ports can provide a limited amount of power, they may not be as fast as a specialised charger when it comes to charging phones or devices.
Can I use this with a smartphone?
Indeed! Devices that enable USB-C video out, such as the OnePlus, Google Pixel, and Samsung Galaxy (DeX mode), are compatible.
Is it compatible with gaming consoles like the Nintendo Switch?
No, because of firmware and power constraints, the CD0818 is not advised for the Nintendo Switch.
