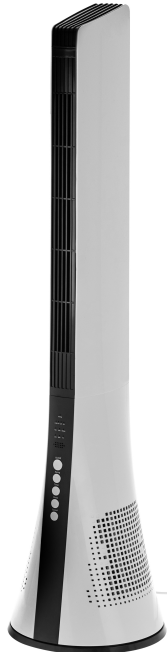

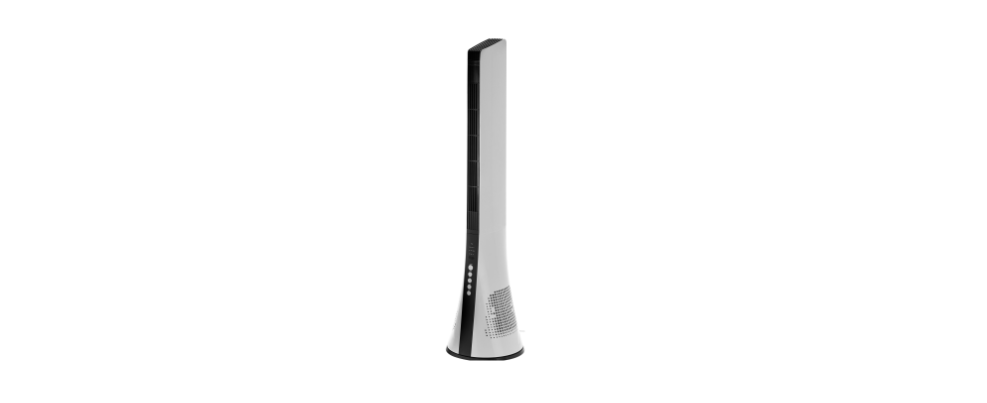

CableMatic 33955 40w Tower fan
Safety Instructions
- Connect the device only to an AC power source. The voltage indicated on the rating plate that is on the device must match the voltage of the power supply.
- Always disconnect the appliance from the socket after use, to disassemble or clean it.
- Always mount and use the appliance on a stable and secure surface.
- Never place the appliance on or near heat sources, such as a gas / electric stove or inside a hot oven. Keep the power cord away from these sources of heat or sharp objects.
- Never handle the power cord with wet hands.
- The use of accessories or parts not recommended by the manufacturer may cause a fire, an electric shock, or serious injuries.
- This device is manufactured to be used indoors. Never use it outdoors or in outside parts of the house.

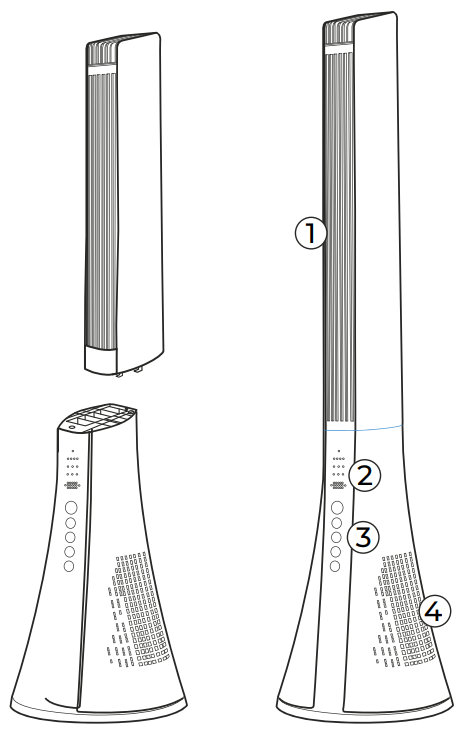

Fan Parts
- Air outlet
- Indicators
- Buttons
- Air inlet
Characteristics
- Power: 60w
- Speed: 3 levels
- Fixed or oscillating position
- 4 programmable functions
- With a remote control
- Maximum airflow 1.920m3/h
- 220-240V~ 50Hz
Functions
CONTROL PANEL
- ON/OFF button: Use this button to turn the fan on and off.
- SPEED button: Press this button to select the fan speed, which can be low, medium, or high.
- TIMER button: Press to set the timer from 0.5 hours to 7.5 hours.
- MODE button: Use this button to select the desired operating mode, including “Normal”, “Natural”, and “Sleep”.
- SWING button: Press this button to activate fan oscillation; press it again to deactivate this function.
Assembly
- Align the assembly posts with the corresponding holes and insert the posts into the holes.
- Orient the assembled base to bolt the posts to the fan body.
- Once you have firmly connected the body and base, tighten the screw holes on the base. Also, be sure to pass the power cable through the slot in the base.
- Place the fan on a flat surface..
- Place the fan on a flat, dry surface.
- Before connecting the device to the mains, make sure that the switch is in the “0” position.
- Plug the power cord into the mains socket 220-240V~ 50Hz.
- If you do not use the fan for a long period of time, unplug the power cord from the socket.
- Never attempt to disassemble the device where the motor is located.
- If you notice any anomaly (such as an unusual fan noise), switch off the device and unplug it immediately.
- Make sure that no objects or liquids enter the interior of the fan through any openings.
- The fan should only be used in dry environments.
- Protect the device from dust, moisture, sunlight, a nd direct heat.
Cleaning & Maintainance
- Make sure that the appliance is switched off before cleaning.
- Clean with a soft, damp cloth, without detergent, aggressive liquids, or solvents.
- Do not immerse the fan in water or any other liquid.
- If the fan is not to be used for a long period of time, protect the fan and store it or, after cleaning it, in a dry place.
Specifications
Waste
In the EU, there are special waste collection systems for subsequent recycling. For more information, contact the local authority or the retailer from whom you purchased the product.
Warranty
All our products are subject to the legal warranty in force at all times regarding consumption and cover all manufacturer’s failures regarding material and quality.
Customer Support
- Website: comercial@cablematic.com
- Ph: 2035146931
- Timings: 09:00 h to 18:00 h from Monday to Friday
