CACTUS Industrial MLC-240S Series CFast Card User Manual

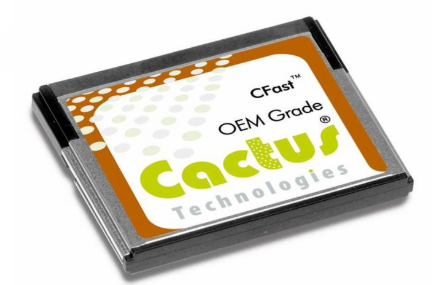

CACTUS Industrial MLC-240S Series CFast Card

Introduction

Features

• Solid state design with no moving parts
• Industry standard CFast Type I form factor
• Capacities from 8GB to 128GB
• Compliant with Serial ATA 3.1 specifications
• ATA-8 compatible and CFast 2.0 compliant
• Supports Serial ATA Generation I/II/III transfer rate of 1.5/3.0/6.0 Gbps
• Support the ATA SMART Feature Set
• Support the ATA Security Feature Set
• Supports TRIM commands
• Supports NCQ, max. queue depth of 32
• ECC capable of correcting up to 66-bit errors per 1KB
• Enhanced error correction, < 1 error in 1014 bits read
• SATA partial and slumber modes supported
• Optional Write Protect feature
• Voltage support: 3.3V±5%.

Cactus Technologies® CFast card is a high-capacity solid-state flash memory product that complies with the Serial ATA 3.1 standard and is functionally compatible with a SATA hard disk drive. Cactus Technologies® CFast cards provide up to 128GB of formatted storage capacity. Cactus Technologies® CFast product uses high-quality Industrial Grade MLC NAND flash memory from Kioxia Corporation. In addition, it includes an on-drive intelligent controller that manages interface protocols, data storage and retrieval, as well as ECC, defect handling and diagnostics, power management, and clock control. The controller’s firmware is upgradeable, thus allowing feature enhancements and firmware updates while keeping the BOM stable.

Supported Standards

Cactus Technologies® CFast card is fully compatible with the following specifications:

• ATA 8 Specification published by ANSI
• Serial ATA 3.1 Specification published by the Serial ATA International Organization
• CFast 2.0 Specification published by CFA

Product Features

Cactus Technologies® Industrial MLC CFast card contains a high-level, intelligent controller. This intelligent controller provides many capabilities, including the following:

• Standard ATA register and command set (same as found on most magnetic disk drives).
• Manages details of erasing and programming flash memory independent of the host system
• Sophisticated defect managing capabilities (similar to magnetic disk drives).
• Sophisticated system for error recovery using g powerful error correction code (ECC).
• Intelligent power management for low-power operation.

Host and Technology Independence

Cactus Technologies® Industrial MLC CFast card appears as a standard SATA disk drive to the host system. The drive utilizes a 512-byte sector, which is the same as that in an IDE magnetic disk drive. To write or read a sector (or multiple sectors), the host computer software simply issues an ATA Read or Write command to the drive as per the SATA protocol.

The host software then waits for the command to complete. The host system does not get involved in the details of how the flash memory is erased, programmed, or read, as this is all managed by the built-in controller in the drive. Also, with the intelligent on-board controller, the host system software will not require changing as new flash memory evolves. Thus, systems that support the Cactus Technologies® Industrial MLC CFast products today will continue to work with future Cactus Technologies® Industrial MLC CFast cards built with new flash technology without having to update or change host software.

Defect and Error Management

Cactus Technologies® Industrial MLC CFast card contains a sophisticated defect and error management system similar to those found in magnetic disk drives. The defect management is completely transparent to the host and does not consume any user data space.

The soft error rate for Cactus Technologies® Industrial MLC CFast card is much lower than that of magnetic disk drives. In the extremely rare case where a read error does occur, the drive has sophisticated ECC to recover the data. These defect and error management systems, coupled with the solid-state construction, give Cactus Technologies® Industrial MLC CFast cards unparalleled reliability.

Power Supply Requirements

Cactus Technologies® Industrial MLC CFast card operates at a voltage range of 3.3 volts ± 5%.

Product Specifications

For all the following specifications, values are defined at ambient temperature and nominal supply voltage unless otherwise stated.

System Environmental Specifications

		Cactus Technologies® Industrial MLC CFast
Temperature	Operating:	0° C to +70° C (Standard) -40° C to 85° C (Extended)
Humidity	Operating & Non-Operating:	8% to 95%, non-condensing
Vibration	Operating & Non-Operating:	20G, MIL-STD-883G Method 2005.2, Condition A
Shock	Operating & Non-Operating:	3,000 G, MIL-STD-883G Method 2002.4, Condition C
Altitude (relative to sea level)	Operating & Non-Operating:	100,000 feet maximum

System Power Requirements

		Cactus Technologies® Industrial MLC CFast
DC Input Voltage (VCC) 100 mV max. ripple (p-p)		3.3V ±5%
(Maximum Average Value) See Notes.	Idle: Reading: Writing:	90 mA 410 mA 530 mA



NOTES: All values quoted are typical at ambient temperature and nominal supply voltage unless otherwise stated. Sleep mode is specified under the condition that all drive inputs are static CMOS  levels and in a “Not Busy“ operating state.

System Performance

All performance timings assume the drive controller is in the default (i.e., fastest) mode

Read Transfer Rate	8GB 16GB 32GB 64GB 128GB	Up to 140MBytes/sec Up to 280MBytes/sec Up to 280MBytes/sec Up to 350MBytes/sec Up to 350MBytes/sec
Write Transfer Rate	8GB 16GB 32GB 64GB 128GB	Up to 25 Mbytes/sec Up to 50 Mbytes/sec Up to 45 Mbytes/sec Up to 90 Mbytes/sec Up to 180MBytes/sec

System Reliability

Data Reliability	< 1 non-recoverable error in 1014 bits READ
Endurance (estimated TBW): 8GB 16GB 32GB 64GB 128GB	Up to 3TB/GB: 24TB 48TB 96TB 192TB 384TB



Physical Specifications

The following sections provide the physical specifications for Cactus Technologies® Industrial   MLC CFast products.

CFast Card Physical Specifications

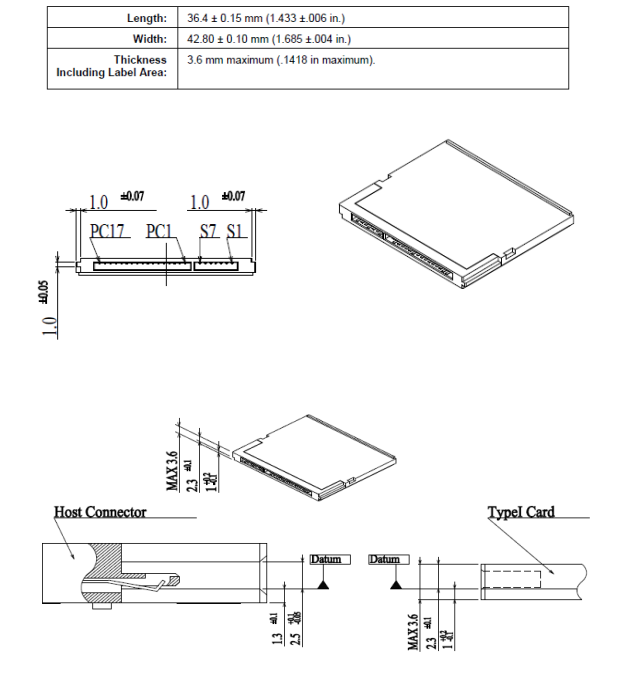

Figure 2-1. Type I CFast Card Dimensions

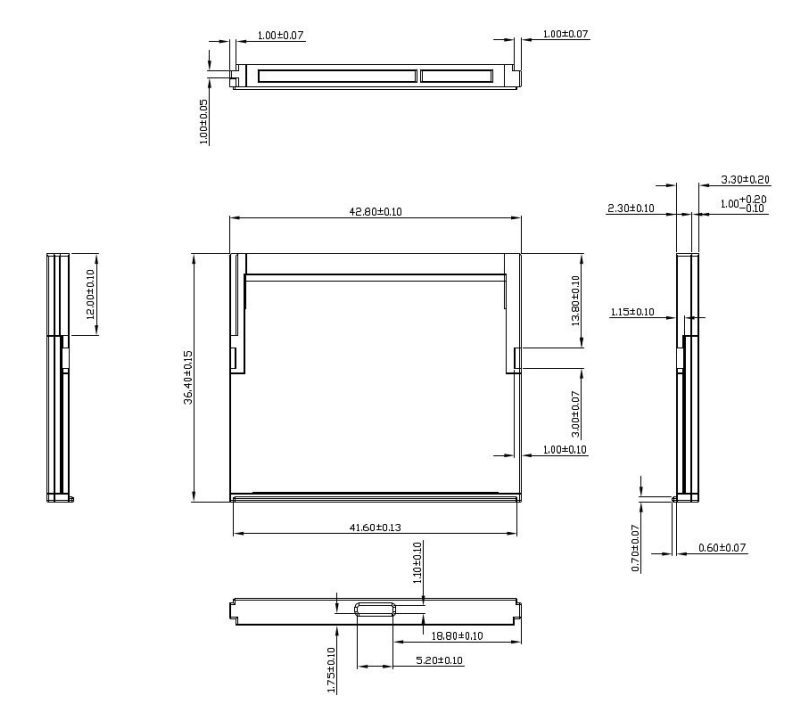

Figure 2-2. Type I CFast Card Write Protect Switch Dimensions

Capacities

Cactus Technologies® Industrial MLC CFast cards are available in the following capacities:

• Std. Temp. 8GB 16GB 32GB 64GB 128GB
• Ext. Temp. 16GB 32GB 64GB 128GB

Interface Description

The following sections provide detailed information on the Cactus Technologies® Industrial MLC CFast card interface.

CFast Pin Assignments and Pin Type

Cactus Technologies® CFast signal pinout conforms to CFA specifications. The signal/pin assignments and descriptions are listed in Table 3-5.

Table 3-5. CFast Pin Assignments and Pin Type

1. These signals are provided for backwards compatibility with CFast v1.1; these signals may be used for different purposes in the future.
2. IFDet shall be connected to GND on Cfast v2.0 compliant devices. The
3. DEVSLP feature is not supported; pin PC3 shall be No Connect.

Electrical Specifications

The following table defines all D.C. Characteristics for the CFast products. Unless otherwise stated, conditions are:

Vcc = 3.3V ± 5%
Ta = -40°C to 85°C

Absolute Maximum Ratings

	Absolute Maximum Ratings
		Parameter	Symbol	MIN	MAX	Units
		Storage Temperature	Ts	-55	+100	oC
		Operating Temperature	TA	-40	+85	oC
		Vcc with respect to GND	Vcc	-0.3	3.6	V
	DC Characteristics
		Parameter	Symbol	MIN	MAX	Units
		Input Voltage	Vin	-0.5	Vcc + 0.5	V
		Output Voltage	Vout	-0.3	Vcc + 0.3	V
		Input Leakage Current	ILI	-10	10	uA
		Output Leakage Current	ILO	-10	10	uA
		Input/Output Capacitance	CI/Co		10	pF
		Operating Current Idle Active	ICC		105 535	mA

AC Characteristics

Cactus Technologies® CFast products conform to all AC timing requirements as specified in the CFA specifications. Please refer to that document for details of AC timing for all operation modes of the device.

ATA Drive Register Set Definition and Protocol

The communication to or from the CFast card is done using FIS. Legacy ATA protocol is supported by using the legacy mode defined in the SATA specifications. In this mode, the FIS has defined fields that provide all the necessary ATA task file registers for control and status information. The Serial ATA interface does not support Primary/Secondary or Master/Slave configurations. Each SATA channel supports only one SATA device, with the register selection as defined by the ATA standard.

ATA Task File Definitions

The following sections describe the usage of the ATA task file registers. Note that the Alternate Status Register of legacy ATA is not defined for SATA drives.

Data Register

The Data Register is a 16-bit register, and it is used to transfer data blocks between the SSD data buffer and the Host.

Error Register

This register contains additional information about the source of an error when an error is indicated in bit 0 of the Status register. The bits are defined as follows:

D7		D6	D5	D4	D3	D2	D1	D0
BBK		UNC	0	IDNF	0	ABRT	0	AMNF
Bit 7 (BBK)			This bit is set when a	Bad Block is detected.
Bit 6 (UNC)		This bit is set when an Uncorrectable Error is encountered.
Bit 5		This bit is 0.
Bit 4 (IDNF)		The requested sector ID is in error or cannot be found.
Bit 3		This bit is 0.
Bit 2 (Abort)		This bit is set if the command has been aborted because of a status condition: (Not Ready, Write Fault, etc.) or when an invalid command has been issued.
Bit 1		This bit is 0.
Bit 0 (AMNF) This bit is set in case o				For a general error.
Feature Register

Feature Register

This register provides information regarding features of the SSD that the host can utilize.

Sector Count Register

This register contains the number of sectors of data requested to be transferred on a read or write operation between the host and the SSD. If the value in this register is zero, a count of 256 sectors is specified. If the command was successful, this register is zero at command completion. If not completed, the register contains the number of sectors that need to be transferred in order to complete the request.

Sector Number (LBA 7-0) Register

This register contains the starting sector number or bits 7-0 of the Logical Block Address (LBA) for any SSD data access for the subsequent command.

Cylinder Low (LBA 15-8) Register

This register contains the low-order 8 bits of the starting cylinder address or bits 15-8 of the Logical Block Address.

Cylinder High (LBA 23-16) Register

This register contains the high-order bits of the starting cylinder address or bits 23-16 of the Logical Block Address.

Drive/Head (LBA 27-24) Register

The Drive/Head register is used to select the drive and head. It is also used to select LBA addressing instead of cylinder/head/sector addressing. The bits are defined as follows:

D7	D6	D5	D4	D3	D2	D1	D0
1	LBA	1	DRV	HS3	HS2	HS1	HS0

• Bit 7 This bit is set to 1.
• Bit 6 LBA is a flag to select either Cylinder/Head/Sector (CHS) or Logical Block Address Mode (LBA). When LBA=0, Cylinder/Head/Sector mode is selected. When LBA=1, Logical Block Address is selected. In Logical Block Mode, the Logical Block Address is interpreted as follows:
  • LBA07-LBA00: Sector Number Register D7-D0.
  • LBA15-LBA08: Cylinder Low Register D7-D0.
  • LBA23-LBA16: Cylinder High Register D7-D0.
  • LBA27-LBA24: Drive/Head Register bits HS3-HS0.
• Bit 5 This bit is set to 1.
• Bit 4 (DRV): DRV is the drive number. This should always be set to 0.
• Bit 3 (HS3) When operating in the Cylinder, Head, Sector mode, this is bit 3 of the head number. It is Bit 27 in the Logical Block Address mode.
• Bit 2 (HS2) When operating in the Cylinder, Head, Sector mode, this is bit 2 of the head number. It is Bit 26 in the Logical Block Address mode.
• Bit 1 (HS1) When operating in the Cylinder, Head, Sector mode, this is bit 1 of the head number. It is Bit 25 in the Logical Block Address mode.
• Bit 0 (HS0) When operating in the Cylinder, Head, Sector mode, this is bit 0 of the head number. It is Bit 24 in the Logical Block Address mode.

Status Registers

These registers return the status when read by the host. Reading the Status register does clear a pending interrupt, while reading the Auxiliary Status register does not. The meaning of the status bit is described as follows:

D7	D6	D5	D4	D3	D2	D1	D0
BUSY	RDY	DWF	DSC	DRQ	CORR	0	ERR



• Bit 7 (BUSY) The busy bit is set when the device has access to the command buffer and registers and the host is locked out from accessing the command register and buffer. No other bits in this register are valid when this bit is set to a 1.
• Bit 6 (RDY) RDY indicates whether the device is capable of performing operations requested by the host. This bit is cleared at power up and remains cleared until the device is ready to accept a command.
• Bit 5 (DWF) This bit, if set, indicates a write fault has occurred.
• Bit 4 (DSC) This bit is set when the device is ready.
• Bit 3 (DRQ) The Data Request is set when the device requires that information be transferred either to or from the host through the Data register.
• Bit 2 (CORR) This bit is set when a Correctable data error has been encountered and the data has been corrected. This condition does not terminate a multi-sector read operation.
• Bit 1 (IDX) This bit is always set to 0.
• Bit 0 (ERR) This bit is set when the previous command has ended in some type of error. The bits i  the Error register contain additional information describing the error.

Device Control Register

This register is used to control the drive interrupt request and to issue an ATA soft reset to the drive. The bits are defined as follows:

D7	D6	D5	D4	D3	D2	D1	D0
HOB	X	X	X	1	SW Rst	-IEn	0

• Bit 7: This bit is used in 48-bit addressing mode. When cleared, the host can read the most recently written values of the Sector Count,  Drive/Head, and LBA registers. When set, the host will read previously written values of these registers. A write to any Command block register will clear this bit.
• Bit 6 This bit is an X (Do not care).
• Bit 5 This bit is an X (Do not care).
• Bit 4 This bit is an X (Do not care).
• Bit 3 This bit is ignored by the drive.
• Bit 2 (SW Rst)This bit is set to 1 in order to force the drive to perform an AT Disk controller Soft Reset operation. The drive remains in Reset until this bit is reset to ‘0’.
• Bit 1 (-IEn) The Interrupt Enable bit enables interrupts when the bit is 0. When the bit is 1, interrupts from the drive are disabled. This bit is set to 0 at power-on and Reset.
• Bit 0 This bit is ignored by the drive.

Drive Address Register

This register is provided for compatibility with the AT disk drive interface. It is recommended that this register not be mapped into the host’s I/O space because of potential conflicts on Bit 7. The bits are defined as follows:

D7	D6	D5	D4	D3	D2	D1	D0
X	-WTG	-HS3	-HS2	-HS1	-HS0	-nDS1	-nDS0

• Bit 7 This bit is unknown. Implementation Note: Conflicts may occur on the host data bus when this bit is provided by a Floppy Disk Controller operating at the same addresses as the SSD. The following are some possible solutions to this problem:
  1. Locate the SSD at a non-conflicting address (i.e., Secondary address (377) when a Floppy Disk Controller is located at the Primary addresses).
  2. Do not install a Floppy and an SSD in the system at the same time.
  3. Implement a socket adapter that can be programmed to (conditionally) tri-state D7 of I/0 address 3F7/377 when a SSD product is installed and conversely to tri-state D6-D0 of I/O address 3F7/377 when a floppy controller is installed.
  4. Do not use the SSD’s Drive Address register. This may be accomplished by either a)iff possible, program the host adapter to enable only I/O addresses 1F0-1F7, 3F6 (or 170- 177, 176) to the SSD, or b) if provide,d use an additional Primary/Secondary configuration in the SSD that does not respond to accesses to I/O locations 3F7 and 377. With either of these implementations, the host software must not attempt to use information in the Drive Address Register.
• Bit 6 (-WTG) This bit is 0 when a write operation is in progress;s, otherwise, it is 1.
• Bit 5 (-HS3) This bit is the negation of bit 3 in the Drive/Head register.
• Bit 4 (-HS2) This bit is the negation of bit 2 in the Drive/Head register.
• Bit 3 (-HS1) This bit is the negation of bit 1 in the Drive/Head register.
• Bit 2 (-HS0) This bit is the negation of bit 0 in the Drive/Head register.
• Bit 1 (-nDS1) This bit is 0 when drive 1 is active and selected.
• Bit 0 (-nDS0) This bit is 0 when the drive 0 is active and selected.

ATA Command Description

This section defines the ATA command set supported by the Cactus Technologies® CFast card.

ATA Command Set

	COMMAND		Code
	Check Power Mode		E5h, 98h
	Data Set Management		06h
	Execute Drive Diagnostic		90h
	Flush Cache		E7h
	Flush Cache Ext		EAh
	Identify Drive		ECh
	Idle		E3h, 97h
	Idle Immediate		E1h, 95h
	Initialize Drive Parameters		91h
	NOP		00h
	Read Buffer		E4h
	Read DMA		C8h
	Read DMA Ext		25h
	Read Multiple		C4h
	Read Multiple Ext		29h
	Read FPDMA Queued		60h
	Read Native Max Address		F8h
	Read Native Max Address Ext		27h
	Read Sector(s)		20h, 21h
	COMMAND		Code
	Read Sector(s) Ext		24h
	Read Verify Sector(s)		40h, 41h
	Read Verify Sector(s) Ext		42h
	Security Disable  Password		F6h
	Security Erase Prepare		F3h
	Security Erase Unit		F4h
	Security Freeze Lock		F5h
	Security Set Password		F1h
	Security Unlock		F2h
	Seek		70h
	Set Features		EFh
	Set Max Address		F9h
	Set Max Address Ext		37h
	Set Max Freeze Lock		F9h
	Set Max Lock		F9h
	Set Max Unlock		F9h
	Set Multiple Mode		C6h
	Sleep		E6h, 99h
	SMART		B0h
	Stand By		E2h, 96h
	Stand By Immediate		E0h, 94h
	Write Buffer		E8h
	Write DMA		Cah, CBh
	Write DMA Ext		35h
	Write FPDMA Queued		61h
	Write Multiple		C5h
	Write Multiple Ext		39h
	Write Sector(s)		30h, 31h
	Write Sector(s) Ext		34h
6.1.1.		Identify Drive—ECH

Identify Drive—ECH

The Identify Drive command enables the host to receive parameter information from the drive. This command has the same protocol as the Read Sector(s) command. The CACTUS Industrial MLC-240S Series CFast Card parameter words in the buffer have the arrangement and meanings defined in Table 5-7. All reserved bits or words are zero. Table 5-7 is the definition for each field in the Identify Drive Information.

Table 5-7. Identify Drive Information

Word Address	Default Value	Data Field Type Information
0	044AH	General configuration bit-significant information.
1	XXXXH	Default number of cylinders; capacity dependent.
2	0000H	Reserved.
3	00XXH	Default number of heads; capacity dependent.
4	0000H	Number of unformatted bytes per track.
5	0240H	Number of unformatted bytes per sector.
6	XXXXH	Default number of sectors per track; capacity dependent.
7-8	XXXXH, XXXXH	Number of sectors per drive (Word 7 = MSW, Word 8 = LSW); capacity dependent.
9	0000H	Reserved.
10-19	aaaa	Serial number in ASCII (Right Justified).
20	0002H	Buffer type (dual-ported multi-sector)

Word Address	Default Value	Data Field Type Information
21	0002H	Buffer size in 512-byte increments
22	0000H	# of ECC bytes passed in R/W Long commands
23-26	aaaa	Firmware revision in ASCII. Big Endian Byte Order in Word.
27-46	aaaa	Model number in ASCII (Left Justified) Big Endian Byte Order in Word.
47	8001H	Maximum number of sectors on Read/Write Multiple command: 1
48	0000H	Double Word not supported.
49	0F00H	Capabilities: DMA, LBA, IORDY supported
50	4000H	Capabilities: device-specific standby timer minimum
51	0200H	PIO data transfer cycle timing mode 2
52	0000H	Single Word DMA data transfer cycle timing mode (not supported).
53	0007H	Data fields 54-58,64-70 and 88 are valid.
54	XXXX	Current number of cylinders.
55	XXXX	Current number of heads.
56	XXXX	Current sectors per track.
57-58	XXXX	Current capacity in sectors (LBAs) (Word 57 = LSW, Word 58 = MSW).
59	0100H	Multiple sector setting is valid; the low byte is capacity dependent.
60-61	XXXX	Total number of sectors addressable in LBA Mode.
62	0000H	Single Word DMA transfer not implemented
63	0207H	Multiword DMA modes 0-2 are supported; the upper byte reflects the currently selected. MWDMA mode.
64	0003H	Advanced PIO modes supported (modes 3 and 4)
65	0078H	Minimum MWDMA cycle time per word is 120ns.
66	0078H	Recommended MWDMA cycle time is 120ns.
67	0078H	Minimum PIO cycle time without IORDY flow control is 120ns.
68	0078H	Minimum PIO cycle time with IORDY flow control is 120ns.
69	4000H	CFast specification supported
70-74	0000H	Reserved
75	001FH	Queue depth of 32 for NCQ
76	070EH	Supports Gen 1, Gen 22 signaling rates, host-initiated power management requests
77	0080H	Supports DEVSLP
78	0148H	The device supports initiating interface power management
79	0040H	Reserved
80	03F0H	Major version number
81	0000H	No minor revision reported.
82	742BH	Command set: NOP, READ BUFFER, WRITE BUFFER, HPA, volatile write cache, power management feature set, Security Mode feature set, SMART feature set
83	7500H	48-bit mode supported; Flush Cache/Flush Cache Ext, LAB48, microcode download supported.
84	4023H	Worldwide name, general-purpose logging supported
85	74XXH	Feature status
86	B401H	Feature status
87	4120H	Feature status
88	XX7FH	UDMA Modes 0-6 supported.
89	0003H	Time for Security Erase Unit
90	0001H	Time for Enhanced Security Erase Unit not specified.
91	0000H	Reserved
92	XXXXH	Master password revision code
93-99	0000H	Reserved
100-103	XXXXH	Maximum user LBA for 48-bit addressing mode.
104	0000H	Reserved
105	0100H	Max. number of 51512-byte locks per TRIM command
106-127	0000H	Reserved
128	0XXXH	Security status
129-159	XXXXH	Vendor specific
160	0000H	CFA Power mode
Word Address	Default Value	Data Field Type Information
161	0000H	CFast specific support
162	0000H	CPRM not supported
163	0000H	CFA Advanced modes: not relevant for CFast
164-168	0000H	Reserved
169	0001H	Data Set Management supported
170-216	0000H	Reserved
217	0001H	Solid State Device
218-221	0000H	Reserved
222	107FH	Transport major revision
223-254	0000H	Reserved
255	XXXXH	checksum

S.M.A.R.T. Feature Set

Cactus Technologies® -240 Series CFast card supports S.M.A.R.T. attribute reporting. The following subcommands are supported when programmed into the Feature Register:

Value	Command	Value	Command
D0h	Read Data	D5h	Reserved
D1h	Read Attribute Threshold	D6h	Reserved
D2h	Enable/Disable Autosave	D8h	Enable SMART operationes
D3h	Save Attribute Values	D9h	Disable SMART operations
D4h	Execute OFF-LINE Immediate	DAh	Return Status

S.M.A.R.T Data Structure

The Read Data commands return 512 bytes of data in the following structure:

Byte	Description
0-1	Revision code
2-361	Vendor specific
362	Offline data collection status
363	Self-test execution status byte
364-365	Total time in seconds to complete offline data collection activities
366	Vendor specific
367	Offline data collection capabilities
368-369	SMART capabilities
370	Error logging capabilities: bit[7:1] – reserved; bit[0]: 1=device error logging supported
Byte	Description
371	Vendor specific
372	Short self-test routine recommended polling time (in minutes)
373	Extended self-test routine recommended polling time (in minutes)
374	Conveyance self-test routine recommended polling time (in minutes)
375-385	Reserved
386-395	Firmware Version/Date Code
396-397	Reserved
398-399	Reserved
400-405	‘SMI2246’
406-510	Vendor specific
511	Data structure checksum

S.M.A.R.T. Attributes

The following table lists the attributes returned in bytes 2-361 of the 512-byte SMART data. Each attribute has 12 bytes; byte 0 is the Attribute ID, bytes 1-2 are status flags, and bytes 3-4 are reserved flags. The table below shows the definition of bytes 5-11:



Attribute ID	Attribute values							Attribute Name
01h	MSB	00	00	00	00	00	00	Read error rate
05h	LSB	MSB	00	00	00	00	00	Reallocated sectors count
09h	LSB			MSB	00	00	00	Power on hours
0Ch	LSB			MSB	00	00	00	Power cycle count

A0h	LSB			MSB	00	00	00	Uncorrectable sector count when read/write
A1h	LSB	MSB	00	00	00	00	00	Number of valid spare blocks
A3h	LSB	MSB	00	00	00	00	00	Number of initial invalid blocks
A4h	LSB			MSB	00	00	00	Total erase count
A5h	LSB			MSB	00	00	00	Max. Erase count
A6h	LSB			MSB	00	00	00	Min. Erase count
A7h	LSB			MSB	00	00	00	Average erase count
A8h	LSB			MSB	00	00	00	Max. erase count spec.
A9h	LSB			MSB	00	00	00	Percent remaining life
AFh	LSB			MSB	00	00	00	Program fail count in worst dies
Attribute ID	Attribute values							Attribute Name
B0h	LSB	MSB	00	00	00	00	00	Erase the fail count in the worst die
B1h	LSB			MSB	00	00	00	Total wear level count
B2h	LSB	MSB	00	00	00	00	00	Runtime invalid block count
B5h	LSB			MSB	00	00	00	Total program fail count
B6h	LSB	MSB	00	00	00	00	00	Total erase fail count
BBh	LSB			MSB	00	00	00	Uncorrectable error count
C0h	LSB			MSB	00	00	00	Power-off retract count
C2h	MSB	00	00	00	00	00	00	Temperature
C3h	LSB			MSB	00	00	00	Hardware ECC recovered
C4h	LSB			MSB	00	00	00	Reallocation event count

C6h	LSB			MSB	00	00	00	Uncorrectable error count
C7h	LSB	MSB	00	00	00	00	00	UltraDMA CRC error count
E1h	LSB						MSB	Total LBAs written (in units of 32MB)
E8h	LSB	MSB	00	00	00	00	00	Available reserve space
F1h	LSB						MSB	Total LBAs written (in units of 32MB)
F2h	LSB						MSB	Total LBAs read (in units of 32MB)

Write Protect Feature

Cactus Technologies® -240 Series CFast card supports an optional Write Protect function using a physical write protect switch. When the switch is toggled to the WP position, the card is write-protected. The setting of the switch is sensed only during power-up time; changing the CACTUS Industrial MLC-240S Series CFast Card setting of this switch after power-up will not alter the write-protect behavior. However, to avoid any unintended side effects, it is recommended that this switch not be toggled when power is applied to the card.

When the write-protect function is enabled, all data write commands to the card will be accepted, but the write data will be silently discarded. The card will follow all the data transfer handshake and will return a successful status to the host. This method of handling write protection provides the best compatibility to host systems, as simply rejecting write commands and returning an error status may cause some operating systems to hang.

Appendix A. Ordering Information

Model KCXFY-240S-WP1

Where: X is the drive capacities:

• 8G —————- 8GB
• 16G ————– 16GB
• 32G ————– 32GB
• 64G ————– 64GB
• 128G ———— 128GB

Where: Y is temperature grade: blank ———— standard temp.  I ——————- extended temp.Where: WP1 is optional Write Protect feature: blank ———— standard WP1 ————– w/ Write Protect switch

Example

1. 8GB CFast ———————————————————– KC8GF-240S
2. 16GB extended temp. CFast ———————————- KC16GFI-240S
3. 8GB CFast w/ Write Protect ———————————— KC8GF-240S-WP1

Technical Support Services

Email: tech@cactus-tech.com

Appendix Cactus Technologies® Worldwide Sales Offices

Email: sales@cactus-tech.com
Email: americas@cactus-tech.com

Limited Warranty

WARRANTY STATEMENT

Cactus Technologies® warrants its Industrial MLC Grade products to be free of any defects in materials or workmanship that would prevent them from functioning properly for two years from the date of purchase or when estimated TBW is reached, whichever occurs first. This CACTUS Industrial MLC-240S Series CFast Card express warranty is extended by Cactus Technologies® Limited to customers of our products.

GENERAL PROVISIONS

This warranty sets forth the full extent of Cactus Technologies®’ responsibilities regarding the Cactus Technologies® Industrial MLC Grade Flash Storage Products. Cactus Technologies®, at its sole option, will repair, replace, cease, or refund the purchase price of the defective product. Cactus Technologies® guarantees our products meet all specifications detailed in our product manuals. Although Cactus Technologies® products are designed to withstand harsh environments CACTUS Industrial MLC-240S Series CFast Card and have the highest specifications in the industry, they are not warranted to never fail, and Cactus Technologies® does not warrant against incidental or consequential damages. Accordingly, in any use of products in life support systems or other applications where failure could cause injury or loss of life, the products should only be incorporated in systems designed with appropriate redundancy, fault-tolerant tolerant or backup features.

WHAT THIS WARRANTY COVERS

For products found to be defective within two years of purchase, Cactus Technologies® will have the option of repairing, replacing, or refunding the purchase price of the defective product, if the following conditions are met:

• The defective product is returned to Cactus Technologies® for CACTUS Industrial MLC-240S Series CFast Card failure analysis as soon as possible after the failure occurs.
• An incident card filled out by the user, explaining the conditions of usage and the nature of the failure, accompanies each returned defective product.
• No evidence is found of abuse or operation of products not in accordance with the published specifications, or of exceeding maximum ratings or operating conditions.

All failing products returned to Cactus Technologies® under the provisions of this limited warranty shall be tested to the product’s functional and performance specifications. Upon CACTUS Industrial MLC-240S Series CFast Card confirmation of failure, each product will be analyzed, by whatever means necessary, to determine the root cause of failure. If the root cause of failure is found to be not covered by the above provisions, CACTUS Industrial MLC-240S Series CFast Card then the product will be returned to the customer with a report indicating why the failure was not covered under the warranty. This warranty does not cover defects, malfunctions, performance failures, or damages to the unit resulting from use in other than its normal manner, misuse, accident, or neglect; or improper alterations or repairs. Cactus Technologies® Limited may repair or replace, at its discretion, any product returned by its customers, even if such product is not covered under warranty, but is under no obligation to do so.

RECEIVING WARRANTY SERVICE

According to Cactus Technologies®’s warranty procedure, a defective product should be returned only with prior authorization from Cactus Technologies® Limited. Please CACTUS Industrial MLC-240S Series CFast Card contact Cactus Technologies® Customer Service department (tech@cactus-tech.com) with the following information: product model number and description, nature of defect, conditions of use, proof of purchase, and purchase date. If approved, Cactus Technologies® will issue a Return Material Authorization or Product Repair Authorization number with shipping instructions.

FAQs

What is the CACTUS MLC-240S CFast card used for?

An industrial-grade flash storage device, the MLC-240S Series CFast card is intended for use in embedded systems, industrial automation, transportation, defence, and medical applications where high performance, durability, and dependability are essential.

What type of NAND flash is used in this CFast card?

It makes use of MLC (Multi-Level Cell) NAND flash, which strikes a compromise between long durability and cost effectiveness, making it perfect for moderate to high write workloads in industrial settings.

What form factor and interface does it use?

With its SATA III (6Gbps) interface and adherence to the CFast 2.0 standard, the card provides fast data transfers and is compatible with CFast slots found in industrial devices.

Does the card support power loss protection (PLP)?

Power Loss Protection is a feature of certain MLC-240S CFast models that protects in-flight data in the event of unplanned power outages. For confirmation, consult the particular part number or datasheet.

. What capacities are available for this series?

Capabilities typically vary from 4GB to 512GB, contingent on the particular setup. The read/write intensity and storage requirements of your application will determine the capacity to use.

Is data encryption supported?

Some devices can have hardware encryption with AES-256. To find out if encryption is available, consult Cactus Technologies or the datasheet for your product.

Can the CFast card be used as a boot device?

Indeed. Systems that allow booting via SATA-based CFast interfaces can use the MLC-240S CFast card as a bootable device.

How is endurance compared to consumer-grade cards?

This card’s MLC NAND and industrial firmware provide much greater write endurance than their consumer counterparts, allowing for thousands of program/erase (P/E) cycles and improved data retention under load.
