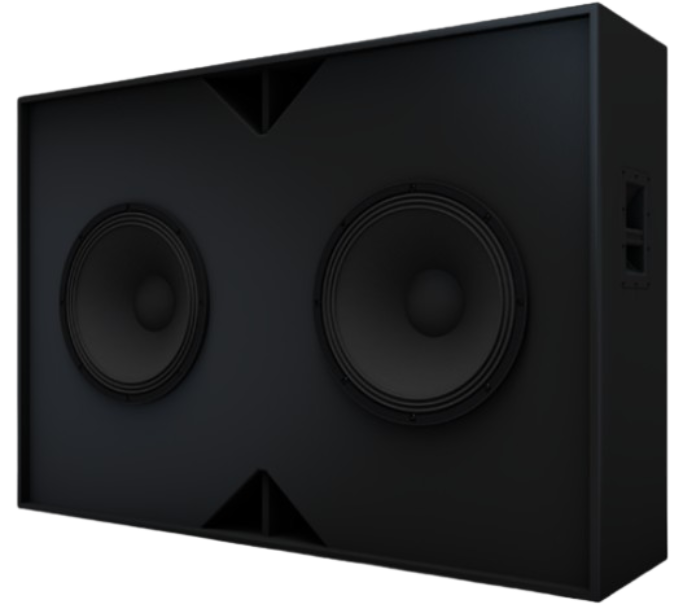

Christie Vive Audio S218LP Low Profile Subwoofer
Safety Instructions
- Read this information thoroughly before installing or operating a speaker.
- Read these instructions.
- Keep these instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.
- Do not use this apparatus near water.
- Do not install the speaker near water where the electrical components can be exposed to moisture. Do not place objects containing liquids, such as vases, on the product.
- Clean only with a dry cloth.
- Do not overpower or underpower speaker systems.
- Use only in accordance with the manufacturer’s specifications and installation guidelines.
- Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in their susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. These are the permissible noise levels.
| Duration (Consecutive) | Sound Pressure Level (dB(A)), Slow Responses |
| 8 hrs | 90 |
| 6 hrs | 92 |
| 4 hrs | 95 |
| 3 hrs | 97 |
| 2 hrs | 100 |
| 1.5 hrs | 102 |
| 1 hr | 105 |
| 30 min | 110 |
| Duration (Consecutive) | Sound Pressure Level (dB(A)), Slow Responses |
| ≤15 min | 115 |
- Two people are required to safely lift and install the speaker.
- Speakers and speakers mounted to brackets must be affixed to a suitable structure following all local safety standards and regulations.
- Always install all legally required additional redundant safety straps or cables.
- Install the minimum number of rigging wires (refer to Installation for more details) that are required to suspend the speaker. Observe load ratings and all applicable local safety codes.
Introduction
This user manual provides subwoofer installation, troubleshooting, and specification information.

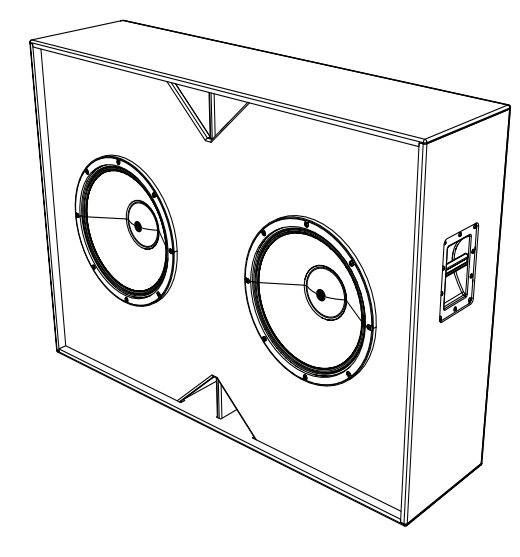

Speaker overview
The S218LPlow-profilee subwoofer is used for low-frequency effects (LFE) channel applications.
What’s in the box
This table lists the components that are shipped with the S218LP.
| Quantity | Description | Part number |
| 1 | Christie S218LP low-profile subwoofer | 145-181101-XX |
Connect the speaker wire.
- Install the speaker according to the mounting instructions provided in this manual.

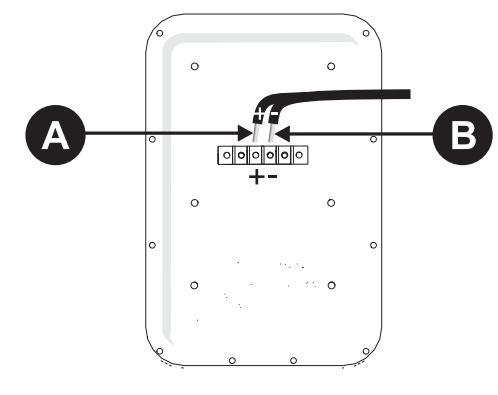

- Connect the speaker wire to the positive (A) and negative (B) terminals on the back of the speaker.
- Use a #8 spade lug (part number: 145-159106-XX) if you are creating crimped spade lug terminations.
A Positive (+) connection B Negative (-) connection
Connect the negative and positive speaker wires from the speaker to the corresponding terminals on the amplifier. Turn on the amplifier and verify that the speaker is receiving power.
Troubleshooting
The speaker does not function
The speaker is connected to the amplifier, but is not producing any sound.
Resolution
- Verify that the speaker is receiving power from the amplifier.
- Reset the circuit breaker. If the AC mains breaker continues to open, check the voltage and
amperage of the circuit. - Verify that the negative and positive speaker wires from the
Resolution
- Visually inspect the speaker for deterioration or holes.
- Reduce the output level of the source.
- Verify that the negative and positive speaker wires from the speaker are securely connected to the terminals on the amplifier.
- Verify that there are no missing screws. Replace all screws that you removed during installation.
- Have an authorized dealer complete an audio test (for example, pink noise,
- Frequency sweeps, content, and program material.
There is speaker noise or his.s
The speaker is producing static noise or hiss when powered.
Resolution
- Mute channels, one at a time, to isolate the problem.
- Verify that the cables are in good working condition.
- Reroute audio cables away from AC power and lighting cables.
- Verify the correct gain structuring of the B Chain and input and output levels of source devices and amplifiers.
- Check the polarity
Specifications
Audio
| Specification | Description |
| System type | Subwoofer, ported enclosure, with extended bass shelf (EBS) tuning to 23 Hz |
| Driver components | Two 18 in. low frequency drivers, each with dual 4 in. voice coil and long linear excursion |
| Recommended crossover | · High pass: Butterworth 24dB/octave @ 20 Hz
· Low pass: Bessel 24dB/octave @ 250 Hz |
| Frequency response | 20-250Hz at -10dB, 24-200Hz at -6dB |
| Maximum sound pressure level (SPL)b | 133.5 dB, continuous, 145.5 dB, peak |
| Sensitivity, 1 W/1 m | 100.5 dB (40-150 Hz) |
| Recommended amplifier power | 1500 W – 2150 W (FTC) at 4 Ohms / Christie CDA5 or Christie CDA7.5 (depending on application) |
| Rated impedance | 4 Ohms |
Rated for free space conditions at 1 m. Measured at 2m, ground plane conditions, with value calculated for free space conditions at 1 m. bAES refers to the ES2-2012 standard. Pink noise with 6 dB crest factor at 1 m. IEC refers to the IEC 60268-5 standard. IEC pink noise with 9 dB peak factor.
Connections
| Inputs | Screw terminal barrier strip |
| Power | |
| Specification | Description |
| Power handling | 2000 W (AES) continuous, 4000 W (IEC) short-term |
Physical
| Specification | Description |
| Enclosure | Extended Bass Shelf ported
18 mm MDF Heavily damped and braced |
| Dimensions (L x W x H) | 150.6 cm x 39.4 cm x 103.7 cm
(59.2 in) x (15.5 in) x (40.8 in) |
| Weight (net) | 99 kg (216 lb) |
Parts
| Specification | Part Number |
| 18 in. cone driver | 003-120884-XX |
Accessories
| Specification | Part Number |
| SpeakON Connector (for amplifier output to speaker) | 145-158105-XX |
| #8 Spade Lug (for speaker input from amplifier) | 145-159106-XX |
Customer Support
- Ph:+1 (800) 221-8025
- Website:https://www.christiedigital.com
