Clarke CVAC30SSR Wet & Dry Vacuum Cleaner
Introduction
Thank you for selecting this VAC KING Vacuum Cleaner, which will provide you with a cleaner and safer working environment. This machine is capable of collecting both wet and dry materials as well as water.
Safety Instructions
- Avoid operating in the presence of flammable liquids or gases. The motor may produce sparks during operation.
- NEVER over-reach. Keep your proper footing and balance at all times to enable better control of the machine in unexpected situations.
- ALWAYS store the machine out of reach of children.
- ALWAYS maintain the CVAC with care and keep it clean for the best / safest performance.
- Have it inspected and repaired by your CLARKE dealer. DO NOT use if the electric cable, plug, or the machine itself is in poor condition.
- NEVER abuse the power cable. NEVER pull on the cable when removing the plug from the socket or lift the machine by the power cable. Take care not to close doors on the cable, or allow it to become snagged under furniture/objects with sharp edges. Keep away from heat or oil.
- Only use extension leads that are of an appropriate power rating and suitable for the work environment. Extension leads must have an earth connection. Inspect the extension lead regularly and replace it if damaged.
- NEVER pick up flammable or readily combustible material such as hot ashes or coals, or use them in the presence of explosive liquids or vapours.
- NEVER pick up burning cigarettes or other smoking substances.
- NEVER abuse the CVAC by standing on it.
- ALWAYS transport the CVAC by lifting it by the handle.
Electrical Connections
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

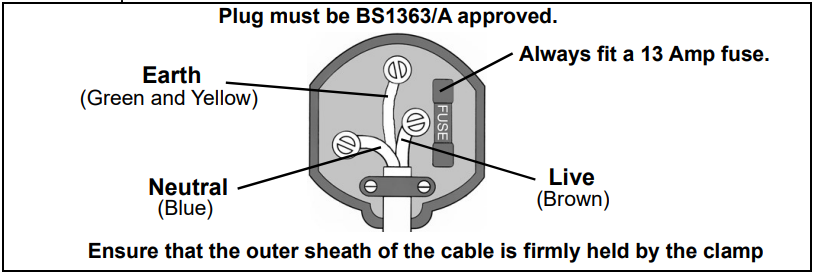

CVAC30SSR (EARTHED APPLIANCE)
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
- The Blue wire must be connected to the terminal marked Nor coloured Black
- The Brown wire must be connected to the terminal marked L or coloured Red
- The Yellow and Green wires must be connected to the terminal marked E or coloured Green.

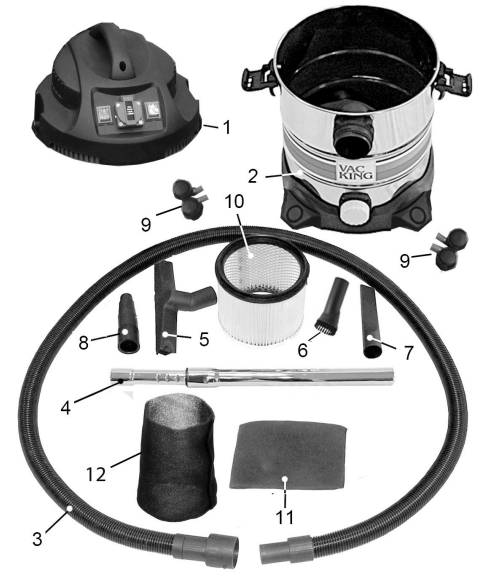

Components
| No | Description | No | Description |
| 1 | Motor Housing & Head Section | 7 | Crevice Tool |
| 2 | Container | 8 | Power Tool Adaptor(30SSR only) |
| 3 | Flexible Hose | 9 | Castor |
| 4. | Extension Tube | 10 | Cartridge HEPA Filter |
| 5 | Floor Brush Adapter | 11 | Paper Dust Bag |
| 6 | Hose/Extension Tube Angle Adapter | 12 | Foam Filter (water pick-up only) |
Prepration
Unpacking
With the CVAC removed from the packaging, undo the two clamps securing the head and remove the components from within the tank. Lay them out and check for shortages and that no damage was suffered in transit. For ease of mobility, the CVAC base is provided with castors, which require fitting. Push the four castors onto their mountings firmly.

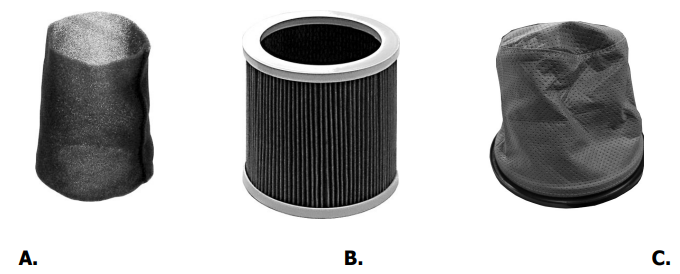

The Filter
Filters are essential to ensure that dust or foreign matter does not enter the motor compartment, which would reduce motor efficiency and eventually cause serious damage.
- Foam Filter
- Cartridge Filter
- Woven Cloth Bag Filter
Wet Use

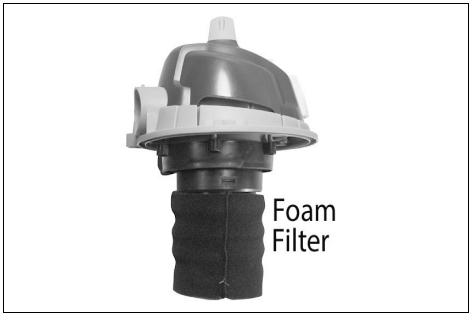

The foam filter is only to be used for picking up water. It is the only filter used during this operation and must be fitted over the filter cage as shown. The linen and paper bag filters must be removed before using the CVAC to pick up water.
Dry Use

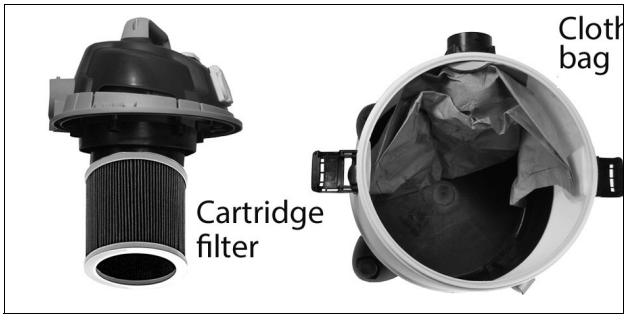

The Cartridge Filter must be fitted over the filter cage and is used when dry vacuuming ONLY. Remove the foam filter for dry use.
Operation
DO NOT cover the CVAC. And always position it with good all-round ventilation. The CVAC must remain upright, especially when picking up water. When moving the CVAC;
- ALWAYS use the handle.
- DO NOT lift by (or place a strain on) the hose or cable.
- After use, always switch it off and disconnect from the power supply.

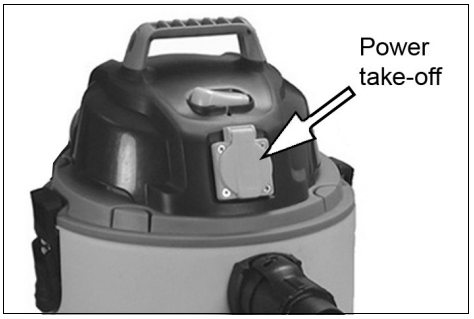

These machines are provided with a standard three-pin auxiliary power take-off off which enables the machine to be used as a dust extractor for power tools. Plug the power tool into the socket and switch it on. The CVAC will automatically start.
Maintainance
Inspect all other components periodically and replace damaged castors or accessories when necessary. Contact your CLARKE dealer for replacements. Regular inspection and the correct maintenance of the filters will ensure efficient running and prolong the life of your machine.

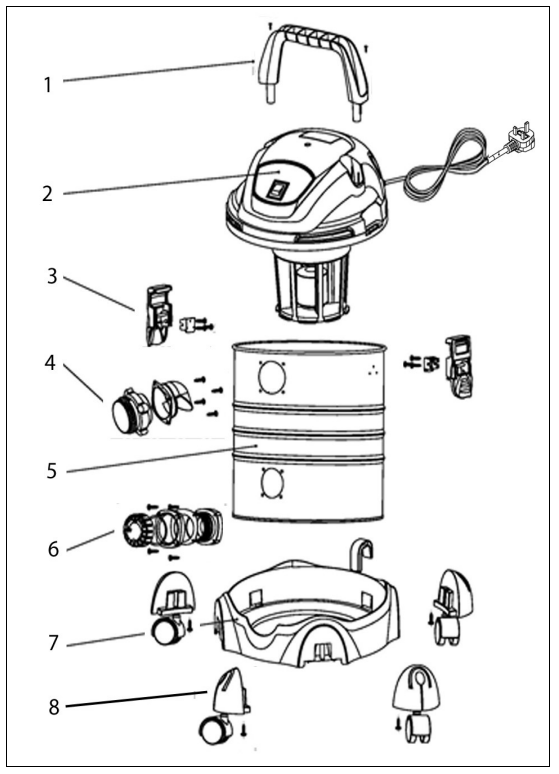

Spare Parts
- Handle
- Head Assembly
- Latch Assembly
- Hose Inlet Assembly
- Container body
- Water Drain Assembly
- Base Frame
- Castor Assembly
Accessories
- CARTRIDGE FILTER 6471094
- PAPER DUST BAG FILTER 6471145
- FOAM FILTER 6471092
- REPLACEMENT FILTER PACK 6471095
- POWER TOOL ADAPTOR n/a
- OPTIONAL 5M HOSE 6471155
Care & Storage
- When not in use, turn off by the On/Off switch on top of the machine, then remove the plug from the mains power supply.
- DO NOT change filters or carry out any cleaning or servicing without first disconnecting the machine from the power supply.
- Keep the external surfaces clean. Avoid impact damage and DO NOT allow the machine to contact abrasive or corrosive materials.
- DO NOT use solvents, thinners or alcohol to clean the CVAC, as these chemicals will damage the finish. With the machine unplugged from the power supply, use a dry cloth to wipe over the plastic casing.
- Only use parts and accessories recommended in this manual.
- DO NOT attempt to repair or modify the machine. DO NOT attempt any electrical repair yourself. Consult a qualified electrician or the CLARKE Service Department.
Specifications
| MODEL | CVAC30SSR |
| Part No | 6471120 |
| Weight | 8.5 kg |
| Dimensions (L x W x H) mm | 515 x 515 x 635 |
| Tank Capacity (water) | 22 Litres |
| Dust Capacity | 24 Litres |
| Max Vacuum | 16 kPa |
| Max Airflow | 32L/sec |
| Duty Cycle | S1 (continuous) |
| Fuse Rating | 13 Amps |
| Power Supply | 230 V/50Hz/1ph |
| Motor Power rating | 1.4 kW |
| IP Rating | IP24 |
| Output Socket Rating | 1400 W (6A) |
| Sound Pressure Level at 2m | 82 dB LpA |
Guarantee
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee does not affect your statutory rights.
Environmental Protection
By purchasing this product, the customer is taking on the obligation to deal with its safe disposal in accordance with the Waste Electrical and Electronic Equipment regulations (WEEE).
Customer Service
- Tel: 0208 988 7400
- Website: parts@clarkeinternational.com
- Visit: service@clarkeinternational.com
FAQs
Q1: What surfaces and materials can the CVAC30SSR clean?
It effectively collects liquids (water, spills, non-corrosive substances) and dry particles (dust, wood shavings, dirt).
Q2: What is the capacity of the vacuum tank?
A2: The 30-liter stainless steel tank of the CVAC30SSR offers sufficient capacity for both wet and dry cleaning jobs without the need for frequent emptying.
Q4: Can the CVAC30SSR be used without a filter?
A4: No, using the hoover without the proper filter will shorten the warranty and harm the motor.
Q6: Can this vacuum be used to clean ashes, hot debris, or hazardous dust?
A6: No, chemicals, hazardous materials, fine ashes, and hot materials are not appropriate for the CVAC30SSR. This could endanger safety and harm the hoover.
Q9: Does the CVAC30SSR have a blower function?
A9: Indeed. This makes it perfect for removing debris from difficult-to-reach areas, dust from tools, and leaves.
Q10: How long is the power cord, and what is the working reach?
A10: Depending on setup, the vacuum’s overall working range can range from 7 to 8 meters thanks to its standard 5-meter power cable and flexible hose with extension wands.
Q13: Is the stainless steel tank rust-resistant?
A13: Indeed. The stainless steel used to make the tank is strong and resistant to corrosion.
