Cobra RAD450 Radar Laser Protection

Safety Instructions

1. It is not against federal law to receive radar transmissions with your Cobra radar/ laser detector.
2. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency.
3. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.
4. Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product and to obey all applicable traffic laws.
5. Do not attempt to change the settings of the unit while in motion.
6. Before leaving your vehicle, always remember to conceal your radar detector to reduce the possibility of break-in and theft.

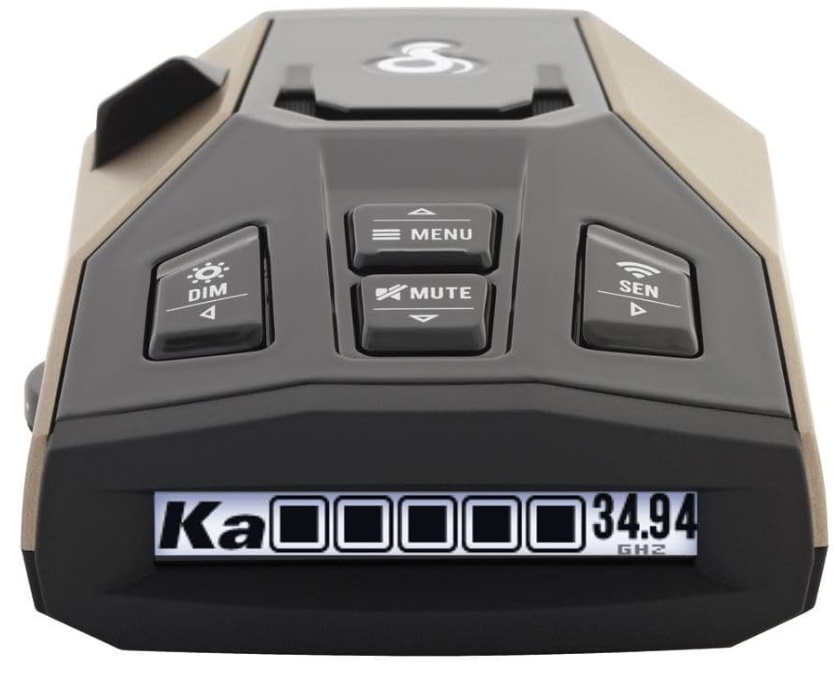

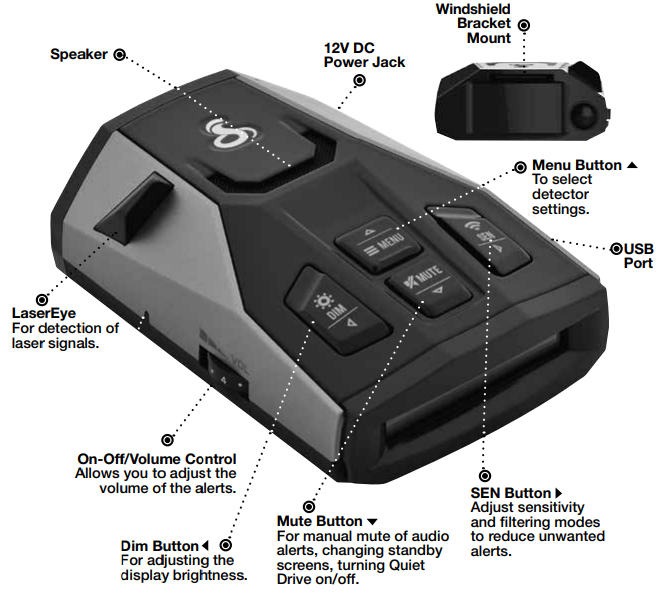

Controls, Indicators, and Connections

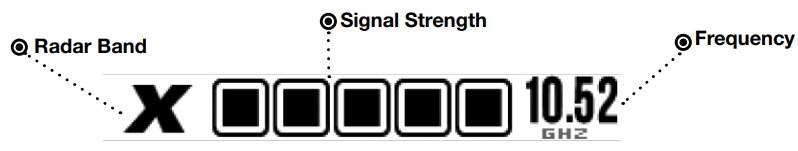

Display

Features

Radar/Laser Protection

• Detects all radar and laser guns.

LaserEye®

• Detects laser signals from both front and rear.

VoiceAlert

• Digital voice announcements help keep your eyes on the road.

QuietDriveTM

• Muted driving mode for times the driver wants less audible feedback while talking with passengers or on the phone.

Premium Anti-Falsing Circuitry

• Automatically reduces false alerts from erroneous sources, including automatic door openers, fixed-position traffic flow monitoring systems, and other radar detectors.

Updatable IVT FilterTM

• User-updatable system automatically reduces false alerts from moving In-Vehicle Technology sources such as collision avoidance systems and adaptive cruise control.

Sensitivity Modes

• Selectable Low/Med/High modes reduce falling in densely populated areas.

Auto Mute

• Automatically mutes audio for sustained alerts.

Eye-Catching OLED Display

• Bright white OLED display features band identification icons and a numeric signal strength meter.

Adjustable Sensitivity

• Select preferred radar sensitivity (City/City Max/ Highway) to suit driving environment. Dual Language English and Spanish voice and text alerts.

Installation

Where to mount your unit

• You will get optimum performance from your detector if you mount it at a point approximately in the center of the vehicle, as low as possible on the front windshield without obstructing the unit’s view of the road, either to the front or rear. You can also mount it directly on the dashboard.

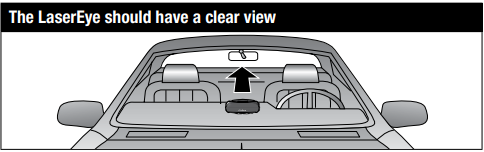

• The unit’s lens must not be blocked, and the LaserEye should have a clear view out the back window to allow maximum detection.
• Radar and laser signals pass through glass but not through other materials and objects. Objects that can block or weaken incoming signals include:
• Windshield wiper blades, Mirrored sunscreens, Dark tinting at the top of the windshield
• Heated windshields are currently available on some vehicles (Instaclear for Ford, Electriclear for GM). Consult your dealer to see if you have this option.

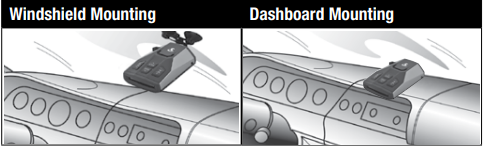

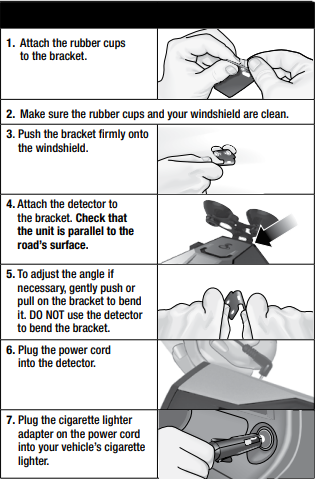

Windshield mounting

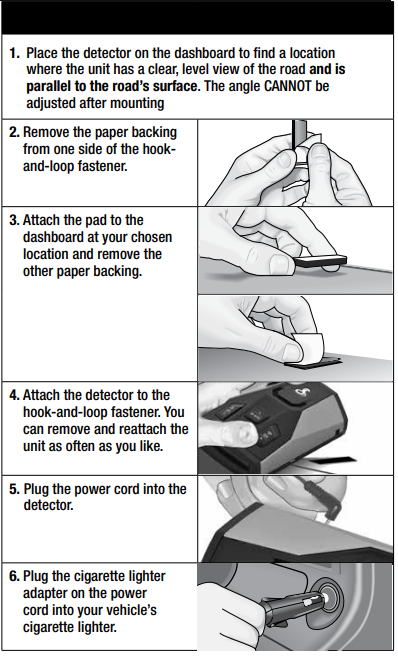

Dashboard Mounting

Getting Started

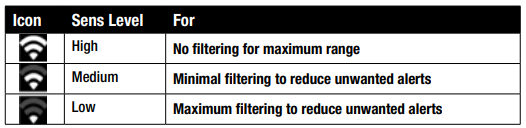

Sen Button

• Setting your detector to Low or Medium sensitivity delays the audio alerts for weak X-band and K-band signals until they become stronger.
• Also, additional filtering is done to reduce false alerts while you are driving in or near urban areas where there are many sources for conflicting X and K band signals, such as microwave towers and automatic door openers.

Premium Anti-Falsing Circuitry

• Adjustable Sensitivity: High/Medium/Low modes allow the driver to adjust sensitivity to the driving environment, reducing false alarms from fixed-position sources such as automatic door openers.
• IVT Filter, an updatable system, automatically reduces false alerts from moving In-Vehicle Technology sources such as collision avoidance systems and adaptive cruise control.

Mute Button

• Your detector allows you to quickly turn OFF an audio alert by momentarily pressing the MUTE button.
• If you press the MUTE button a second time during the alert, the audio alert will be turned back ON.
• When an alert is muted, the audio icon on the display will change.
• Quiet Drive is a muted driving mode for times when a driver wants less audible feedback while talking with passengers, on the phone, etc.
• Only the first few seconds of audio will be heard. This mode is off by default.
• This mode can be changed in the User Settings menu or by pressing and holding the MUTE button for two seconds.
• When Quiet Drive is on, the audio icon on the display will change.

Battery Voltage

• To display your vehicle’s battery voltage, press the MUTE button while no signal is being detected.

Dim Button

• You can choose from four settings for the brightness of the display. Repeatedly push the DIM button to cycle through the settings. The factory setting is Bright.

Menu Button

• To change the User settings, enter the Menu by pressing the MENU button. A voice
  announces “Menu,” and the display will change to

The value that is shown on the display is the selected value. To exit the menu, simply wait several seconds or select Exit Menu.

• Detail More*/Less
• Quiet Drive Off*/On
• Auto Mute Off/On*
• Voice Off/On*
• Language English*/Spanish
• IntelliMute Off*/On/Set
• Screen Saver Off/1 Minute*/3 Minute
• Low V. Warning Off*/On
• Smart Power Off*/On
• System Info: Press the SEN button to display system information.
• Restore Defaults Press the SEN button to restore factory default settings, then press the SEN button again to confirm.
• Exit Menu: Press the MUTE button to exit the menu.

Menu – Alert Settings

• A voice announces “Menu,” and the display will change to Press the SEN button to enter the Alert settings menu. Press the MUTE or MENU buttons to switch between the Alert settings.
• Press the DIM or SEN buttons to change the selected Alert setting’s value. The value that is shown on the display is the selected value. To exit the menu, simply wait several seconds or select Exit Menu.

Menu – Radar Settings

• RADAR SETTING VALUE
• X Band Off/On*
• K Band Off/On*
• Ka Band Off/On*
• VG-2 Off*/On
• Spectre Off*/On
• Exit Menu: Press the MUTE button to exit the menu.

Detail

• In the More detail mode, information about the radar band, signal strength, and frequency will be displayed. In Less detail mode, only the threat level is displayed (see page 10).

AutoMute

• AutoMute will automatically reduce the audio volume of all alerts after four seconds for as long as the signal is detected. The factory setting for AutoMute is On.

Language

• The detector can be set to either English or Spanish for all text and voice audio.

IntelliMute

• INTELLIMUTE allows you to avoid alerts you don’t need to hear because you are stopped or moving slowly.
• By sensing the “revs” (RPMs) of your engine, INTELLIMUTE knows when you are at low speed and automatically mutes alerts (except for strobe signals from emergency vehicles).
• Before INTELLIMUTE will work, you must set an activation point for your engine’s revs. Whenever the revs are below that point, INTELLIMUTE will begin muting.
• The activation point will be stored in memory and recalled each time the power is turned on. The factory setting is INTELLIMUTE Off.

Screen Saver

• Your detector has a SCREEN SAVER mode. When the SCREEN SAVER is turned on (factory default is 3 minutes).
• The screen will change to Dark from its Bright, Dim, or Dimmer setting after the time interval selected. While the screen is Dark, the scanner will be displayed dimly.

Smart Power

• Your detector includes the SMARTPOWER feature that, when turned on, will put the unit into Low Power mode 15 minutes after the car’s engine has been turned off.
• Before SMARTPOWER enters Low Power mode, you will hear three beeps, and SMARTPOWER will flash on the display.
• To return the unit to Normal Power mode and exit Low Power mode, start the car, press any button, or turn the unit off and then on again.

Low Car Voltage

• Displays your car battery voltage and automatically warns you if this drops below 11.9V. Your detector will then shut off to prevent further draining of your car battery.

System Info

• Displays information about the versions of software/firmware that are installed on your detector.

Restore Defaults

• To return your detector to factory default settings, press the SEN Button. Press the SEN Button again to confirm that you want to restore factory settings. Press the MUTE Button to exit.

Settings and Detection

Radar Alerts

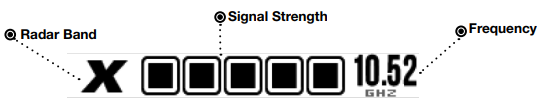

• In More detail mode, the radar band, signal strength, and frequency of the detected radar signal will be displayed.
• If you are a new user of radar detectors, you may want to use the Less detailed mode.

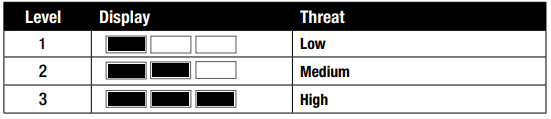

• In this mode, the display will only show one, two, or three Cobra RAD450 Radar Laser Protection bars, which indicate how likely the alert is to be a police radar or laser gun.
• This threat level indication takes into account the laser or radar band, strength, and frequency of the detected signal.

Laser Alerts

• With Laser signals, you will always receive a full-strength alert.
• In More Detail mode, the word Laser will be shown on the display along with the pulse rate of the Laser signal. In Less Detail mode, three signal strength bars will be shown.

Responding to Alerts

Firmware Update

• To update the firmware of your RAD450, use a micro-USB data transfer cable to connect the detector to a Windows-based computer.
• You do not need to connect the detector’s power cord to update the firmware.
• With the detector connected to your Cobra RAD450 Radar Laser Protection computer, you should see “Download” on the detector’s display.

Understanding

• X band 10.525 GHz
• K band 24.150 GHz
• Ka band 33.400 – 36.00 GHz

VG-2

• VG-2 is a “detector detector” that works by detecting low-level signals emitted by most radar detectors.
• Your detector does not emit signals that can be detected by VG-2, but it does detect VG-2 signals and will alert you when a device is in use near your vehicle.
• While no signal is being detected, press and hold the Dim button for four seconds.
• Your detector can be spotted by Spectre IV+ RDDs, but is invisible to VG-2 andSpectre I RDDs.
• You can choose whether you want to be alerted to VG-2 and Spectre I & IV+ RDD signals.
• The factory setting for VG-2 and Spectre I & IV+ alerts is Off.
• It is recommended to leave these off unless you are concerned about being monitored for having a radar detector. The factory setting for VG-2 alerts is Off.

LIDAR (Laser)

• The correct name for the technology that most people refer to as laser is LIDAR, which stands for Light Detection and Ranging.
• LIDAR operates much like radar. Its signal spreads out like a radar signal, though not as widely. Unlike radar, LIDAR must have a clear line of sight to its target vehicle throughout the entire measurement interval.
• Obstructions such as signposts, utility poles, tree branches, etc., will prevent valid speed measurement.

Specifications

Band and Frequencies

• X Band 10.525 ± 0.050 GHz
• K Band 24.125 ± 0.125 GHz
• Ka Band 34.700 ± 1.300 GHz
• Laser 910 ± 50 nm 100 PPS
• VG-2 11.500 ± 0.250 GHz

Maintenance

If your unit does not appear to be operating properly, please follow these troubleshooting steps.

• Make sure the socket of your vehicle’s cigarette lighter is clean and free of corrosion.

Limited 1-Year Warranty

Cobra Electronics Corporation warrants that this product and the parts thereof will be free of defects in workmanship and materials for one year from the date of first consumer purchase.

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state and country to country.

Cobra shall not be liable for any incidental, consequential, or other damages, including, without limitation, damages resulting from loss of use or cost of installation. Some states and countries do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and country to country.

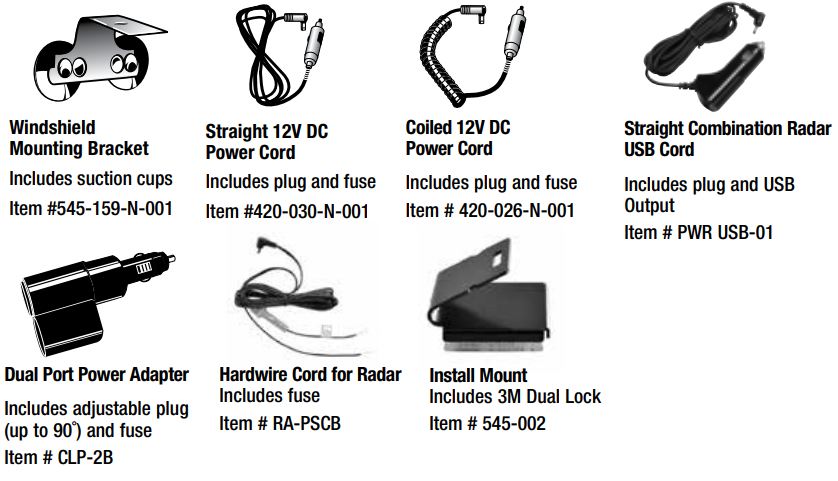

Optional Accessories

You can find quality Cobra products and accessories at your local Cobra dealer,
or in the U.S.A., you can order directly from Cobra at www.cobra.com

FCC Statement

This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions.

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
Interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

Customer Service

• Website: www.cobra.com/support
• Tel: 1-773-889-3087

FAQs

Q: Does the RAD450 detect all types of radar bands?
Ans: Indeed, it can identify laser (LIDAR) signals as well as typical radar frequencies, including the X, K, and Ka bands.

Q: How does the RAD450 alert me to radar or laser signals?
Ans: It informs you of the existence and intensity of radar and laser signals in the area with visual alerts on the screen and audio alarms.

Q: Is the RAD450 compatible with GPS or smartphone integration?
Ans: No, neither GPS nor smartphone connectivity is available on the RAD450.

Q: How do I adjust the volume or alert settings?
Ans: Use the buttons on the unit to navigate the menu and adjust volume levels, mute alerts, or change sensitivity modes (e.g., city or highway mode).

Q: What is the difference between city mode and highway mode?
Ans: While highway mode boosts sensitivity for improved detection of far-off radar signals, city mode lowers sensitivity to minimise false alarms in urban areas.
