INTENDED USE

The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a
healthier and better-looking lawn than ever before. Depending on the size of your lawn, your mower may be programmed to operate at any time or frequency. It is impossible for digging, sweeping, or snow cleaning.

Hereby, Kutting Technology (Suzhou) Co., Ltd. declares that the radio equipment model Dreame MXXA8210 complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com/pages/declaration-of-conformity.

The product complies with UK PSTI regulations; the full text of the declaration of conformity is available
at the following internet address: https://global.dreametech.com/pages/statement-of-compliance-for-ukpsti. For the detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs.

What’s in the Box

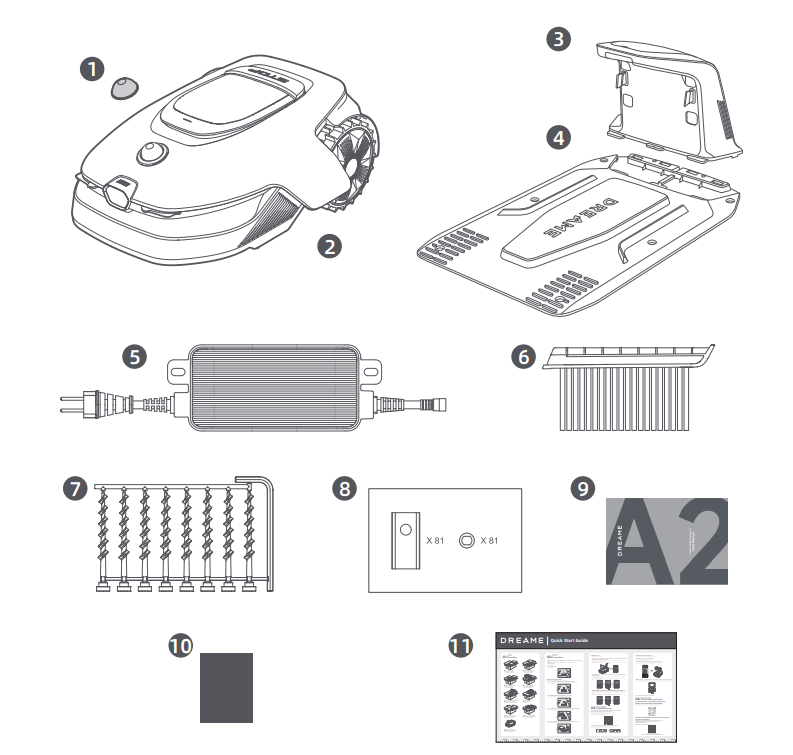

1. LiDAR protective cover
2. The robot
3. Charging tower (with a 10 m extension cable)
4. Baseplate
5. Power supply
6. Cleaning brush
7. Screws ×
8. Hex key 8 Spare blades and holders × 81
9. User manual
10. Lint-free cloth
11. Quick start guide

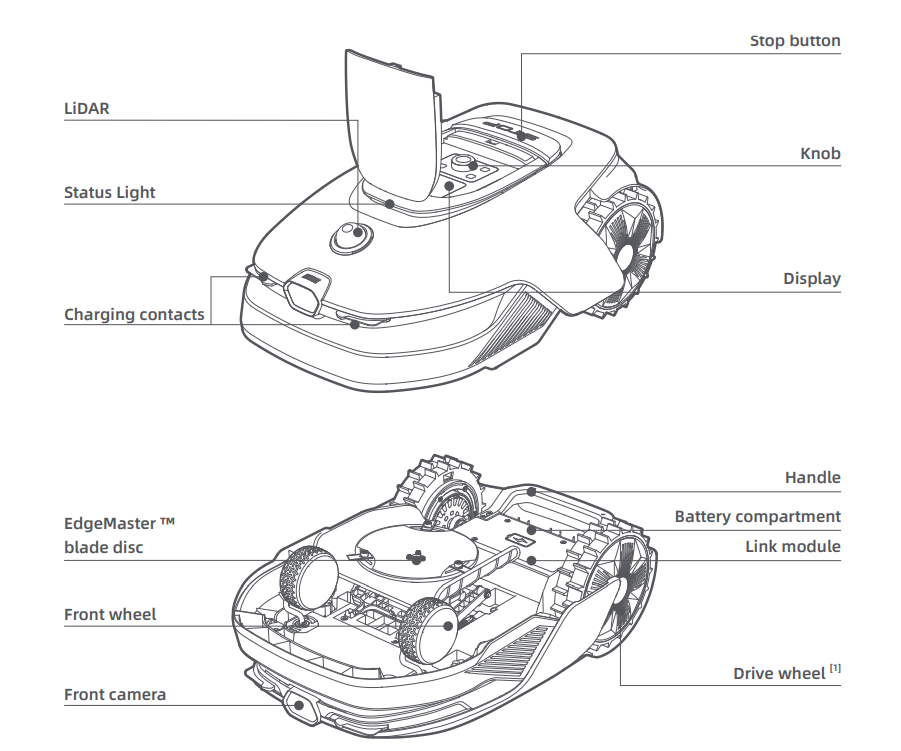

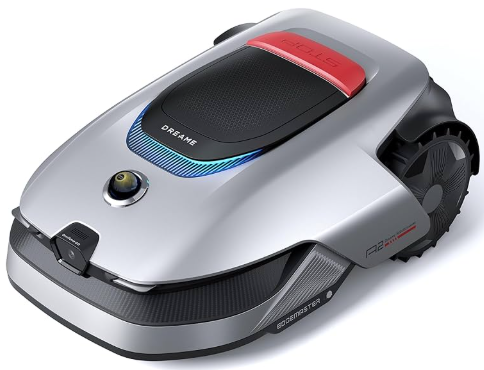

Product Overview

Equipped with hub motors.

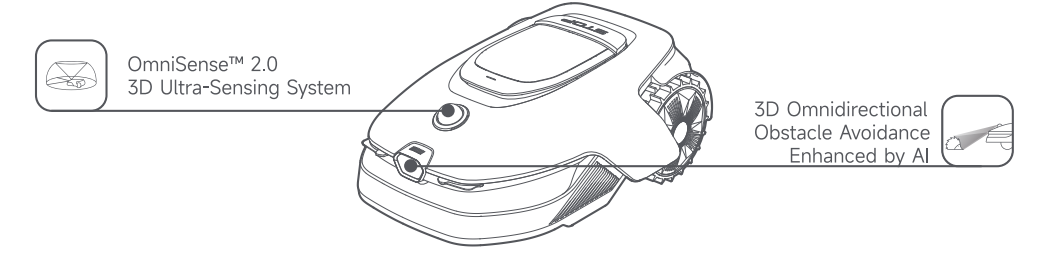

OmniSense ™ 2.0: 3D Ultra-Sensing System with AI Camera

Elevate lawn care to the next level with OmniSense ™ 2.0, a groundbreaking 3D ultra-sensing system equipped with an algorithm-assisted HDR camera, providing a more comprehensive and detailed perception of the garden’s 3D environment.

Link Module with GPS and 4G Connectivity

The robot is equipped with a Link Module that provides the Link Service, offering 4G cellular network

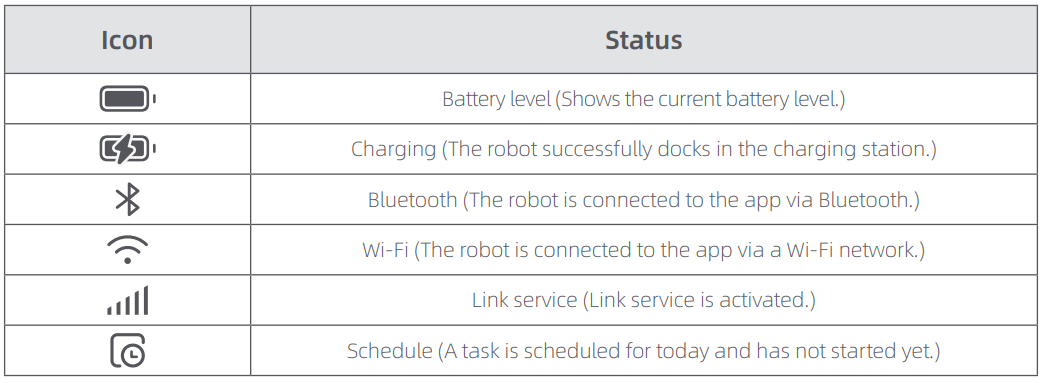

connectivity. Power on your robot, and the Link Service will activate automatically. It will light up on the robot’s display and in the app, indicating that activation is successful. You can view the usage status of the Link Module and Link Service under Connections in the app.

With the Link Service activated, you can remotely monitor your robot’s status and initiate mowing tasks without a Wi-Fi connection. Additionally, the module includes a built-in GPS for real-time location tracking, enhancing the robot’s anti-theft capabilities. You can track its location at any time, from anywhere, and receive notifications if it moves outside the designated map area. Link Service is offered free of charge for the first three years starting from the time of activation.

Remove the Link Module

1. Turn off the robot.
2. Place the robot on a soft surface and turn it upside down.

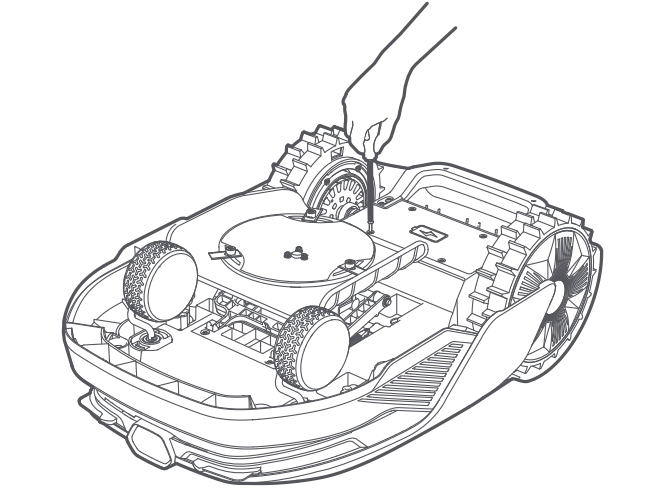

3. Loosen 4 screws to remove the cover using a screwdriver.

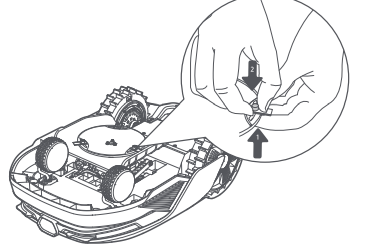

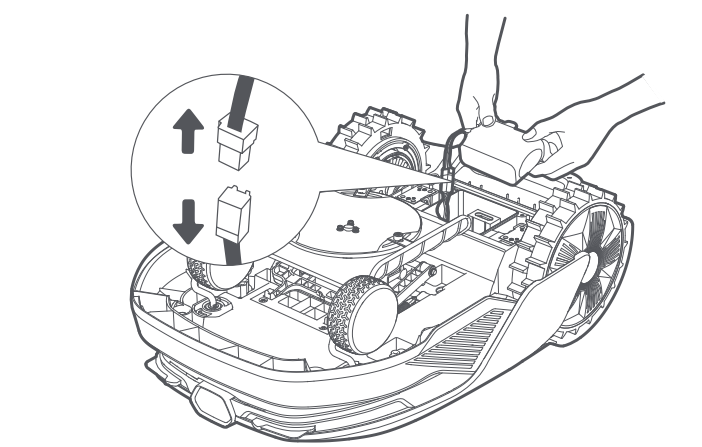

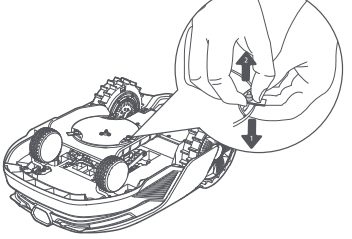

4. Take out the battery, and disconnect the battery connector.

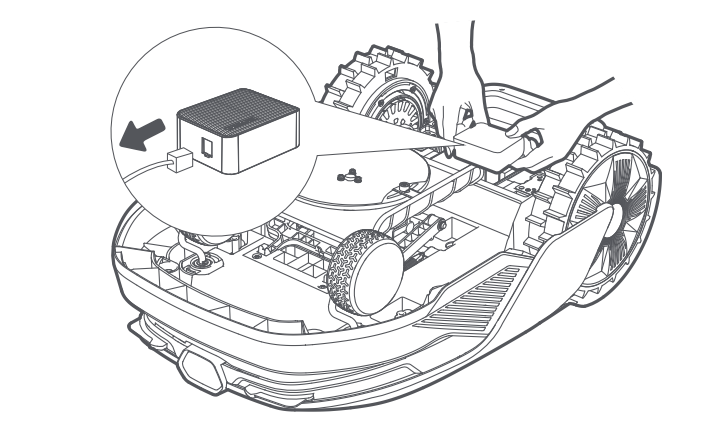

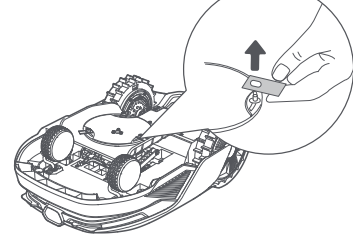

5. Disconnect the module connector and carefully remove the Link Module from its slot.

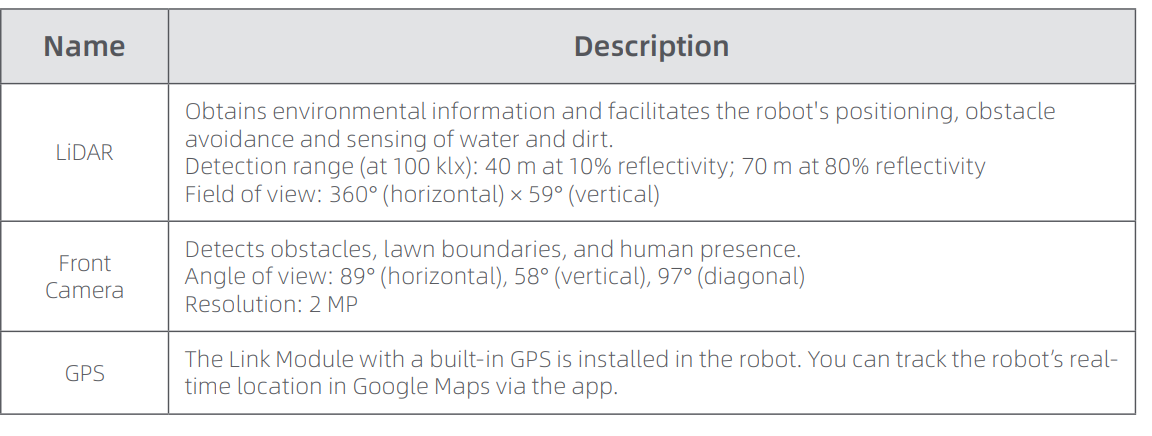

Sensors

Installation

Select a Suitable Location

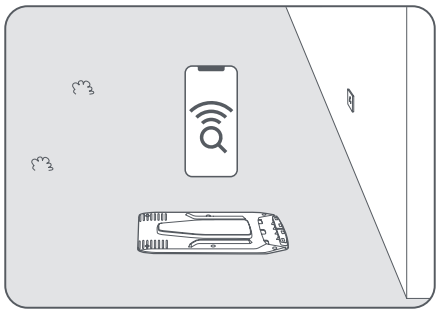

• Place the charging station on a level surface near the edge of the lawn and a power outlet. Place it in an area with a strong Wi-Fi signal. Note: Use your mobile device to help check the Wi-Fi signal strength of the location. A strong Wi-Fi signal ensures a stable connection between the robot and the app.

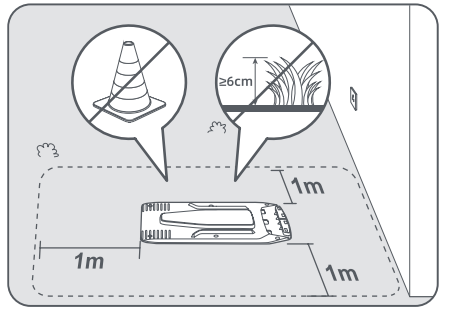

• Keep at least 1 m of free space with no obstacles to the left, right, and in front of the charging station. Make sure that the grass around the location is shorter than 6 cm. If the grass is taller, please mow it with a push mower first. Tall grass may make it difficult for the robot to return to the charging station.

Install the Charging Station

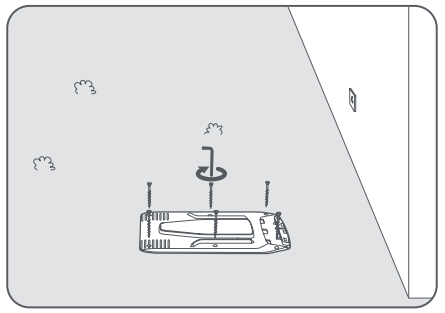

1. Secure the baseplate to the ground with the supplied screws and hex key

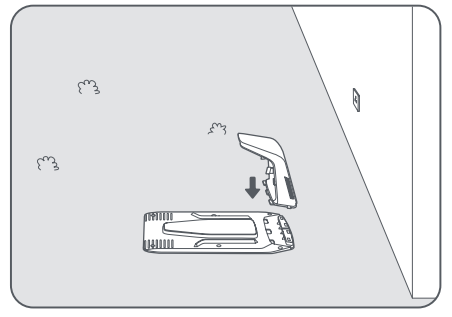

2. Insert the charging tower into the baseplate until you hear a click.

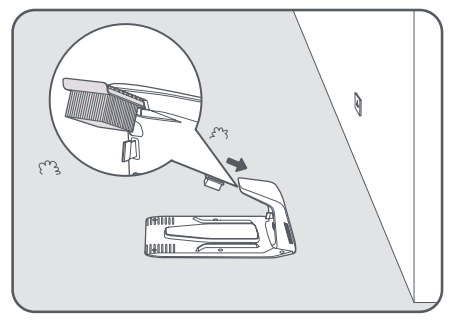

3.  Insert the cleaning brush into the charging tower by aligning the tab with the slot.

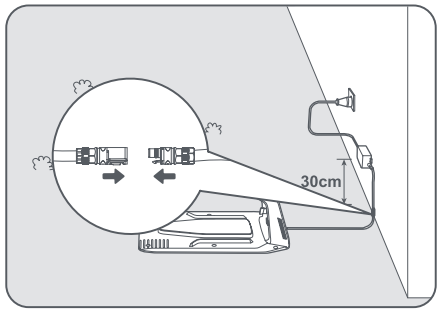

4. Connect the power supply to the extension cable and then connect it to a power outlet. Please keep the power supply at least 30 cm above the ground. Note: The LED indicator on the charging station will be constantly blue when there is power.

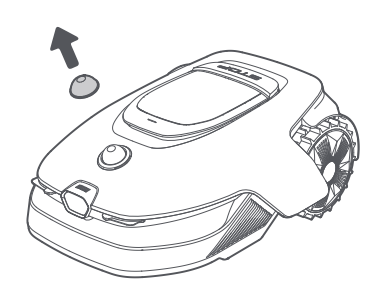

5. Remove the LiDAR protective cover.

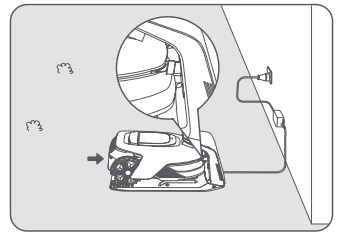

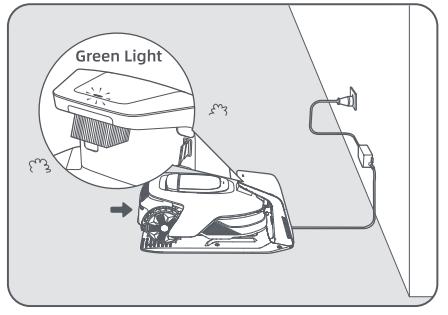

6. Put the robot in the charging station to charge. Make sure the charging contacts on the robot and the charging station are connected correctly.
   Note: The indicator light will blink green when the robot is charging successfully in the charging station. Note: If you’re looking to add a garage for extra protection, please use the matching Dreame Garage available at local stores or online. Using a non-Dreame garage may cause issues during recharging.

LED Indicator on the Charging Station

Preparation for First Use

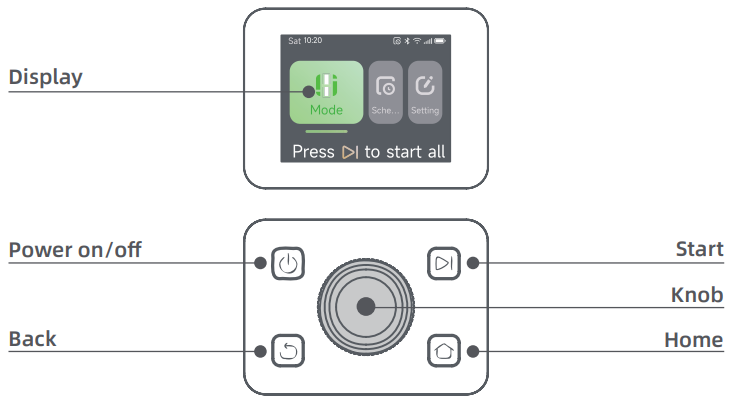

Get Familiar with the Control Panel

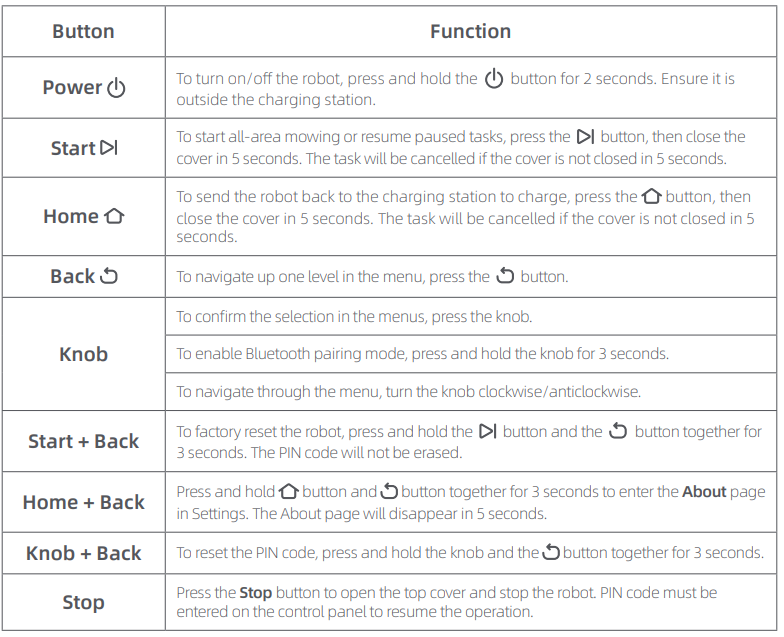

Controls

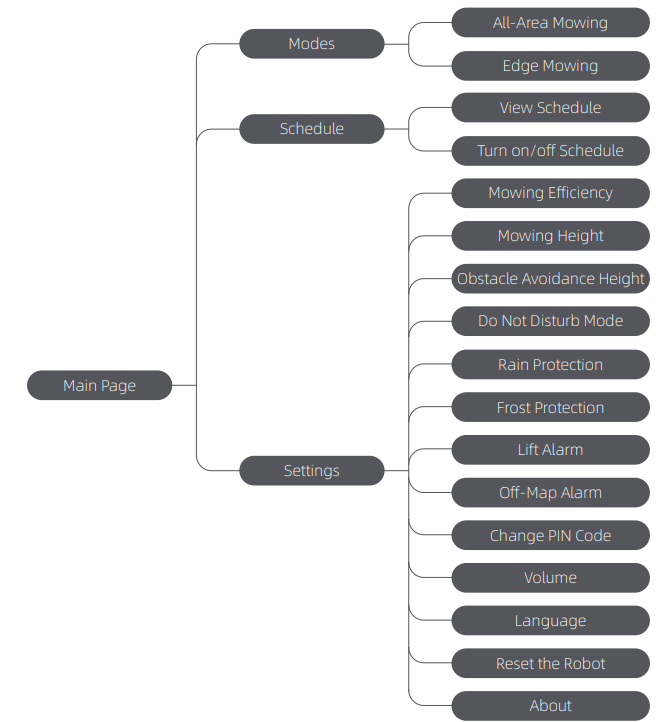

Menu Structure Overview

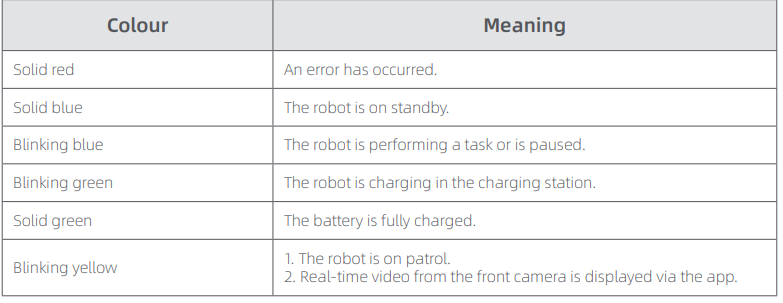

Status Light on the Robot

Initial Settings

Before turning the robot on for the first time, there are some basic settings to do before the robot is ready to
start working.

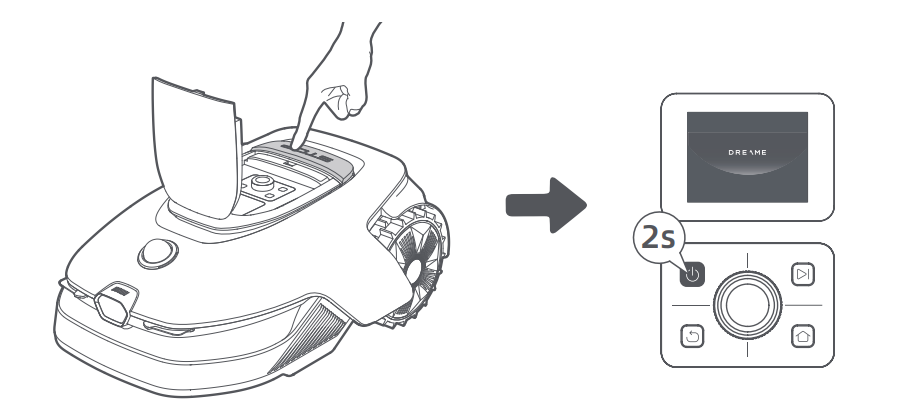

1. Press the Stop button to open the top cover
2. Press and hold the button on the control panel for 2 seconds to turn on the robot.

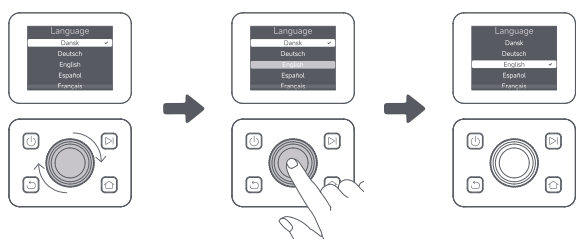

3. Select the Language You Prefer. Turn the knob clockwise to go down and anticlockwise to go up to select your language. Press the knob to confirm.

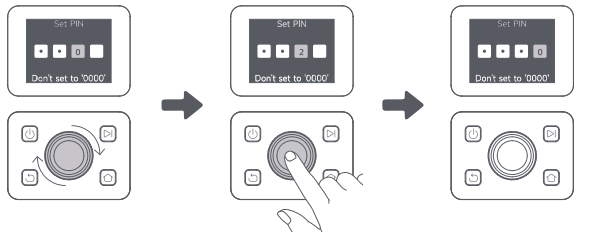

4. Set PIN code: Turn the knob to select a number from 0 to 9. Turn clockwise to increase the number and anticlockwise to decrease it. Press the knob to confirm and set the next digit. To modify the previous digit, turn the knob anticlockwise until the number becomes 0 and keep turning it one more time. Important: Please do not set the PIN code to “0000”.Enter the PIN code again to complete setting the PIN code.

Before network setup

• Make sure the robot and your mobile device are on the same Wi-Fi network.
• Make sure that your mobile device is within 10 m of the robot.
• Enable Bluetooth function on your mobile device.
• Open the Dreamehome app.

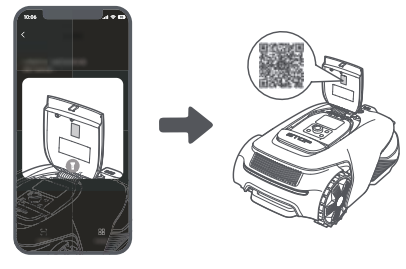

• You can connect via one of the following methods: a. Scan the QR Code: Go to Device and tap Scan QR code to connect. Scan the QR code located inside the robot’s top cover to connect. b. Add Manually: Go to Device and tap Add. Then select your robot model to connect. c. Automatic discovery: The robot will search for nearby devices. Tap your robot from the list of discovered devices to connect.

Follow the in-app instructions to complete the Wi-Fi network connection. Important: Please use a single-band network of 2.4 GHz frequency or a dual-band network of 2.4/5 GHz frequency. Important: Make sure your Wi-Fi network doesn’t have a firewall and isn’t encrypted. Otherwise, the network setup may fail. Press and hold the knob on the control panel for 3 seconds. The robot will enter Bluetooth pairing mode.

Follow the in-app instructions to complete the pairing.

How to unbind the robot?

The robot is automatically bound to the Dreamehome account once pairing is successful. Each device can only be bound to one account. It cannot be bound to another account at the same time. To pair the robot with a new account, you need to unbind it first. To unbind it: Open the Dreamehome app. Go to Device. If you have multiple robots bound to your Dreamehome account, swipe left or right to access the page of
the robot you want to edit. Tap in the upper right corner.  Select Delete.

Map Your Garden

Before mapping, please check the following:

• The battery level of the robot is more than 50%.
• The protective cover of the LiDAR is removed
• The top cover is closed.
• The robot correctly docks in the charging station.

Create the Virtual Boundary

• The robot can navigate slopes with an incline up to 50% (27° ). However, for better mowing results, it is
  recommended to keep the slopes of work areas below 25% (14° ).

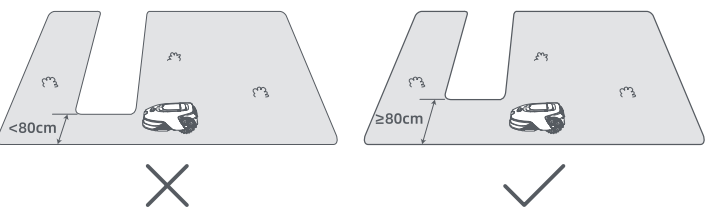

• For areas narrower than 80 cm, please set them as paths to allow the robot to pass through (see section 5.4: Set Path).

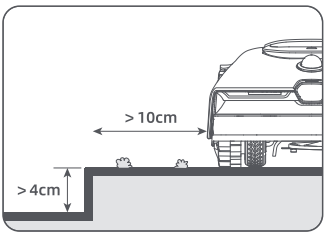

• If your lawn is more than 4 cm higher than the adjacent ground, keep the robot at least 10 cm away from the edge. If your lawn is level with the adjacent ground, the robot can cross the perimeter for optimal mowing results along the edges.

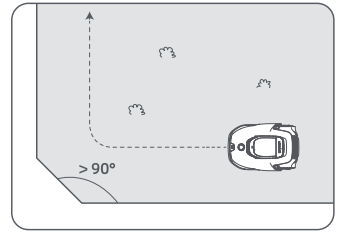

• Make sure the turning angles are greater than 90°. Angles smaller than 90° can make it difficult for the robot to achieve a clean cut.

Start Mapping

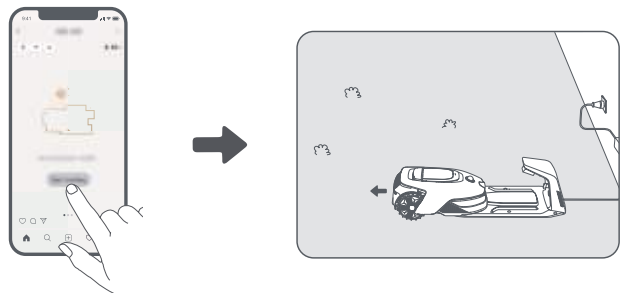

Tap Start Creating via the app, and the robot will check its status DREAME Roboticmower A2 Car Boundary Device and calibrate. It will automatically leave
the charging station to do the calibration. Please be careful.

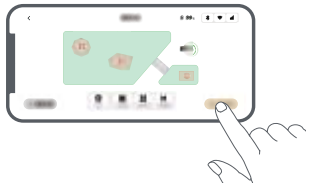

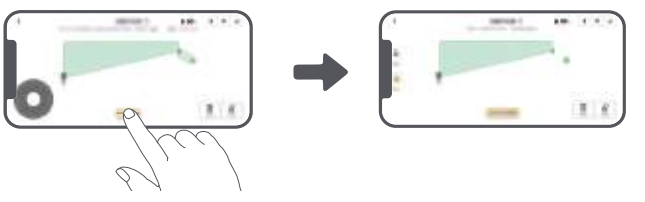

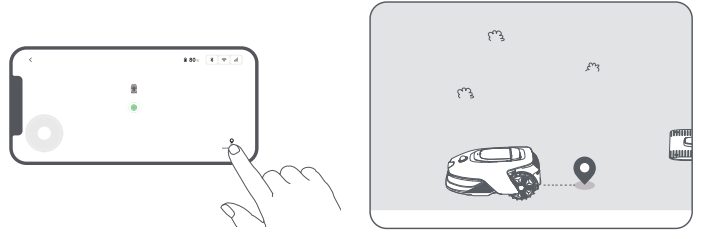

Guide the robot remotely to the edge of your lawn and tap Set Starting Point to establish the starting
point for the boundary.

Auto Boundary Detection

Powered by an advanced AI algorithm, the robot uses its front camera to detect grass and non-grass areas,
allowing it to identify boundaries without the need for manual guidance. After guiding the robot remotely to the lawn edge and setting the starting point, you can use Auto

Boundary Detection mode. You can choose whether the robot should cross the perimeter for cleaner edge cutting results or stay close to it to avoid getting stuck.

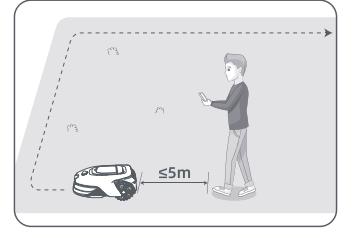

We recommend following the robot during this process. If the robot fails to accurately detect the boundaries, you can exit Auto Boundary Detection mode and switch to remote control at any time.

When the robot returns to within 1 m of the starting point, you can tap Close Boundary, and the boundary
will automatically be completed.

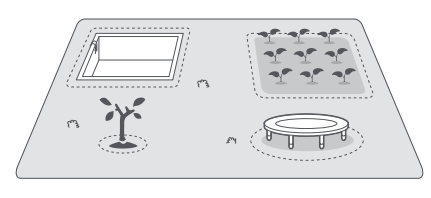

Set No-Go Zone

Though the robot can automatically avoid obstacles, it is still necessary to set areas with a risk of falling,
such as swimming pools and sandpits, as no-go zones. For DREAME Roboticmower A2 Car Boundary Device objects you want to protect (such as a flowerbed, a trampoline, a vegetable patch, or an exposed tree root), please set them as no-go zones. You can tap the ogo zone in the app to continue creating no-go zones. Alternatively, you can go to > Map Editing to create or delete the no-go zones after the map is finished.

To Create More Zones

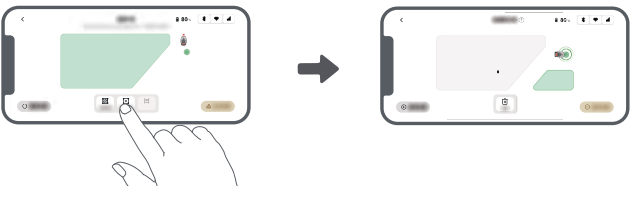

If your lawn is separated by roads or you have several isolated lawns, you can tap Work zone in the app to
continue creating work areas. You can also add, delete, or modify the zones in > Map Editing when the
map is finished.

To Expand Existing Zones

To expand an existing zone, tap Work zone in the app to create the area you want to include. If the two
areas overlap, they will be automatically merged. Alternatively, you can go to > Map Editing > Work
zone after mapping is complete to expand an existing zone.

Maintenance

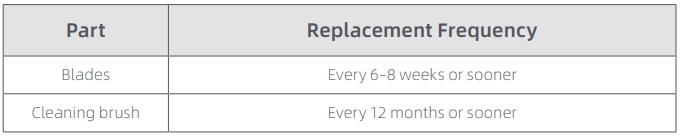

For better performance and lifespan of the robot, please clean it regularly and replace worn parts according to the frequency below:

Cleaning

Regularly clean your robot to prevent grass clippings and dirt DREAME Roboticmower A2 Car Boundary Device from accumulating and clogging the blade disc and drive wheels, which can affect its mowing, docking, and movement performance. We recommend
using a cleaning kit, available at local stores or online.

• The Housing, Chassis, and Blade Disc: Turn the robot off.
• Cover the LiDAR with its protective cover.
• Turn the robot upside down.

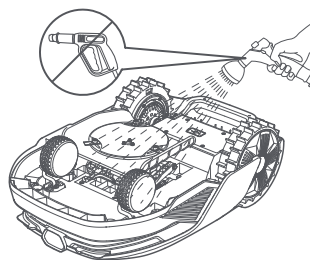

• Clean the housing, blade disc, and chassis with a hose.

Use a lint-free cloth to carefully clean the LiDAR sensor

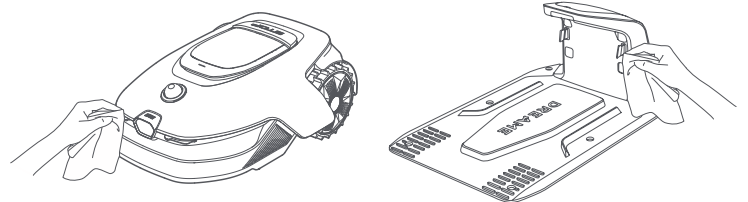

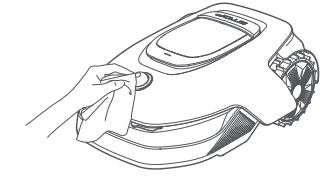

• Charging Contacts and Front Camera: Use a clean cloth to wipe the charging contacts on the robot and the charging station, and also clean the front camera. Keep the charging contacts and the front camera dry after cleaning.

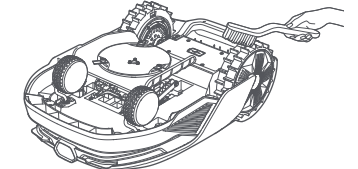

• Drive Wheels: Use a brush to remove mud from the wheels to ensure good grip.

Replacing the Components

• Replacing the blades. To keep the blades sharp, please replace them regularly. It is recommended to replace the blades every 6–8 weeks or sooner. Please DREAME Roboticmower A2 Car Boundary Device only use the Dreame genuine blades. Warning： Please turn off the robot. Wear protective gloves before replacing the blades. Note: Please replace all three blades at the same time to ensure a balanced cutting system. Turn off the robot.

Cover the LiDAR with its protective cover.

Put the robot on a soft surface and turn it upside down.

Remove the blade by aligning the hole of the blade with the shaft.

Press the button under the blade disc and align the hole of the holder with the shaft to fasten the holders and the blades.

Remove the holder by pressing the button under the blade disc.

Remove 3 blades and holders.

Make sure the blades can rotate freely.

Battery

For long-term storage, charge the robot every 6 months to protect the battery. Battery damage caused by
Over-discharge is not covered by the limited warranty. Do DREAME Roboticmower A2 Car Boundary Device not charge the battery at an ambient temperature above 45° C or below 6° C. The long-term storage temperature for the battery should be between -10 and 35° C. To minimize the damage, the recommended storage temperature for the battery is between 0 and 25° C. Note: The lifespan of the robot’s battery depends on the frequency of usage and hours of operation. If the battery is damaged or cannot be charged, do not dispose of the obsolete or faulty battery arbitrarily. Please obey local recycling regulations.

Low-Power Charging Mode

When the low-power charging mode is activated, functions unrelated to charging will be disabled (the display and network will be turned off).

• To enable low-power charging mode, press and hold the button and the button simultaneously, and press the button 5 times quickly at the same time. You will hear a voice prompt: Low-power charging mode is on.
• To disable low-power charging mode, restart the robot or press the button 5 times quickly

Storage

1. Charge the battery fully before turning the robot off.
2. Clean the robot thoroughly before putting it into storage in winter.
3. Put on the LiDAR protective cover.
4. Store the robot inside in a dry place, at a temperature above 0° C.

Charging Station
Unplug the charging station and store it in a dry and cool place, away from direct sunlight.

Transport

For long-distance transport, ensure that the robot is turned off. It is recommended to use the original packaging. Please put on the LiDAR protective cover.

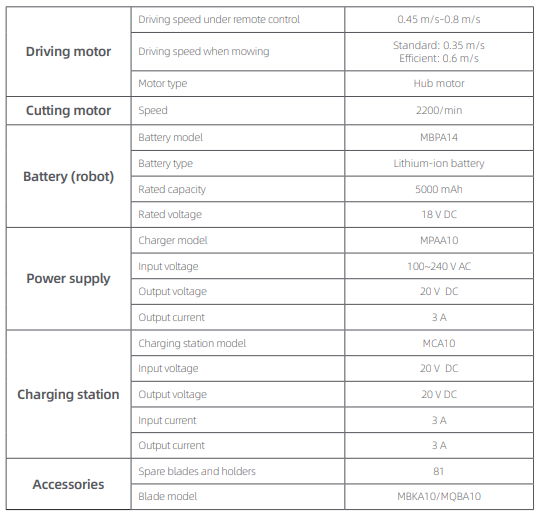

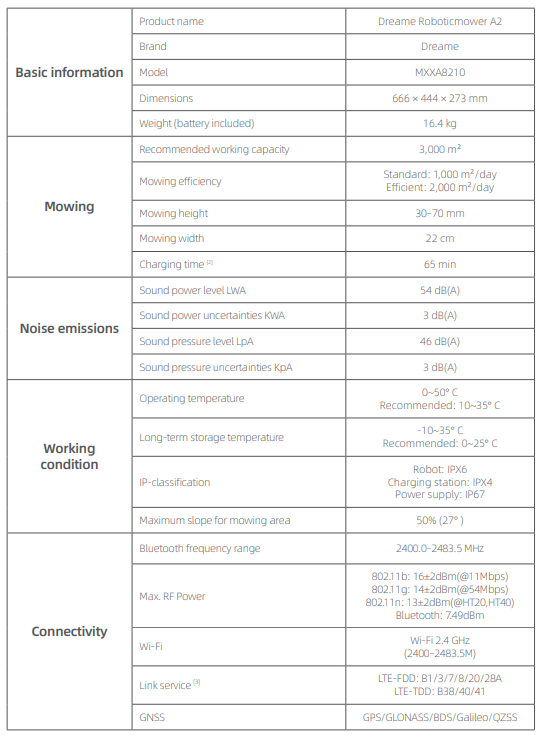

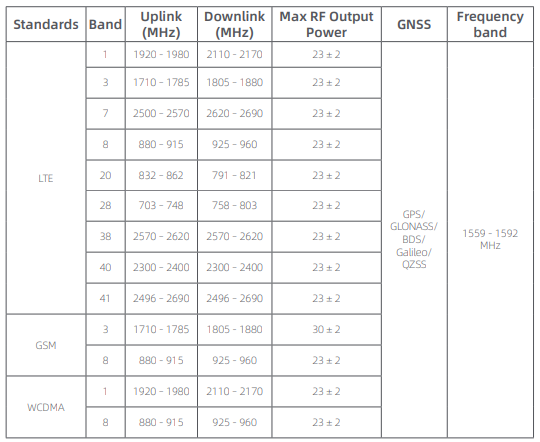

Specifications

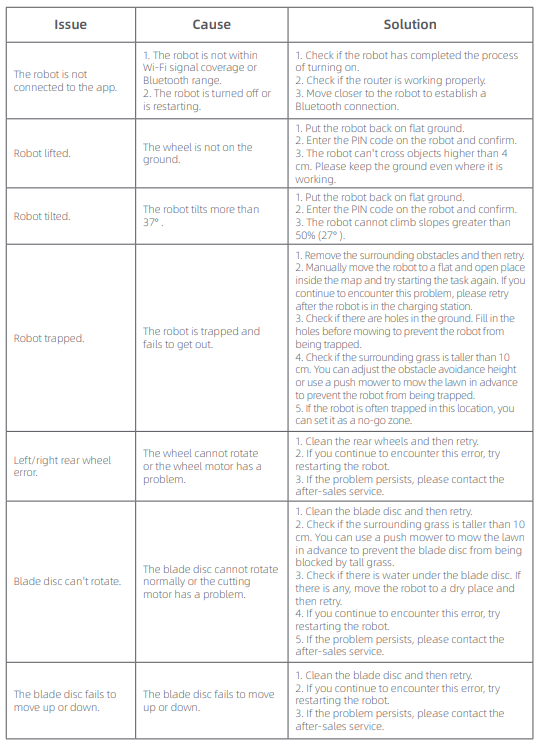

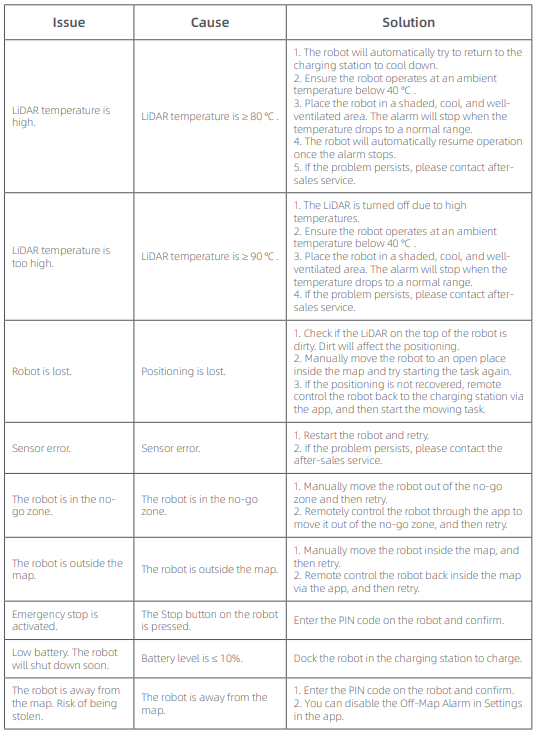

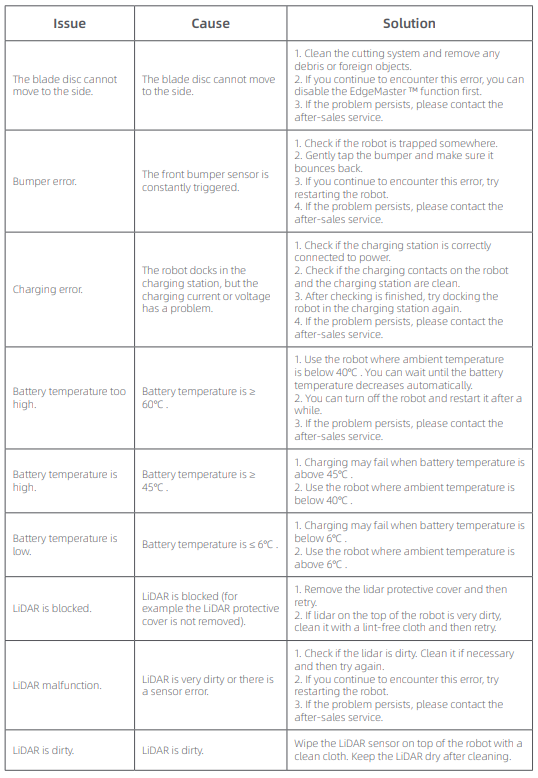

Troubleshooting

Customer Service

• Tel: +1 (866) 977-5177
• Website: dreame.support@supernovabrands.co
