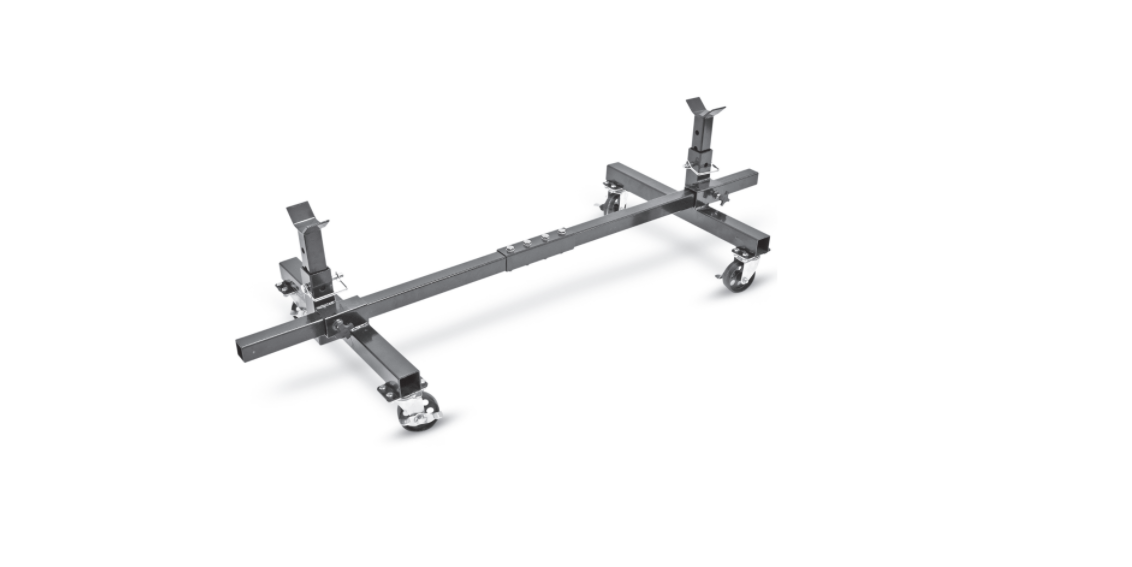

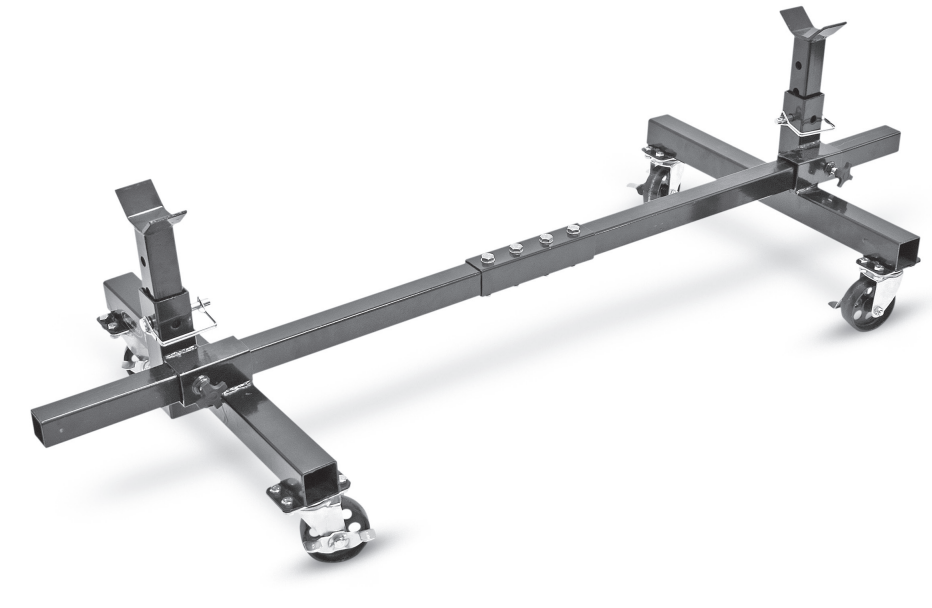

EASTWOOD 54289 Solid Axle And Frame Dolly
Safety Instructions
- DO NOT attempt to move the Solid Axle and Frame Dolly on sloped surfaces while loaded.
- DO NOT use where a large concentration of weight extends beyond the Caster footprint. This can cause the balance to shift suddenly, tipping the Solid Axle and Frame Dolly and its load, which can quickly cause severe injury! Any uneven weight bias of the load MUST be known before attempting to place it on the Solid Axle and Frame Dolly.
- DO NOT exceed the rated 1500lb [680kg].weight capacity.
- DO NOT use tit o support humans or animals.
- DO NOT sit, stand, or ride on the Eastwood Solid Axle and Frame Dolly.
- Use only on a firm, smooth, level, and clean work surface. DO NOT use on a sloped or rough textured surface, earth, grass, sand, gravel, or any other loose surface.
- DO NOT attempt to raise or lower the Support Cradles while the Solid Axle and Frame Dolly is supporting a load.
- Use only for the intended purpose of supporting or storing a solid axle assembly, suspension assembly, or a stripped vehicle frame.
- DO NOT attempt to transport this Solid Axle and Frame Dolly with a load attached by any hauling method.
- DO NOT use with lifting devices and/or chains, cables, or ropes that are frayed, twisted, kinked or otherwise damaged.
- DO NOT remove or cover any of the factory-supplied labels or warnings! They include specific safety information that must be communicated to future users.

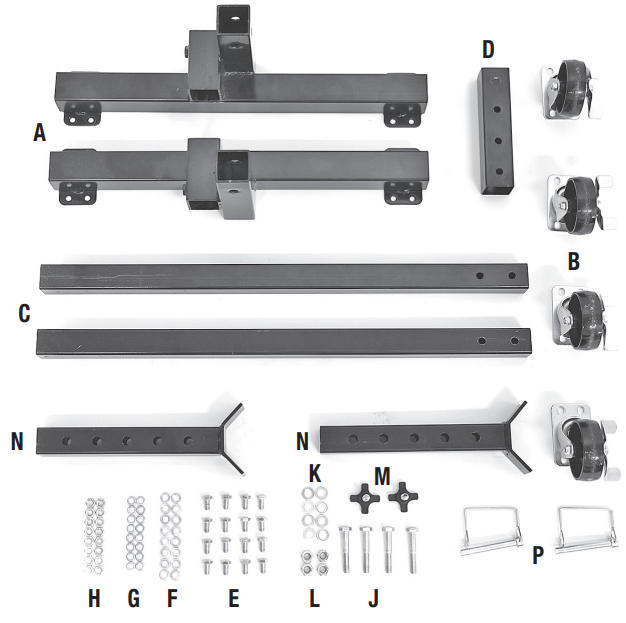

Content
- (2) End Frame Assemblies – [A]
- (4) Locking Swivel Casters – [B]
- (2) Long Frame Tubes – [C]
- (1) Short Connector Tube – [D]
- (16) M8 x 16mm Hex Bolts – [E]
- (16) M8 Washers – [F]
- (16) M8 Lock Washers – [G]
- (16) M8 Nuts – [H]
- (4) M10 x 60mm Hex Bolts – [J]
- (8) M10 Washers – [K]
- (4) M10 Nuts – [L]
- (2) M10 x 25mm Knob Screws – [M]
- (2) Support Cradles – [N]
- (2) Cradle Support Pins – [P]
Assembly Preparation
- Obtaining the assistance of a helper during assembly is recommended.
- The use of ANSI-approved safety shoes, head protection gear, and eye protection is recommended.
- Wear sturdy work gloves during assembly and use.
Assembly

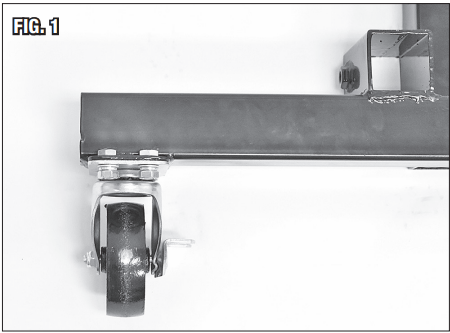

- Attach the Locking Swivel Casters [B] to the square mounting plates of both End Frame Assemblies [A] using the 16 supplied M8 x 16 Hex Bolts [E], Washers [F], Lock washers [G], and Nuts [H] (FIG 1).

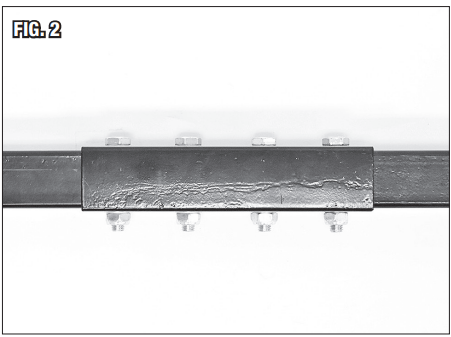

- Slide the two Long Frame Tubes [C] into the Short Connector Tube [D] with all through holes aligned. Secure with four sets of M10 x 6mm Bolts [J], Washers [K], and Nuts [L] (FIG 2).

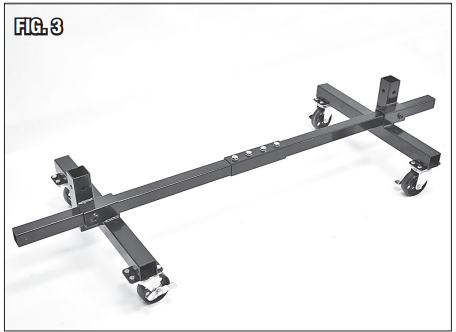

- With the vertical square tubes of the End Frame Assemblies [A] located at the outboard ends, slide the horizontal square tubing over the assembled Frame Tube [C] & [D] (FIG 3).

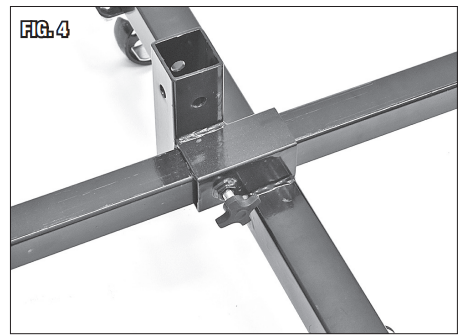

- Thread the M10 x 25mm Knob Screws [M] into the weld-nuts of the End Frame Assemblies and tighten to set the desired span (FIG 4).

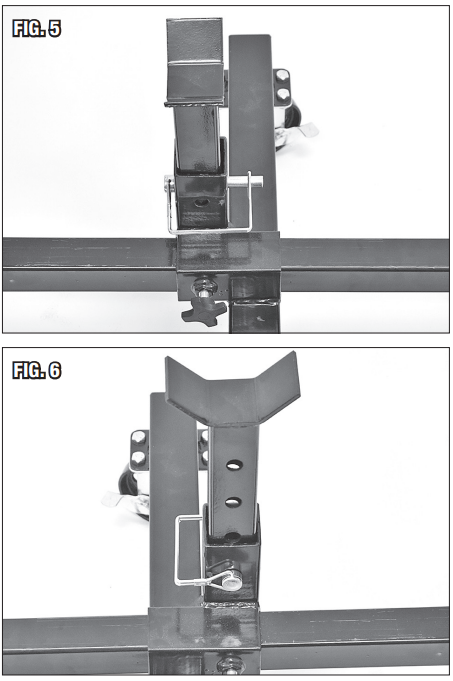

- Select the desired position of the Support Cradles (in-line or 90° to the centerline of the unit), then drop the Support Cradles [N] into the vertical square tubes of the End Frame Assemblies (FIGS 5 & 6).

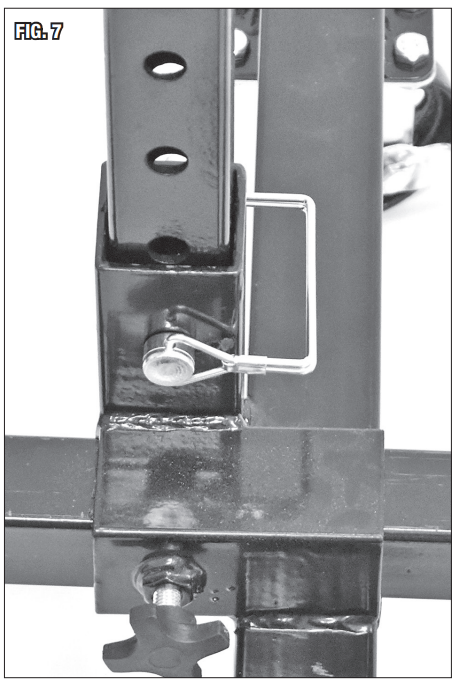

- Select the desired Support Cradle height and insert the Cradle Support Pins [P] into the appropriate through holes (FIG 7).
- The Eastwood Axle Cart is now ready for use.
Maintainance
- Keep all moving components of the Eastwood Solid Axle and Frame Dolly well lubricated and free of dirt or debris accumulations.
- The Eastwood Solid Axle and Frame Dolly is finished in rugged powder coating, which will provide many years of effortless beauty; however, it is advisable to keep the finish clean and free from excessive dust and dirt.
- Keep the Eastwood Solid Axle and Frame Dolly in a clean and dry environment. DO NOT store it in or expose it to an ambient environment.
- Occasionally, inspect all components for potential damage and proper alignment. Check all hardware for tightness.
- DO NOT use if damage is discovered.
Specifications
- Max. Weight Capacity: 1500lb [680kg]
- Overall Clearance Height (Support Cradles at lowest position): 13.4” [340mm]
- Overall Extended Height (Support Cradles at highest position): 20.5” [520mm]
- Overall Extension Range: 13.8” to 57” [350mm – 1450mm]
Customer Support
- Website: https://help.eastwood.com/
- Ph: 1 (800) 343-9353
- Timings: Monday – Friday, 9:00 AM to 6:00 PM.
FAQs
What is the EASTWOOD 54289 Solid Axle and Frame Dolly used for?
During manufacture, maintenance, or restoration, this dolly is made to support and move rolling chassis, solid axles, or vehicle frames. It gives you stability and mobility when working on a project car.
What weight capacity does the dolly support?
When used correctly, the EASTWOOD 54289 dolly can support up to 1,250 lbs (567 kg). Always make sure the load is within this limit and spread evenly.
How difficult is it to assemble the dolly?
Using simple tools (sockets and wrenches), assembly is easy. It takes less than an hour for most users to assemble.
Is it compatible with all axle types and vehicle frames?
It is made to accommodate boxed or ladder-style frames and the majority of solid rear axles. Features that can be adjusted enable customisation for various mounting locations and widths.
Can I use this dolly to support a full vehicle body?
No, the dolly is not designed for fully constructed vehicles or entire vehicle bodywork; rather, it is meant for axles, subframes, and bare frames.
Are the wheels/casters rated for shop floor use?
Indeed, the swivel casters that come with the set are sturdy and made to glide easily on a variety of shop floors, including concrete. During work, locking casters keep the dolly motionless.
Can I use the dolly outdoors or on uneven ground?
It works best inside on hard, level surfaces. To prevent tipping or wheel damage when used outdoors, make sure the ground is level and sturdy.
