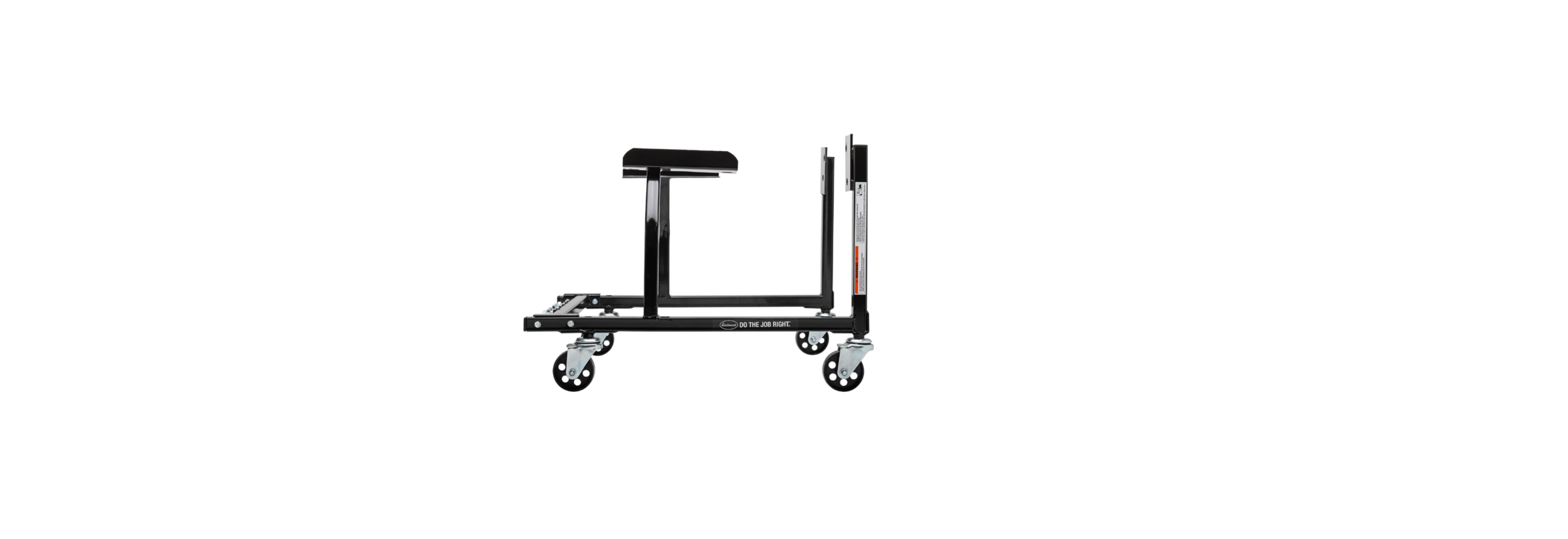

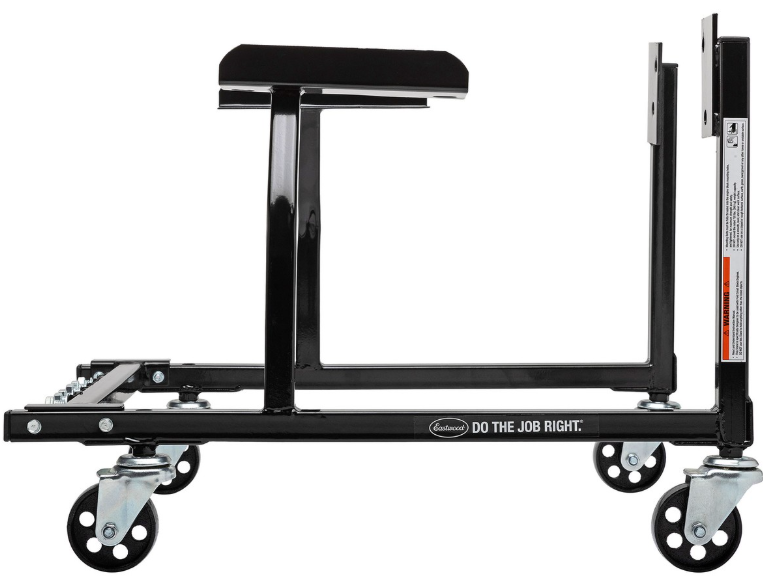

EASTWOOD 55240 Engine Storage Stand
Safety Instructions
- DO NOT attempt to mount a top-heavy load.
- DO NOT concentrate a heavy load on either side or end of the Engine Storage Stand. This can cause the balance to shift suddenly, tipping the Engine Storage Stand and its load, which can quickly cause severe injury and property damage!
- DO NOT exceed the rated 750 lbs. [340 kg].Weight capacity.
- DO NOT use it to support humans or animals.
- DO NOT climb on the Engine Storage Stand.
- DO NOT use the Engine Storage Stand to support items other than engines.
- DO NOT attempt to transport this Engine Storage Stand with a load attached by any hauling method.
- DO NOT use with lifting devices and/or chains, cables, or ropes that are frayed, twisted, kinked, or otherwise damaged.
- Use only on a smooth, level, and clean work surface. DO NOT use on a sloped or rough-textured surface, earth, grass, sand, grave, or any other loose or unstable surface.
Assembly
- With the Left and Right Support Members standing upright and the caster holes down, insert the Cross Brace Member, with the welded-on nuts facing up, into the front of the square tubing of the Support Members (FIG. 1).
- Secure the Cross Brace Member to the Left and Right support members by inserting and tightening the included M8x16 Hex Cap Screws, Washers, and Lock Washers on the inside of the Supports (FIG 2).

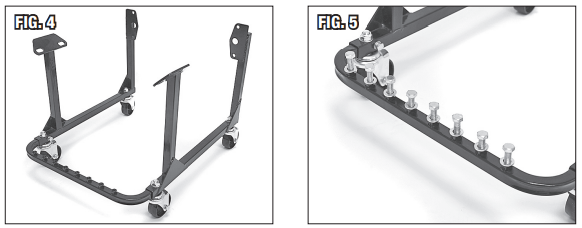

- Insert the Swivel Casters from the bottom of the Supports (FIG 3). Secure using the M12 Locknuts and Washers that are preinstalled onto the Caster (FIG 4).
- Install the 8 3/8”-16 Hex Cap Screws and Washers into the nuts welded on the top of the Cross Brace Member (FIG 5).
Stand
Only use mounting bolts of the equivalent grade or stronger than those supplied by the vehicle manufacturer to mount an engine. The selected mounting bolts must be fully threaded into the engine block mounting holes and tightened for maximum strength and safety.
The engine must be mounted with the center of gravity as close to an alignment with the centerline of the Engine Storage Stand to eliminate a dangerous, top-heavy condition, which could cause the Engine Storage Stand to suddenly tip. If any indication of instability occurs, STOP IMMEDIATELY!
Mounting A Load
- Align the center of gravity of the engine with the centerline of the Engine Storage Stand to avoid a top-heavy condition.
- Slowly lower the engine onto the Mounting Plates to align with the bolt pattern of the engine. DO NOT allow the full weight of the engine to rest on the Engine Storage Stand. The engine must be supported until it has been secured to the Stand.
- Slip the supplied mounting bolts and washers through the Mounting Plates and, with the hoist or crane still supporting the load, thread the bolts into the engine.
- Securely tighten the supply load-bearing bolts.
- SLOWLY lower the engine hoist or crane, allowing the Engine Storage Stand to bear the weight.
- Observe for any imbalance condition, excessive deflection, or casters lifted before disconnecting the hoist or crane.
Maintainance
- The Engine Storage Stand is finished in rugged powder coating, which will provide many years of effortless beauty; however, it is advisable EASTWOOD 55240 Engine Storage Stand to keep the finish clean and free from excessive dust and dirt.
- Keep the Engine Storage Stand in a clean and dry environment. DO NOT store it in or expose it to a damp environment.
- Before each use, inspect all components for potential damage and proper alignment. Check all hardware for tightness.
- DO NOT use if damage is discovered.
