EASTWOOD 68140 Detailing Light With Tripod
Introduction
The Eastwood Concours Detailing Light with Tripod employs robust SMD LED technology to provide efficient, long-lasting lighting. This light has three distinct brightness settings for adjusting light output to the workspace and runtime requirements. Durable aluminum and polymer construction results in IK07 shock resistance and IP54 ingress protection suitable for shop and home improvement environments.
Mount to the included Tripod, hang from the integral hook, or let the base magnets hold it in position. With three adjustable light petals, this light can illuminate wide areas or provide highly concentrated light. The latest in battery cell technology enables the light to run for 7 hours at 1500 Lumen and 1.5 hours at 7000 Lumen.
Furthermore, it may also be used while connected to the included 120VAC Wall Charger, extending operation when needed. USB Type-C charging port also allows charging from common 5VDC power sources and the USB Type-A output enables the light to function as a power bank for other devices. Replace your hot, power-thirsty halogen work light with this compact but powerful cordless unit.
Content
- (1) Eastwood Concours Detailing Light
- (1) Tripod
- (1) Wall Charger
- (1) USB Type-C Charging Cable, 79” (2m)

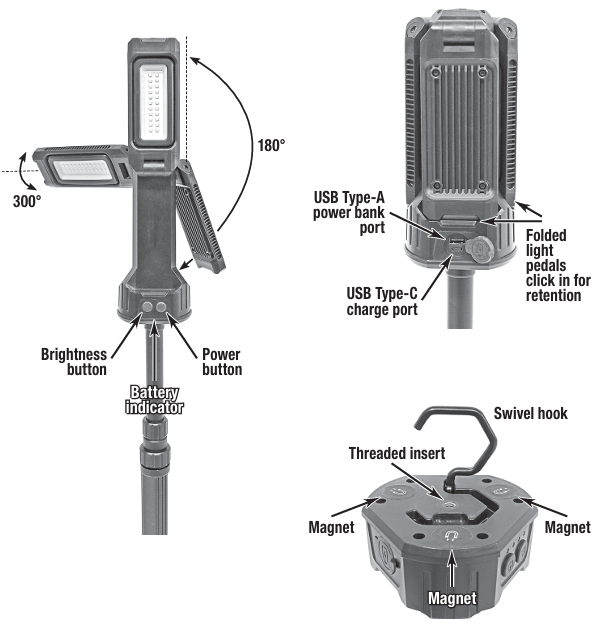

Features & Control
- Power Button: Toggle the light on and off.
- Brightness Button: Cycle between illumination levels. Brightness setting saves through power cycles.
- Battery Indicator: Four LED status indicator. • Magnets, integral swivel hook, and 1/4” – 20 threaded insert at base.
- Three foldable light petals swivel 300° and pivot 180°. • Covered USB Type-C charge port and USB Type-A power bank output port.
Operation
- Deploy the Tripod legs by firmly pressing the button at the bottom of the main tube. Fully unfold the legs for stability. Mount the light to the Tripod by threading it onto the stud. The Tripod has two telescopic tubes for height adjustment that are locked by EASTWOOD 68140 Detailing Light With Tripod the threaded adjustment collars. Rotate the collars approximately 180° counterclockwise for adjustment.
- Alternatively, you can place the base of the Detailing Light against a sufficiently sized ferrous metal surface to attach the light magnetically or deploy the swivel hook from the base to hang the light overhead.
- Press the Power Button to turn it on. Set the illumination level with the Brightness Button. Lower illumination levels will maximize battery life. The set illumination level will be saved even when you turn the light off.
Charging
When almost fully discharged, the Battery Indicator will show one indicator LED shortly before automatically turning the light off.
- Flip open the port cover to reveal the USB Type-C charging port. Use the included Wall Charger and cable to supply charging power to the Concours Detailing Light or charge directly from a 5VDC power source.
- Allow 5 hours for a full charge if fully drained.
- The Battery Indicator will show full with all LEDs illuminated.
- When fully charged, unplug the charging cable and close the port cover to maintain the highest level of moisture resistance.
Specifications
Battery: LED Light Output: LED Runtime: Charge Time: 7.3V / 4000 mAh, Li-Ion Integral Rechargeable Battery 1500 / 3000 / 7000 Lumen 7 / 4 / 1.5 Hours 5 Hours (with included Wall Charger) Impact Resistance Rating: IK07 Ingress Protection Rating: IP54 Power Bank Output: 5V 1A DC Charger Adaptor Output: 5V 2A DC Chargeable While Running: Yes Power Bank Function: Yes Light Housing: Light Weight: Tripod: Tripod Mount: Aluminum, ABS, PC, ABS+PC 1.99 lbs. [0.9kg] Aluminum and Nylon, ABS+PC 1/4” – 20 Threaded insert Tripod Height Adjustment: 23.5” – 58” [597 – 1473mm] Tripod Weight: 3.08 lbs. [1.4kg]
Customer Support
- Website: https://help.eastwood.com/
- Ph: 1 (800) 343-9353
- Timings: Monday – Friday, 9:00 AM to 6:00 PM.
FAQs
What is the EASTWOOD 68140 Detailing Light?
For brilliant, adjustable illumination for car detailing, workshops, and other precision jobs, the EASTWOOD 68140 is a portable, high-intensity LED detailing light.
What are the key features of this light?
It has a robust base for stability while in use, energy-efficient LED lamps, an adjustable height and angle, and a long-lasting tripod support.
How do I assemble the tripod and light?
It is simple to assemble and requires no tools. Attach the light head, extend the tripod legs, and tighten the height adjustment. For comprehensive, step-by-step instructions, consult the handbook.
Is the light brightness adjustable?
The light does indeed include a brightness adjustment that you may modify to suit your needs.
How do I adjust the angle and height of the light?
To focus light precisely where it is needed, the light head may be rotated or swivelled, and the tripod enables height changes.
What power source does the detailing light use?
The lamp plugs into a typical AC power outlet; the voltage criteria are listed in the handbook.
