EASTWOOD 72843 Air Piping System
Safety Instructions
- Thoroughly read and understand these product instructions before using.
- Keep these product instructions for future reference.
- The Compress Air Piping System is rated for a maximum air pressure of 175 psi [12 bar]. Overpressurization may result in bursting and personal injury.
- Installation tools can create various eye hazards, such as flying dust and debris. Always wear ANSI eye protection during installation.
- Handling sharp pipes can cause serious cuts. Avoid pinching hands while handling parts and during assembly. Wear thick, well-fitting work gloves to prevent injury.
- Do not mount in a location where the components may become an obstruction, or where head or bodily contact could cause injury.
- Check for possible interference with electrical lines, other utilities, or other unseen obstructions before mounting components.
- Use caution if installing in an elevated position, particularly when using a ladder. Maintain three points of contact with proper footing and balance at all times.
- The components must be securely mounted to prevent falling, which can cause personal injury and property damage.
- Depressurize the air system before making any changes to the system.
- For intended use with compressed air only. NOT for use with breathing air, inert gases, or negative pressure systems.
- Securely support the air system every 4’ [1.2m].
- The use of a PTFE thread sealant or similar is recommended when fastening 1/2” pipe thread joints.
Air Piping System

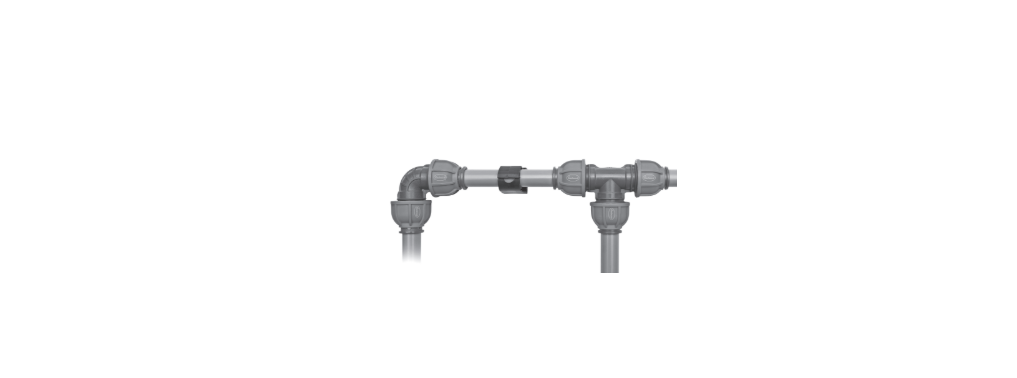

This is a modular, scalable solution to outfit your garage or shop with air connections at multiple locations. The 1” diameter aluminum piping is high flow, easy to work with, visually appealing, and will last a lifetime. Simple to use fittings are made from PA-6 composite and are available as straight, 90° elbow, tee, ball valve, unions, and more. All components can be purchased individually, or save money by buying our pre-configured kits. (Kits do not include pipe. See below for part numbers and kit component listing.) Components meet PED 2014/68/EU pressure equipment standards and UL 94 V-2 flammability standards.
Components
| Part No. | Name | Description | ||
| 70041 | Eastwood APS 1 Inch Pipe Union | 7 | 7 | Good for joining straight sections of pipe. |
| 70042 | Eastwood APS 90 Degree 1 Inch Elbow | 5 | 5 | For turning a pipe around a corner or diverting up/down. |
| 70043 | Eastwood APS 1 Inch Tee | 2 | 5 | Add a T for your air drop-downs. |
| 70044 | Eastwood APS 1 Inch Tee with 1/2 Inch Threaded Port | – | – | Thread on a fitting or flex pipe with the female 1/2” pipe thread socket. |
| 70045 | Eastwood APS 1 Inch to Female 1/2 Inch Threaded Union | – | – | Ideal for pipe ends to attach hoses or air tool fittings to 1/2” female pipe thread with integral ball valve. |
| 70046 | Eastwood APS 1 Inch to Male 1/2 Inch Threaded Union | 3 | 6 | Same as above, but 1/2” male pipe thread. |
| 70047 | Eastwood APS 1 Inch Ball Valve | – | – | Join straight sections of pipe and add a high-flow ball valve to separate systems. |
| 70048 | Eastwood APS 1/2 Inch Threaded Wall Plate | 3 | 6 | Distribution block with three 1/2 female pipe thread ports for making a dual-port drop-down. |
| 70049 | Eastwood APS 1 Inch Pipe Mount | 20 | 30 | Use every 4’ to securely mount the aluminum pipe. |
| 70050 | Eastwood APS 1 Inch Pipe | – | – | 8’ aluminum pipe section. |
| 70051 | Eastwood APS Flexible Braided Hose – Short | – | – | Stainless steel braided flex hose for connecting to a compressor or off-wall location. 27.5” long with 1/2” female pipe thread fittings. |
| 70052 | Eastwood APS Flexible Braided Hose – Long | – | – | Same as above, but 59” long. |
| 70053 | Eastwood APS Single 1/2 Inch Male Threaded Air Chuck | 6 | 12 | 1/2” male pipe thread “Type M” quick connect. |
| 70054 | Eastwood APS Spanner Wrench Set | 1 | 1 | Necessary for tightening and loosening fittings. |
| 70055 | Eastwood APS Chamfer Tool | 1 | 1 | Necessary for deburring the pipe. |
Installation
- Carefully plan the routing of your air system for ease of assembly and to avoid utilities, both external and internal to the wall.
- If attaching to a studded wall, you may use the wood screw included with the 1-inch Pipe Mount. Use a stud finder to find studs for attachment.
- Supporting the pipe and fittings every 4’ at a minimum is recommended.
- If attaching to a solid concrete or hollow block wall, the use of the proper anchors is required.
- The 1-inch Pipe Mount includes an M6x30 machine screw for alternative mounting.
- Utilize a flexible line, such as our braided Stainless Steel hose, to connect to the air compressor. Vibration from hard mounting to the compressor could damage the air system in the long term.
Assembly
- Prepare the pipe by making a square, clean cut. Using a tubing cutter (Eastwood #32574, not included) is ideal.
- Use both ends of the Inner/Outer Pipe Deburring Tool to completely deburr the end of the pipe.
- Inspect the pipe end for significant abrasion, scoring, or dents within 2” of the cut. Damage could result in a poor seal. Clean any aluminum shavings or other debris from the end of the deburred pipe before installation.
- Turn the Fitting Collar hand tig, ht then back off two turns. When bottoming out, the pipe should be 2.25” [57mm].
- Making a mark at this point to verify complete insertion is recommended. Use of a lubricant, such as silicone grease or petroleum jelly, on the pipe end and O-ring can ease assembly.
- Hand-tighten and check that the mark is flush with the end of the Fitting. Tighten snug using the Spanner Wrench Set. Do not over-tighten; the fittings are EASTWOOD 72843 Air Piping System composite and will strip.
Checking for Leaks
- Pressurize the system and check for leaks by spraying the fitting joint with soapy water. Watch for bubble formation.
- If a leak is found, snug the fitting as needed to stop it.
Maintainace
- Periodically inspect the fittings for tightness. Especially in the first few weeks after installation, because settling and vibration from the compressor system or other tools in the area could result in loosening.
- The joints are fully reusable if reconfiguration is needed. Before reassembly, verify that the fitting and O-ring are free of debris. Removing the pipe may leave behind some chipped paint that could compromise the O-ring seal.
Specifications
| Pressure Device Standard | PED 2014/68/EU |
| Flame Classification | UL 94 V-2 |
| Rated Pressure | 175 psi [12 bar] |
| Piping | 1” [25mm], Aluminum |
| Fittings | PA-6 |
Additional Items
R&D MUST-HAVE ACCESSORIES
Customer Support
- Website: https://help.eastwood.com/
- Ph: 1 (800) 343-9353
- Timings: Monday – Friday, 9:00 AM to 6:00 PM.
FAQs
How do I install the EASTWOOD 72843 air piping system?
Using the accompanying brackets, install the pipes along walls or ceilings. Then, connect the pipes and fittings to the output of your air compressor and use the thread sealant to ensure airtight sealing.
Can this piping system be customized or extended?
Indeed. Because the system is modular, you may add more pipes and fittings to suit the arrangement of your workstation.
Is special tooling required for installation?
Other than simple hand tools like a pipe cutter and wrench, which can be required if modifying pipe lengths, no special equipment is required.
What pressure rating does the piping system support?
Although the system is designed to withstand common workshop compressed air pressures, typically up to 150 PSI, you should always verify compatibility by checking the pressure of your particular compressor.
What types of compressors is this system compatible with?
It is compatible with the majority of common air compressors found in woodworking, automotive, and general workshop settings.
How do I maintain the air piping system?
Check for damage, corrosion, and leaks regularly. As necessary, replace worn parts and tighten any loose fittings. Empty moisture traps to avoid standing water.
