FRIGIDAIRE EFIC117 26 LBS 12 KG Ice Maker
Safety Instructions
This appliance must be plugged into at least a 15-AMP 110-115 VOLT 60 Hz GROUNDED OUTLET. This appliance must be grounded. It is equipped with a 3-wire cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Avoid the use of an extension cord because it may overheat and cause a risk of fire. However, if it is necessary to use an extension cord: A. Use only 3-wire extension cords with a 3-blade grounding plug. The marked rating of an extension cord must be equal to or greater than the rating of this appliance. It should be positioned such that it does not drape over the counter or tabletop, where it can be pulled on by children intentionally.
Attempting any maintenance or cleaning: To minimise the possibility of electric shock, unplug this appliance from the power supply or disconnect at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

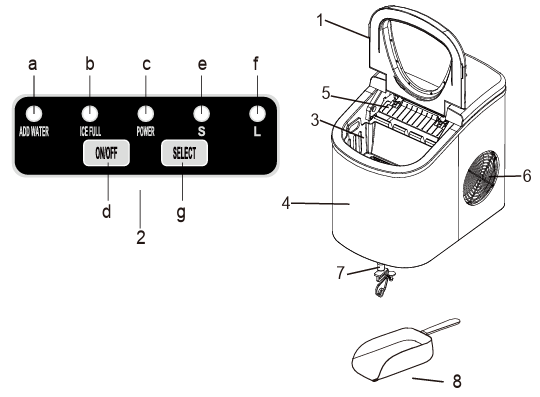

Description of Parts
- Cover
- Control Panel
- Add Water Indicator Light
- Ice Full Indicator Light
- Power Indicator Light
- On/Off Button
- ‘S’ Small Ice Size Indicator Light
- ‘L’ Large Ice Size Indicator Light
- Select Button – to choose ice size
- Ice Basket
- Water Reservoir (below Ice Basket)
- Ice Shovel and Evaporator Fingers (behind Ice Shovel)
- Air Outlet
- Drain Plug
- Ice Scoop
Before First Use
This portable icemaker uses a fully automatic control system, with an advanced microcomputer for easy and convenient ice making. Making ice is simple and fast. Just add water, plug into an outlet, and press the ON button. You can select one of the two ice cube sizes with the touch of a button. When first turning on the unit or during ice-making cycles, the compressor will stay idle for 3 minutes while it is being energised. There are warning indicators that alert you to fill water when the reservoir is empty and to remove ice when the storage basket is full. The icemaker also has built-in safeguards that can limit accidental damage, automatically shutting down the system when necessary.
Use your Ice Maker
- Plug the Ice Maker into the wall outlet, and the green power indicator light will blink (approximately every 5 seconds).
- Open the Cover and remove the Ice Basket.
- Fill the Water Reservoir. NOTE: Do not fill above the MAX water level mark at the back of the Water Reservoir.
- Replace the Ice Basket and close the Cover.
- Press the Power Button, and the green indicator light will remain on.
- The Ice Tray will automatically move back into position under the Evaporator Fingers and start the next cycle.
- The ‘Ice Full’ LED light will light up when the ice basket is full, and the Ice Maker will stop the ice-making cycle automatically. Gently remove the ice from the Ice Basket with the Ice Scoop.
Cleaning & Care
- Stop the ice-making cycle by pressing the Power Button, and the green LED light will go out.
- Unplug the Ice Maker from the wall outlet. Allow the unit to warm up to room temperature.
- Open the Drain Plug to drain out excess water. Remove the Ice Basket.
- Remove the Water Tube Screen and rinse under running water.
- Clean the Ice Maker interior with a soft cloth dampened in warm water and vinegar.
- Rinse with a clean, damp cloth.
- Replace the Drain Plug and the Water Tube Screen.
- Wash the Ice Basket and Ice Scoop in warm, soapy water. Rinse and dry.
- Clean the exterior of the Ice Maker with a soft, damp cloth. Use a mild dishwashing soap, if necessary.

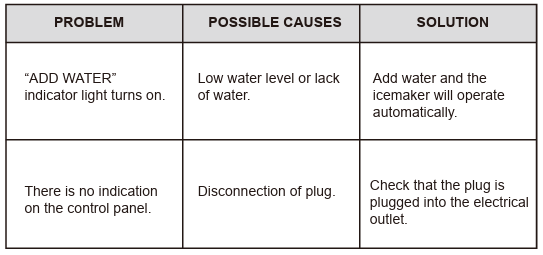

Troubleshooting
Limited Warranty
Warranty Terms
During the first year, any components of this appliance, FRIGIDAIRE FEC350WH02 Evaporative Cooler Heater, found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer’s discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions
The warranty will not apply if damage is caused by any of the following:
- Power failure
- Damage in transit or when moving the appliance
- Improper power supply, such as low voltage, defective household wiring or inadequate fuses
- Accident, alteration, misuse, or abuse of the appliance, such asusingg non-approved accessories, inadequate air circulation in the room, or abnormal operating conditions (extreme temperatures)
- Use in commercial or industrial applications
- Fire, water damage, theft, war, riot, hostilities, or acts of God, such as hurricanes or floods.
- Use of force or damage caused by external influences
- Removal of stickers and/or screws
- Partially or completely dismantled appliances
Obtaining Service
When making a warranty claim, please have the original bill of purchase with the purchase date available. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, remanufactured, or refurbished and are subject to the manufacturer’s discretion. For technical support and warranty service.
Customer Service
- website: https://www.frigidaire.com/
- Ph: 1-800-374-4432
FRIGIDAIRE is a pending or registered trademark used under license from Electrolux Home Products, Inc. All rights reserved. Manufactured under license by: NewAir, LLC 6600 Katella Ave, Cypress, CA 90630
FAQs
Q: What is the FRIGIDAIRE EFIC117 Ice Maker?
This small, portable ice maker can generate up to 26 pounds (12 kg) of ice a day, making it ideal for usage at home, at work, or in small businesses.
Q: What type of ice does the EFIC117 produce?
It creates crescent or bullet-shaped ice cubes that can be used for general chilling as well as drinks and cocktails.
Q: Can I use the ice maker continuously?
Yes, however, the water tank needs to be refreshed, and the unit needs to be watched. Don’t let the machine operate without water.
Q: Can I leave water in the reservoir when not in use?
No. When the unit is not in use, empty the reservoir to avoid the accumulation of germs, mould, or minerals.
Q: Can I use the ice maker for parties or events?
It is appropriate for producing ice continuously for small events. To ensure optimal production, regularly empty the ice bin and replenish water.
Q: How do I troubleshoot ice that melts too quickly in the bin?
To keep the interior temperature lower, keep the lid closed. Don’t keep ice in the bin for longer than a day. Move to a freezer-safe container for long-term storage.
Q: Why does the unit emit a plastic or chemical odour when new?
During the initial cycles, new units may release a slight odour. The ice should be run with water just for one or two cycles before being thrown away.
Q: Can I use flavoured water or soda in the ice maker?
No, you should only use drinkable, pure water. Liquids with added sugar or flavour may harm the internal components and ice mould.
