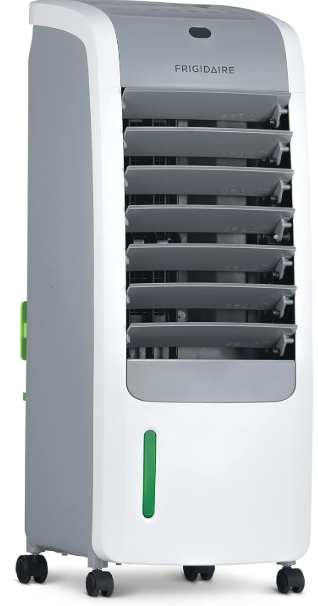

FRIGIDAIRE FEC350WH02 Evaporative Cooler Heater
Safety Instructions
Read all instructions before using this product.
- This product is hot when using the heating function. To avoid burns, do not let bare skin touch hot surfaces.
- Extreme caution is necessary when any product is used by or near children or invalids and whenever the product is left operating and unattended. Always unplug the product when not in use.
- Do not operate any product with a damaged cord or plug, or after the product malfunctions, has been dropped, or damaged in any manner.
- Discard the product or return to the authorized service facility for examination and/or repair.
- The appliance is only for household and indoor use. Do not use outdoors.
- This product is not intended for use in bathrooms, laundry areas, and similar indoor locations.
- Never locate the product where it may fall into a bathtub or other water container.
- Do not route the cord under furniture or appliances.
- Arrange the cord away from the traffic area and where it will not be tripped over.
Features
- Fan mode
- Three fan speeds: high, medium, low
- Cooling function
- 1, 2, 4, and 8-hour timing function
- Heater mode
- Two oscillation settings:s; vertical and horizontal
- Remote control operation available
- Fully removable water tank, which is easy to clean
- Equipped with high quality, large cooling pad for good evaporation capacity and cooling effect
- Spray-type water circulation refrigeration technology for faster cooling effect
- Dual air filtration
- Cardan wheel design for front and rear casters with brake

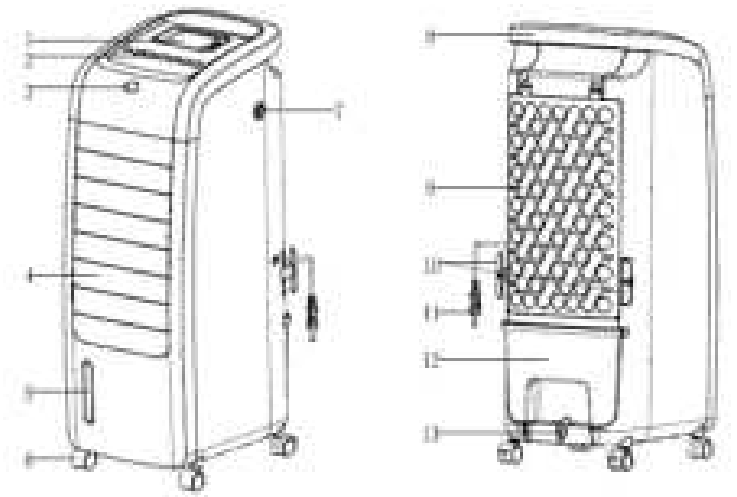

Description
- Remote control depository
- Control panel
- Remote control receiving window
- Vane assembly
- Water level display window
- Caster
- Switch
- Handle
- Air filter net
- Reel
- Power cable
- Water tank
- Water tank lock
Specifications
ACCESSORIES

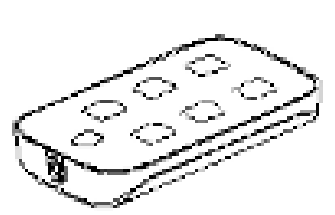

Remote Control

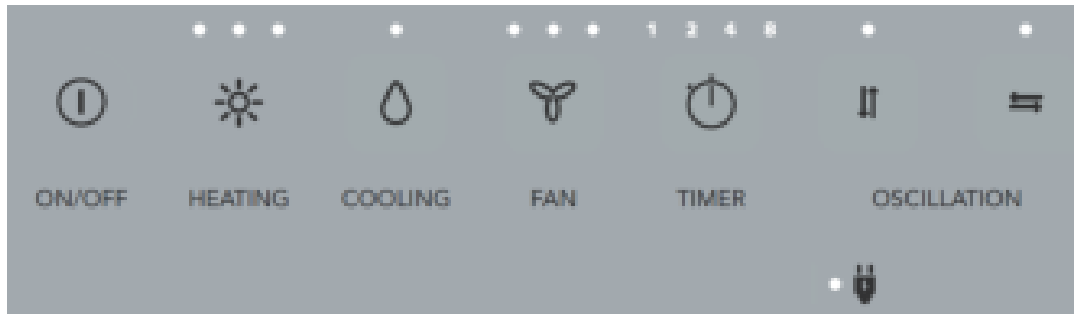

Operation panel and Display panel

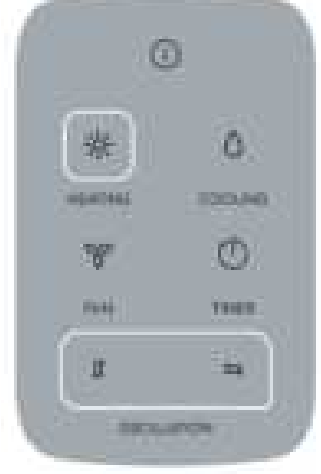

Remote Control Operation Panel
Specification
- MODEL NO: FEC350WH02
- RATED VOLTAGE 120V
- RATED FREQUENCY 60 Hz
- RATED POWER 1200W
- NOISE 55≤dB
- CFM 350
- PRODUCT DIMENSIONS 9.84” W x 13.00” D x 27.72” H
Controls & Operation
Usage of the Control Panel
- Where power comes initially, all the LED lights will light for 2 seconds and beep.
- Then, the machine will enter standby mode, and all buttons will be invalid except the “ON/OFF” button.
- Press the “ON/OFF” button under standby mode, and the machine will beep and enter working mode.
- Press the “ON/OFF” button under working mode, for the unit to go into standby mode with a long beep.
- Press the “ON/OFF” button under working mode, the unit will be off and enter into standby mode with a beep.
- Press the “FAN” button to set wind speed.
- The unit will beep: related indicator lights will turn on for low, medium, and high.
- Press the “Horizontal Oscillation” button for the blades to move horizontally.
Filling Water

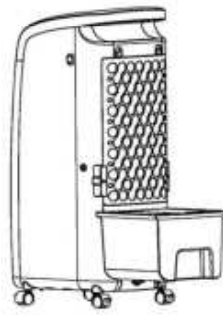

For the cooling function, please add water to the water tank. Before adding water, please open the water tank lock, take the water tank out, and add water to it slowly (Figures 1, 2, 3, and 4):
- Water tank locked
- Water tank Unlocked
- Water tank pulled out
- Filling water
Using the Remote Control

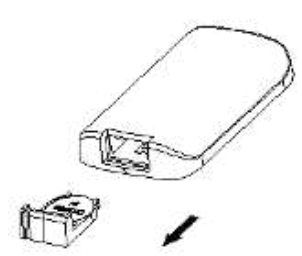

- Open the battery cover of the remote control and insert a 3V CR2032 battery.
- Please point to the receiver when using the remote control.
- Please note the positive pole and the negative pole of the battery; then, put on the battery cover.
- a) The battery shall be disposed of properly, keeping them away from children; b) Even used batteries may cause injury.
Cleaning & Maintainance
Air filter net and cooling pad assembly cleaning

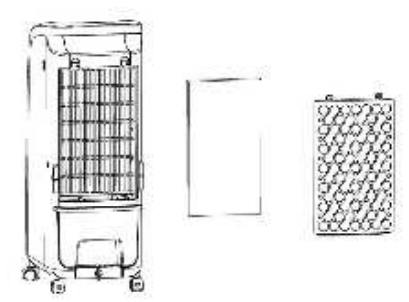

- Take the air filter net out first, then the cooling pad can also be taken out (as shown below).
- Use a cleanser and a banister brush to clean the air filter net.
- Dip the cooling pad into cleanser for several minutes, then rinse and dry it.
Water tank cleaning
- Cut off the power and unlock the water tank knob by rotating the knob to a horizontal position, then take the water tank out.
- Use a towel to clean the water tank with cleanser, and then use water to wash and pour the dirty water out.
Machine body cleaning
- Turn off the power and unplug the power cord (be sure to unplug the power cord when cleaning the body, or else it may cause electric shock, fire, or other personal injury).
- If dust is accumulated on the surface, please wipe with a soft cloth: if the surface is dirty, mix warm water and neutral detergent, wipe with a soft cloth, and dry. Avoid washing directly with water.
- Do not wash with corrosive cleanser or solvent. Do not use gasoline, thinner, or any substance that damages the surface easily for cleaning.
- When cleaning, use ordinary detergent and a soft brush. Do not use chemical agents. Do not use corrosive detergents or solvents. Make sure the unit is fully dry, or else it may cause an electric shock.
Installation after cleaning
- After cleaning, please ensure that the Outer Dust Filter, Cooling Pad, and Water Tank are correctly installed before using. Link the power and confirm the machine runs smoothly.
- When the product is not used for a long time, remove the power plug, pack the product, and prevent dust from entering the body, or else it may cause mechanical damage.
- Please ensure the cooling pad and air filter net are dry, and there is no water in the tank before packing.
- After packaging, it should be stored in a dry and ventilated place.
- If the product fails, please let an authorized FRIGIDAIRE FEC350WH02 Evaporative Cooler Heater service agent repair it. Do not disassemble or replace parts without proper technical advice.
Troubleshooting
| Problem | Possible Causes | Solution |
| The unit does not cool.
| There is insufficient water in the tank. | Check the water level in the tank and make sure there is enough water. |
| The water pump is not lower than the bottom.
The pump is defective. | Check the water pump to make sure it is lowered to the bottom, then press the evaporative cooling button. Contact customer service if there is an issue with the water pump. | |
| The unit does not cool on high speed. | The cooling pad is not sufficiently saturated with water. | The cooling pad will be fully soaked after the unit runs for 10 minutes. |
| The water tank is leaking. | The water tank is damaged. | Contact customer service if there is an issue with the water tank. |
| The heater function does nothing. | The plug may not be well plugged into the outlet. | Check whether the plug is properly inserted into the outlet. |
| The heater function is not activated. | Check whether the heater function is selected. |
Limited Warranty
Warranty Terms
During the first year, any components of this appliance, FRIGIDAIRE FEC350WH02 Evaporative Cooler Heater, found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer’s discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.
Warranty Exclusions
The warranty will not apply if damage is caused by any of the following:
- Power failure
- Damage in transit or when moving the appliance
- Improper power supply, such as low voltage, defective household wiring or inadequate fuses
- Accident, alteration, misuse, or abuse of the appliance, such asusingg non-approved accessories, inadequate air circulation in the room, or abnormal operating conditions (extreme temperatures)
- Use in commercial or industrial applications
- Fire, water damage, theft, war, riot, hostilities, or acts of God such as hurricanes, floods, etc.
- Use of force or damage caused by external influences
- Removal of stickers and/or screws
- Partially or completely dismantled appliances
Obtaining Service
When making a warranty claim, please have the original bill of purchase with the purchase date available. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, remanufactured, or refurbished and are subject to the manufacturer’s discretion. For technical support and warranty service.
Customer Service
- website: https://www.frigidaire.com/
- Ph: 1-800-374-4432
FRIGIDAIRE is a pending or registered trademark used under license from Electrolux Home Products, Inc. All rights reserved. Manufactured under license by: NewAir, LLC 6600 Katella Ave, Cypress, CA 90630
FAQs
Q: What is the FRIGIDAIRE FEC350WH02?
It is a portable evaporative cooler heater that may be used all year round because it has fan, heating, and cooling capabilities.
Q: How does the evaporative cooling function work?
Warm air is drawn in by the unit, which then blows out cooler, humidified air after passing it through moist cooling pads. Because high humidity inhibits its efficiency, it functions best in arid regions.
Q: Can I use ice or cold water for faster cooling?
Indeed, especially on hot days, adding ice or cooled water can improve cooling efficacy.
Q: How often should I replace the cooling pads?
Every two to three months, or sooner if there is mould, mineral buildup, or decreased airflow, replace the pads.
Q: Does the unit have a timer function?
Yes, you can program the timer to shut off automatically after a predetermined number of hours using the control panel or remote.
Q: How do I use the oscillation feature?
For broader coverage, turn the air outlet by pressing the oscillation button. Additionally, louvres can be manually adjusted.
Q: Can I use the unit in a small room?
Indeed. Compact and lightweight, the FEC350WH02 is perfect for small to medium-sized spaces. Make sure there are no obstructions to the airflow.
Q: Can I use hard water in the tank?
Yes, however, there’s a chance of mineral accumulation. Think about using distilled water or using vinegar to clean the pads regularly.
