Hama 00004676 Bluetooth® Remote Shutter Instruction Guide

Hama 00004676 Bluetooth® Remote Shutter

Safety Instructions

Before using the Hama 00004676 Bluetooth® Remote Shutter, please read these safety instructions carefully.

• Protect the product from dirt, moisture, and overheating, and use it in dry environments only.
• Do not use the product in areas where electronic products are not permitted.
• Do not use the product in a damp environment and avoid splashing water.
• Do not drop the product and do not expose it to any major shocks.
• Dispose of packaging material immediately in accordance with the locally applicable regulations.
• Do not modify the product in any way. Doing so voids the warranty.
• See the product only for the intended purpose.
• This product is intended for private, non-commercial use only.
• Do not use the product in the immediate vicinity of heaters, other heat sources, or in direct sunlight.
• As with all electrical products, this device should be kept out of the reach of children.
• Do not operate the product outside the power limits given in the specifications.
• Do not attempt to service or repair the product yourself.
• Leave any service work to qualified experts.
• Do not open the device or continue to operate it if it becomes damaged.

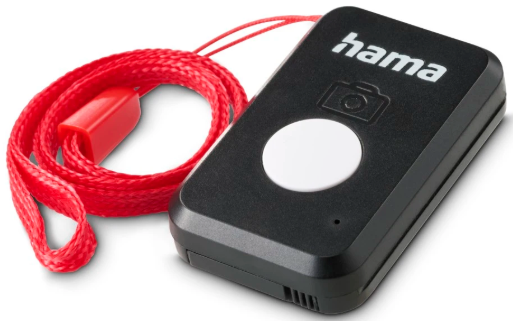

Controls and Displays

1. LED indicator light
2. On/off switch
3. Release button
4. Battery compartment

Package Contents

• Bluetooth® BRS5 remote-control release
• 1 hand strap
• 1 battery (CR1632)
• These operating instructions

For instructions on another Hama household device, you can also check the Hama 00185893 Digital Bathroom Clock Instruction Guide.

Batteries/Button Cells

The Hama 00004676 Bluetooth® Remote Shutter uses a button cell battery, so please observe the following safety notes:

• If the battery compartment will no longer close securely, stop using the product and keep it away from children.
• This product contains button cells. If the button cell is swallowed, serious internal burns can occur within 2 hours and ultimately lead to death.
• If you suspect that a button cell has been swallowed or is in any part of the body, seek medical attention immediately.
• Keep new and used button cells out of the reach of children.

System Requirements

To use the Hama 00004676 Bluetooth® Remote Shutter, your device must support Bluetooth® and meet the following system requirements:

• The Bluetooth® remote-control release supports Bluetooth®-enabled devices such as smartphones and tablet PCs on which the iOS 6 or Android 4.2.2 operating systems or newer versions are installed.
• Please be aware that your device must support the Bluetooth® remote-control release if they are to be used. Please refer to the operating instructions of your device for more information.

Setup

• Slide the lock in the direction of the arrow and pull the battery compartment downwards and outwards at the same time (B1)
• Insert a CR1632 battery with the correct polarity (B2)
• Close the battery compartment by pushing it into the Bluetooth remote-control release until the latch engages.

Operation

• The functions described in this section are only possible with Bluetooth®-enabled devices.
• Please note that the range of Bluetooth® is max. 10 metres, without obstacles such as walls, people, etc.

Bluetooth® Pairing

To pair the Hama 00004676 Bluetooth® Remote Shutter, follow the steps below:

• Ensure that the Bluetooth®-enabled device is switched on and that the Bluetooth® function is activated.
• Make sure that your Bluetooth®-enabled device is visible to other Bluetooth® devices.
• Please refer to the operating instructions of your device for more information.
• Slide the On/Off switch (2) to the ON position to switch on the Bluetooth® remote control release.
• The pilot light (1) starts to flash blue.
• The Bluetooth® remote-control release searches for a Bluetooth® connection.
• Open the Bluetooth® settings on your device and wait until the list of found Bluetooth® devices shows hama BRS5.
• Select hama BRS5 and wait until the Bluetooth® remote-control release is shown as connected in your device’s Bluetooth® settings. The pilot light (1) goes out.
• You can now use the Bluetooth® remote-control release.

Automatic Bluetooth® Connection

The Hama 00004676 Bluetooth® Remote Shutter supports automatic reconnection with previously paired devices. Follow the steps below:

• Ensure that the Bluetooth®-enabled device is switched on and that the Bluetooth® function is activated.
• Make sure that your Bluetooth®-enabled device is visible to other Bluetooth® devices.
• Please refer to the operating instructions of your device for more information.
• The Bluetooth® remote-control release remains connected to the Bluetooth® device it was last used with.
• Slide the On/Off switch (2) to the ON position to switch on the Bluetooth® remote control release.
• The pilot light (1) starts to flash blue.
• After 1-5 seconds, the Bluetooth® remote-control release automatically pairs with the device. The pilot light (1) goes out.
• You can now use the Bluetooth® remote-control release.

Connection Impaired

• In your device’s Bluetooth® settings, check that hama BRS5 is connected. If not, repeat the steps described in 6.1. Bluetooth® initial connection.
• Check whether obstacles are impairing the range. If so, move the devices closer together.
• The performance may also be impaired if the battery is low. Change the battery if necessary.

Care and Maintenance

Only clean this product using a lint-free, slightly damp cloth and do not use any harsh cleaners. Ensure that no water is able to enter the product.

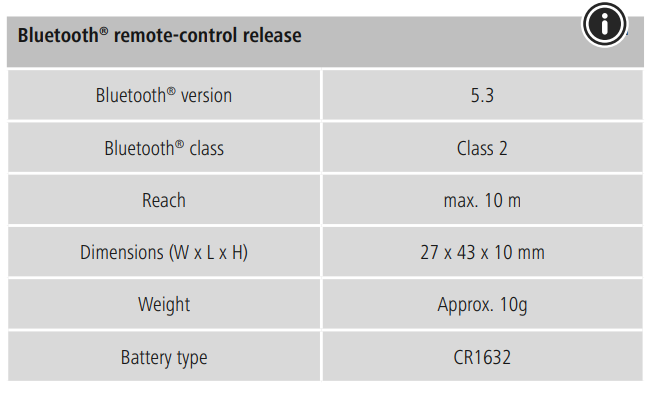

Technical Data

Warranty

This warranty applies to the Hama 00004676 Bluetooth® Remote Shutter. Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use, or failure to observe the operating instructions and safety notes.

Declaration of Conformity

Hama GmbH & Co KG hereby declares that the Hama 00222239 JAMAIKA Weather Station radio equipment type [00222239] complies with Directive 2014/53/EU.

Customer Service

• Website:  https://de.hama.com
• Ph: 49 9091 502-0
