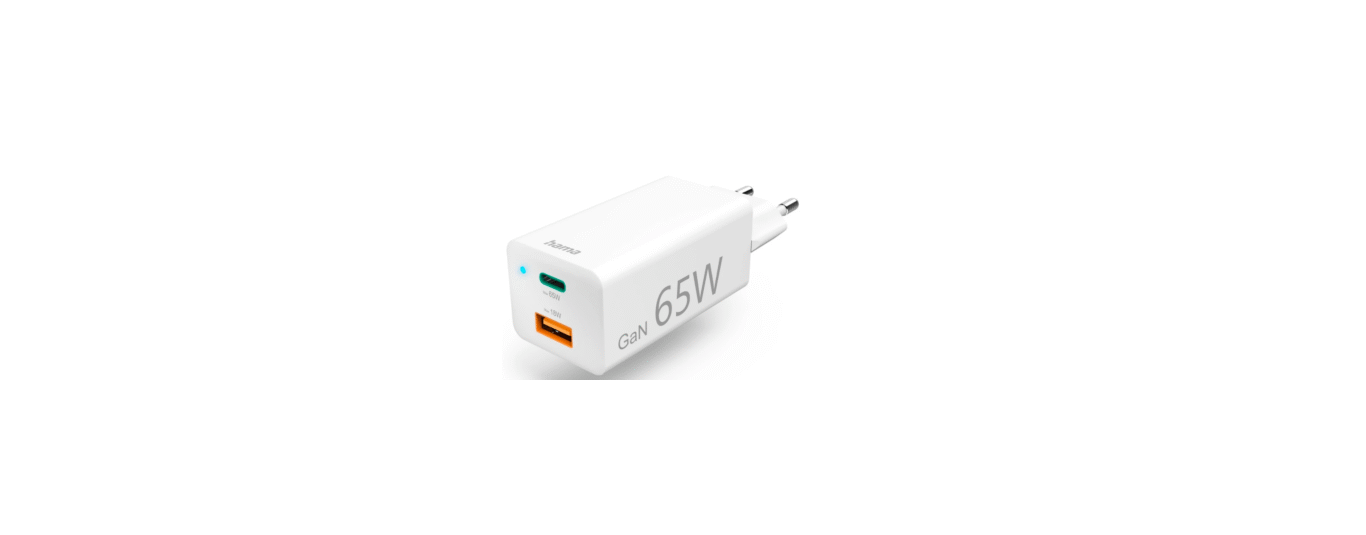

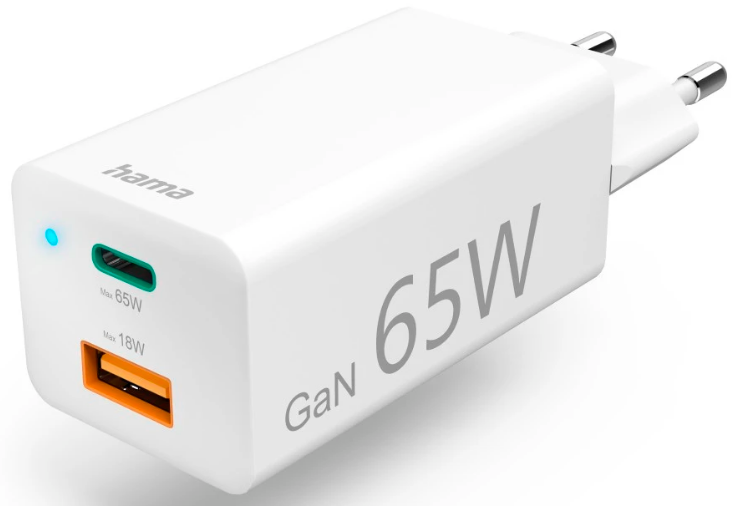

Hama 00125130 USB-C PD Mini Charger
OVERVIEW
Operating instruction
Thank you for choosing this Hama product! Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference.
Explanation of warning symbols and notes
Risk of electric shock. This symbol indicates a risk of electric shock from touching uninsulated product parts that may carry hazardous voltage.
Warning: This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
No: te This symbol is used to indicate additional information or important notes.
Package content: ts
- charger and
- these operating instructions.
Safety instructions
- Protect the product from dirt, moisture, and overheating, and use it in dry rooms only.
- Do not drop the product, and do not expose it to any major shocks.
- Do not operate the product outside the power limits specified in the technical data.
- Do not modify the device in any way. Doing so voids the warranty.
- Do not continue to operate the product if it is visibly damaged.
- Use the product only for the intended purpose.
- As with all electrical products, this device should be kept out of the reach of children.
- Do not use the product near heaters, other heat sources, or in direct sunlight.
- Route all cables so there is no risk of tripping.
- Do not bend or crush the cable.
- Always pull directly on the plug when disconnecting the cable, never on the cable itself.
- Dispose of packaging material immediately according to the locally applicable regulations.
- The product is intended only for use inside buildings.
- Only use the article under moderate climatic conditions.
- Do not use the product in areas where electronic products are not permitted.
- Do not use the product in a damp environment and avoid splashing water.
Risk of electric shock
- Do not open the device or continue to operate it if it becomes damaged.
- Do not use the product if the AC adapter, the adapter cable, or the mains cable is damaged.
- Do not attempt to service or repair the product yourself. Leave any service work to
qualified experts.
Operation
Note – mains voltage 100 – 240 V
The charger is suitable for mains voltages of 100 – 240 V and therefore can be used worldwide. Please note that a country-specific adapter may be necessary.
Warning – connecting devices
- Before connecting a device, check whether it can be adequately supplied with the charger’s current capacity.
- Ensure that the power of the connected device does not exceed 45W.
- Note the instructions in your device’s operating manual.
Note – Power Delivery / QC 3.0, 2.0
- Plug & GO: no additional software required, simply plug in and start. Thanks to Power Delivery / QC 3.0, 2.0, the voltage and power are adjusted automatically.
- Be aware that, for efficient and optimised charging, your terminal device must support the PD (Power Delivery) / QC 3.0, 2.0 function.
- If you have a large number of PD/QC-enabled Hama 00125130 USB-C PD Mini Charger devices with different firmware updates, it may be that the function is not fully supported.
Warning
- Only operate the product from a socket that has been approved for the device. The socket must be installed close to the product and must be easily accessible.
- Disconnect the product from the power supply using the On/Off switch – if this is not available, unplug the power cord from the socket.
- If using a multi-socket power strip, make sure that the total power consumption of all connected devices does not exceed the power strip’s maximum throughput rating.
- If you will not be using the product for a prolonged period, disconnect it from mains power.

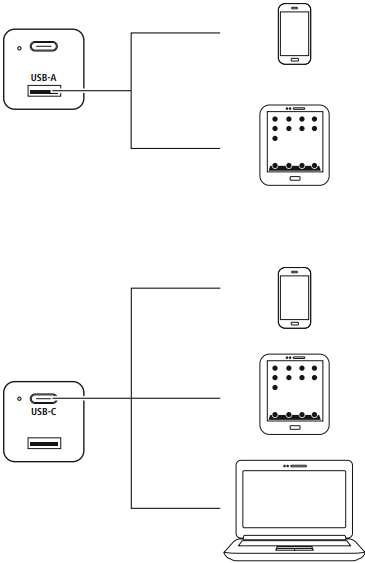

Unless different instructions have been expressly given in the operating instructions for the devices you are charging, proceed as follows:
- Connect your device to a USB charging socket using a suitable USB cable.
- Connect the charger to a properly installed and easily accessible mains socket. • The charging process is displayed on your device.
- Disconnect the device from the charger if you wish to interrupt the charging process or when the device is fully charged.
- Then disconnect the charger from the line connection.
When charging the rechargeable batteries in the device, note the maximum charging times for the built-in batteries.
Care and maintenance
- Only use soft, dry towels to clean the product.
Note: Disconnect the device from the mains before cleaning and during prolonged periods of\ non-use.
Technical data
Specifications according to Regulation (EU) 2019/1782
- Brand name, commercial register number, address
Hama, HRA12159, Dresdner Str. 9, 86653 Monheim, Germany
- Model identifier
00125130, 00201643
- Input voltage
100 – 240 V
- Input AC frequency
50 / 60 Hz
- Output voltage, output current /output power total
USB-C Total: 65.0W USB-C: 5.0 V DC / 3.0A / 15.0W 9.0 V DC / 3.0A / 27.0W 12.0 V DC / 3.0A / 36.0W 15.0 V DC / 3.0A / 45.0W 20.0 V DC / 3.25A / 65.0W PPS: 3.3- 21.0 V DC / 3.0A/9.9W- 63.0W USB-A: 3.6 – 6.0 V DC/3.0A / 10.8W-18.0W; 6.0 – 9.0 V DC / 2.0A / 12.0W-18.0W; 9.0 – 12.0 V DC / 1.5A /13.5W-18.0W; USB-C + USB-A: 45.0W + 18.0W (Total: 63.0W)
- Average efficiency during operation
86.0%
- Efficiency at low load
(10%) 77.9%
- Power consumption at zero load
0.30W
Note
- If only the USB-C socket is being used, the output power is a max. of 65 W at this socket.
- If the USB-A and USB-C are being used at the same time, the output power for the USB-C is max. 45Wand for the USB-A is max. 18 W.
Warranty disclaimer
Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product, or failure to observe the operating instructions and/or safety notes.
FAQs
What devices are compatible with the Hama USB-C PD Mini Charger?
All USB-C devices that support Power Delivery (PD), such as laptops, tablets, smartphones, wireless earphones, and other USB-C accessories, are supported by the charger.
What is the maximum output power?
Depending on the compatibility of the connected device, the Hama Mini Charger can support up to 20W PD fast charging.
Can I use it with a non-PD device?
Although it will charge more slowly, the charger can still charge devices that don’t support USB Power Delivery via traditional methods.
Is it safe to use with multiple devices?
Only one device can be charged at once with this single-port charger. Charging efficiency may be decreased if many devices are charged using adapters.
Does it support fast charging for smartphones?
In comparison to regular USB chargers, compatible smartphones that enable USB PD fast charging can be charged at up to 20W, which is a substantial speedup.
Can it charge a laptop?
It is not appropriate for larger computers that need more power, but it can charge small USB-C laptops or ultrabooks that take up to 20W of input.
Can I leave my device connected overnight?
Yes, the charger will immediately cut off power after your device is fully charged because it includes built-in overload protection.
