Hama 00221765 Freedom Lit III Bluetooth Headphones
Operating Instructions
Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner

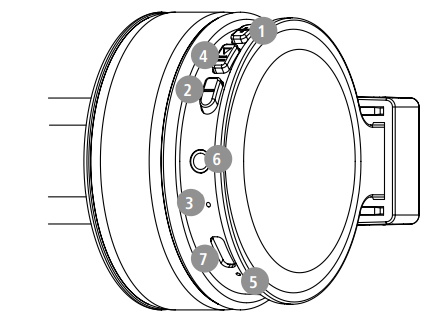

Controls and displays
- + button
- – button
- Microphone
- Multi-function button (MFB)
- Status LED
- Audio input (3.5 mm)
- USB-C connection
Explanation of warning symbols and notes
Warning
This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.
Note
This symbol is used to indicate additional information or important notes.
The power of the charger must range from a minimum power of 2.0 watts required by the radio system to a maximum power of 2.0 watts required to achieve the maximum charging speed. The standardised USB interface means that a charger with a higher output power can also be used.
Package contents
- Freedom Lit III” Bluetooth
- on-ear headphones
- quick guide
- warning and safety instructions
Safety instructions
- The product is intended for private, noncommercial use only.
- Use the product only for the intended purpose.
- Children should be supervised to ensure that they do not play with the product.
- Do not use the product in areas where electronic products are not permitted.
- Do not attempt to service or repair the product yourself. Leave any service work to qualified experts.
- Do not open the device or continue to operate it if it becomes damaged.
- Do not bend or crush the cable.
- Do not drop the product, and do not expose it to any major shocks.
- Dispose of packaging material immediately according to the locally applicable regulations.
- Do not modify the product in any way. Doing so voids the warranty.
- Protect the product from dirt, moisture, and overheating, and use it in dry environments only.
- Do not use the product near heaters, other heat sources, or in direct sunlight.
- Only use the article under moderate climatic conditions.
- As with all electrical products, this device should be kept out of the reach of children.
- Do not operate the product outside the power limits specified in the technical data.
- Do not use the product in a damp environment, and avoid splashing water
- While driving a car or using sports equipment, do not allow yourself to be distracted by your product, and keep an eye on the traffic situation and your surroundings.
- The battery is permanently installed and cannot be removed; dispose of the product as a whole under the statutory regulations.• Do not incinerate the battery or the product.
- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.
- Do not use the product during the charging process!
Warning – rechargeable battery
- Only use suitable charging devices or USB connections to charge the product.
- Do not use defective chargers or USB ports, and do not attempt to repair them.
- Do not overcharge the product or allow the battery to completely discharge.
- Avoid storing, charging, and using in extreme temperatures and at extremely low atmospheric pressures (such as at high altitudes).
- Charge regularly (at least quarterly) during periods of prolonged storage.
Warning – magnets
- This product generates magnetic fields. Persons with a cardiac pacemaker should consult a doctor before using this product, as the pacemaker’s proper function could be affected.
- Do not store bank or similar cards with magnetic strips near the charging box or earphones. The data on the cards could be damaged or completely deleted.
- High sound pressure!
- There is a risk of hearing damage.
- To prevent any loss of hearing, avoid listening at loud volumes for prolonged periods.
- Always keep the volume at a sensible level. Loud volumes, even over short periods, can cause hearing loss.
- Using this product limits your perception of ambient noise. You should therefore not drive or operate machinery while using them.
Switching on/off

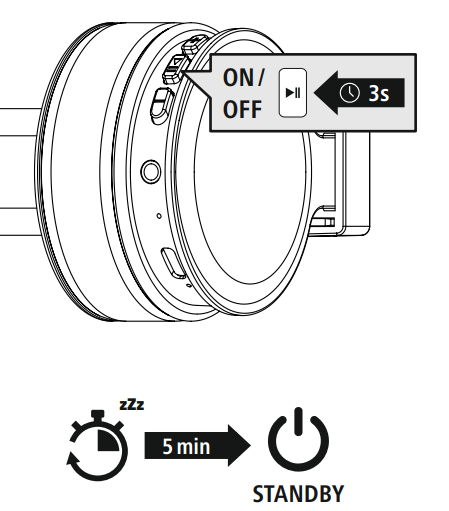

Press the MFB button (4) for approx. 3 seconds until you hear “Power on”. To switch off, press the MFB button (4) for approx. 3 seconds until you hear “Power off,” and the LED then goes out.
Note – Automatic switch-off of the headphones
The headphones are equipped with an automatic switch-off mechanism. If there is no connection to your device within 5 minutes, it switches off automatically.
Charging
Fully charge the headphones once before using them for the first time.
Switch off the headphones and connect them.

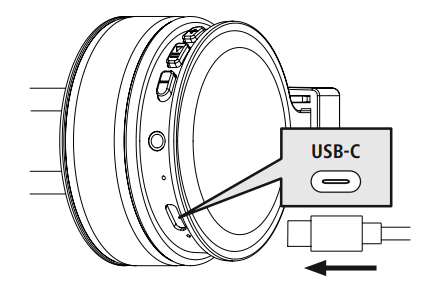

Ensure that the headphones are switched off before charging them. Connect a suitable USB-C charging cable to the socket (7). Connect the free plug on the USB-C charging cable to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using.

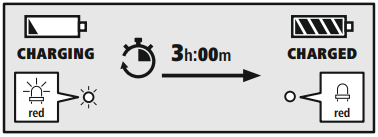

Charging process for the headphones
Battery capacity
When the headphone battery capacity is low, the LED (5) flashes red and a signal tone is heard.
Note: During the charging process, the Bluetooth® connection is automatically disconnected.
Bluetooth pairing
Note – Pairing
- Make sure that your Bluetooth®-capable device is switched on and that Bluetooth® is activated.
- For more information, please refer to the operating instructions of your device.
The headphones and the device should not be more than 1 metre apart. The shorter the distance, the better. Switch the headphones on using the MFB key (4).

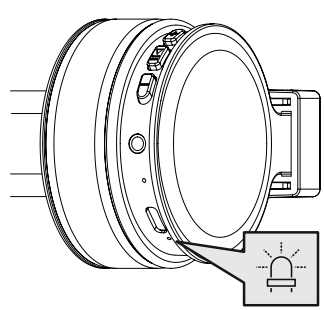

Check the status of the status LED (5) and the signal tone
If the LED (5) is flashing alternately and you hear “Pairing
Headphones are searching for a Bluetooth® connection.
If the LED (5) is flashing and you hear “Connected”:
The headphones are already paired with a Bluetooth® device.

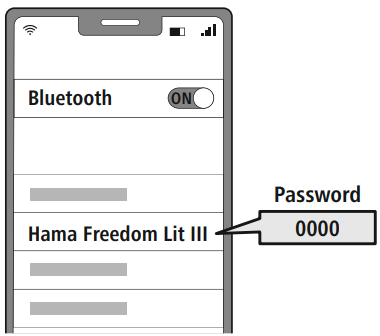

Search using your device for the headphones (only required on the first connection). Open the Bluetooth® settings on your device and wait until the list of found Bluetooth® devices shows Hama Freedom Lit III. Select Hama Freedom Lit III and wait until the headphones are shown as connected in your device’s Bluetooth® settings.
Note – Bluetooth® password
Some devices require a password in order to connect to another Bluetooth® device.
- If your device requests a password to Hama 00221765 Freedom Lit III connect to the headphones, enter 0000.
Disconnecting the Bluetooth® connection
Disconnect the headphones via your device’s Bluetooth® settings.
ControlsNote
- Please be aware that your terminal device must support some functions if they are to be used.
- For more information, please refer to the operating instructions of your device.
Voice assistant function: Press the MFB button (4) three times to initiate communication with your Siri or Google Assistant. As soon as you hear a signal tone, your voice assistant is ready to assist you.
Note – Siri
Siri is only available on suitable devices running iOS 5 (iPhone 4s or later) or higher.
Note – Google Assistant
- The Google Assistant is only available on suitable devices running Android 5.0 or higher with Google Play Services, >1.5 GB of free memory, and a minimum screen resolution of 720P.
- The Google Assistant App must be available on your device and be set as the default voice assistant.
Hands-free function
It is possible to use the earphones as a hands-free facility for your mobile phone.
- Make a call
Dial the number directly via your device to make a call. - Accept a call
Press the MFB button (4) to accept an incoming call. - Reject a call
Press and hold the MFB key (4) for around 2 seconds or use your device to reject an incoming call. - End a call
During the call, press the MFB button (4) once to end the call. - Last number redial
Press the MFB button (4) twice to redial the last number. - Audio playback
- Please note that this function is only possible Hama 00221765 Freedom Lit III when a Bluetooth® connection is active. Start playback on your device.
- Play / Pause
Press the MFB button (4) once to pause or start audio playback. - Next track
Press the + button (1) once to skip to the next track. - Previous track
Press the –button (2) once to skip to the previous track. - Volume control
Increase volume Press and hold the + button (1) for 2 seconds to increase the volume. Once the maximum volume is reached, the announcement “beep beep” is heard. - Reduce volume
Press and hold the – button (2) for 2 seconds to reduce the volume. Once the minimum volume is reached, you will hear “beep beep”.

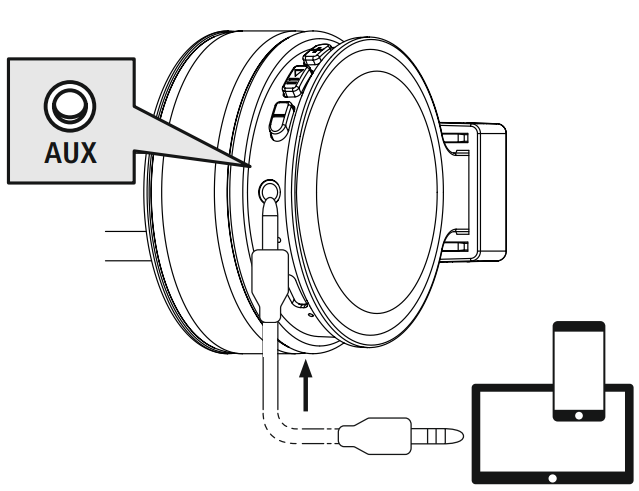

Audio playback via an audio cable (not included in the package contents). In addition to the connection via Bluetooth, you can also connect these headphones using an AUX cable. To do this, plug one end into the device and the other end into the audio input (6). When the audio cable is inserted, the Bluetooth® connection is automatically disconnected. The headphones now function like cable headphones.
Technical data
Bluetooth® headphones
- Impedance headphones / microphone 32Ω / < 2.2 kΩ
- Frequency headphones / microphone 20Hz – 20 kHz / 50Hz – 8 kHz
- Sensitivity Headphones/microphone 98 dB / -42 dB
- Range Max. 10m
- Bluetooth® technology v5.4
- Profiles HFP V1.7 / A2DP V1.3 / AVRCP V1.6
- Transmission frequency 2.4 – 2.48GHz
- Rechargeable battery Li-Po 3.7 V
- Battery capacity 245mAh
- Power consumption Max. 200mA
- Charging voltage max. 5 V USB
- Total weight 120 g
- Standby/mmusic/talktime max. 185 h / 15 h / 15 h
Care and maintenance: Only clean this product with a slightly damp, lint-free cloth, and do not use aggressive cleaning agents. Warranty disclaimer Hama Hama 00221765 Freedom Lit III GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product,orm failure to observe the operating instructions and/or safety notes. Service and Support. Please contact Hama Product Consulting if you have any questions about this product.
Hotline: +49 9091 502-0 (German/English) Further support information can be found here: support.hama.com Declaration of Conformity Hama GmbH & Co KG hereby declares that the radio equipment type [00221765, 00221766, 00221767, 00221768, 00221769, 00221770] complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:
Frequency bands 2402MHz – 2480MHz
Maximum radio-frequency power transmitted: 2.5 mW E.I.R.P.
Specifications according to Regulation (EU) 2023/826
Information regarding energy consumption can be found at:
https://support.hama.com/00221765,https://support.hama.com/00221766,
https://support.hama.com/00221767, https://support.hama.com/00221768,
https://support.hama.com/00221769, https://support.hama.com/00221770
FAQs
What is the battery life?
Depending on usage and volume, the headphones can play for up to 12 hours after a full charge.
How long does it take to charge?
With the provided USB cord, it takes about two hours to fully charge.
Can I use the headphones while charging?
Yes, you can use the headphones and still listen to music as they charge.
What is the Bluetooth range?
Without obstructions, the effective range is roughly 10 meters (33 ft).
Are the headphones compatible with all Bluetooth devices?
Indeed, they work with computers, tablets, cellphones, and other gadgets that use Bluetooth.
Do they support wired use?
In the event that Bluetooth is not available or the battery is low, the headphones do indeed come with an optional 3.5mm audio connection for wired listening.
Are the headphones foldable or portable?
Indeed, they are portable and lightweight, which makes it simple to stow them in a backpack or bag.
Can multiple devices be paired at the same time?
No, only one device can be connected to the Freedom Lit III at a time. The old device is disconnected while pairing with a new one.
