INSIGNIA NS-FPAMC23 Mesh Office Chair
Safety Instructions
- Maximum weight capacity: 275 lbs. (124.7 kg).
- Remove all parts from the carton and make sure that all parts are included prior to assembly.
- Assemble the chair on the carton or carpet to prevent scratching the chair.
- This chair is designed for sitting on the seat only and nothing else.
- Do not stand on or use it as a step ladder.
- Do not sit on the armrests.
- This chair is designed for seating one person at a time.
- Tighten all screws, knobs, bolts, and parts firmly;, otherwise, do not use.
- If any parts are missing, damaged, or worn, stop using them immediately
- Do not use power tools.

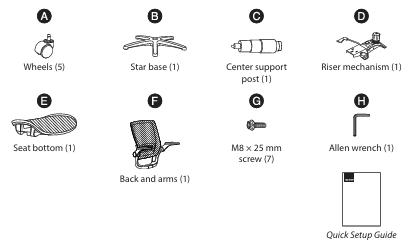

Package Content
Features
- Adjustable seat and armrests fit your body’s specific needs
- The swiveland tilt mechanism lets you customize the chair to your ideal position
- Sturdy, five-pointed star base with wheels makes it easy to move around your workspace
- Reinforced lumbar support provides maximum comfort
- Breathable mesh design grants a modern, stylish look
Assembly
- Turn the base (B) upside down on the carpet or a soft towel.
- Insert the wheel (A) posts into the holes at the ends of the star base arms until they click into place.
- Turn the seat bottom (E) upside down and place it on a padded box or small stool to support it.
- Turn the seat bottom (E) upside down and place it on a padded box or small stool to support it.
- Turn the seat bottom (E) upside down and place it on a padded box or small stool to support it.
- Turn the seat bottom (E) upside down and place it on a padded box or small stool to support it.
- Turn the base right side up, then insert the bottom of the center support post (C) into the hole in the center of the base.
- Turn the seat bottom (E) upside down and place it on a padded box or small stool to support it.
- Align the riser mechanism (D) on the bottom of the seat and attach it to the seat with four M8 × 25 mm screws (G). Tighten the bolts with the Allen wrench (H)

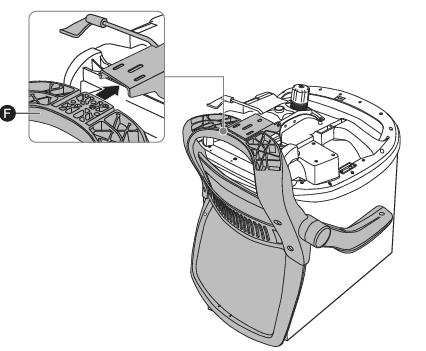

- With the seat still supported, align the holes in the bottom of the chair back with the bracket on the riser mechanism.
- Make sure that the INSIGNIA NS-FPAMC23 Mesh Office Chair arms are toward the front of the chair seat

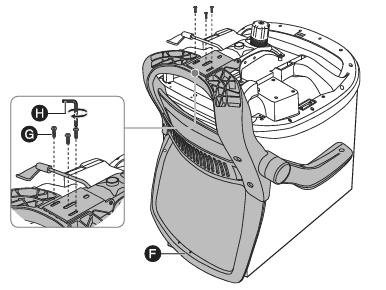

- Attach the chair back to the seat with three M8 × 25 mm screws (G).
- Tighten the bolts with the Allen wrench (H).

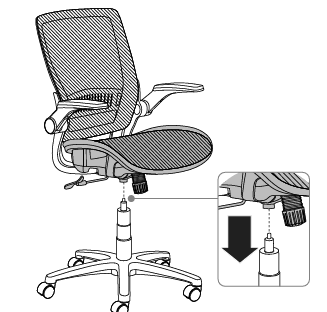

- Turn the chair back/seat assembly right side up and attach it to the chair base by guiding the top of the center support post (C) into the hole in the bottom of the riser mechanism (D).
Use
- To raise the height of the chair, lift the lever on the right side while not sitting in the chair.
- To lower the height of the chair, raise the same lever while sitting in the chair.
- To lock the back of the chair, push the left lever backward.
- To unlock the chair, pull the left lever forward
- Raise or lower the arms by pulling them up or pushing them down.

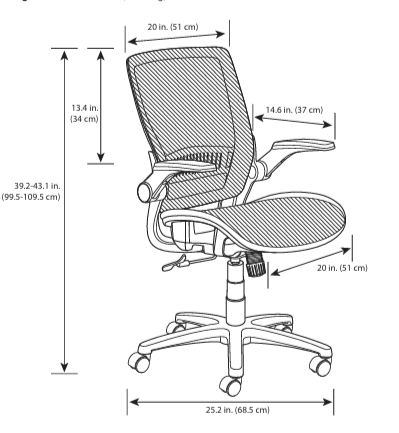

Specifications
- Dimensions (H×W×D): 43.1 × 26.4 × 26.9 in. (109.5 × 67 × 68.5 cm)
- Weight: 37.9 lbs (17.2 kg)
- Maximum weight allowed: 275 lbs. (124.7 kg
One Year Warranty
Definitions
The Distributor* of Insignia-branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for one (1) year from the date of your purchase of the Product (“Warranty Period”).
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website, please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.
Customer Support
- Ph: 1-877-467-4289
- Website: www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
